Short description

The StarTech.com PEX2S1P553B is a low-profile PCI Express Serial Parallel Combo Card with a breakout cable. It features a PCIe host interface, supporting both serial and parallel output. With a baud rate of 230.4 Kbit/s and a FIFO of 256 B, it is compatible with various Windows and Mac operating systems, making it versatile for different setups. The card is CE, FCC, and REACH certified, ensuring quality and reliability.

Available at price 51.49 €: 1 pcs.

Total available for order: 2 pcs.

Warranty: 2 Years

SKU: 298310

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.25 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 56.99 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

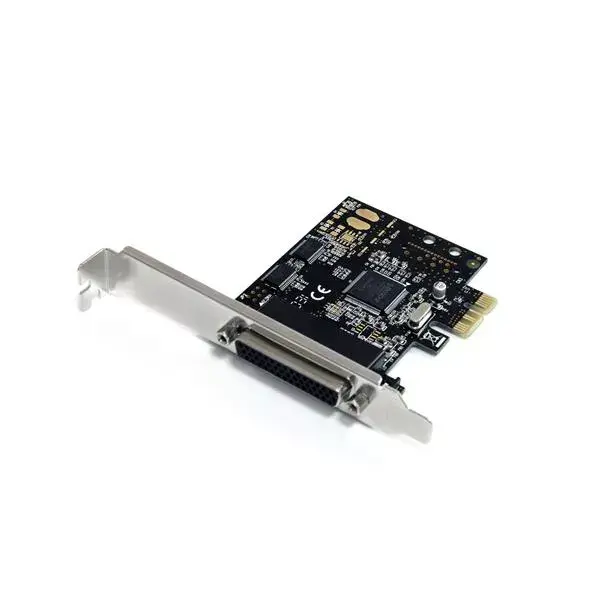

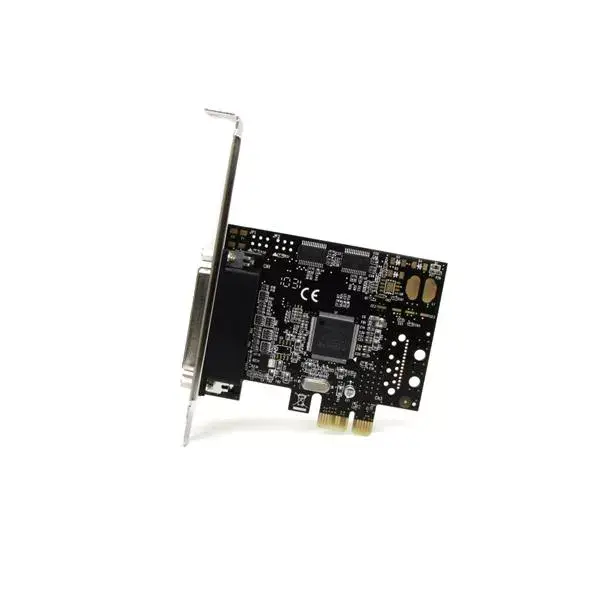

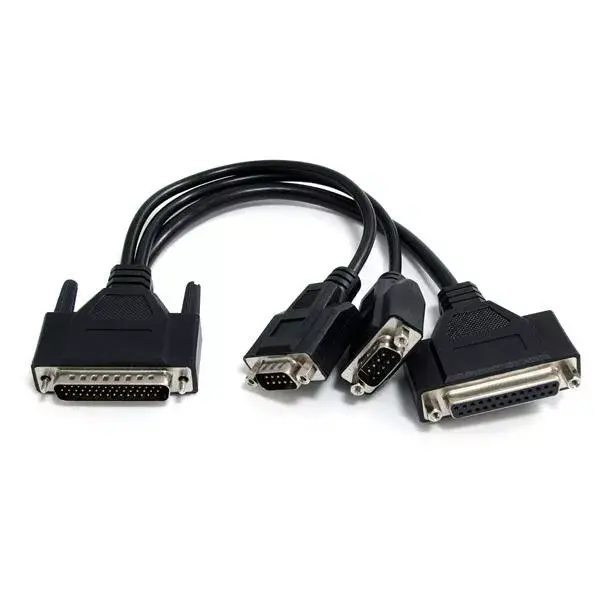

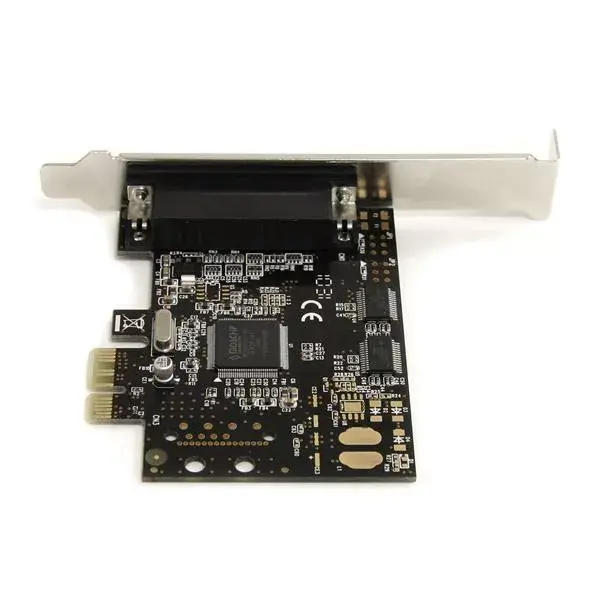

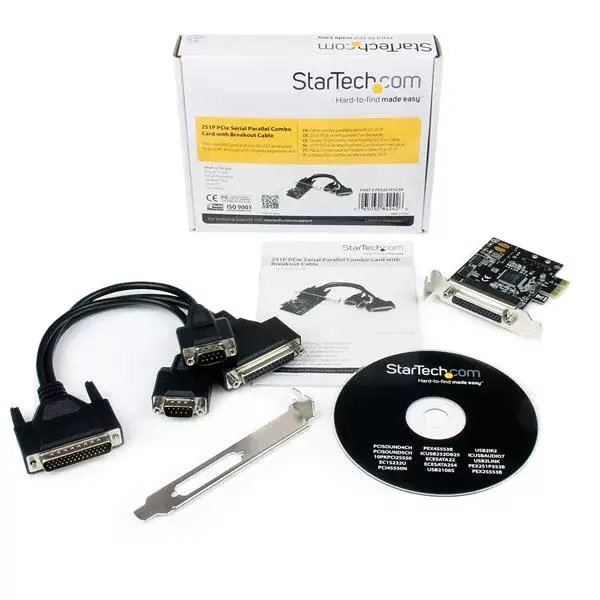

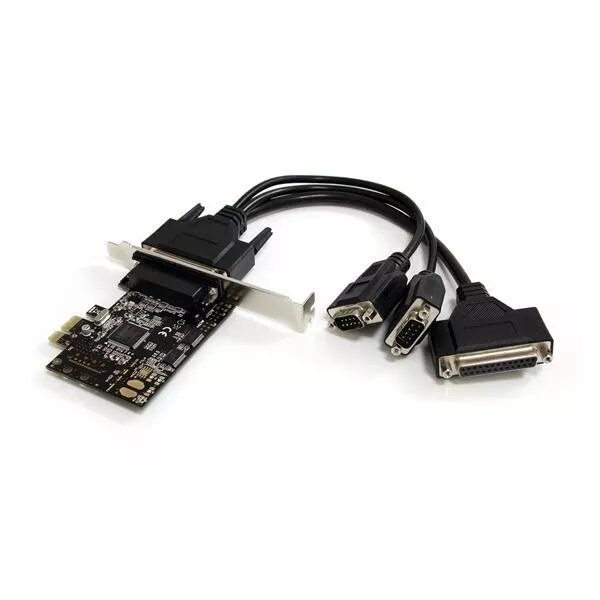

The StarTech.com PEX2S1P553B is a low-profile PCI Express serial/parallel combo card that adds two RS-232 serial ports and one parallel (printer) port to a desktop or embedded system via a single PCIe expansion slot. The card uses a single breakout cable connector to present all three external ports and includes both low-profile and full-height brackets for flexible installation. Built with a native single-chip design, it delivers improved throughput and reduced CPU load compared with bridge-chip solutions and is compatible with a wide range of operating systems.

Advantages

The PEX2S1P553B provides a space-efficient, single-slot solution for adding legacy serial and parallel ports, with a breakout cable that prevents crowded I/O connectors. Its native single-chip architecture reduces CPU utilization and improves reliability, while the low-profile form factor plus optional full-height bracket enables installation in standard and slim systems. The card supports broad OS compatibility, including 32- and 64-bit Windows versions, Linux, macOS and DOS.

Suitable for

Adding RS-232 serial ports for industrial equipment, modems, barcode scanners or POS systems
Providing a parallel printer port for legacy printers and devices
Installing in space-constrained small-form-factor or embedded PCs
Upgrading systems that require reliable serial/parallel connectivity across multiple operating systems

Key specifications

Model: StarTech.com PEX2S1P553B
Interface: PCI Express (PCIe) host interface
Ports: 2 x RS-232 serial, 1 x parallel
Baud rate: up to 230.4 Kbit/s
FIFO: 256 B
Form factor: low-profile (half-height) with optional full-height bracket
Certifications: CE, FCC, REACH
Weight: 0.225 kg
Colour: Black, Silver

How to use

Install the card into an available PCIe x1 (or larger) expansion slot on the host computer, secure the chosen bracket (low-profile or full-height), and route the included breakout cable to the external devices. Connect serial devices to the two RS-232 connectors and a parallel device to the parallel connector on the breakout cable. After hardware installation, power on the system and install drivers if the operating system does not provide native support. Configure port settings (baud rate, parity, stop bits) in the operating system or application as required by the connected devices.

Usage recommendations

For optimal performance, use quality shielded cables for serial and parallel connections and verify driver compatibility with your OS version. If connecting to industrial equipment, confirm signal levels and grounding to prevent communication errors. Keep the breakout cable connection accessible for maintenance when installed in embedded or space-limited systems.

Specifications

Host interface:: PCIe
Weight:: 0.225 kg
Internal:: Yes
Output interface:: Parallel, Serial
Product colour:: Black, Silver

All features

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Serial interface type:: RS-232
Parallel ports quantity:: 1
Serial ports quantity:: 2
Host interface:: PCIe
Output interface:: Parallel, Serial
Expansion card form factor:: Low-profile

Other features

Manual:: Yes
Drivers included:: Yes
Other operating systems supported:: Windows Embedded POSReady 2009, Windows XP Embedded

Weight & dimensions

Weight:: 0.225 kg
Package weight:: 317 g
Height:: 79 mm
Width:: 23 mm
Depth:: 95 mm

System requirements

Windows operating systems supported:: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported:: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Design

Internal:: Yes
Product colour:: Black, Silver

Performance

Certification:: CE, FCC, REACH
Chipset:: ASIX - MCS9901CV-CC
Logical block addressing (LBA) support:: 8 bit

Logistics data

Harmonized System (HS) code:: 84733020

Features

Supports EPP and ECP:: Yes
Baud rate:: 230.4 Kbit/s
Data bits:: 5, 6, 7, 8
Parity bit:: Even, Mark, N, Odd, Space
FIFO (First In, First Out):: 256

Packaging data

Cables included:: Serial
Package depth:: 143 mm
Package height:: 32 mm
Package width:: 173 mm
Mounting brackets included:: Yes
