PCIe 4-port RS232 Serial Card StarTech PEX4S953

Name: PCIe RS232 Serial Adapter Card PEX4S953
Brand: StarTech
SKU: 3455913
Price: 145.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

PCIe RS232 Serial Adapter Card 4-port, StarTech PEX4S953, 16950 UART, AX99100, Full/Low-profile

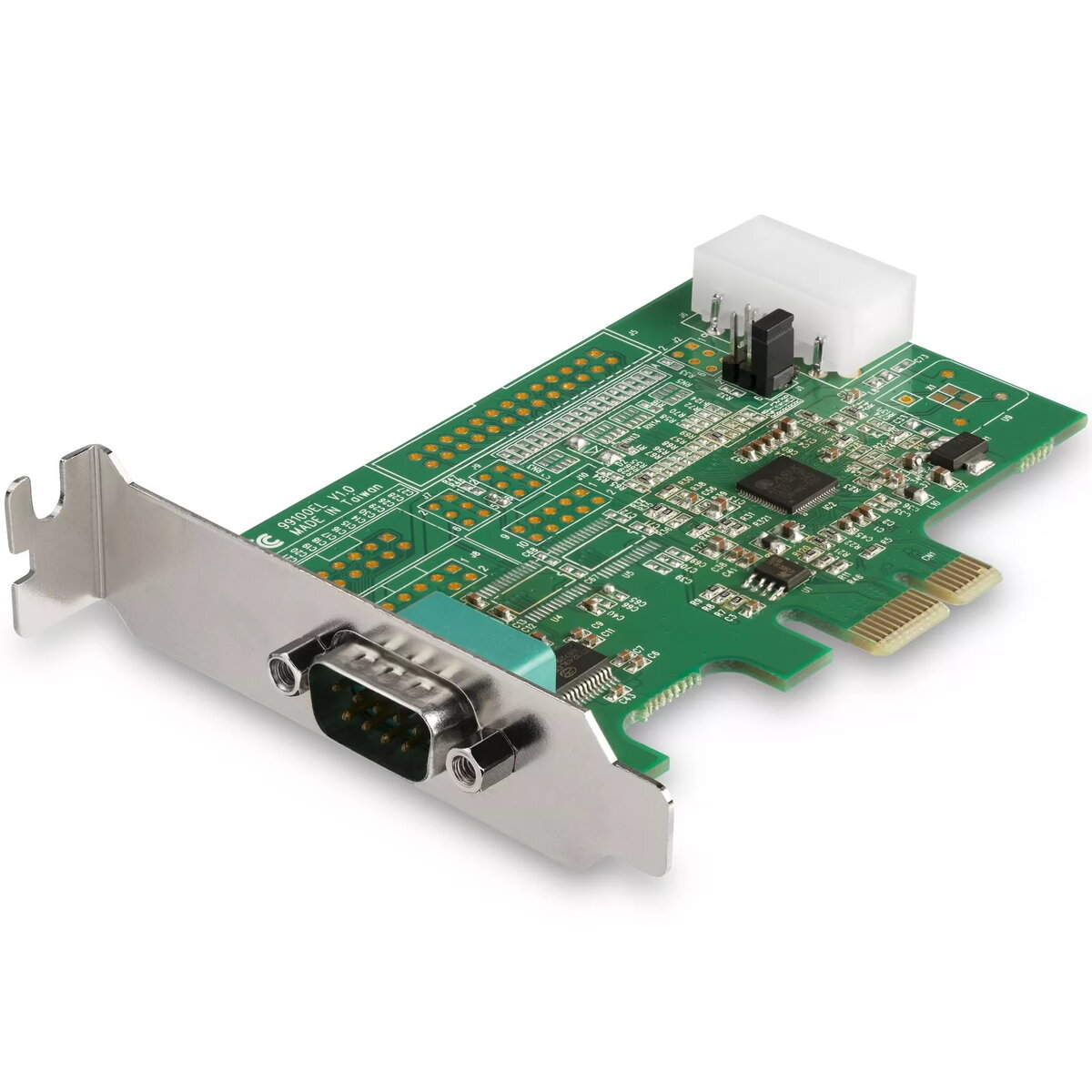

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 1

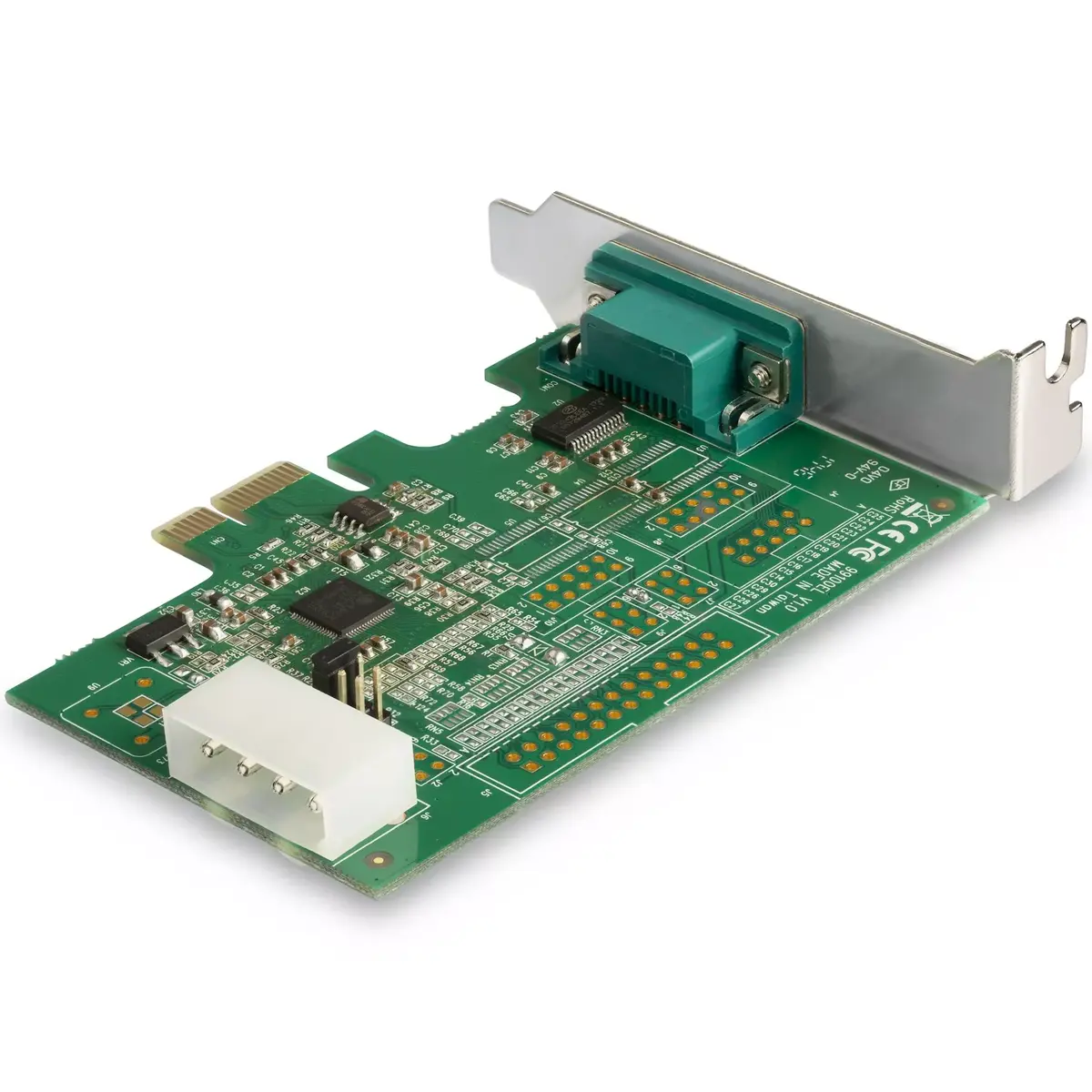

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 2

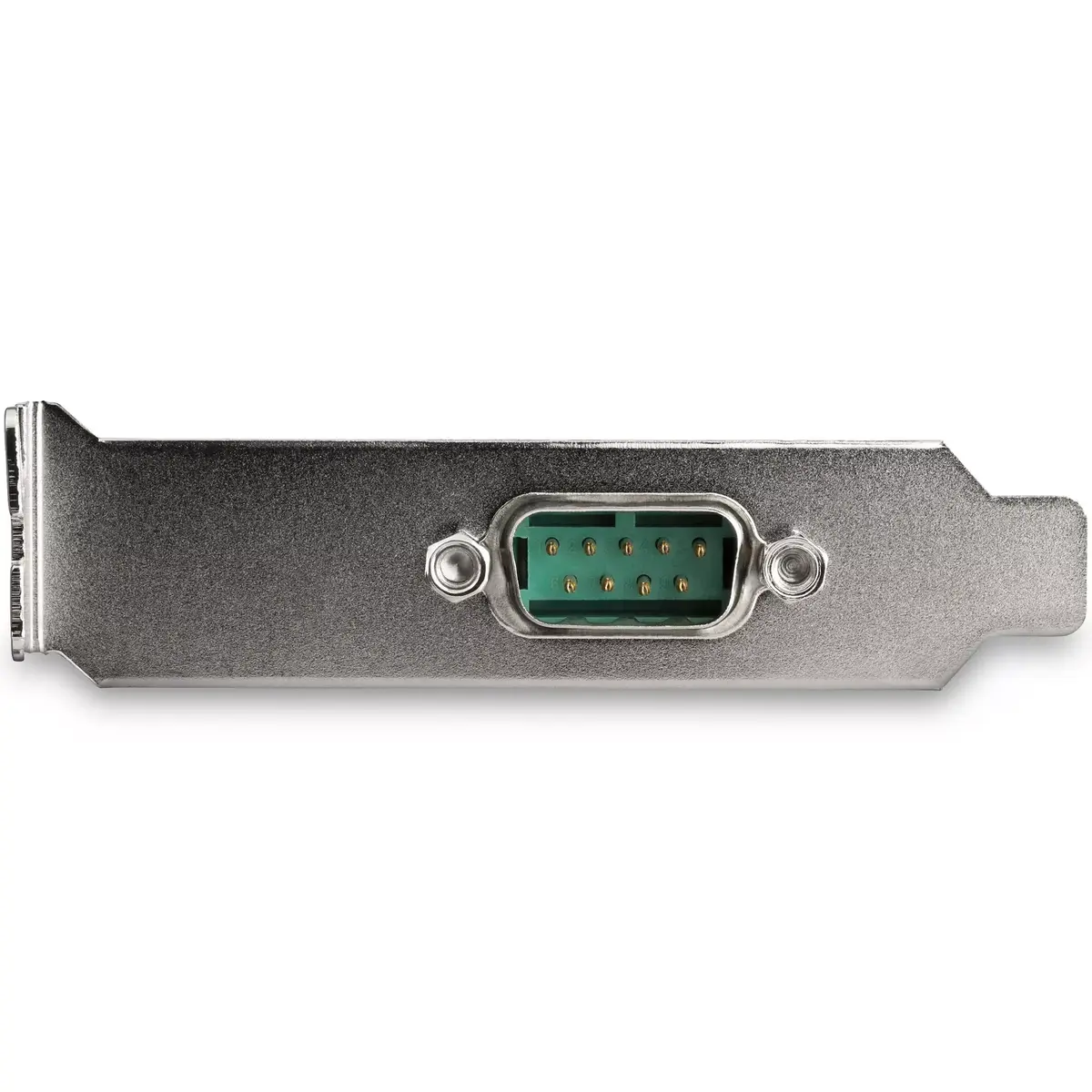

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 3

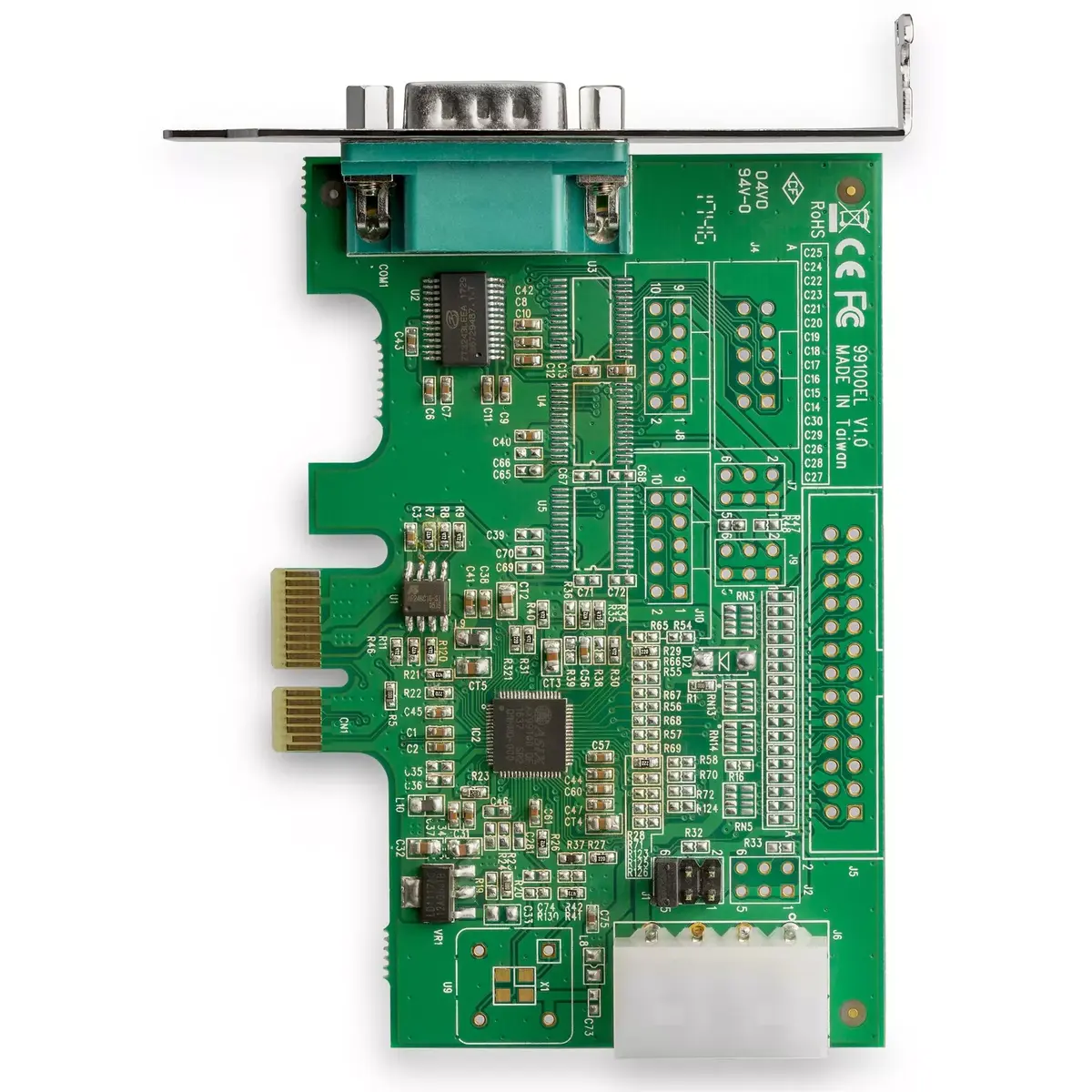

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 4

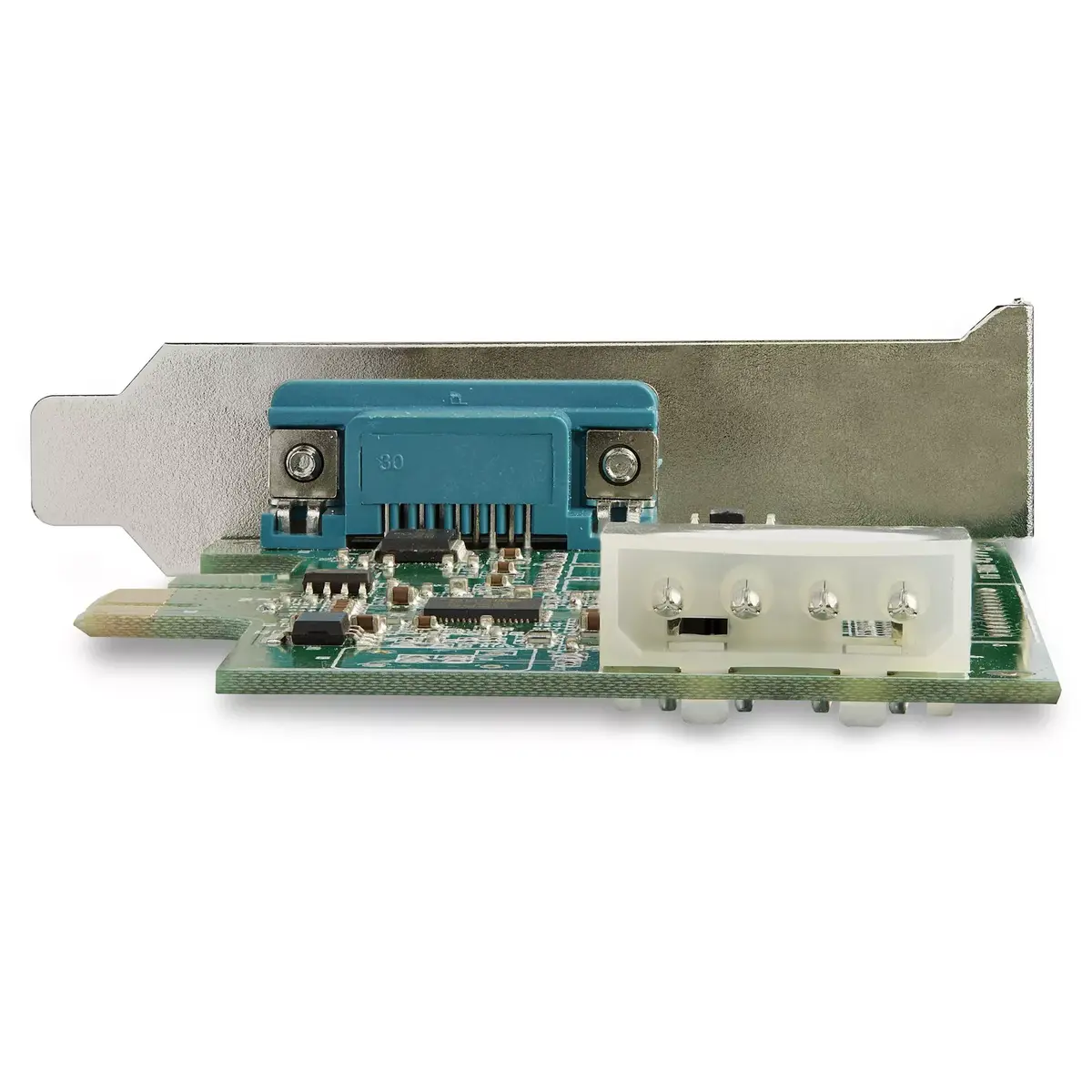

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 5

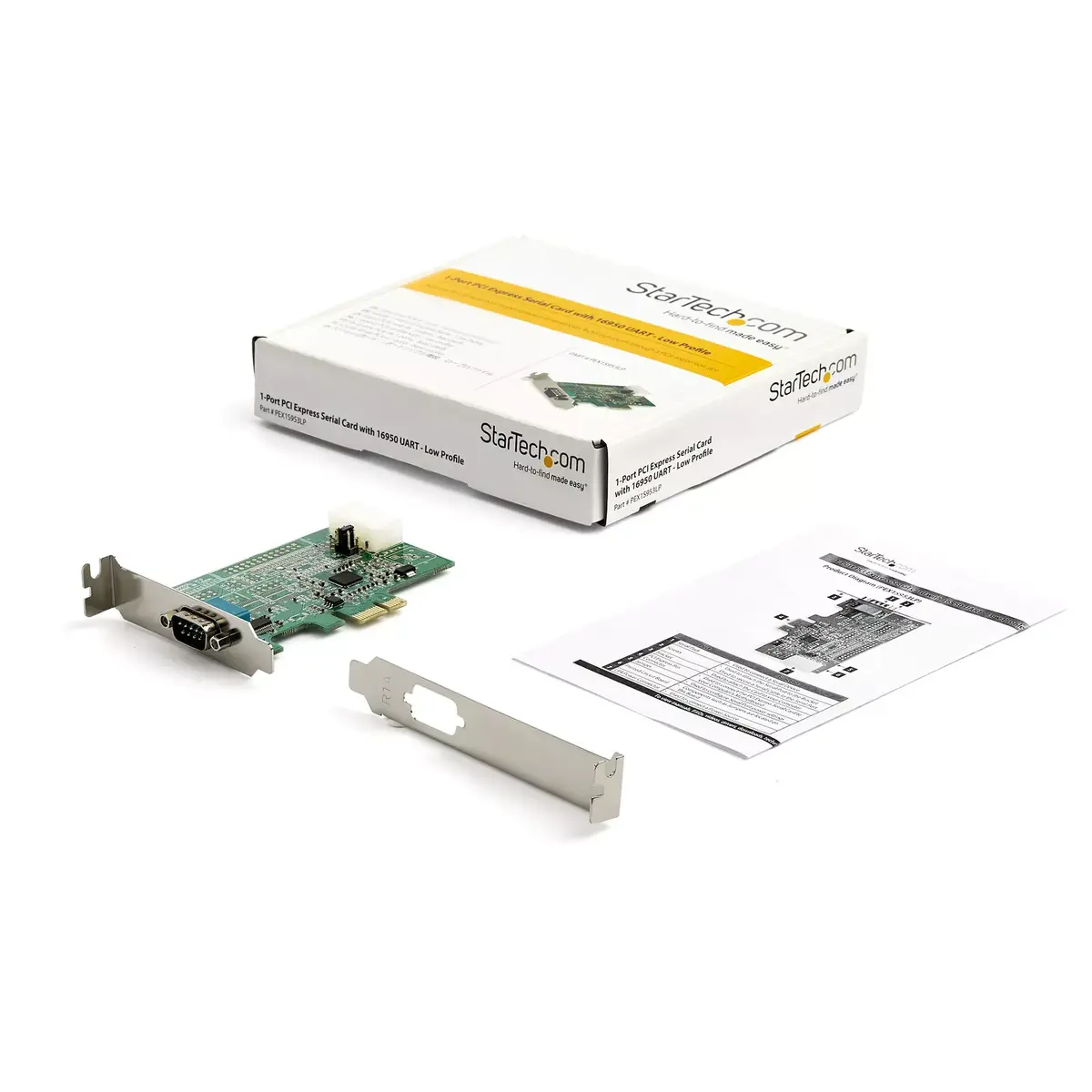

PCIe 4-port RS232 Serial Card StarTech PEX4S953 Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

StarTech PEX4S953 is a 4-port PCI Express RS232 serial adapter card with 16950 UART and Asix AX99100 chipset. It provides four DB9 serial ports via a PCIe host interface, supports up to 921.6 Kbit/s baud rate and 256 B FIFO, and fits full-height and low-profile slots. Certified CE/FCC/WHQL, MTBF 214,358 h. Suitable for industrial devices, legacy equipment, POS and serial peripherals on Windows and Linux.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 3455913

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.39 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

17.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 48.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.06 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech PEX4S953 is a 4-port PCIe RS232 serial adapter card that adds four DB9 serial ports to a computer via a PCI Express slot. Based on the Asix AX99100 chipset with 16950-compatible UART functionality, the card supports data rates up to 921.6 Kbit/s and 256-byte FIFO buffers per transmitter and receiver. It ships with a full-height bracket and an optional low-profile bracket for installation in a wide range of system enclosures and is certified to CE, FCC and WHQL standards.

Advantages

This PCIe to serial adapter provides four independent RS232 ports with 16950 UART compatibility, enabling reliable communication with legacy and industrial serial devices. With support for high baud rates up to 921.6 Kbit/s and 256 B FIFO, the card reduces CPU overhead for bursty serial traffic. The inclusion of both full-height and low-profile brackets simplifies fitting the card into standard and small form-factor systems, while broad OS compatibility and industry certifications help ensure predictable integration in professional environments.

Suitable for

Connecting legacy serial peripherals such as barcode scanners, modems and POS devices
Industrial equipment and automation controllers that require RS232 interfaces
Point-of-sale (POS) systems and payment terminals that use DB9 serial connections
Laboratory and test setups requiring multiple serial ports on a single host

Key specifications

Interface: PCI Express (PCIe) host connection
Serial ports: 4 × RS232 (DB9) ports
UART compatibility: 16950-compatible UART
Maximum baud rate: up to 921.6 Kbit/s
FIFO: 256-byte depth per transmitter and receiver
Power output: 5/12 V available on Pin 9 when external power is connected
Form factor support: full-height and low-profile brackets included
Chipset: Asix AX99100
Compliance: CE, FCC, WHQL
Reliability indicator: Mean time between failures (MTBF) reported

How to use

Install the PEX4S953 into an available PCIe slot on the host system, selecting and attaching the appropriate bracket for the case (full-height or low-profile). If required by your serial devices, connect an external power source to enable 5/12 V output on Pin 9 of the DB9 ports. Install the appropriate drivers for your operating system (Windows or Linux) and verify each COM port is recognized in the OS device manager or serial port listing. Configure serial parameters such as baud rate, data bits, parity and stop bits to match the connected equipment before initiating communication.

Usage recommendations

Match the card’s serial port settings to the attached devices (baud rate up to 921.6 Kbit/s, data bits and parity) and, when using power on Pin 9, confirm the connected peripherals accept the provided voltage. Use manufacturer drivers for your OS to ensure stable operation and consult system logs or device manager entries to troubleshoot port recognition or conflicts.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: Serial

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 371 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.05 kg
Height: The measurement of the product from head to foot or from base to top.: 15 mm
Depth: The distance from the front to the back of something.: 75 mm
Width: The measurement or extent of something from side to side.: 63 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 100
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -10 - 80

System requirements

Server operating systems supported:: Windows Server 2012, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 7 Professional, Windows 7 Enterprise, Windows 7 Home Premium x64, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Starter, Windows 8.1 x64, Windows 8.1 Pro x64, Windows 8.1 Pro, Windows 8.1 Enterprise x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8 Pro, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows 7 x64, Windows 7 Ultimate x64, Windows 7 Ultimate, Windows 7 Starter x64, Windows 7 Professional x64

Other features

Quantity: The number of products there are.: 1

Logistics data

Harmonized System (HS) code:: 84733020
Products per master (outer) case:: 16 pc(s)
Master (outer) case height:: 240 mm
Master (outer) case length:: 480 mm
Master (outer) case width:: 340 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 50 mm
Package depth: The distance from the front to the back of the packaging.: 210 mm
Package width: The distance from one side of the packaging to the other.: 150 mm
Quick installation guide:: Yes
Mounting brackets included:: Yes
Cables included:: Serial

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Features

Flow Control type:: RTS/CTS, XON/XOFF, No
Parity bit:: Space, Odd, No, Mark, Even
Stop bits:: 1, 2, 1.5
Data bits:: 7, 9, 8, 5, 6
FIFO (First In, First Out):: 256
Baud rate:: 921.6 Kbit/s

Design

Product colour: The colour e.g. red, blue, green, black, white.: Green
Internal: The product is built in.: Yes

Ports & interfaces

Serial interface type:: RS-232
Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.: 4
Expansion card form factor:: Full-height / Low-profile
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: Serial

Performance

Certification:: CE, FCC, Microsoft WHQL
Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.: 214358 h
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.: Asix AX99100

Hide Show all

Instructions

mmo_78297400_1608026018_3996_1049.pdf

startech-PEX4S953-3455913.pdf

Description

Instructions

mmo_78297400_1608026018_3996_1049.pdf

startech-PEX4S953-3455913.pdf

Machine translation. Load original

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the PCIe 4-port RS232 Serial Card StarTech PEX4S953 cost, and is it available for purchase?

The price is 145.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 3 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 12.08.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can PCIe 4-port RS232 Serial Card StarTech PEX4S953 be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the PCIe 4-port RS232 Serial Card StarTech PEX4S953 online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: internal, host interface, output interface, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for PCIe 4-port RS232 Serial Card StarTech PEX4S953?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
