Adapter PCI Express StarTech.com PEX4SFF8643

Name: Adapter PCI Express StarTech.com PEX4SFF8643 PEX4SFF8643
Brand: StarTech
SKU: 356117
Price: 37.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 3

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 4

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 5

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 6

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 7

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 8

Adapter PCI Express StarTech.com PEX4SFF8643 Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com x4 PCI Express to SFF-8643 Adapter allows you to connect PCIe NVMe U.2 SSDs to your system. It features a PCIe host interface and U.2 output interface, supporting both full-height and low-profile expansion card form factors. The adapter is compact with dimensions of 18 mm width, 81 mm depth, and 44 mm height, and comes in a striking red color. Ideal for enhancing storage capabilities in servers and workstations.

Available at price 37.49 €: 10 pcs.

Total available for order: 100 pcs.

Warranty: 2 Years

SKU: 356117

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.11 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 41.99 €: 30 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

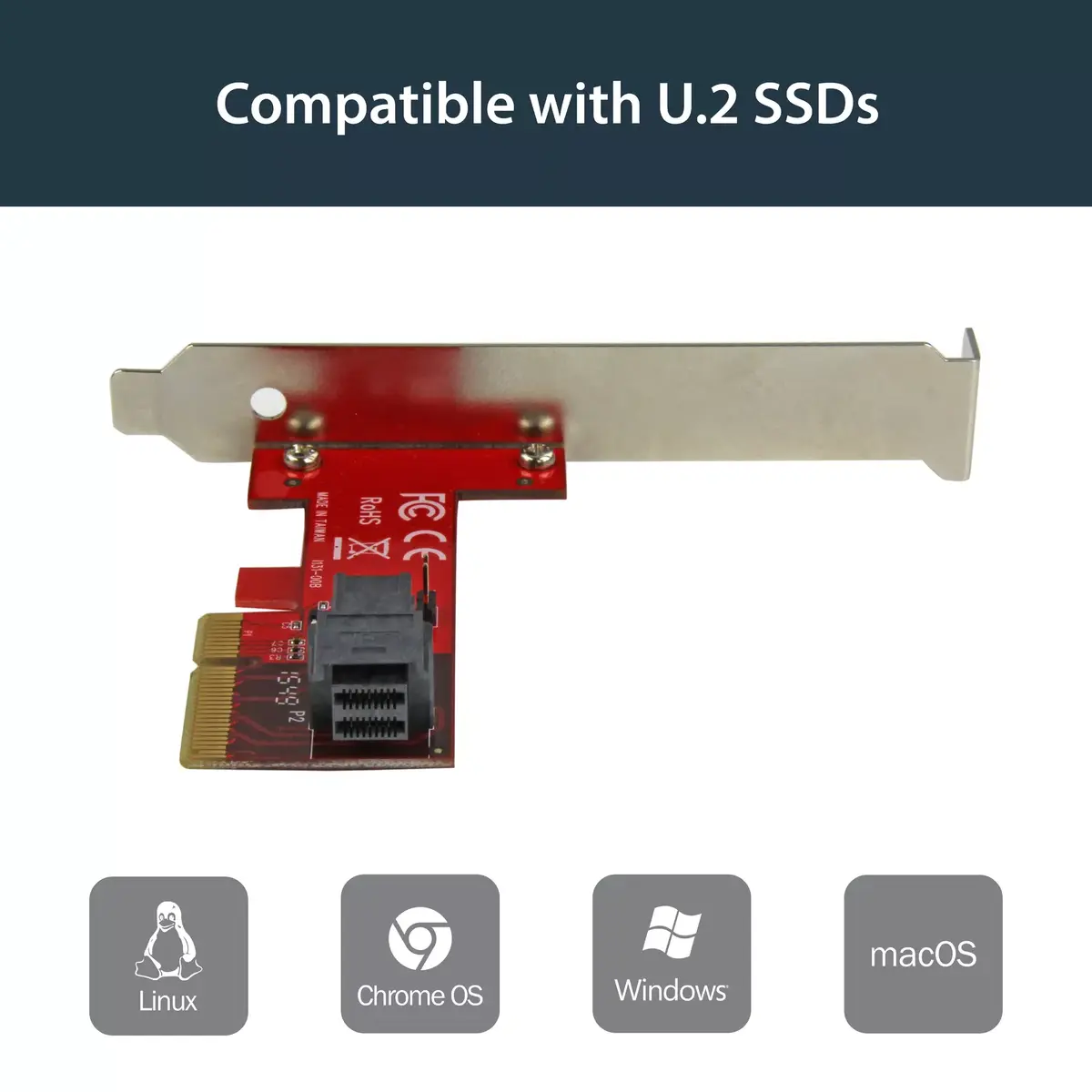

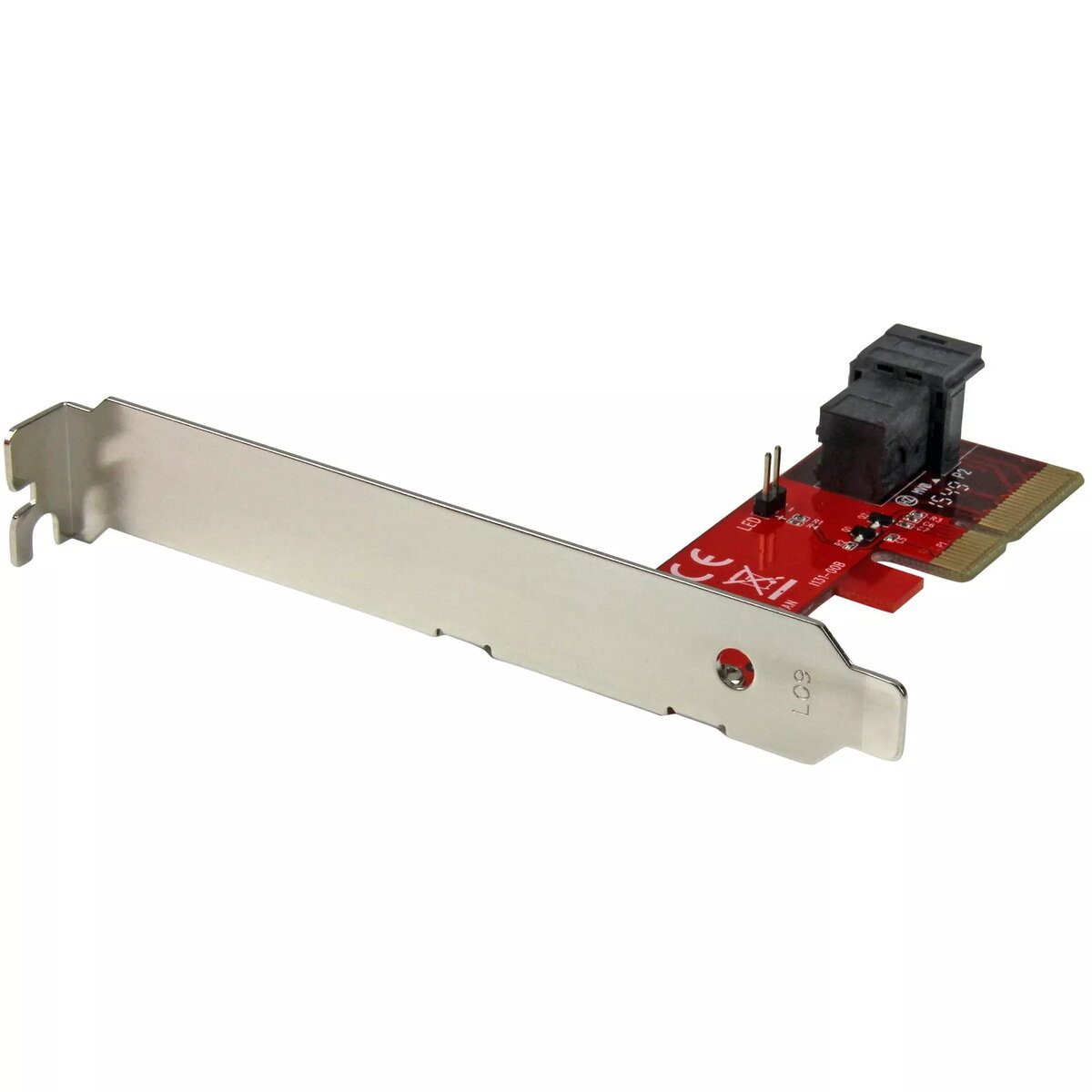

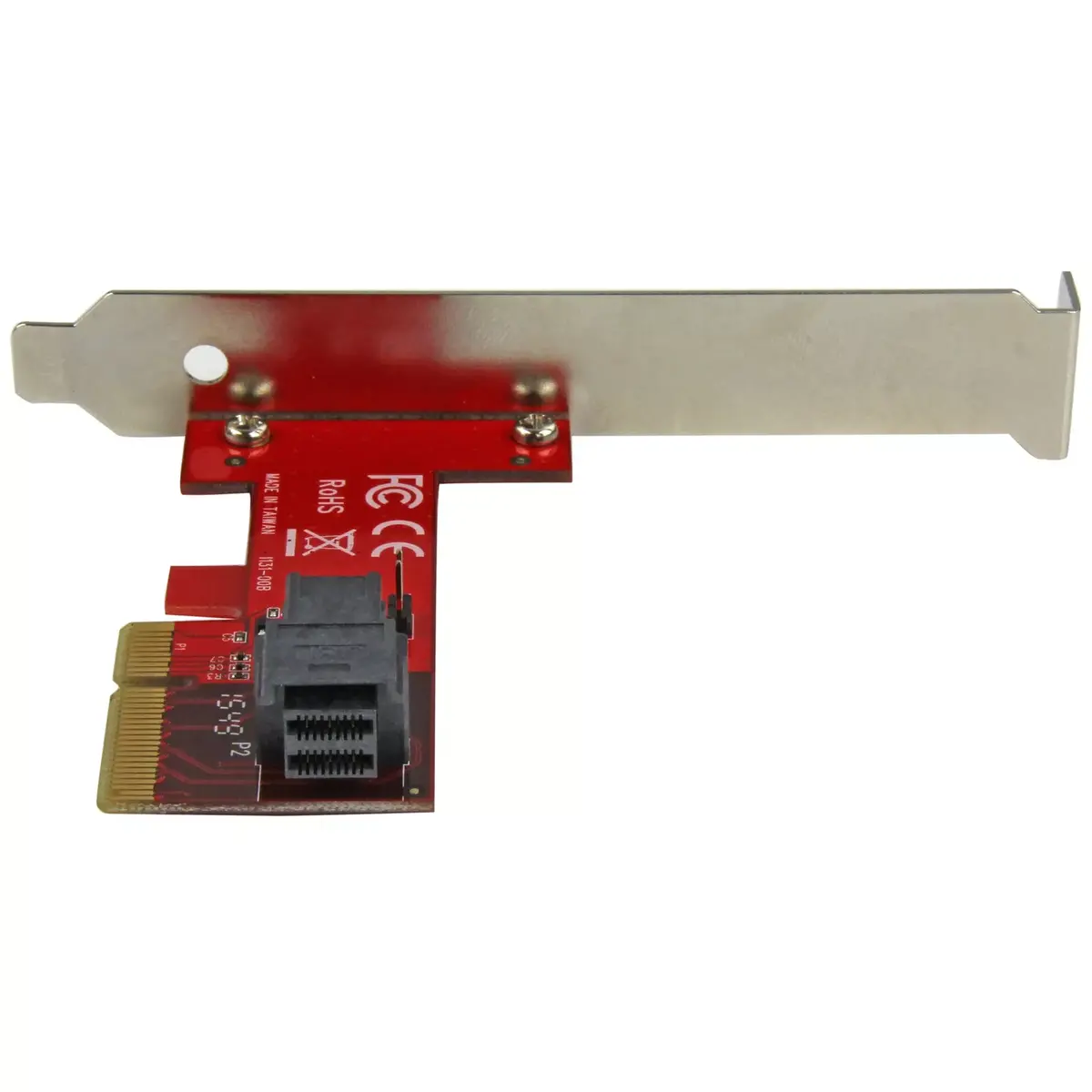

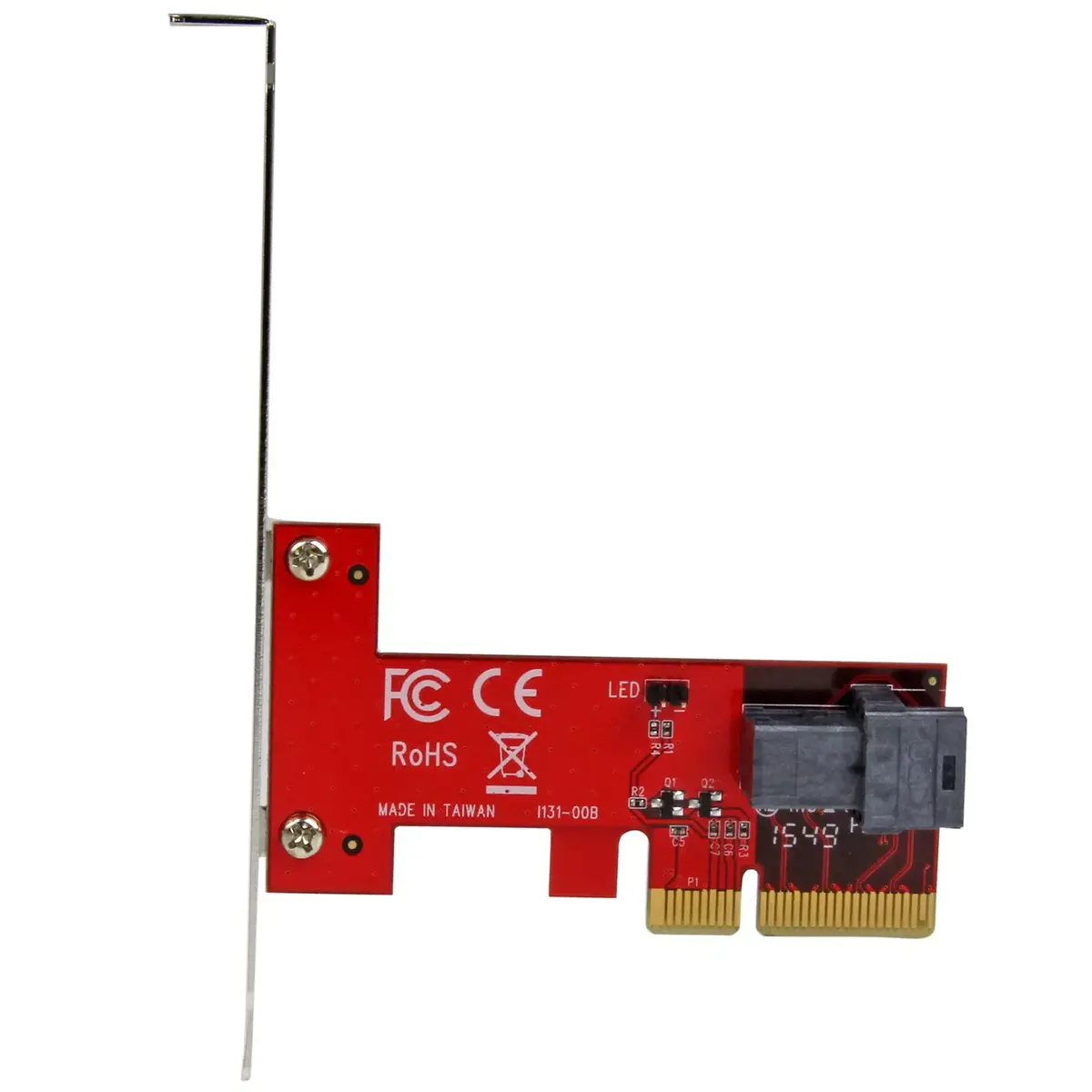

The StarTech.com PEX4SFF8643 adapter adds enterprise-class 2.5" PCIe U.2 NVMe SSD support to a desktop PC or server that lacks native U.2 connectivity. The compact, red expansion card provides a PCIe host interface and an SFF-8643 U.2 output, enabling connection of U.2 NVMe drives (for example Intel® SSD 750 series) through an SFF-8643 to U.2 cable. The card is compatible with PCIe 3.0 and PCIe 2.0 slots and ships with both a full-height bracket (preinstalled) and a low-profile bracket for small form-factor systems.

Advantages

This adapter enables cost-effective upgrades by allowing installation of modern U.2 NVMe SSDs into existing motherboards without native U.2 support, improving read/write performance and energy efficiency compared to SATA-based storage. It supports installation in any 4-lane (or greater) PCI Express slot and is compatible with common server and desktop systems. The included full- and low-profile brackets provide flexible mounting options, and the adapter is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Suitable for

Upgrading legacy desktops and servers to support U.2 NVMe SSDs
Workstations and data-center machines requiring higher I/O performance
System integrators and IT professionals performing hardware upgrades
Small form-factor PCs where a low-profile bracket is needed

Key specifications

Host interface: PCIe (x4, requires a 4-lane or greater PCI Express slot)
Output interface: SFF-8643 (for U.2 NVMe SSD connection via SFF-8643 to U.2 cable)
PCIe compatibility: PCIe 3.0 and PCIe 2.0

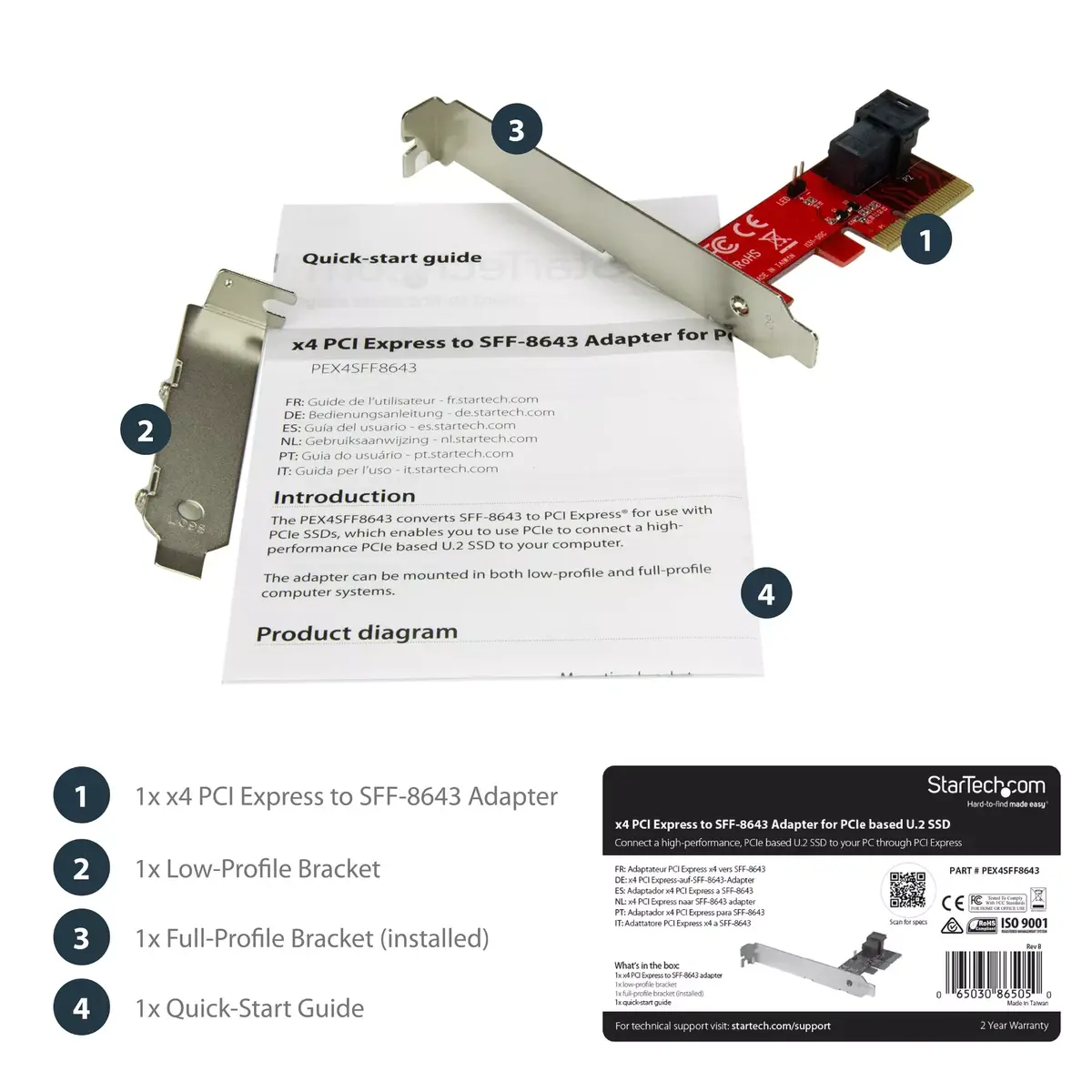

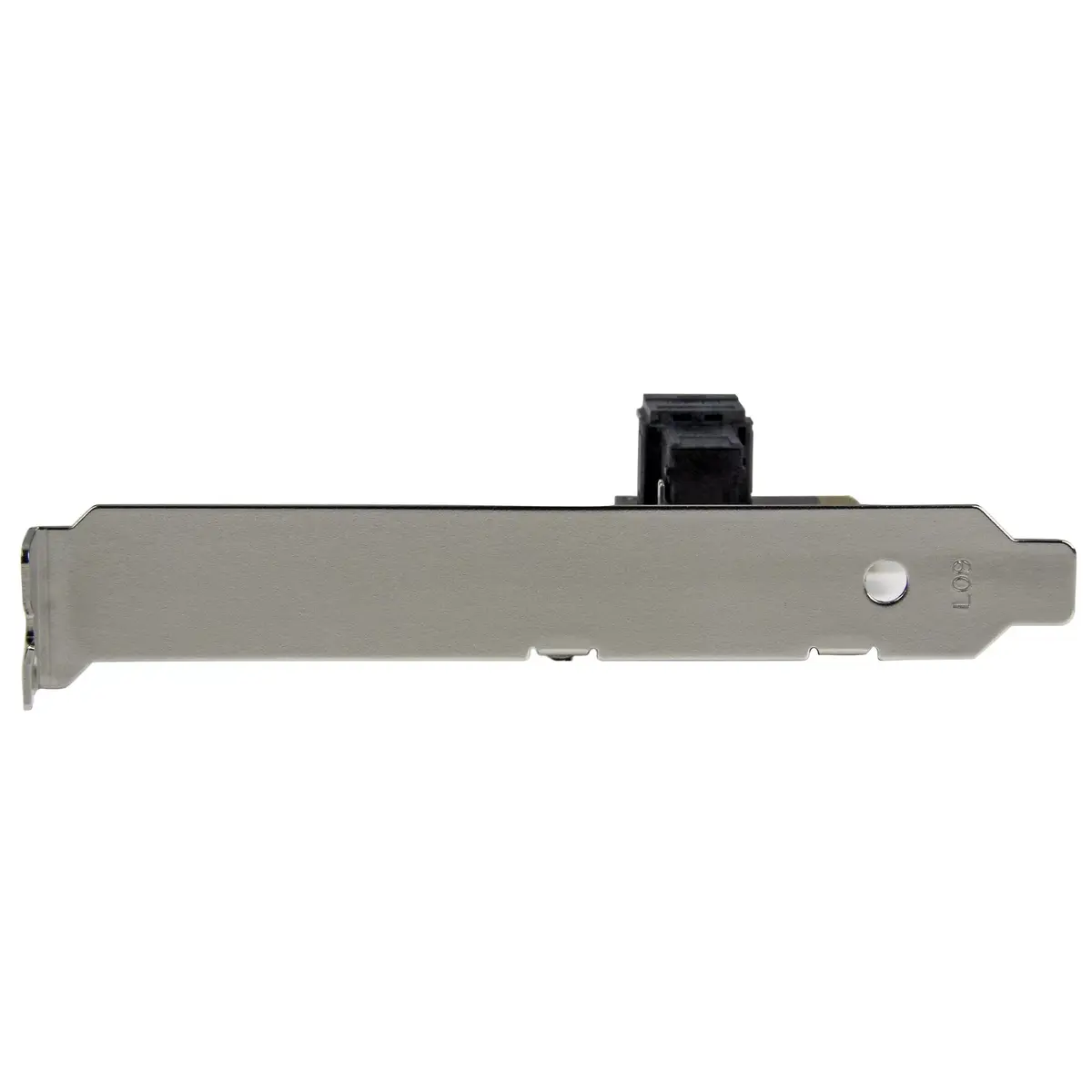

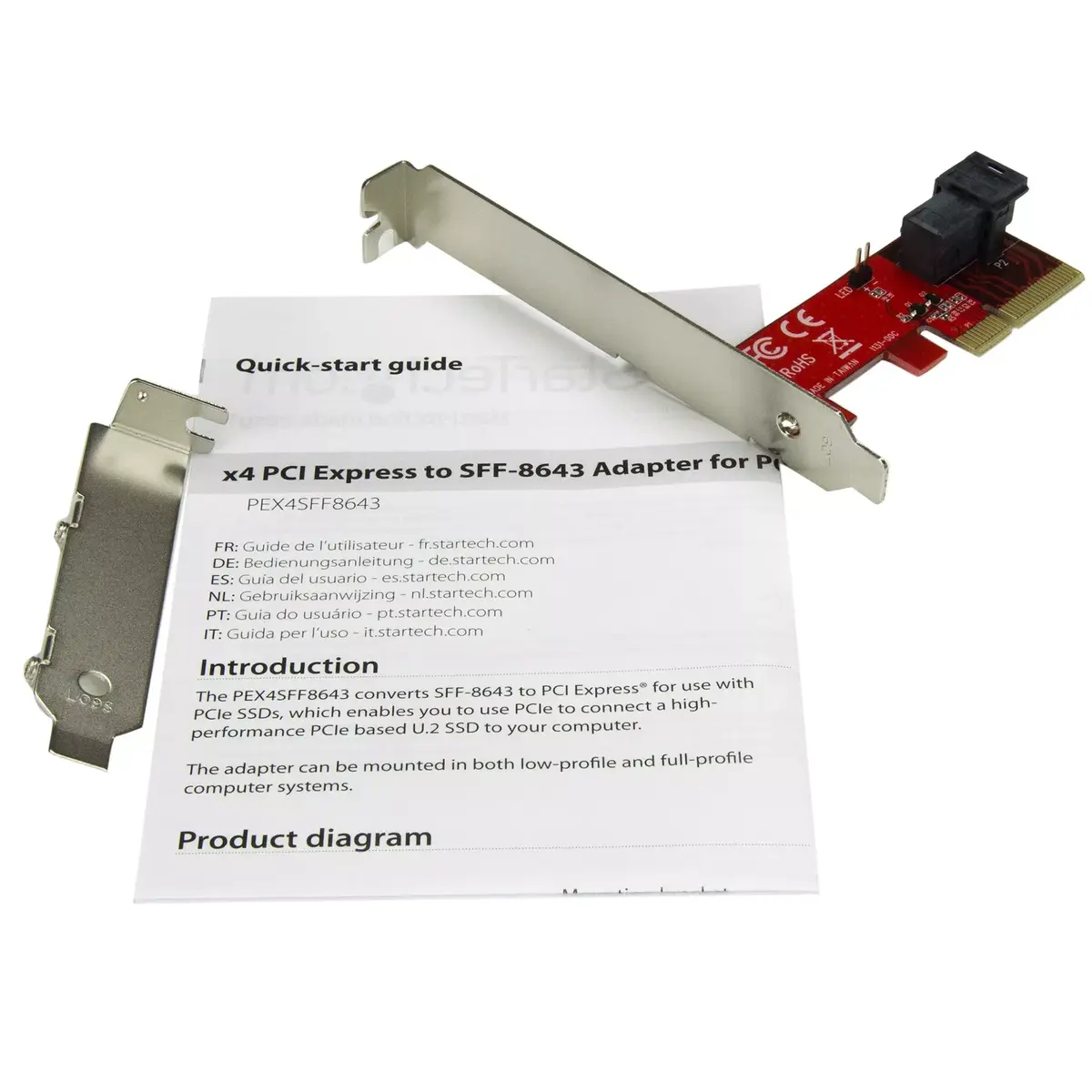

Form factor: full-height (preinstalled) and included low-profile bracket

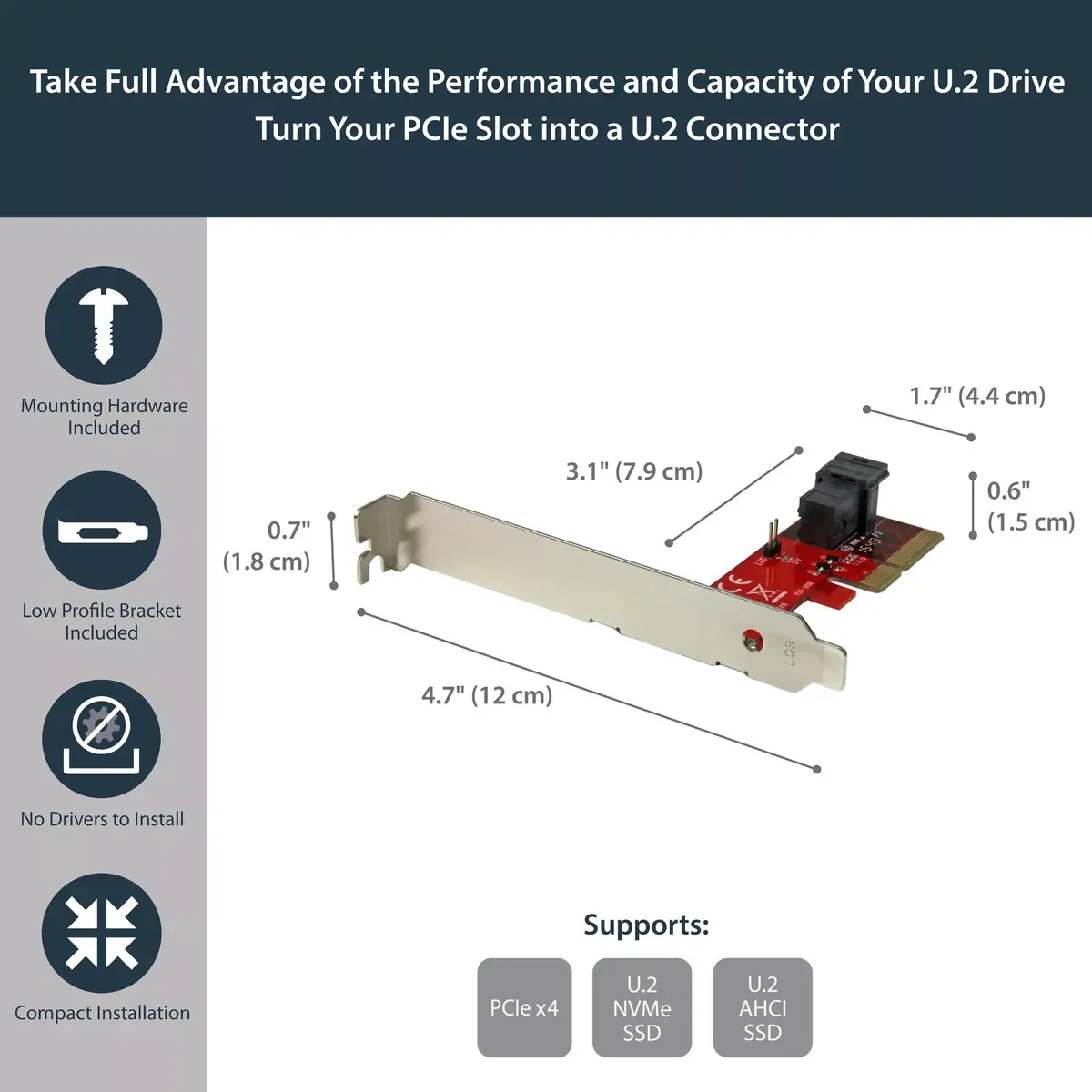

Dimensions (W x D x H): 18 mm x 81 mm x 44 mm
Weight: 0.038 kg
Product colour: Red
Manufacturer part number (MPN): PEX4SFF8643
Warranty: 2 years (StarTech.com)

How to use

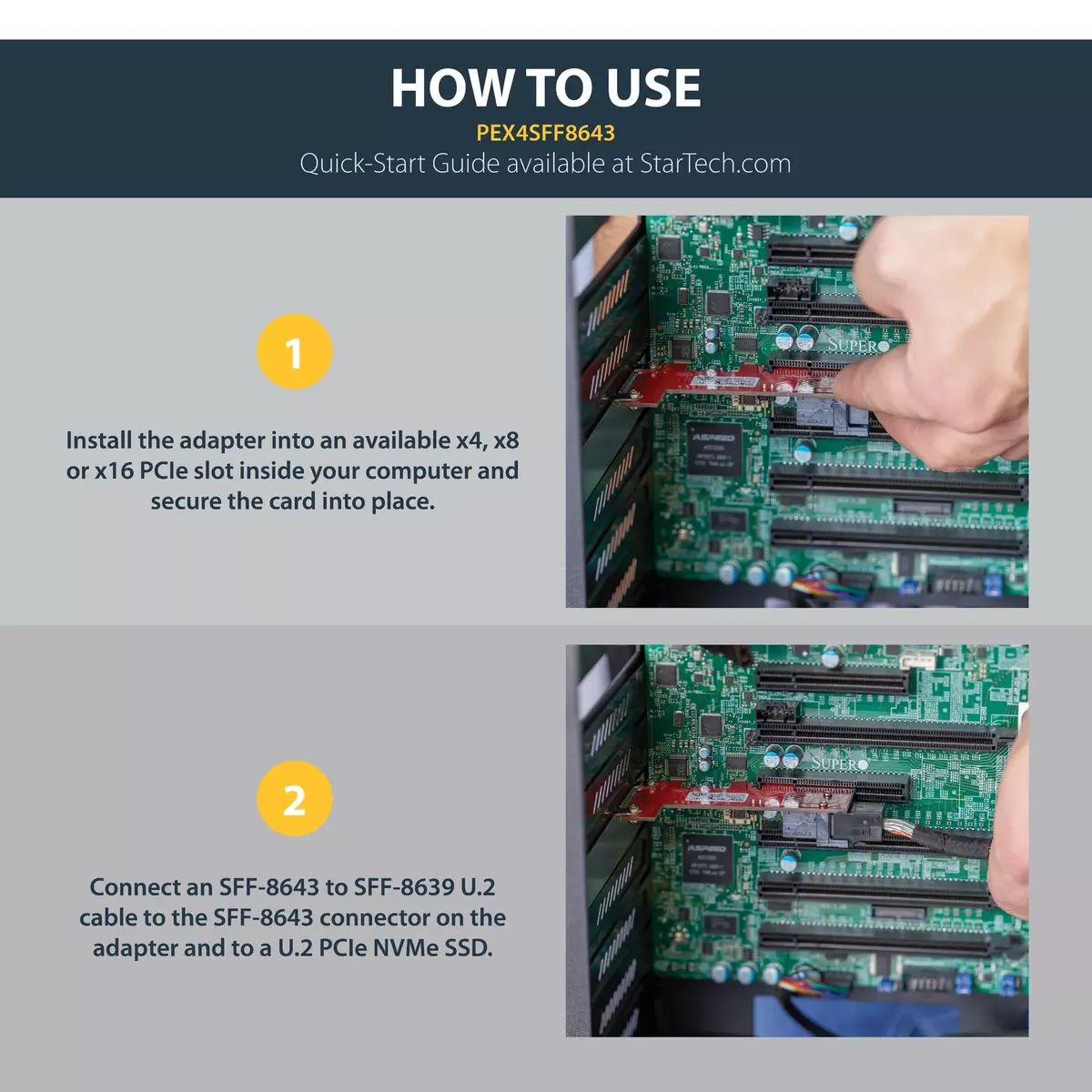

Install the adapter into an available 4-lane (or greater) PCIe slot on the desktop PC or server. Select and attach the appropriate bracket (full-height or low-profile) before mounting the card. Connect the U.2 NVMe SSD to the adapter using an SFF-8643 to U.2 cable, then secure the drive according to your chassis and drive manufacturer instructions. After installation, verify that the system BIOS/firmware recognizes the NVMe drive and install any required drivers or OS updates to enable NVMe support.

Usage recommendations

For best performance, install the adapter in a PCIe 3.0 x4 slot and use U.2 NVMe SSDs that meet your workload requirements. Ensure adequate airflow and cooling in the case when deploying enterprise NVMe drives, and confirm motherboard BIOS support for NVMe devices before installation.

Specifications

Host interface:: PCIe
Weight:: 0.038 kg
Internal:: Yes
Output interface:: U.2
Product colour:: Red

All features

Operational conditions

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -25 - 70
Operating temperature (T-T):: 5 - 50

Technical details

Sustainability compliance:: Yes
Compliance certificates:: CE, RoHS

Ports & interfaces

Host interface:: PCIe
Output interface:: U.2
Expansion card standard:: PCIe 3.0
Expansion card form factor:: Full-height / Low-profile

Weight & dimensions

Weight:: 0.038 kg
Package weight:: 111 g
Height:: 44 mm
Width:: 18 mm
Depth:: 81 mm

Design

Internal:: Yes
Product colour:: Red

Performance

LED indicators:: Y

Logistics data

Master (outer) case height:: 322 mm
Master (outer) case width:: 378 mm
Master (outer) case length:: 495 mm
Products per master (outer) case:: 60 pc(s)
Harmonized System (HS) code:: 84733020

Packaging data

Package depth:: 177 mm
Package height:: 31 mm
Package width:: 144 mm
Quick installation guide:: Yes
Mounting brackets included:: Yes

Hide Show all

Instructions

mmo_32930325_1667899580_1831_5312.pdf

startech-PEX4SFF8643-356117.pdf

Description

Instructions

mmo_32930325_1667899580_1831_5312.pdf

startech-PEX4SFF8643-356117.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH357	30	08.07.2026	41.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH15	10	02.07.2026 Best delivery	37.49 € Best price
EU9	30	02.07.2026 Best delivery	38.49 €
WH109	30	16.07.2026	43.49 €

41.99 €

Stock: 30

Delivery Date: 08.07.2026

Warehouse: WH357

Available only for legal entities

37.49 €

Stock: 10

Delivery Date: 02.07.2026 Best delivery

Warehouse: WH15

38.49 €

Stock: 30

Delivery Date: 02.07.2026 Best delivery

Warehouse: EU9

43.49 €

Stock: 30

Delivery Date: 16.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Adapter PCI Express StarTech.com PEX4SFF8643 cost, and is it available for purchase?

The price is 37.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 100 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 02.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: host interface, weight, internal, output interface, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Adapter PCI Express StarTech.com PEX4SFF8643?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
