Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2

Name: Dual M.2 PCIe SSD Adapter PEX8M2E2
Brand: StarTech
SKU: 3199815
Price: 212.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

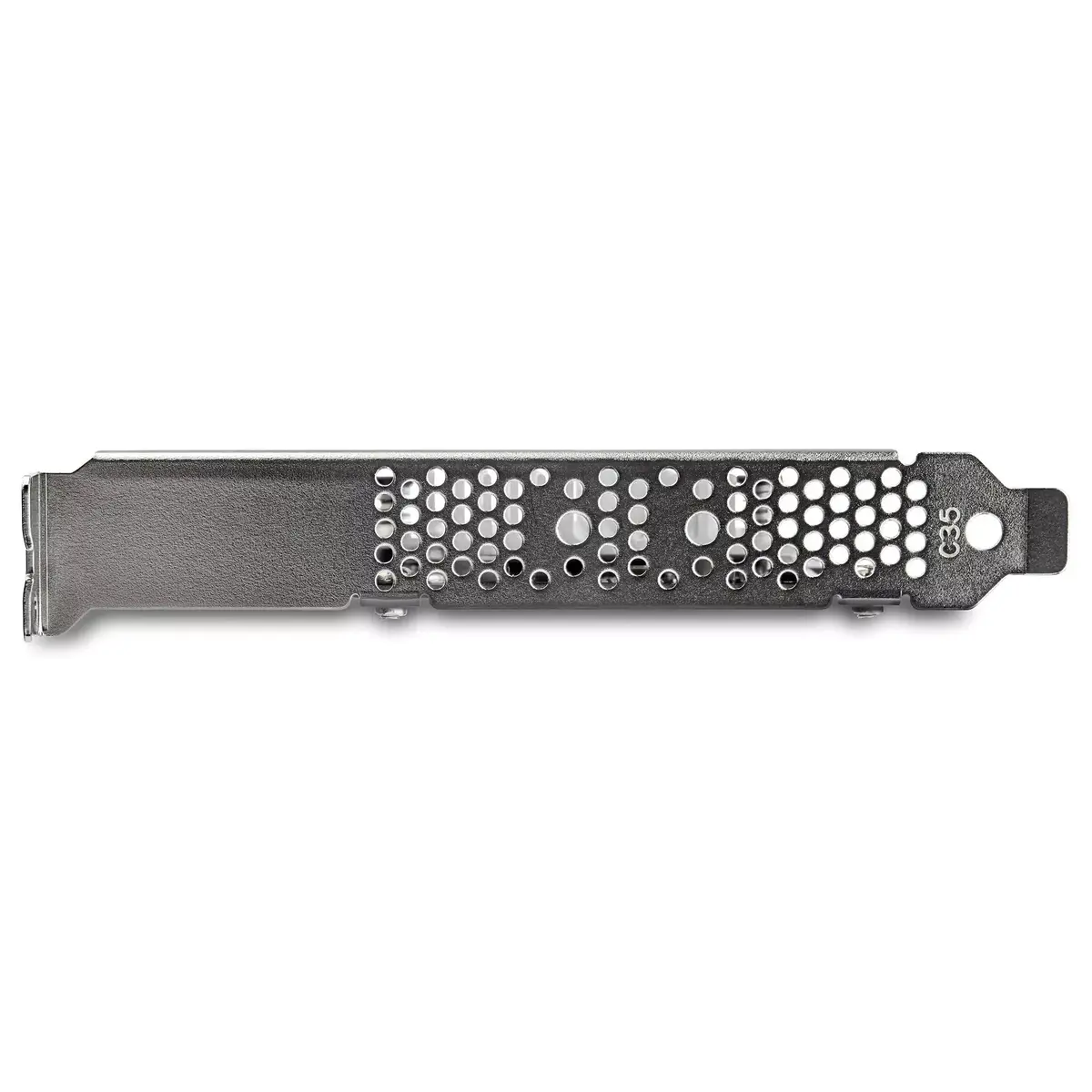

Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2 Photo 3

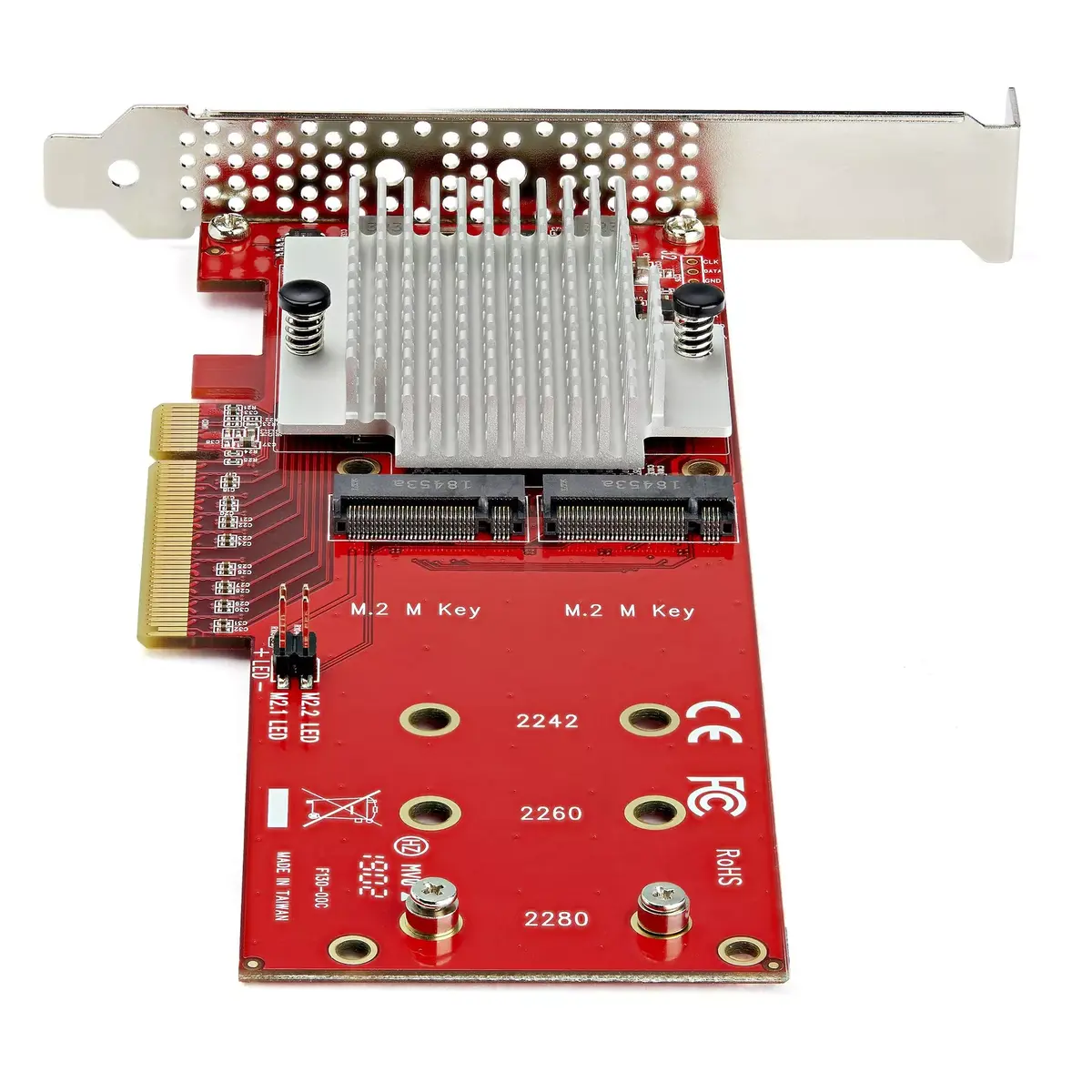

Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2 Photo 4

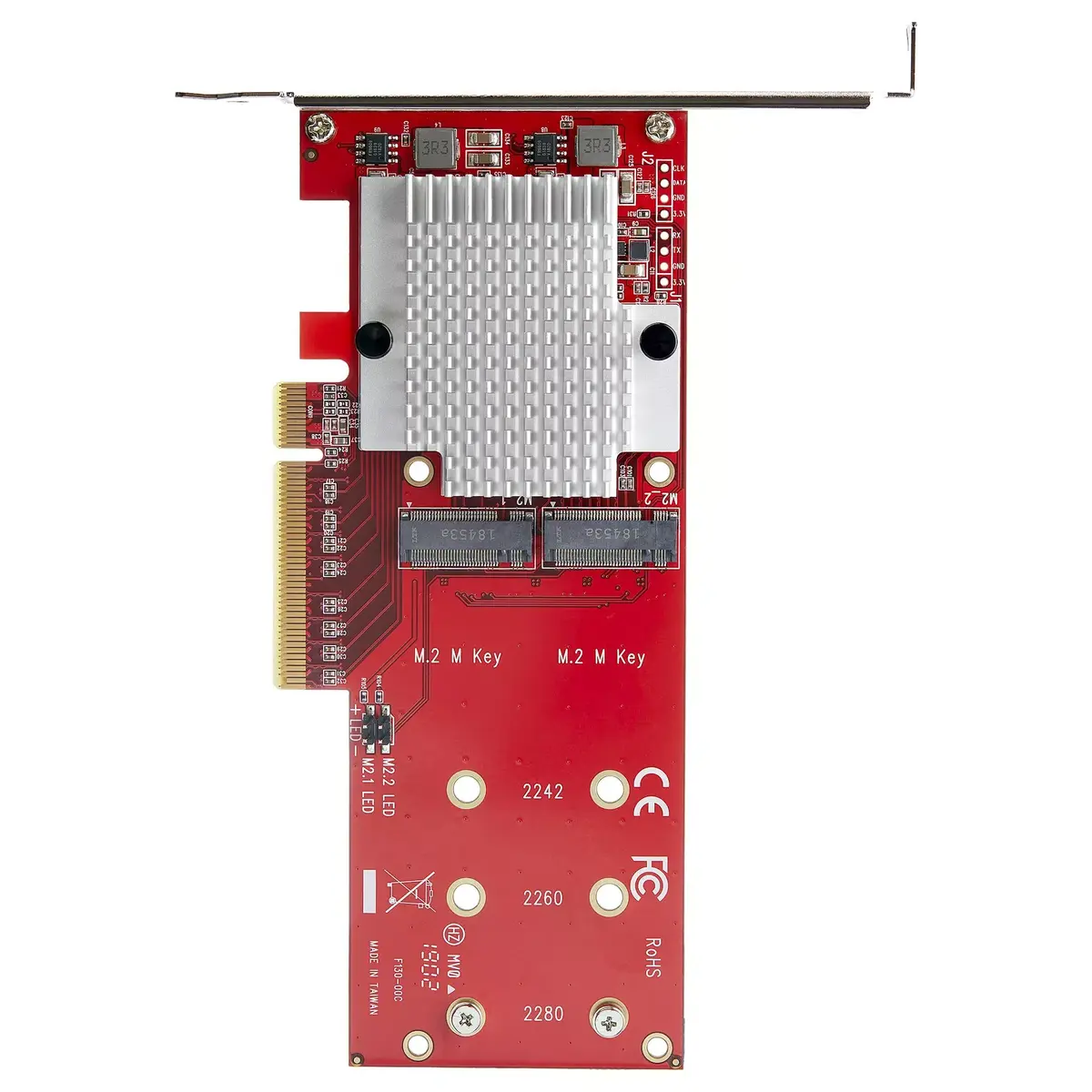

Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2 Photo 5

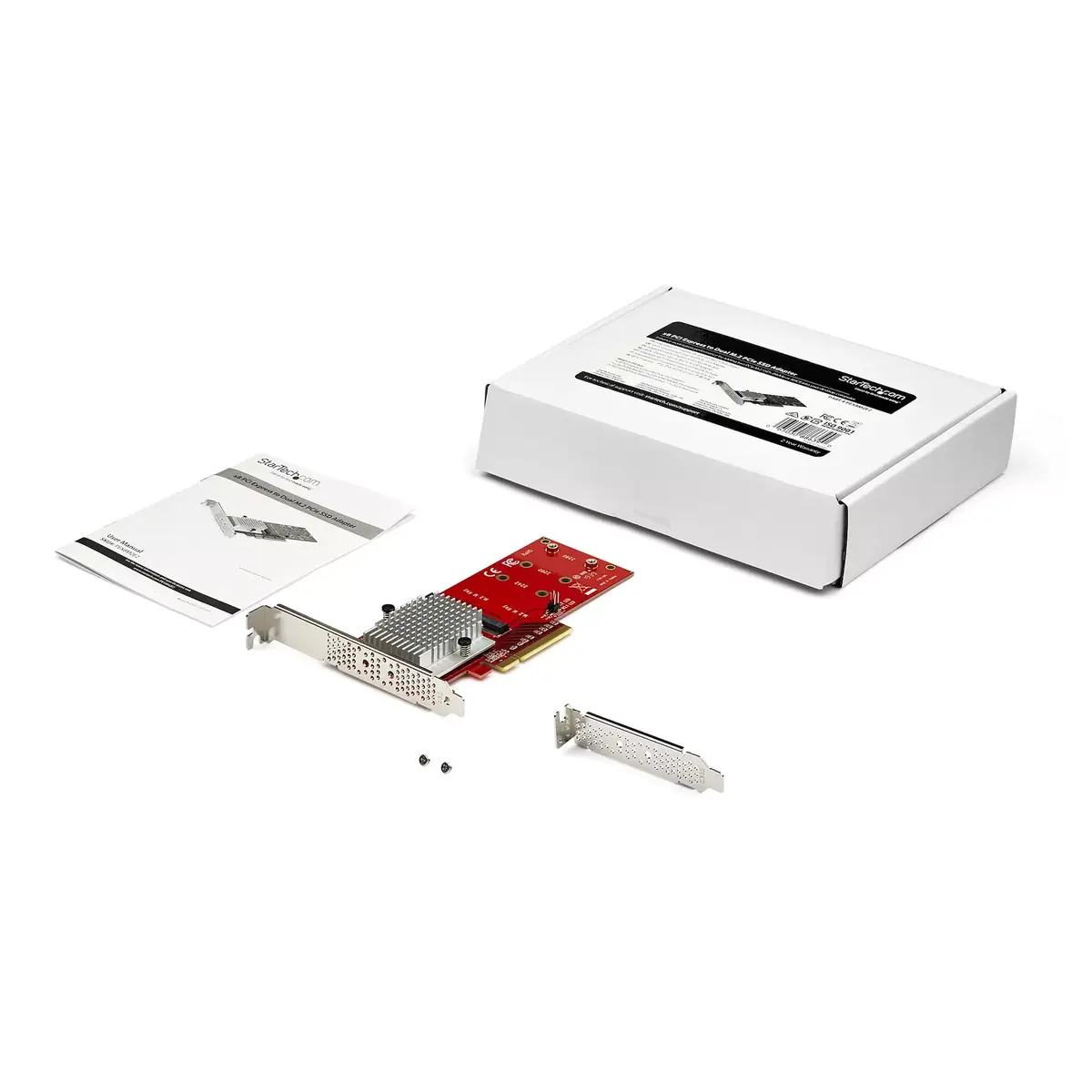

Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2 Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech Dual M.2 PCIe SSD Adapter Card allows you to connect two NVMe or AHCI M.2 SSDs to your PC via PCI Express 3.0. It supports 2242, 2260, and 2280 sizes and offers a maximum data transfer rate of 8 Gbit/s. With a compact design and a robust ASMedia chipset, this adapter is ideal for enhancing storage performance in both Mac and PC systems. Certified by CE, FCC, TAA, and REACH, it ensures reliability with an MTBF of over 3 million hours.

Available at price 212.49 €: 17 pcs.

Total available for order: 41 pcs.

Warranty: 2 Years

SKU: 3199815

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

21.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.20 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

21.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 253.49 €: 17 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Dual M.2 PCIe SSD Adapter Card StarTech PEX8M2E2 enables installation of two PCIe 3.0 M.2 SSDs (NVMe or PCIe-AHCI) into a desktop workstation or server via an x8 (or larger) PCIe slot. The adapter supports common M.2 lengths (2242, 2260, 2280) and uses a high-speed ASM2824 switch to provide simultaneous access to both drives without requiring motherboard PCIe bifurcation. The card includes full-height and low-profile brackets, vented bracket design for improved airflow, and is compatible with PCIe 3.0 while remaining backward compatible with PCIe 2.0/1.0.

Advantages

This Dual M.2 PCIe SSD adapter increases storage capacity and data transfer performance by allowing two M.2 PCIe drives to operate through a single x8 PCIe slot. The ASM2824 switch enables concurrent access to both drives and simplifies integration on systems that lack PCIe bifurcation support. The adapter supports multiple M.2 lengths and both NVMe and PCIe-AHCI protocols, includes vented brackets for heat dissipation, and ships with both full-profile and low-profile mounting options for broad system compatibility.

Suitable for

Upgrading desktop workstations or servers with additional high-performance storage
Building or expanding NVMe/AHCI M.2 storage arrays via software RAID
Systems without motherboard PCIe bifurcation support that require multiple M.2 drives
Small form-factor PCs using the included low-profile bracket

Key specifications

Model: StarTech PEX8M2E2
Interface to host: PCIe (x8 required)
Supported card standard: M.2 (M Key) 2242 / 2260 / 2280
Supported protocols: PCIe 3.0 NVMe and PCIe-AHCI
Switch chipset: ASMedia ASM2824 (allows simultaneous access to two drives)
Compatibility: PCIe 3.0, backward compatible with PCIe 2.0 and 1.0
Brackets: full-height (pre-installed) and low-profile included; vented design for airflow
Product colour: Red
Weight: 0.088 kg
Certifications: CE, FCC, TAA, REACH

How to use

Power down the computer and insert the adapter into an available x8 (or larger) PCIe expansion slot on the motherboard. Secure the chosen bracket (full-height or low-profile) to the chassis and install one or two M.2 drives into the M.2 sockets, fastening them with the supplied standoffs and screws. Reassemble the case, power on the system and verify drive detection in the BIOS/UEFI or operating system. Configure drives individually or create a software RAID array using the OS tools if redundancy or combined performance is required.

Usage recommendations

Install the adapter in a PCIe x8 or larger slot for full performance, ensure proper airflow around the vented brackets to assist cooling, and update system firmware and OS drivers if necessary to guarantee NVMe support and optimal drive detection.

Specifications

Host interface:: PCIe
Weight:: 0.088 kg
Internal:: Yes
Output interface:: M.2
Product colour:: Red

All features

Operational conditions

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -25 - 70
Operating temperature (T-T):: 0 - 70

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Host interface:: PCIe
Output interface:: M.2
Number of M.2 (M) slots:: 2
SATA connector insertion cycles:: 60
Expansion card standard:: PCI 3.0

Other features

Quantity:: 1

Weight & dimensions

Weight:: 0.088 kg
Package weight:: 157 g
Height:: 69 mm
Width:: 16 mm
Depth:: 159 mm

System requirements

Supported storage drive heights:: 22

Design

Internal:: Yes
Product colour:: Red

Performance

Certification:: CE, FCC, TAA, REACH
Mean time between failures (MTBF):: 3336103 h
Chipset:: ASMedia - ASM2824
Hot-swap:: Yes

Logistics data

Master (outer) case height:: 495 mm
Master (outer) case width:: 340 mm
Master (outer) case length:: 460 mm
Products per master (outer) case:: 40 pc(s)
Harmonized System (HS) code:: 84733020

Packaging data

Package depth:: 217 mm
Package height:: 40 mm
Package width:: 157 mm
User guide:: Yes
Mounting brackets included:: Yes
Screws included:: Yes

Features

Plug and Play:: Yes
Data transfer rate (max):: 8 Gbit/s

Hide Show all
