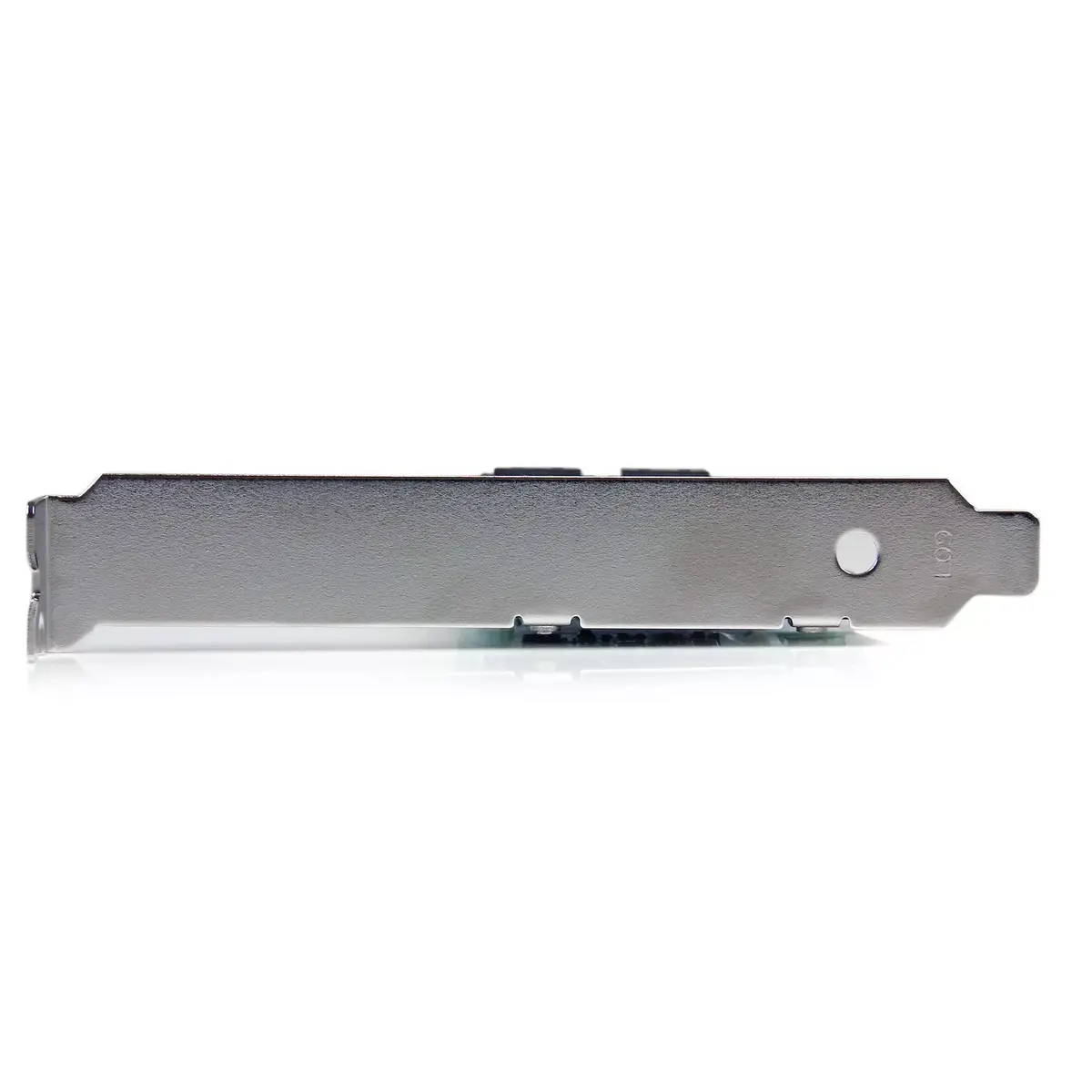

RAID Controller Card StarTech.com PEXSAT34RH Photo 3

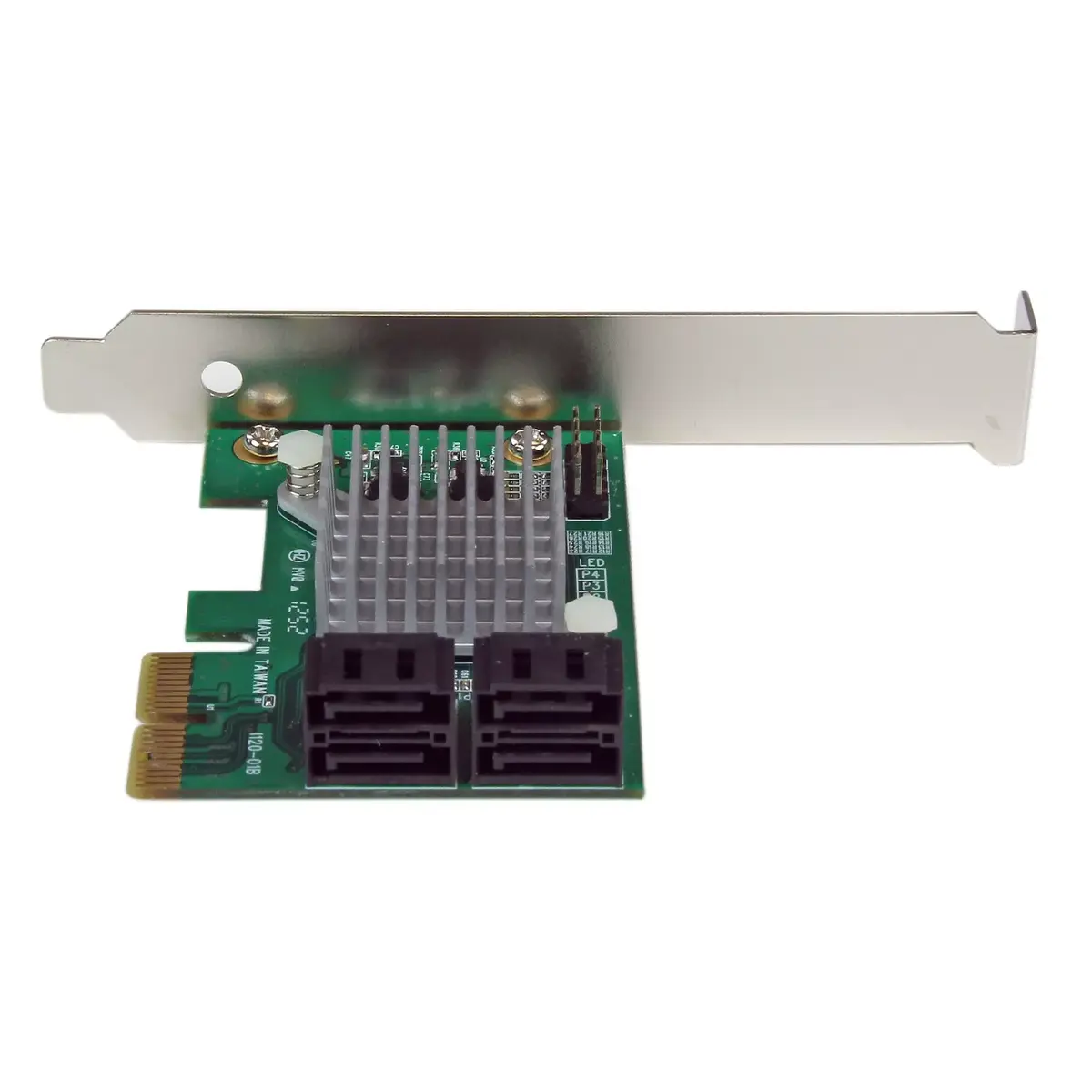

RAID Controller Card StarTech.com PEXSAT34RH Photo 4

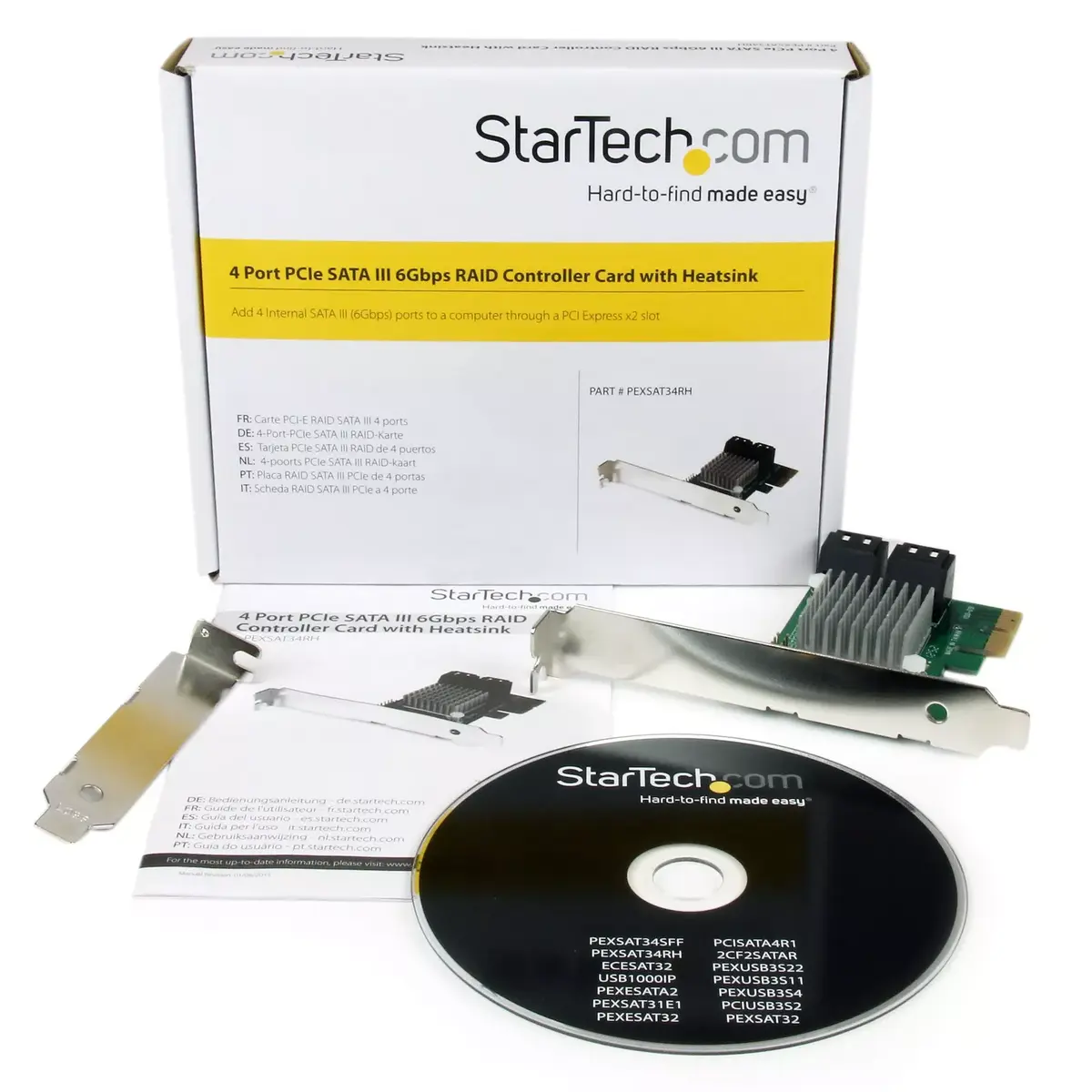

RAID Controller Card StarTech.com PEXSAT34RH Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 4 Port PCI Express 2.0 SATA III RAID Controller Card (PEXSAT34RH) supports RAID levels 0, 1, 10, and JBOD with a data transfer rate of 6 Gbps. It features a Marvell 88SE9230 chipset and is compatible with Windows and Mac operating systems. Ideal for enhancing storage performance and flexibility in your system.

Available at price 115.49 €: 4 pcs.

Total available for order: 14 pcs.

Warranty: 2 Years

SKU: 434108

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

05.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.10.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.15 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

08.10.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 131.49 €: 4 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com PEXSAT34RH is a 4-port PCI Express 2.0 SATA III controller card that adds four internal AHCI SATA III (6 Gbps) ports to a desktop system through a PCIe x2 slot. It uses a Marvell 88SE9230-based design to provide high-speed connections for HDDs and SSDs, supports native RAID modes (0, 1, 10) and JBOD, and includes HyperDuo SSD auto-tiering to combine the performance of SSDs with the capacity and cost benefits of HDDs.

Advantages

The card delivers multiple internal 6 Gbps SATA connections for improved storage throughput, hardware RAID support for RAID 0, 1 and 10 configurations, and Port Multiplier support to attach additional drives through a single port. HyperDuo technology automatically moves frequently accessed data to SSD storage for faster reads while maintaining a larger HDD volume for bulk storage. The product is compatible with common desktop platforms and is supported by a two-year StarTech.com warranty with free lifetime technical support.

Suitable for

Expanding internal SATA ports on desktop PCs using a PCIe x2 slot
Improving storage performance with SSDs alongside high-capacity HDDs
Setting up hardware RAID 0, RAID 1 or RAID 10 for redundancy or performance
Connecting multiple drives via Port Multiplier for additional storage capacity

Key specifications

Interface: PCI Express 2.0 x2
SATA ports: 4 × AHCI SATA III (6 Gbps)
Chipset: Marvell 88SE9230
RAID support: 0, 1, 10 and JBOD (native)
Features: HyperDuo SSD auto-tiering, Port Multiplier support
Maximum drives via PM: up to 7 total (up to 4 on one PM port plus single drives on remaining ports)
Weight: 0.049 kg
Warranty: 2 years with free lifetime technical support

How to use

Power down the computer, open the case and insert the PEXSAT34RH card into an available PCIe x2 (or larger x4/x8/x16) slot. Secure the card, connect internal SATA cables from the card to your HDDs/SSDs, and reconnect power cables to the drives. On first boot, enter the system BIOS if necessary to enable the card or configure boot order. Install any required drivers for your operating system, then configure RAID arrays or HyperDuo tiers using the card’s management utility or BIOS-level options as needed.

Usage recommendations

For best results, use high-quality SATA cables and ensure drives have adequate cooling. When using HyperDuo, combine up to three SSDs with one HDD per HyperDuo volume to balance performance and capacity. Back up critical data before creating RAID arrays or performing tiering operations.

Specifications

Host interface: Interface that enables a host controller to communicate with a driver.: PCI Express
Supported storage drive interfaces:: Serial ATA, Serial ATA III
RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.: 1, 10, JBOD

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 141 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.049 kg
Height: The measurement of the product from head to foot or from base to top.: 20 mm
Depth: The distance from the front to the back of something.: 70 mm
Width: The measurement or extent of something from side to side.: 120 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -25 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 5 - 50

System requirements

Server operating systems supported:: Windows Server 2016, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.9 Mavericks, Mac OS X 10.8 Mountain Lion
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows Vista Business, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Professional x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows 7 Starter x64, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Ultimate

Other features

Mac compatibility: Product can be used with Apple Mac software and/or hardware.: Yes
PCI Card form factor: Design of the PCI Card.: Full-height (low-profile)
Drivers included:: Yes
Manual:: Yes

Logistics data

Harmonized System (HS) code:: 84733080
Products per master (outer) case:: 60 pc(s)
Master (outer) case height:: 321 mm
Master (outer) case length:: 488 mm
Master (outer) case width:: 381 mm

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 32 mm
Package depth: The distance from the front to the back of the packaging.: 175 mm
Package width: The distance from one side of the packaging to the other.: 145 mm

Technical details

Sustainability compliance:: Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: CE, RoHS

Ports & interfaces

Internal SATA ports quantity:: 4
PCI Express slots version:: 2.0
Host interface: Interface that enables a host controller to communicate with a driver.: PCI Express
Supported storage drive interfaces:: Serial ATA, Serial ATA III

Performance

Logical block addressing (LBA) support:: 48 bit
Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.: Marvell - 88SE9230
SSD support: Solid-state drive (SSD), a type of memory, can be used with this product.: Yes
Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.: 6 Gbit/s
RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.: 1, 10, JBOD
