USB 3.0 Card StarTech.com PEXUSB3S42

Name: USB 3.0 Card StarTech.com PEXUSB3S42 PEXUSB3S42
Brand: StarTech
SKU: 433583
Price: 43.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

USB 3.0 Card StarTech.com PEXUSB3S42 Photo 3

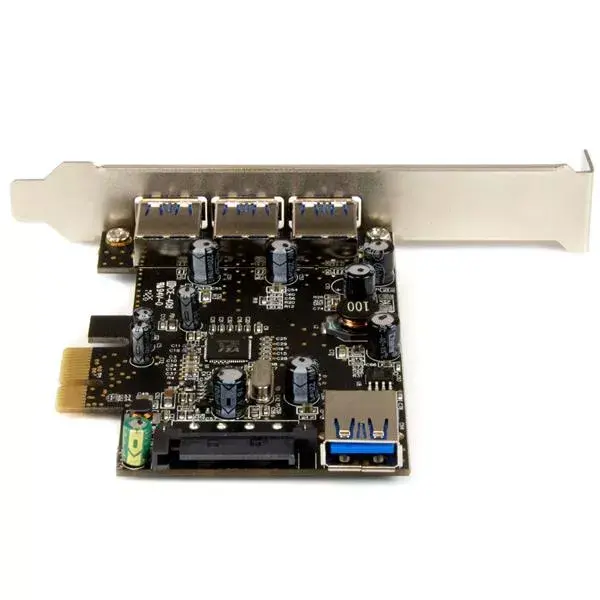

USB 3.0 Card StarTech.com PEXUSB3S42 Photo 4

USB 3.0 Card StarTech.com PEXUSB3S42 Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

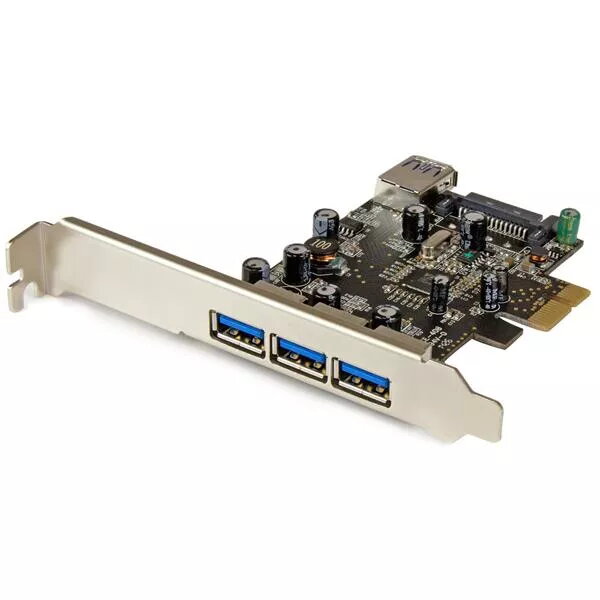

The StarTech.com 4-Port PCI Express USB 3.0 Card (PEXUSB3S42) offers four USB 3.2 Gen 1 ports with a maximum data transfer rate of 5 Gbit/s. Compatible with various Windows operating systems, it features a full-height/low-profile design and supports cable lengths up to 3 m. With a robust chipset (2 x Renesas/NEC - µPD720202) and CE/FCC certification, this card enhances your system's connectivity and performance.

Available at price 43.49 €: 1 pcs.

Total available for order: 363 pcs.

Warranty: 2 Years

SKU: 433583

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.17 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 48.49 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com PEXUSB3S42 4-Port PCI Express USB 3.0 Card adds four USB 3.0 (USB 3.2 Gen 1) ports to a PCIe x4-enabled desktop, using two dedicated 5 Gbps channels implemented by dual host controller chipsets. This architecture provides improved throughput compared to single-bus USB 3.0 cards, offers backward compatibility with USB 2.0/1.1 devices, and ships with both full-height and low-profile brackets for installation in different system form factors.

Advantages

The dual-chipset design dedicates up to 5 Gbps per channel (two ports per channel), reducing bandwidth contention when multiple devices are connected. The card supports UASP (USB Attached SCSI Protocol) to accelerate transfers when used with a UASP-capable enclosure and compatible OS, achieving significantly higher read/write performance and lower CPU utilization compared with traditional USB BOT. An optional SATA or LP4 power connector supplies up to 900 mA per USB 3.0 port for bus-powered devices and supports USB Battery Charging 1.2 (Apple Mode) for faster charging of compatible Apple devices.

Suitable for

Adding multiple USB 3.0 ports to a desktop with an available PCIe x4 (or higher) slot
High-speed external storage and SSD enclosures that benefit from UASP
Systems requiring additional powered USB ports for bus-powered devices

Key specifications

Model: PEXUSB3S42
Interface: PCIe (x4 compatible)
Output: 4 × USB 3.2 Gen 1 (USB 3.0) ports
Bandwidth: Two dedicated 5 Gbps channels (up to 10 Gbps aggregated)
Chipset: 2 × Renesas/NEC µPD720202
Power: Optional SATA or LP4 connector; up to 900 mA per USB 3.0 port
Backward compatibility: USB 2.0 / 1.1
Form factor: Full-height with included low-profile bracket
Certifications: CE, FCC
Weight: 0.09 kg

How to use

Install the card into an available PCIe x4 (or x8/x16) slot on a powered-off desktop, secure the bracket, and attach the included low-profile bracket if installing in a small form-factor case. Optionally connect the system power supply to the card via the SATA or LP4 power connector when using high-power USB devices. After powering on the system, install any required drivers or allow the operating system to load built-in drivers. For best performance with external storage, use a UASP-capable enclosure and an operating system that supports UASP (for example Windows 8/8.1, Server 2012, or Linux kernel 2.6.37+).

Usage recommendations

To achieve the fastest possible transfer rates and reduced CPU load, pair the PEXUSB3S42 with a UASP-enabled enclosure and ensure your OS provides UASP support. Use the optional power connector when connecting bus-powered high-current devices, and verify cable lengths and device compatibility for optimal performance.

Specifications

Host interface:: PCIe
Weight:: 0.09 kg
Internal:: Yes
Output interface:: USB 3.2 Gen 1 (3.1 Gen 1)
Product colour:: Stainless steel, Black

All features

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 5 - 50

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Host interface:: PCIe
Output interface:: USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 4
Expansion card standard:: PCI 2.0
Expansion card form factor:: Full-height / Low-profile

Other features

Manual:: Yes
Drivers included:: Yes

Weight & dimensions

Weight:: 0.09 kg
Package weight:: 141 g
Height:: 120 mm
Width:: 15 mm
Depth:: 167 mm

System requirements

Windows operating systems supported:: Windows 7 Ultimate x64, Windows 8.1 Pro, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 Enterprise, Windows 8.1, Windows 8 x64, Windows 8 Pro x64, Windows 8 Pro, Windows 8 Enterprise x64, Windows 8 Enterprise, Windows 8, Windows XP Home x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows 7 Starter x64, Windows XP Professional x64, Windows XP Professional, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Ultimate
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2012, Windows Server 2008 R2

Design

Internal:: Yes
Product colour:: Stainless steel, Black
Maximum cable length:: 3 m

Performance

Certification:: CE, FCC
Chipset:: 2 x Renesas / NEC - µPD720202
Hot-swap:: Yes

Logistics data

Harmonized System (HS) code:: 84733020

Packaging data

Package depth:: 144 mm
Package height:: 30 mm
Package width:: 171 mm
Mounting brackets included:: Yes

Features

Data transfer rate (max):: 5 Gbit/s
UASP support:: Yes
