StarTech USB to M.2 SATA Converter PIB2M21

Name: USB to M.2 SATA Converter PIB2M21
Brand: StarTech
SKU: 1808516
Price: 42.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

USB to M.2 SATA Converter StarTech PIB2M21 — Micro-USB host, M.2 output, 6 Gbit/s, Renesas µPD720231A, red

StarTech USB to M.2 SATA Converter PIB2M21 Photo 1

StarTech USB to M.2 SATA Converter PIB2M21 Photo 2

StarTech USB to M.2 SATA Converter PIB2M21 Photo 3

StarTech USB to M.2 SATA Converter PIB2M21 Photo 4

StarTech USB to M.2 SATA Converter PIB2M21 Photo 5

StarTech USB to M.2 SATA Converter PIB2M21 Photo 6

StarTech USB to M.2 SATA Converter PIB2M21 Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

External USB to M.2 SATA converter for Raspberry Pi and development boards. Connects via Micro-USB host interface and provides an M.2 SATA output with up to 6 Gbit/s transfer rate using Renesas µPD720231A chipset. Compact red enclosure (56 × 88 × 11 mm), internal design, weight 0.0218 kg. Includes USB cable; certifications CE and FCC. Suited for prototyping, storage expansion and data access on embedded systems.

Available for order: 7 pcs.

Warranty: 2 Years

SKU: 1808516

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The USB to M.2 SATA Converter StarTech PIB2M21 provides a compact external bridge between a Micro-USB host interface and an M.2 SATA drive. Designed for use with Raspberry Pi and other development boards, the converter supports up to 6 Gbit/s transfer rates using the Renesas µPD720231A chipset. Housed in a red enclosure (56 × 88 × 11 mm) and weighing 0.0218 kg, the unit is intended for internal integration in prototyping and embedded system applications and ships with a USB cable and required mounting accessories.

Advantages

The converter enables direct connection of M.2 NGFF SATA SSDs to development boards that expose a Micro-USB host interface, increasing storage capacity without complex hardware changes. Its compact red enclosure and internal design make it suitable for space-constrained projects. Certified to CE and FCC standards and based on the Renesas µPD720231A chipset, the device provides a consistent SATA interface at SATA III speeds (up to 6 Gbit/s) and includes the necessary cable and mounting hardware for quick installation.

Suitable for

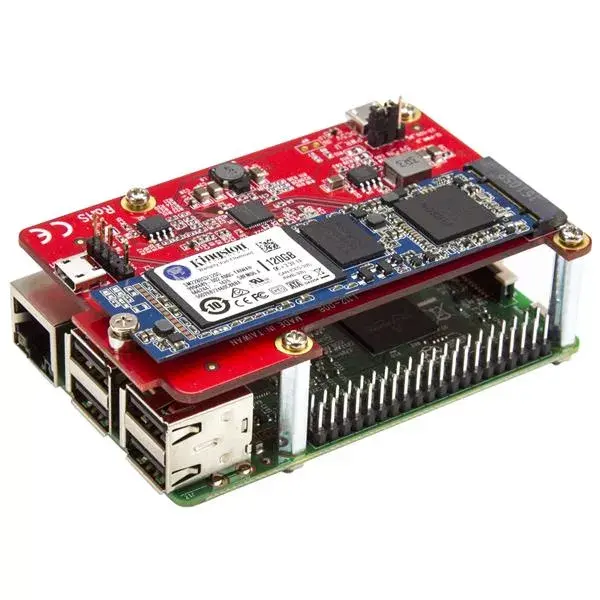

Prototyping and embedded development with Raspberry Pi and similar single-board computers
Adding mass storage to media players, small servers and surveillance systems
IoT and automation projects requiring compact, high-capacity local storage
Data access and recovery tasks where an M.2 SATA SSD needs to be read from a development board

Key specifications

Host interface: Micro-USB
Output interface: M.2 (SATA)
Maximum transfer rate: up to 6 Gbit/s
Chipset: Renesas µPD720231A
Enclosure dimensions: 56 × 88 × 11 mm
Product colour: Red

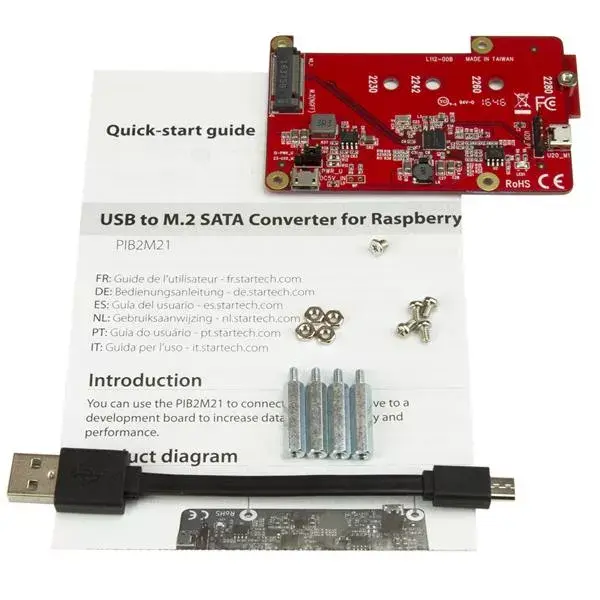

Internal design; includes USB cable and mounting accessories
Certifications: CE, FCC
Weight: 0.0218 kg

How to use

Install an M.2 SATA SSD into the M.2 socket following the drive manufacturer’s instructions, secure the drive with the supplied standoffs, and connect the converter’s Micro-USB cable to the host device’s Micro-USB host port. Once connected, the development board should detect the M.2 SATA drive as external storage; no additional device drivers are typically required. Ensure the host board is powered and configured to access external USB mass storage devices before transferring data or using the drive for operating system or application storage.

Usage recommendations

Use only M.2 SATA (NGFF) SSDs with this converter; PCIe/NVMe M.2 drives are not compatible. Confirm the M.2 drive keying matches SATA-type drives (two notches: B and M) and avoid applying excessive force during installation. For reliable long-term operation in embedded systems, mount the converter securely inside the enclosure and ensure adequate power and thermal conditions on the host device.

Specifications

Host interface:: Micro-USB
Weight:: 0.0218 kg
Internal:: Yes
Output interface:: M.2
Product colour:: Red

All features

Operational conditions

Operating relative humidity (H-H):: 15 - 90
Storage temperature (T-T):: -25 - 70
Operating temperature (T-T):: 5 - 50

Technical details

Sustainability certificates:: RoHS

Ports & interfaces

Host interface:: Micro-USB
Output interface:: M.2

Other features

Package volume:: 100 cm³

Weight & dimensions

Weight:: 0.0218 kg
Package weight:: 110 g
Height:: 11 mm
Width:: 56 mm
Depth:: 88 mm

Power

USB powered:: Yes

Design

Internal:: Yes
Product colour:: Red

Performance

Certification:: CE, FCC
Mean time between failures (MTBF):: 5839751 h
Chipset:: Renesas - µPD720231A

Logistics data

Harmonized System (HS) code:: 84733020

Packaging data

Cables included:: USB
Package depth:: 170 mm
Package height:: 30 mm
Package width:: 142 mm
Quick installation guide:: Yes

Features

Data transfer rate (max):: 6 Gbit/s

Hide Show all
