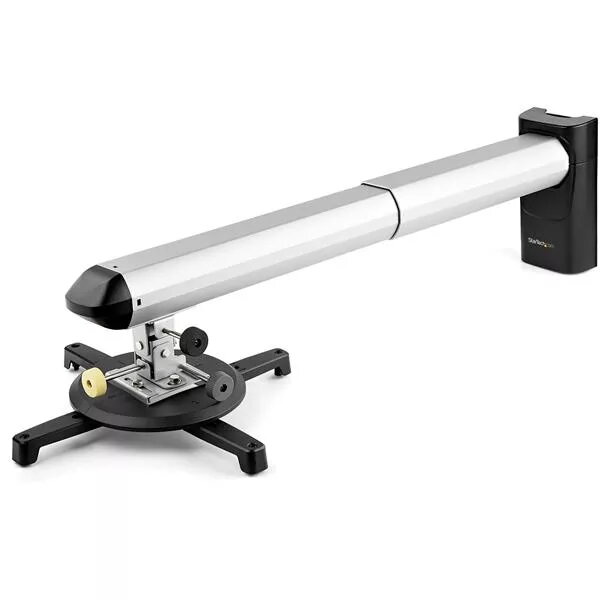

Projector Mount StarTech.com PROJWALLMNT

The StarTech.com Projector Mount PROJWALLMNT is a universal wall mount designed for short-throw and ultra-short-throw projectors. It supports projectors up to 33.1 lb (15 kg) with a universal mounting pattern up to 12.8" (325 mm) diameter. The mount features a telescopic arm that extends the projector from 16.5" to 27.7" (420 mm to 705 mm) from the wall and is finished in black and silver.

Advantages

This adjustable projector mount provides precise positioning through a lockable ball joint with 360° swivel and +/-25° horizontal/vertical tilt, as well as fine adjustments for pitch, roll and lateral shift. The telescopic arm and included tools allow easy adjustment of the projector distance from the wall to optimize throw ratio. The mount is built from steel and aluminum to support a wide range of short-throw projector models while maintaining a compact profile.

Suitable for

• Classrooms and lecture halls
• Boardrooms and meeting rooms
• Hospitality venues and presentation spaces
• Home theater installations with short-throw projectors

Key specifications

• Model: StarTech.com PROJWALLMNT
• Maximum supported projector weight: 33.1 lb (15 kg)
• Mounting hole pattern: up to 12.8" (325 mm) diameter
• Extension from wall: 16.5"–27.7" (420–705 mm)
• Materials: steel and aluminum
• Movement: 360° swivel (lockable), +/-25° horizontal/vertical tilt, +/-10° swivel, +/-5° tilt (pitch), +/-10° roll, +/-20 mm lateral shift
• Colour: Black, Silver
• Product weight: 3.414 kg

How to use

Mount the base plate securely to a suitable wall surface following local building codes and using appropriate anchors for the wall material. Attach the projector to the universal mounting plate using the compatible hole pattern (up to 12.8" / 325 mm diameter). Use the telescopic arm to set the desired distance from the wall (16.5" to 27.7") and adjust tilt, swivel, roll and lateral shift to align the image. Tighten the lockable ball joint and secure all fasteners with the included wrench to prevent movement.

Usage recommendations

For reliable installation, verify the projector weight and mounting hole pattern before installation, use suitable wall anchors for the wall type, and perform final alignment with the projector powered on to confirm image placement. Follow the manufacturer’s instructions and local safety guidelines when mounting the unit.
