StarTech SATA to IDE Adapter for 2.5"/3.5" Drives

Name: Adapter cable StarTech SATA to SAT2IDEADP
Brand: StarTech
SKU: 3682172
Price: 34.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Adapter cable StarTech SATA to 2.5in/3.5in IDE for HDD docks — SATA 7-pin+15-pin to IDE 40-pin+44-pin+LP4, Black

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 1

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 2

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 3

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 4

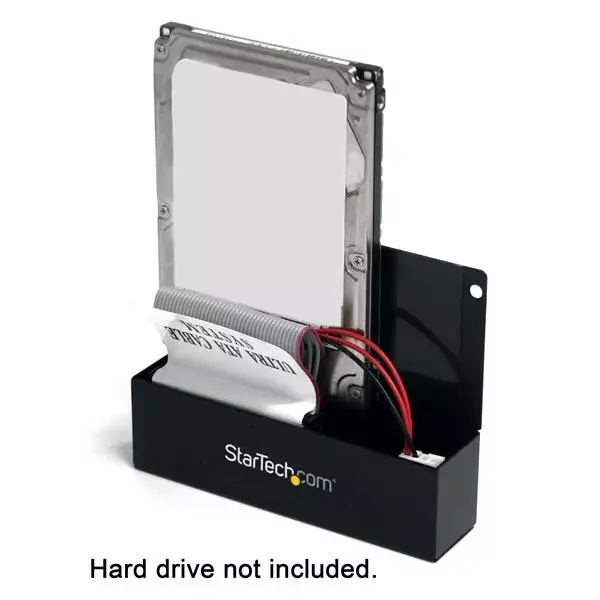

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 5

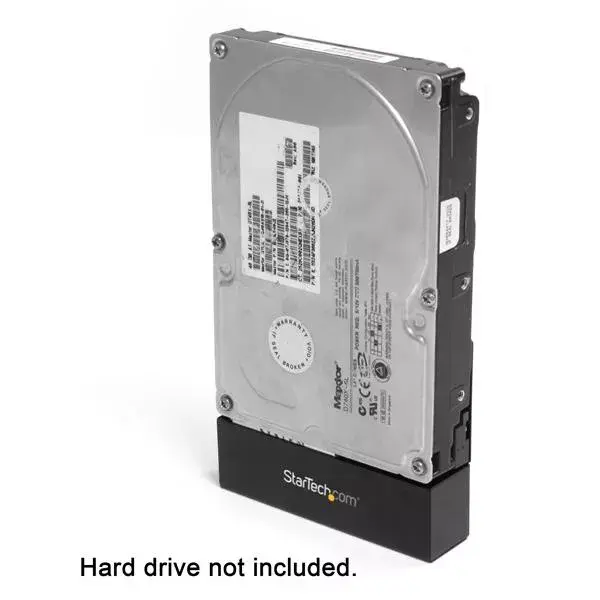

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 6

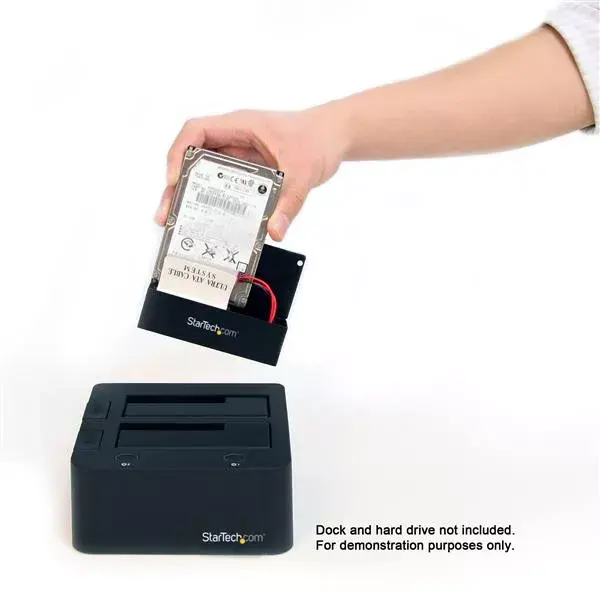

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 7

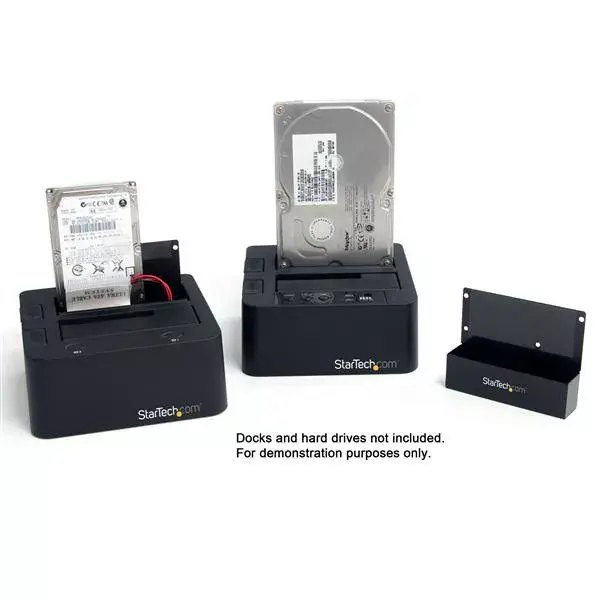

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 8

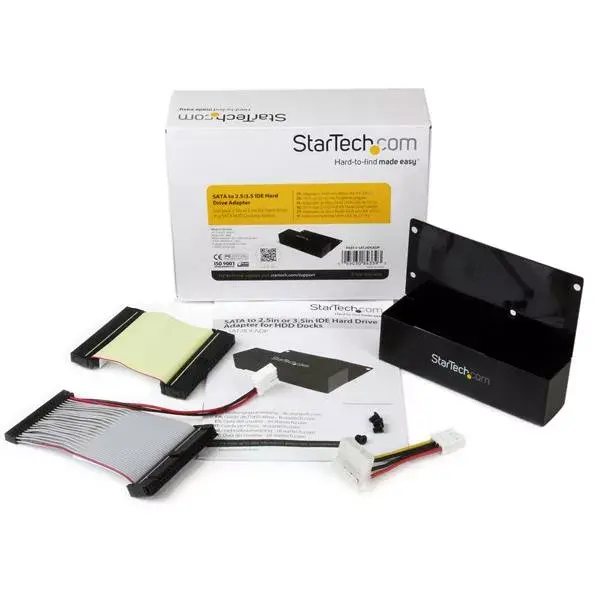

StarTech SATA to IDE Adapter for 2.5"/3.5" Drives Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

StarTech SATA to IDE adapter for 2.5" and 3.5" hard drives converts a SATA data (7-pin) and SATA power (15-pin) connection to legacy IDE interfaces: 40-pin (ATAPI/PATA) and 44-pin (laptop) plus LP4 power. Designed for use with HDD docks and drive enclosures, it enables access, cloning or data recovery from IDE drives using SATA hosts. Colour: black. Weight: 0.104 kg.

Available for order: 12 pcs.

Warranty: 2 Years

SKU: 3682172

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech SATA to 2.5in/3.5in IDE adapter cable converts a SATA data (7-pin) and SATA power (15-pin) connection into legacy IDE interfaces so that 2.5" and 3.5" PATA/IDE hard drives can be used with SATA HDD docking stations, duplicators or SATA-only systems. The adapter supports both 40-pin (ATAPI/PATA) and 44-pin (laptop) IDE connectors and provides LP4 power compatibility for older drives. Constructed in black with an all-metal mounting interface, the adapter is designed for quick insertion and removal of IDE drives in SATA docks and for data access, cloning or recovery tasks.

Advantages

The adapter enables reuse of legacy IDE hard drives with modern SATA hosts without modifying the drives or the host device. Its mounting style secures the IDE drive for upright insertion into most SATA docking stations and duplicators, simplifying data retrieval and cloning workflows. The all-metal construction improves mechanical durability during repeated insertions. The compact, black design integrates unobtrusively with standard HDD docks and drive enclosures.

Suitable for

Accessing data from 2.5" and 3.5" IDE/PATA hard drives using a SATA HDD dock
Cloning or duplicating IDE drives with a SATA-based duplicator
Recovering files from legacy IDE drives in data-recovery workflows
Connecting IDE laptop drives (44-pin) or desktop drives (40-pin) to SATA-only desktops or enclosures

Key specifications

Interface conversion: SATA 7-pin (data) + SATA 15-pin (power) to IDE 40-pin (ATAPI/PATA) and 44-pin (laptop) plus LP4 power
Supported drive types: 2.5" and 3.5" IDE/PATA hard drives
Compatibility: Designed for use with SATA HDD docking stations and drive duplicators
Construction: metal mounting interface with cable assembly
Colour: black
Weight: 0.104 kg

How to use

Align and mount the adapter onto the IDE hard drive so the 40-pin or 44-pin connector engages securely with the drive's IDE header and the LP4 connector (if required) supplies power. Insert the assembled drive and adapter into a compatible SATA HDD dock or duplicator bay so the SATA 7-pin and SATA 15-pin connections mate with the dock. Power the dock and the SATA host will detect the IDE drive as if it were connected via a native SATA interface, allowing file access, cloning or recovery operations. When finished, power down the dock before removing the drive and adapter.

Usage recommendations

Use the adapter with compatible SATA HDD docking stations and duplicators from the same product family where possible. Ensure proper alignment when mounting to avoid bending pins, and always power off the docking station before inserting or removing the adapter and drive. For IDE drives that require LP4 power, connect the LP4 power lead; for drives that do not use LP4, ensure the SATA power connector provides the required supply.

Specifications

Weight:: 0.104 kg
Product colour:: Black

All features

Chipset:: JMicron - JM20330
Connector 1:: SATA 7-pin + SATA 15-pin
Connector 2:: IDE 40-pin + IDE 44-pin + LP4
Storage drive sizes supported:: 3.5, 2.5
Connector 1 gender:: Male
Connector 2 gender:: Female

Performance

Operating temperature (T-T):: 5 - 80
Quantity per pack:: 1 pc(s)

Design

Product colour:: Black
Certification:: CE, FCC, REACH

Weight & dimensions

Weight:: 0.104 kg
Package weight:: 200 g
Height:: 26 mm
Width:: 78 mm
Depth:: 101 mm
Package depth:: 147 mm
Package height:: 52 mm
Package width:: 110 mm

Technical details

Sustainability certificates:: RoHS

Packaging content

Manual:: Yes

Other features

Storage temperature (T-T):: -40 - 70
Relative humidity:: 8 - 90
