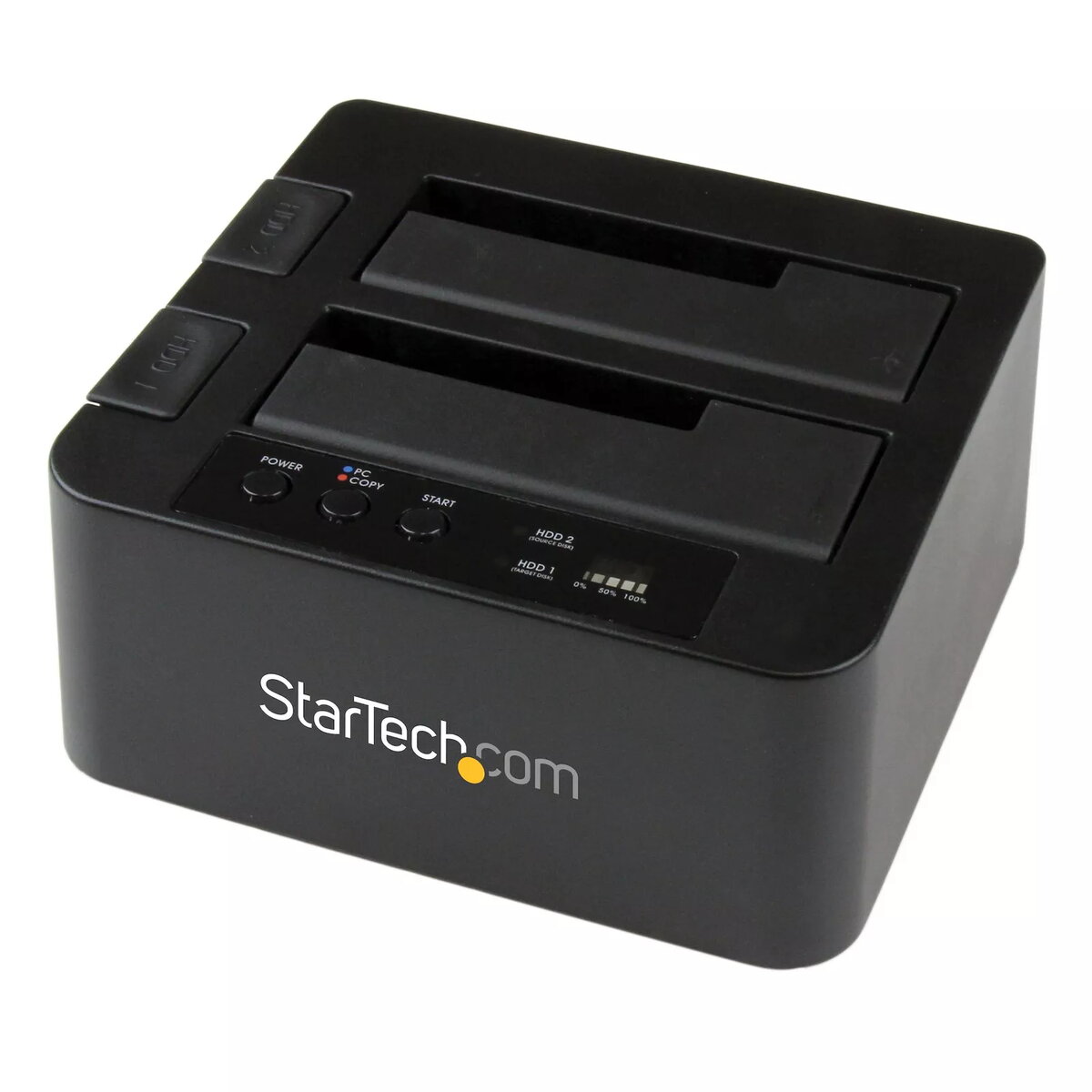

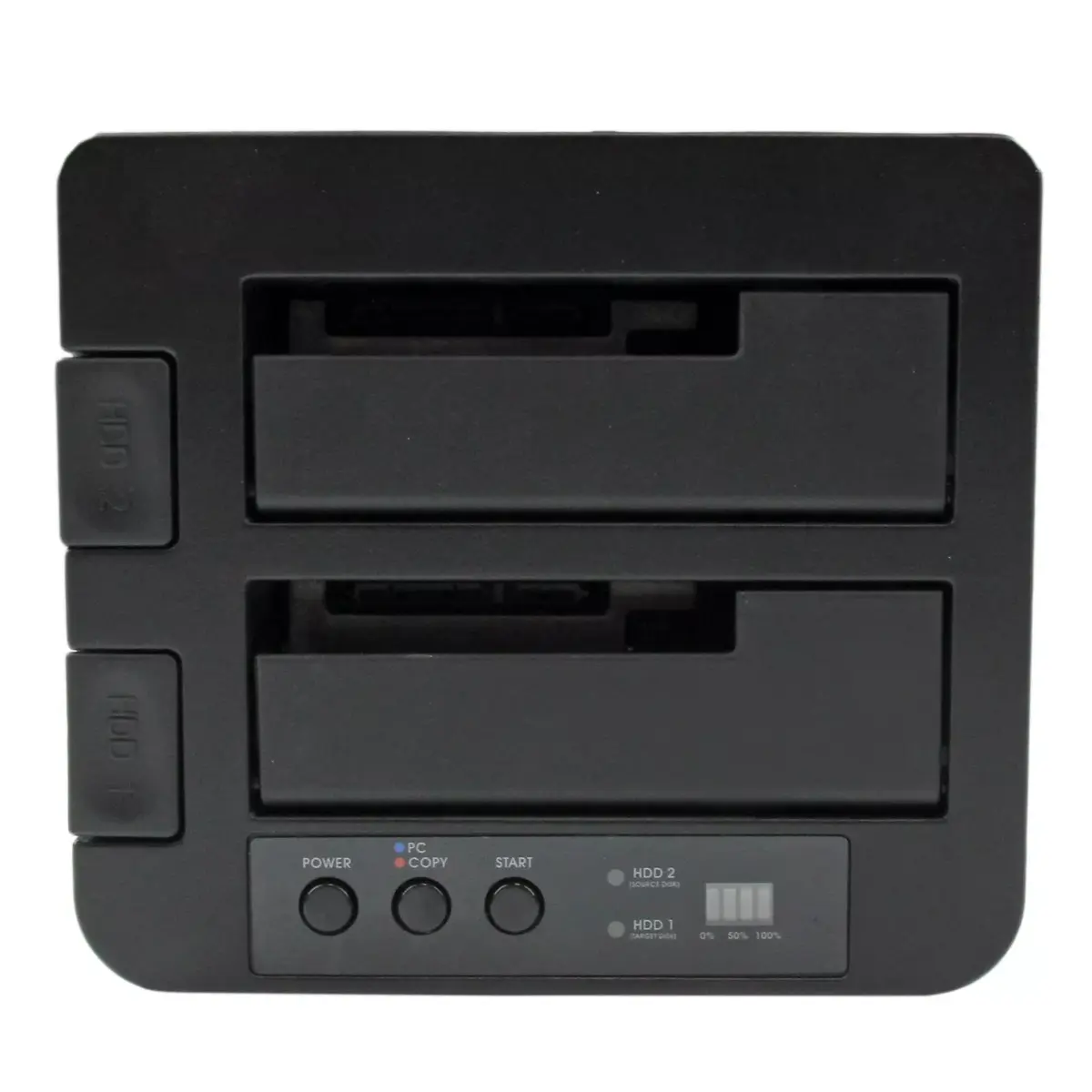

Dual Bay Hard Drive Duplicator StarTech SDOCK2U33RE — USB 3.0 / eSATA to 2.5/3.5" SATA III HDD/SSD Cloner, 12 V, 132×147×70 mm

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

USB 3.2 Gen 1 (3.1 Gen 1)/eSATA

Chipset: Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

JMicron - JMS562

LED indicators:

Y

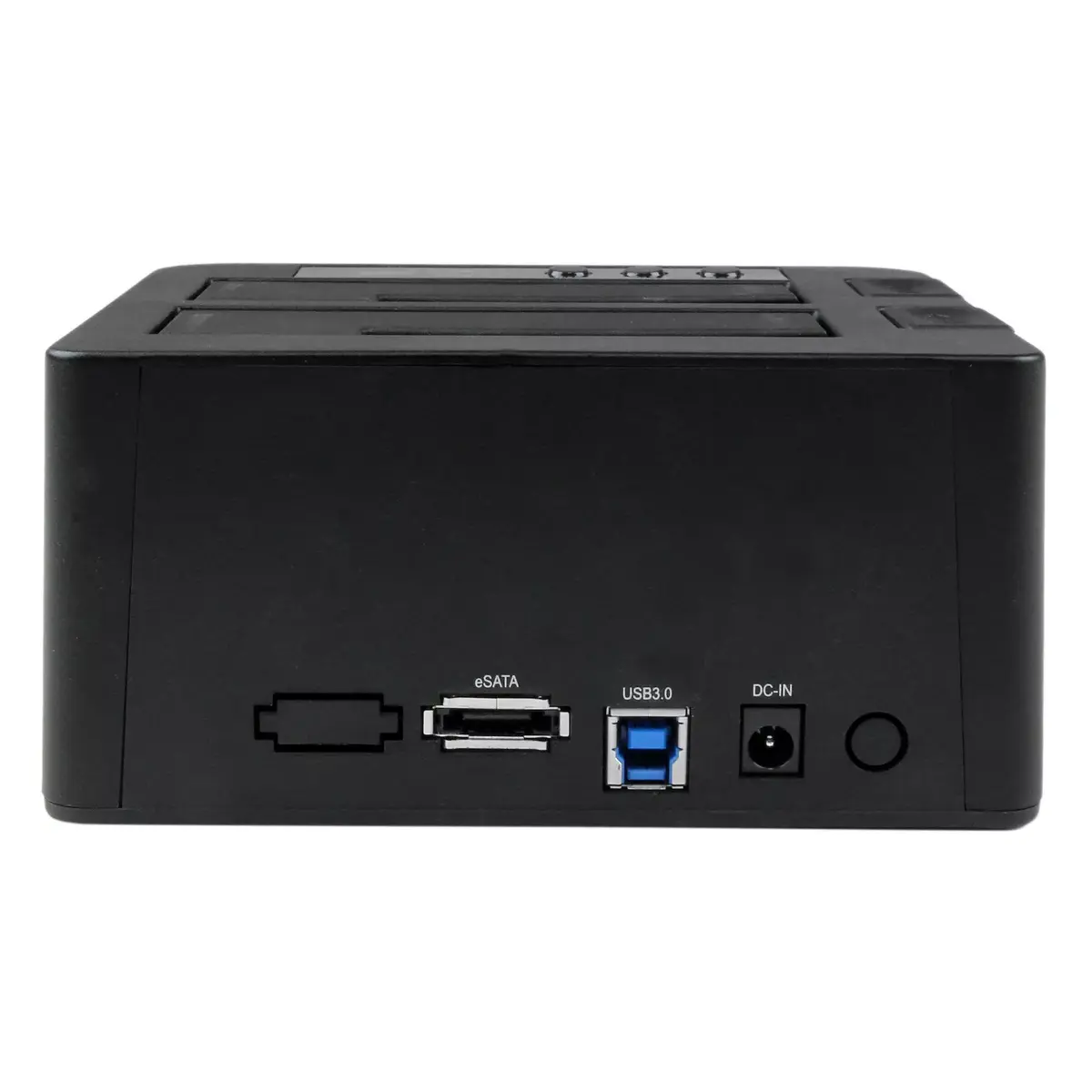

USB connector type: The type of USB connector/port that this product has.

USB Type-B

Transfer rate:

6000 MB/s

Supported HDD interfaces: The type of interfaces that can be used with the hard disk drive e.g. parallel ATA (PATA), serial ATA (SATA), SCSI.

Serial ATA, Serial ATA II, Serial ATA III

Input current:

1.3

Output current:

3 A

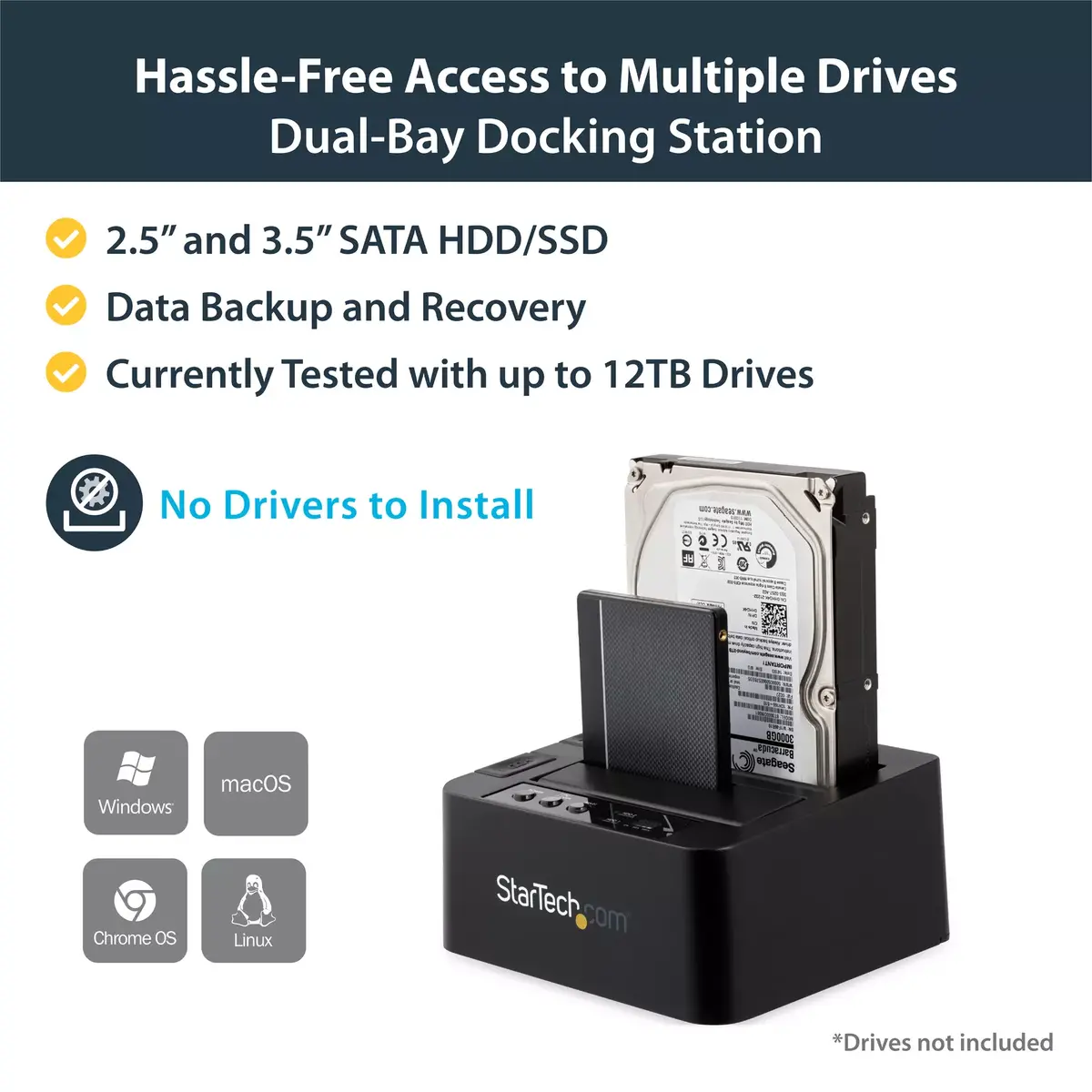

Supported HDD sizes: The size of the hard disk drives which can be used by the device.

3.5, 2.5

Number of simultaneous copies: The amount of copies that can be made at the same time.

1 copies

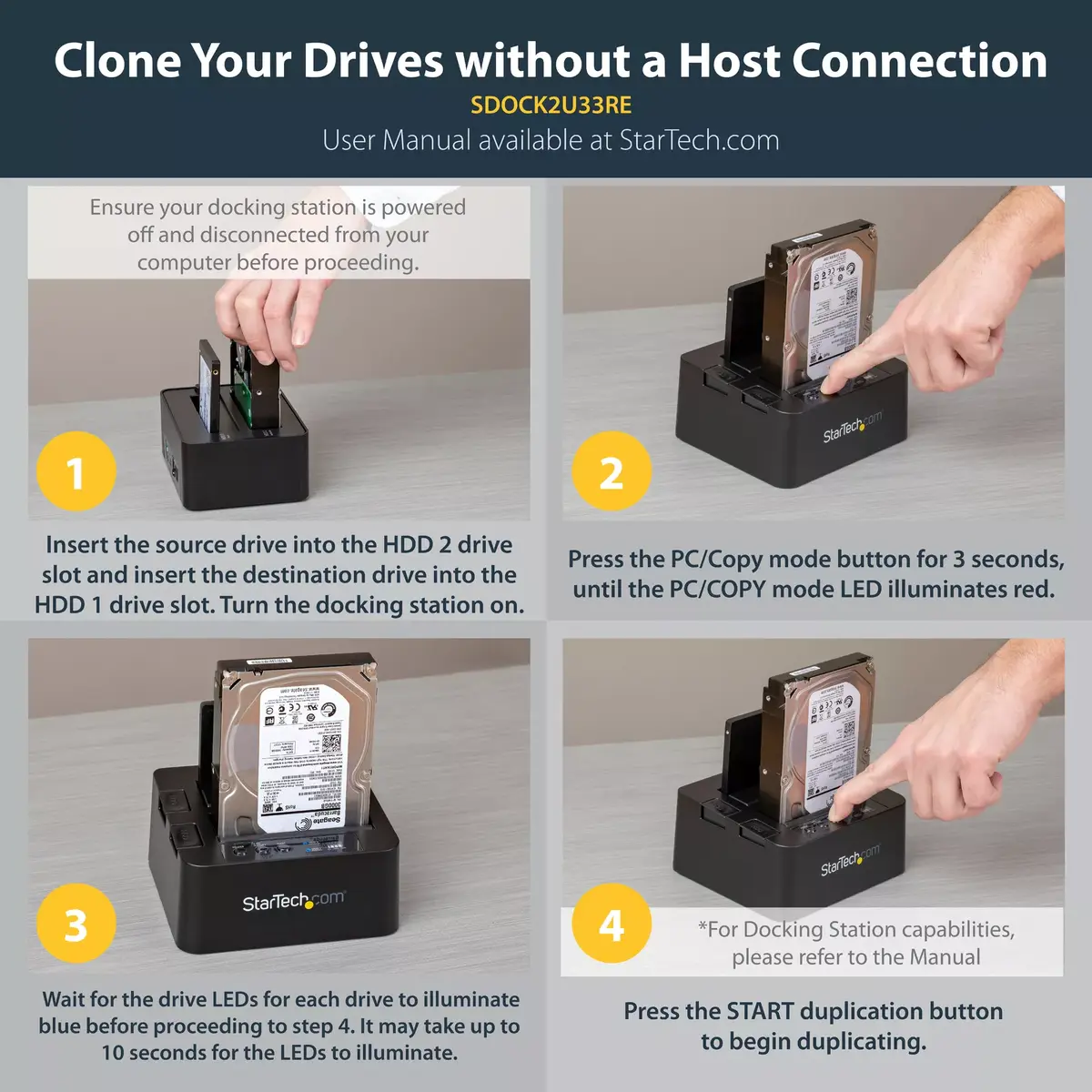

Duplicator operating modes:

Copy

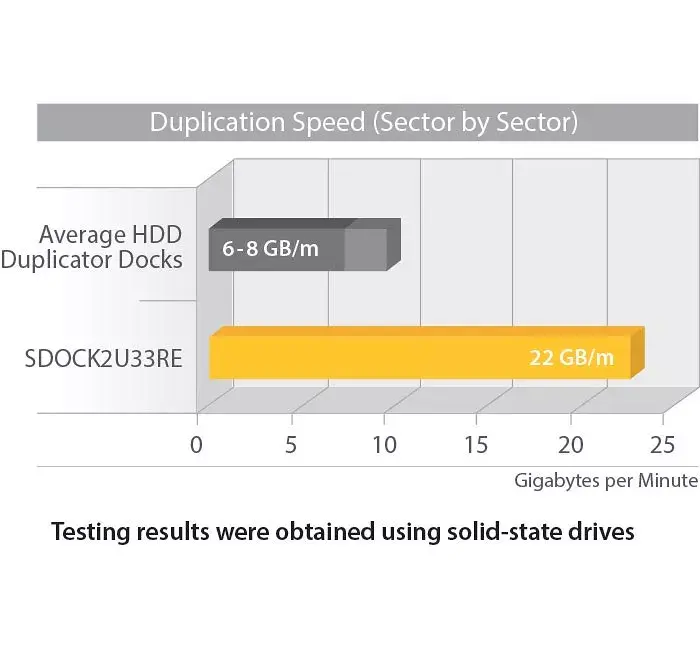

Transfer rate:

22 GB/min

Windows operating systems supported: Windows vesions wich can be used with the device.

Yes

Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.

Yes

Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Yes

Server operating systems supported:

Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Product type: The sub-category of the product.

HDD/SSD duplicator

Maximum supported storage capacity: The maximum capacity of data storage on the device.

8 TB

Included power plug types:

ANZ, EU, NA, UK

Logistics data

Products per master (outer) case:

10 pc(s)

Master (outer) case height:

463 mm

Master (outer) case length:

617 mm

Master (outer) case width:

209 mm

Other features

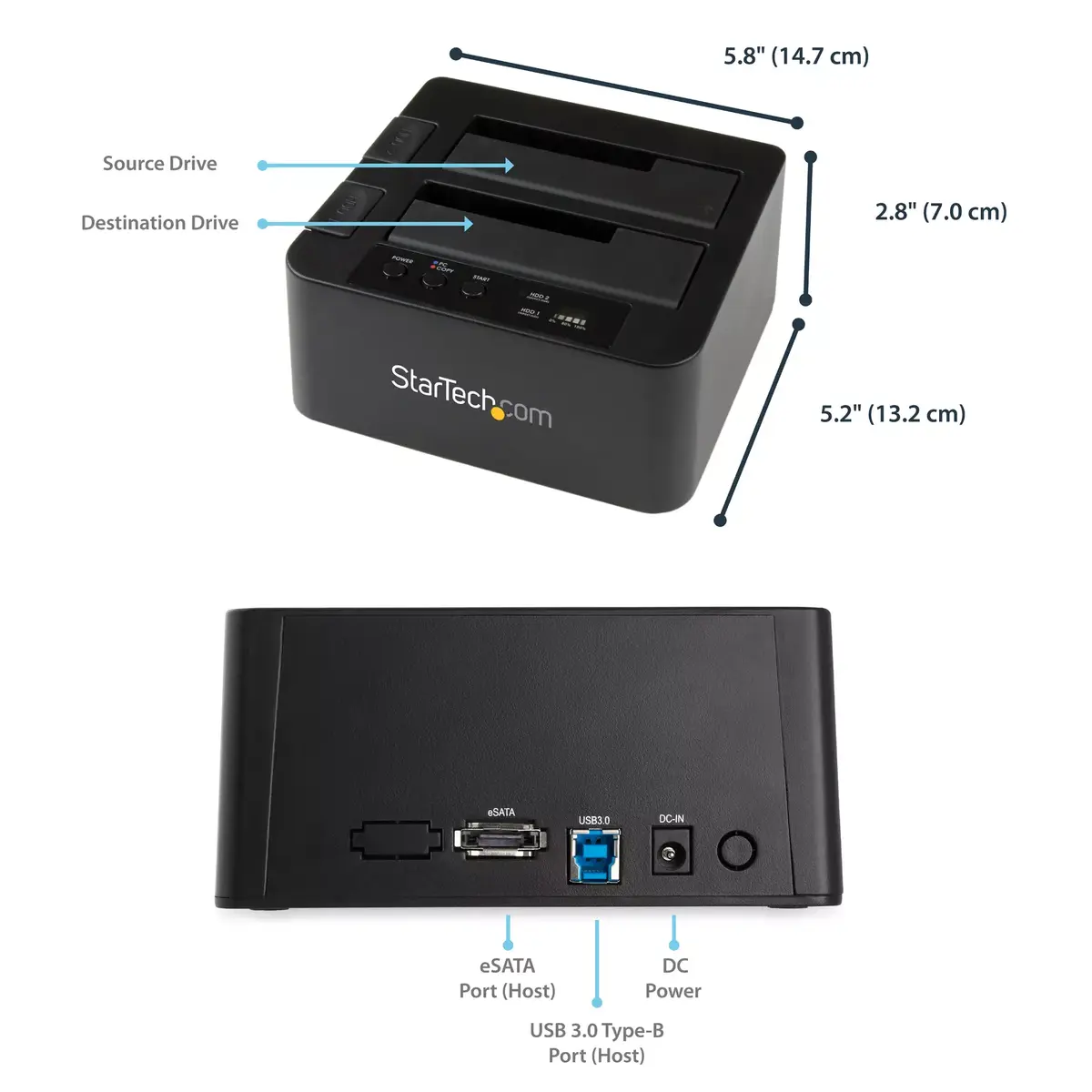

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).

132 x 147 x 70

Package length:

118 mm

Output voltage:

12

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 50

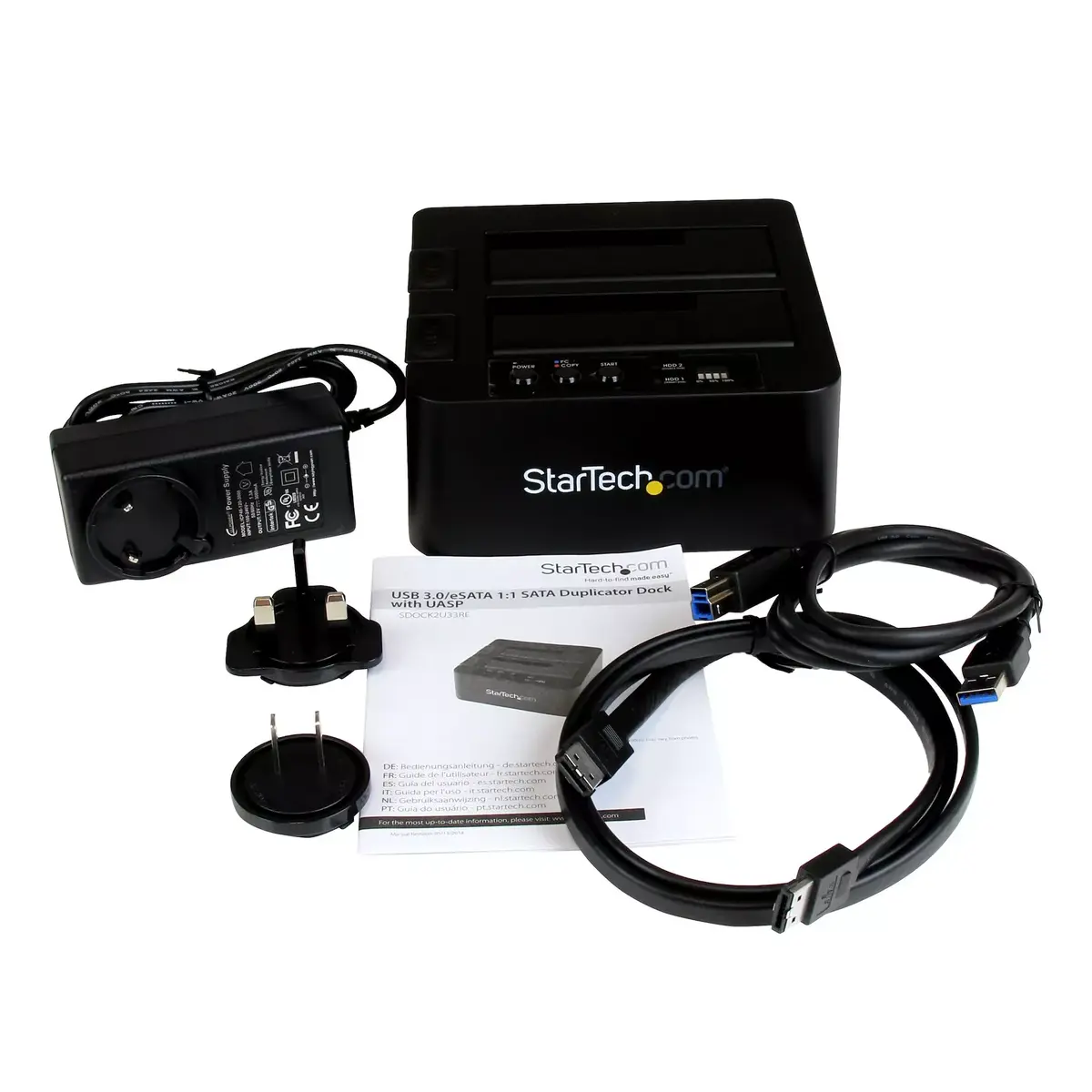

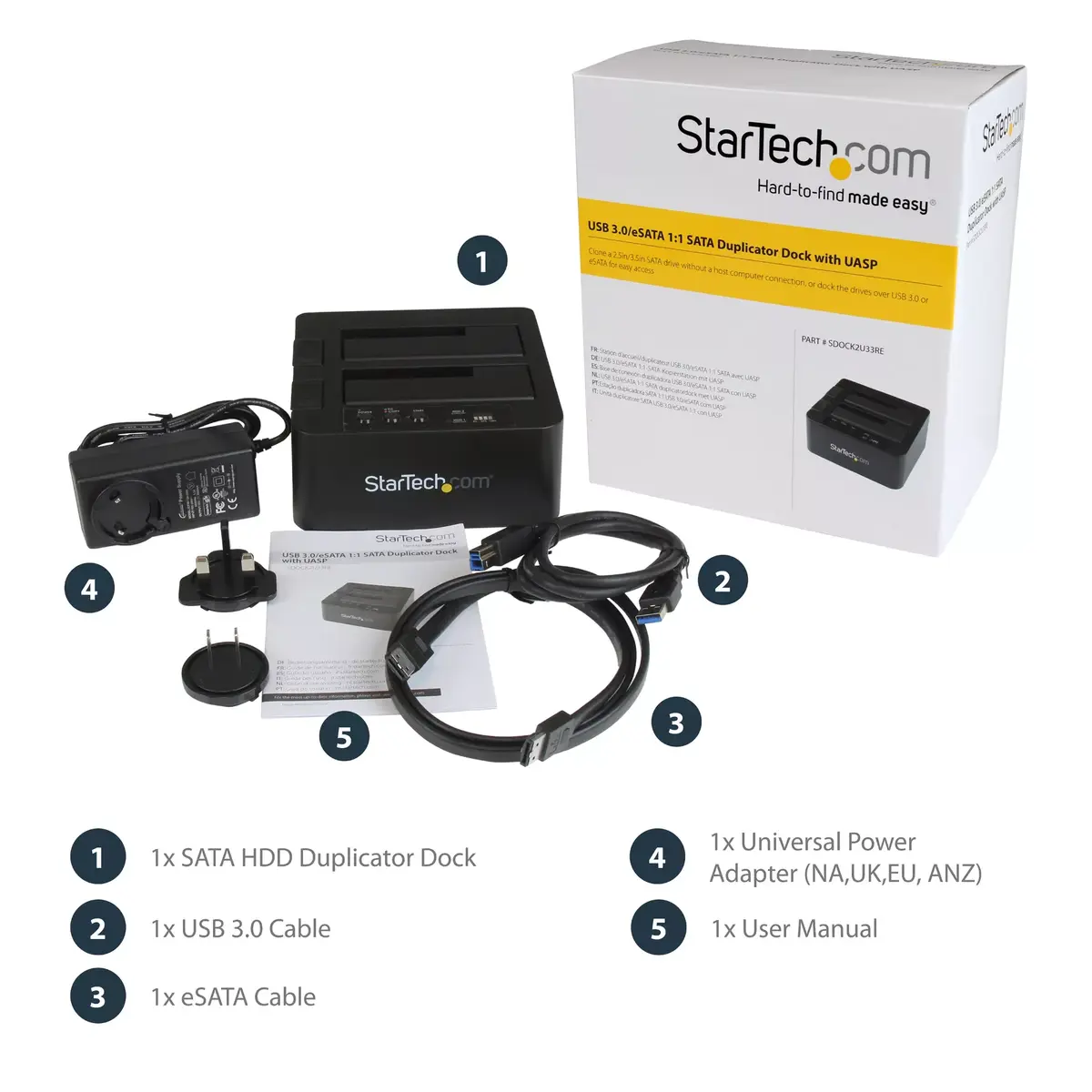

Packaging content

Manual:

Yes

Cables included:

eSATA, USB

Technical details

Sustainability certificates:

RoHS

Weight & dimensions

Package weight: Weight of the packaged product.

1000 g

Package height: The distance from the top to the bottom of the packaging.

213 mm

Package width: The distance from one side of the packaging to the other.

190 mm

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.528 kg

Design

Certification:

CE, FCC

Product colour: The colour e.g. red, blue, green, black, white.

Black

Performance

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

5 - 35
