HDMI Video Wall Controller StarTech ST124HDVW

Name: HDMI Video Wall Controller StarTech ST124HDVW
Brand: StarTech
SKU: 3499517
Price: 1009.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

HDMI Video Wall Controller StarTech ST124HDVW Photo 3

HDMI Video Wall Controller StarTech ST124HDVW Photo 4

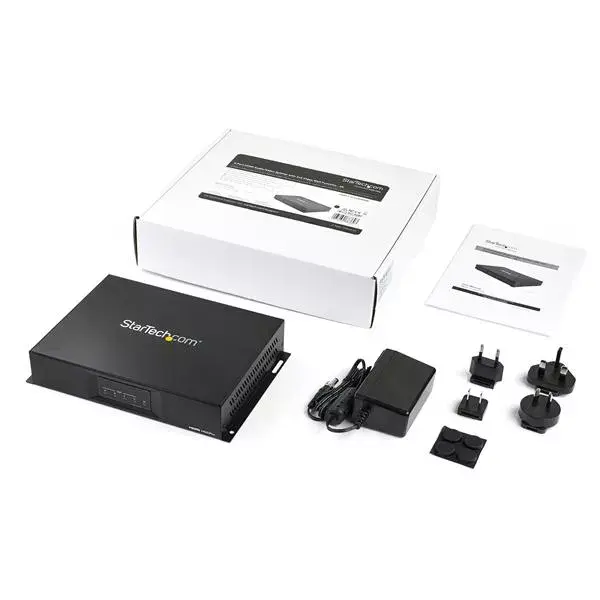

HDMI Video Wall Controller StarTech ST124HDVW Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech 2x2 HDMI Video Wall Controller allows you to connect a 4K 60Hz HDMI 2.0 video input to four 1080p outputs. It features RS232 and Ethernet control, making it ideal for multi-screen displays. With a robust metal construction, it supports a maximum refresh rate of 60 Hz and operates on an AC input voltage of 100-240 V. Compact dimensions of 165 mm width, 230 mm depth, and 45 mm height ensure easy integration into your setup.

Available at price 1,009.99 €: 4 pcs.

Total available for order: 11 pcs.

Warranty: 2 Years

SKU: 3499517

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

21.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.59 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

21.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 35.15 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech HDMI Video Wall Controller ST124HDVW connects a single HDMI 2.0 source to four HDMI displays, allowing use as a splitter or to create a 2x2 video wall. It supports True 4K (4096x2160) at 60Hz input and outputs four 1080p HDMI signals. The unit supports 7.1 channel audio, HDCP 2.2/1.4 and includes RS232 and Ethernet control interfaces. Compact metal construction and wide AC input voltage make it suitable for professional digital signage and multi-screen installations.

Advantages

The controller provides full HDMI 2.0 support for true 4K at 60Hz, avoiding the 30Hz limitation of older HDMI 1.4 devices. It is backward compatible with 4K30 and 1080p displays and includes EDID emulation and bezel compensation for accurate image splitting and scaling. Setup is plug-and-play for basic configurations, and advanced control is available via RS232, IP (Telnet/UDP) or the Windows application. The device is covered by a 2-year StarTech.com warranty and free lifetime technical support.

Suitable for

Digital signage with a single 4K source and multiple screens
Meeting rooms and control centres requiring a 2x2 video wall
Retail displays and public information boards
Applications needing remote control via RS232 or Ethernet

Key specifications

Model: StarTech ST124HDVW (MPN ST124HDVW, EAN 0065030883603)
Input: 1 × HDMI 2.0 (supports 4K@60Hz, 4096×2160)
Outputs: 4 × HDMI (up to 1080p per output)
Audio: Up to 7.1 channel passthrough
Protection/Compatibility: HDCP 2.2 and 1.4 support
Control: RS232 and Ethernet (Telnet/UDP, Windows app)
Power: AC 100–240 V
Dimensions: 165 mm × 230 mm × 45 mm
Warranty: 2-year StarTech.com warranty; lifetime technical support

How to use

Connect the HDMI source to the unit's HDMI input and attach up to four HDMI displays to the outputs. For a mirrored splitter, the device will duplicate the same image across all outputs; to create a 2x2 video wall, allow the controller to tile the single input across the four displays. The default configuration is pre-set for a 2x2 layout with EDID emulation enabled to ensure the source detects the correct format. For bezel compensation, scaling or alternate layouts (1x1, 1x4, mirror), use the Windows application, command line, or control via RS232/IP.

Usage recommendations

For reliable 4K@60Hz performance, use high-quality HDMI 2.0 cables and ensure connected displays support the required resolutions and HDCP version. When installing a video wall, calibrate bezel compensation and test EDID settings during setup to achieve correct image alignment and source compatibility.

Specifications

Video port type:: HDMI
Weight:: 1 kg
Product colour:: Black

All features

Ports & interfaces

Video port type:: HDMI
DC-in jack:: Yes
HDMI in:: 1
Number of HDMI outputs:: 4
RJ-45 input ports:: 1
RS-232 ports:: 1
HDMI version:: 2.0
USB port type:: USB Type-A

Audio

Audio output channels:: 7.1

Technical details

Material:: Metal
Compliance certificates:: RoHS

Power

AC adapter output voltage:: 24
AC adapter output current:: 1.25 A
AC input voltage:: 100 - 240
AC adapter input current:: 1 A

Weight & dimensions

Weight:: 1 kg
Height:: 45 mm
Width:: 165 mm
Depth:: 230 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 90
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40

Packaging data

Package weight:: 1600 g
Package depth:: 300 mm
Package height:: 70 mm
Package width:: 260 mm

Certificates

Certification:: CE, FCC, REACH

Packaging content

AC adapter included:: Yes
Manual:: Yes

Logistics data

Master (outer) case height:: 380 mm
Master (outer) case width:: 315 mm
Master (outer) case length:: 545 mm
Products per master (outer) case:: 10 pc(s)
Harmonized System (HS) code:: 85176990

Features

LED indicators:: Y
Product colour:: Black
Supported graphics resolutions:: 4096 x 2160
HDCP:: Yes
Maximum refresh rate:: 60 Hz
HDCP version:: 2.2
Extended display identification data (EDID):: Yes

Hide Show all

Instructions

mmo_79177889_1607961468_2072_3498.pdf

startech-ST124HDVW-3499517.pdf

Description

Instructions

mmo_79177889_1607961468_2072_3498.pdf

startech-ST124HDVW-3499517.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	4	16.07.2026	1,009.99 € Best price
EU9	7	02.07.2026 Best delivery	1,183.99 €

Available only for legal entities

1,009.99 €

Stock: 4

Delivery Date: 16.07.2026

Warehouse: WH109

1,183.99 €

Stock: 7

Delivery Date: 02.07.2026 Best delivery

Warehouse: EU9

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the HDMI Video Wall Controller StarTech ST124HDVW cost, and is it available for purchase?

The price is 1,009.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 11 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 16.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: video port type, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for HDMI Video Wall Controller StarTech ST124HDVW?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
