StarTech USB-C Power Tester Digital Multimeter

Name: StarTech USB-C Power Tester Digital USB-C Power Tester,
Brand: StarTech
SKU: 11731201
Price: 31.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

StarTech USB-C Power Tester Digital Multimeter Bi-Directional Voltage & Current Meter 4.5–50V up to 240W PD EPR Portable

StarTech USB-C Power Tester Digital Multimeter Photo 1

StarTech USB-C Power Tester Digital Multimeter Photo 2

StarTech USB-C Power Tester Digital Multimeter Photo 3

StarTech USB-C Power Tester Digital Multimeter Photo 4

StarTech USB-C Power Tester Digital Multimeter Photo 5

StarTech USB-C Power Tester Digital Multimeter Photo 6

StarTech USB-C Power Tester Digital Multimeter Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Compact StarTech USB-C power tester and digital multimeter for measuring voltage, current and wattage on USB Type‑C ports and cables. Bi-directional meter supports PD EPR up to 240W and DC output voltage range 4.5–50V. Provides amperage, voltage and wattage readings for troubleshooting chargers, power banks, laptops and USB-C accessories. Portable form factor (57 × 23 × 10 mm) for field testing and diagnostics.

Available for order: 10 pcs.

Warranty: 2 Years

SKU: 11731201

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech USB-C Power Tester Digital Multimeter is a compact bi-directional meter designed to measure voltage, current and wattage on USB Type‑C ports and cables. It supports USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W and reads DC output voltages from 4.5 to 50V and currents from 50mA to 6.5A. The portable 57 × 23 × 10 mm form factor and a digital display with 180° rotation make it suitable for field diagnostics, troubleshooting chargers, power banks, laptops and other USB-C accessories.

Advantages

This USB-C tester provides real-time numerical readouts of voltage, current and wattage in either direction of power flow, enabling precise verification of power delivery and consumption. Its bi-directional design allows testing of both source and sink devices without special adapters. The unit supports USB data pass-through up to 10 Gbps and DP Alt Mode video while remaining compact enough for on-the-go use. The rotatable display improves visibility when testing in tight or awkward positions.

Suitable for

Technicians and IT professionals diagnosing USB-C power delivery issues
Field engineers testing chargers, power banks and docking stations
Quality checks for USB-C cables and high-power devices requiring up to 240W
Troubleshooting voltage drop, VBUS compliance and power draw on connected devices

Key specifications

Bi-directional USB Type‑C male to female connection
Voltage measurement range: 4.5–50 V DC
Current measurement range: 50 mA–6.5 A
Wattage support up to 240 W (USB PD 3.1 EPR)
Data pass-through: up to 10 Gbps; supports DP Alt Mode video
Digital display with 180° flip rotation for improved viewing angles
Compact portable size: 57 × 23 × 10 mm

How to use

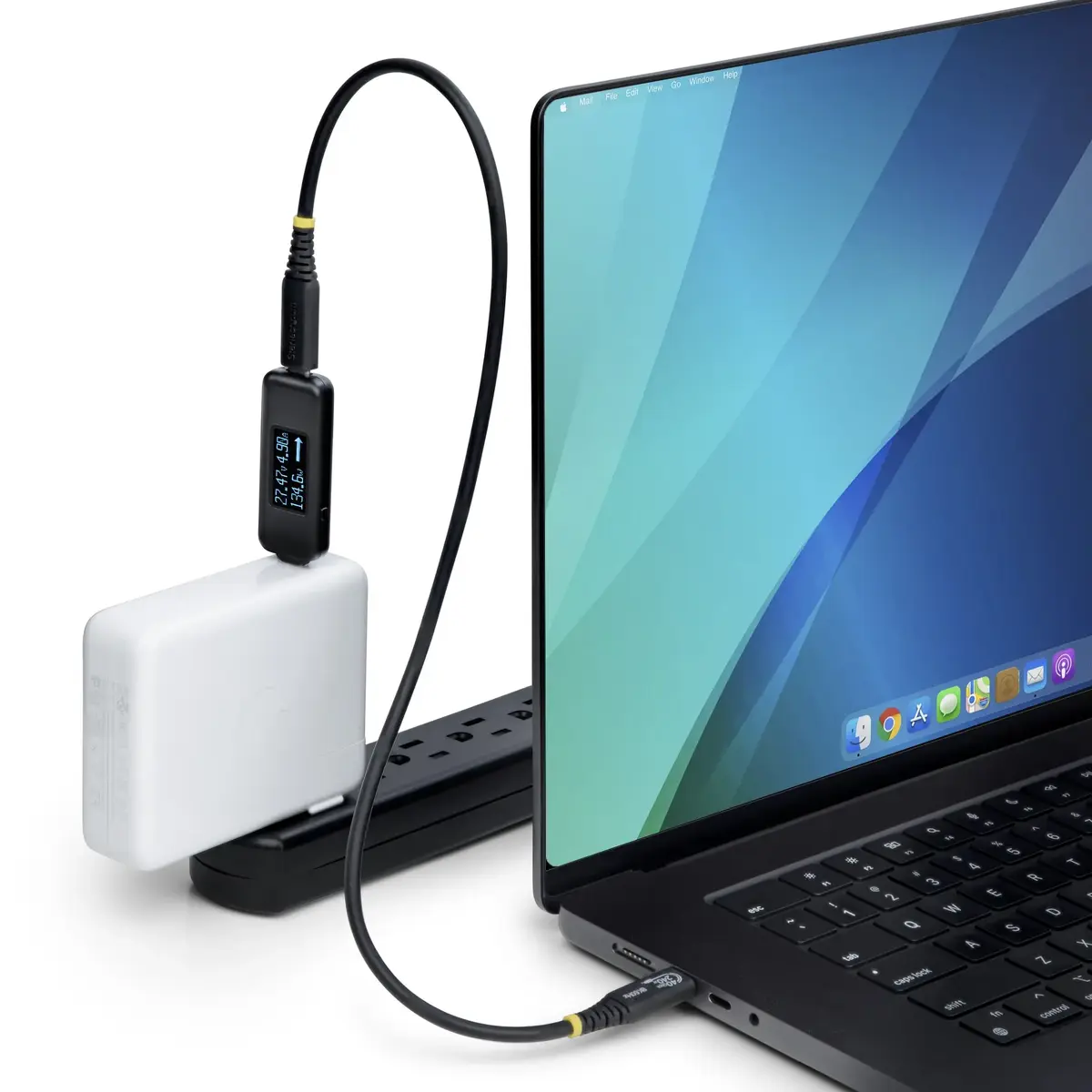

Connect the tester between a USB-C power source and the device or cable under test using the integrated male and female USB-C connectors. Power will flow through the tester and measurements for voltage, current and wattage will appear on the digital display. Use the button to rotate the display 180° as needed for readability in different orientations. For bi-directional tests, reverse the connections to observe power flowing the other way. Ensure that the connected devices and cables are within the specified voltage and current ranges before testing.

Usage recommendations

When testing high-power setups, confirm that cables and connectors are rated for the intended power level and that devices support USB PD 3.1 EPR. Do not use the tester with unsupported interfaces such as Thunderbolt 3. For consistent results, perform tests with stable source conditions and avoid subjecting the tester to excessive mechanical stress or exposure to liquids.

All features

Weight:: 0.012 kg
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -20 - 85
Package weight:: 28 g
Operating temperature (T-T):: 0 - 40
Height:: 10 mm
Width:: 57 mm
Depth:: 23 mm
Backlight display:: Yes
Product colour:: Black
Host interface:: USB 3.2 USB Type C
Backlight colour:: Blue
Input current:: 0.05 - 6.5
Output current:: 6.5 A
Package depth:: 84 mm
Package height:: 15 mm
Package width:: 80 mm
Master (outer) case height:: 270 mm
Master (outer) case width:: 430 mm
Housing material:: Polycarbonate (PC)
Output interface:: USB 3.2 USB Type C
USB version:: 3.2 Gen 2 (3.1 Gen 2)
Built-in display:: Yes
DC output voltage test:: 4.5V-50V
Power connectors supported:: USB Type-C
Master (outer) case length:: 180 mm
Products per master (outer) case:: 150 pc(s)
Maximum charging test:: 240 W
Compliance certificates:: RoHS
DC input voltage test:: 4.5V-50V
Testing type:: Voltage, Wattage, Amperage
