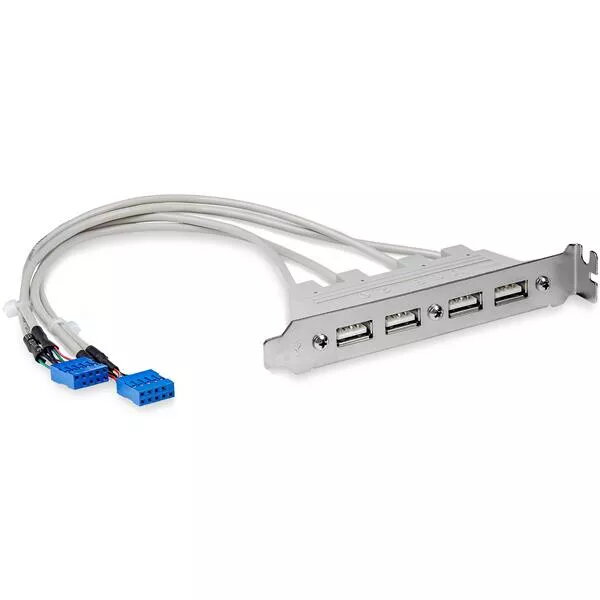

StarTech USBPLATE4 4 Port USB A Female Slot Plate Adapter 0.286 m USB 2.0 IDC

The StarTech USBPLATE4 4 Port USB A Female Slot Plate Adapter is a practical hardware solution designed to expand your computer system with additional external USB connectivity. With a cable length of 0.286 meters, this slot plate adapter connects directly to the USB pin header on your motherboard and mounts onto the rear expansion slot of your computer case, converting internal motherboard pins into four accessible USB-A female ports. It supports USB 2.0 data transfer speeds up to 0.48 Gbit/s, making it suitable for connecting standard peripheral devices. Built to meet strict quality and safety standards, the adapter holds CE, UL, and REACH certifications and is fully RoHS compliant for environmental safety.

Advantages

This slot plate adapter provides a reliable and cost-effective way to maximize your motherboard's potential by utilizing unused internal header pins. It eliminates the need for external hubs by cleanly integrating four standard USB-A ports directly into the chassis of the computer case. The robust physical construction ensures long-term operational stability and dependable performance across various operating environments. Furthermore, standard color-coded wiring simplifies the installation process and helps verify correct connection alignment during setup.

Suitable for

• Adding external USB ports to motherboards with available internal IDC pin headers
• Connecting standard USB 2.0 peripherals such as mice, keyboards, and flash drives to the rear of a PC
• Upgrading computer cases that lack sufficient rear panel USB connectivity
• Custom PC builds and system maintenance or repairs requiring internal header expansion

When it may not be suitable

This adapter is not designed for systems lacking available internal motherboard USB pin headers or vacant rear expansion slots on the computer case. It is also not suitable for applications requiring high-speed data transfer rates exceeding USB 2.0 specifications, such as external solid-state drives or high-resolution video capture devices.

Key specifications

• Four USB-A female ports
• Two IDC 10-pin female connectors
• Cable length of 0.286 meters
• Supports USB 2.0 speeds up to 0.48 Gbit/s
• Operating temperature range from -5 to 40 degrees Celsius
• Storage temperature range from -5 to 80 degrees Celsius
• Weight of 68 grams
• CE, UL, and REACH certified with RoHS compliance

How to use

To use the StarTech USBPLATE4 adapter, begin by powering off and unplugging your computer system. Open the computer case and locate the available internal USB pin headers on your motherboard, consulting your motherboard manual to verify the correct pinout diagram. The standard wiring scheme consists of red for power, green for signal, white for signal, and black for ground. Connect the adapter's IDC female connectors securely to the motherboard header pins. Next, remove a blank expansion slot cover from the back of the computer case, insert the metal slot plate, and secure it with a screw. Close the case, reconnect the power, and your new USB ports are ready for connecting peripheral devices.

What to consider before purchase

• Verify that your computer motherboard has available internal USB pin headers
• Check your motherboard manual for the exact pinout diagram and compatibility
• Ensure your computer case has an available rear expansion slot for mounting the plate
• Confirm that USB 2.0 speeds up to 0.48 Gbit/s meet your data transfer requirements

Usage recommendations

Always verify the motherboard pinout configuration against the adapter wiring scheme prior to powering on the system to prevent electrical damage. Ensure proper ventilation and operating temperatures within the specified range of -5 to 40 degrees Celsius for optimal longevity.
