VDSL2 Ethernet Extender Kit StarTech VDSL-LAN-EXTENDER-EU — single-pair wire, up to 1 km range, up to 300 Mbps

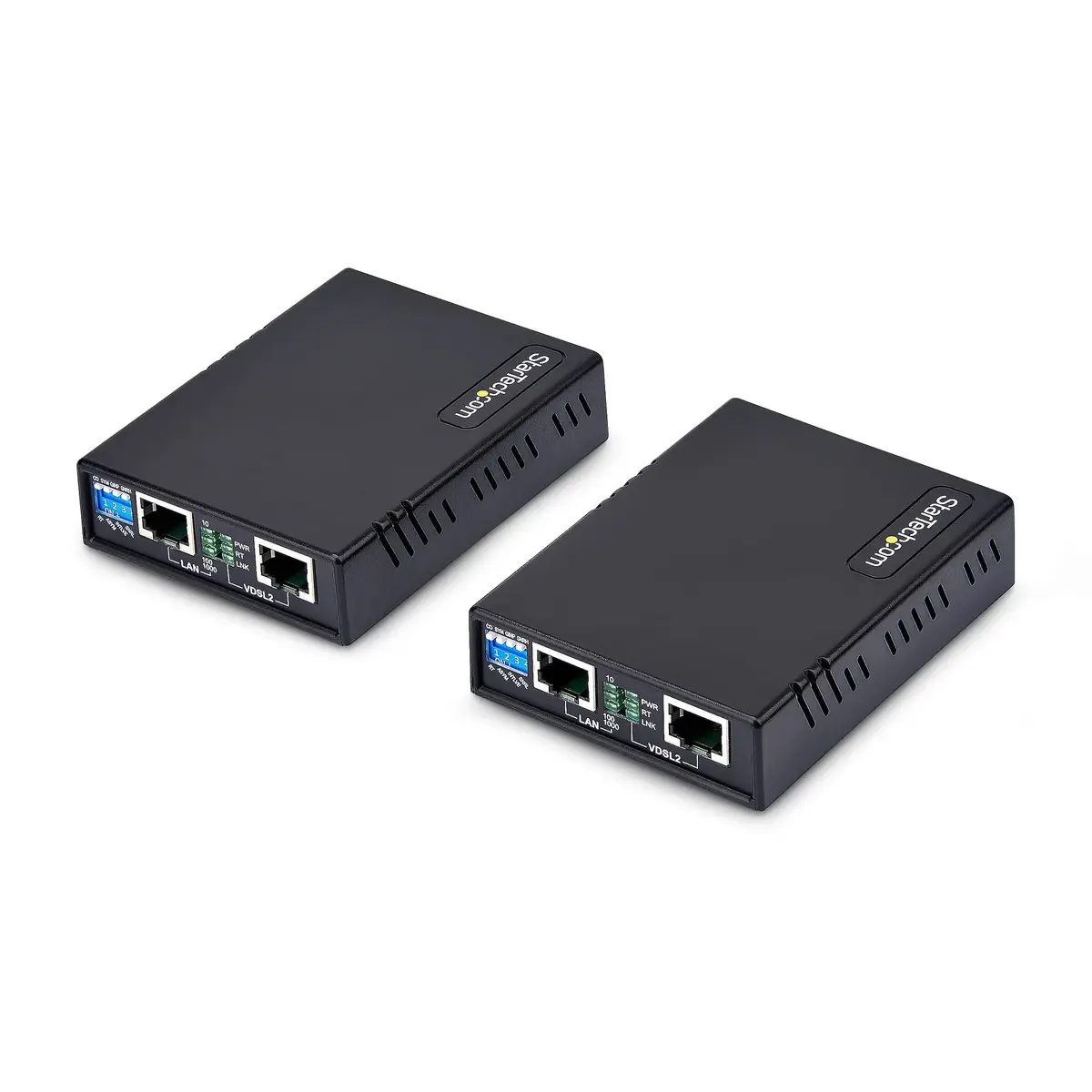

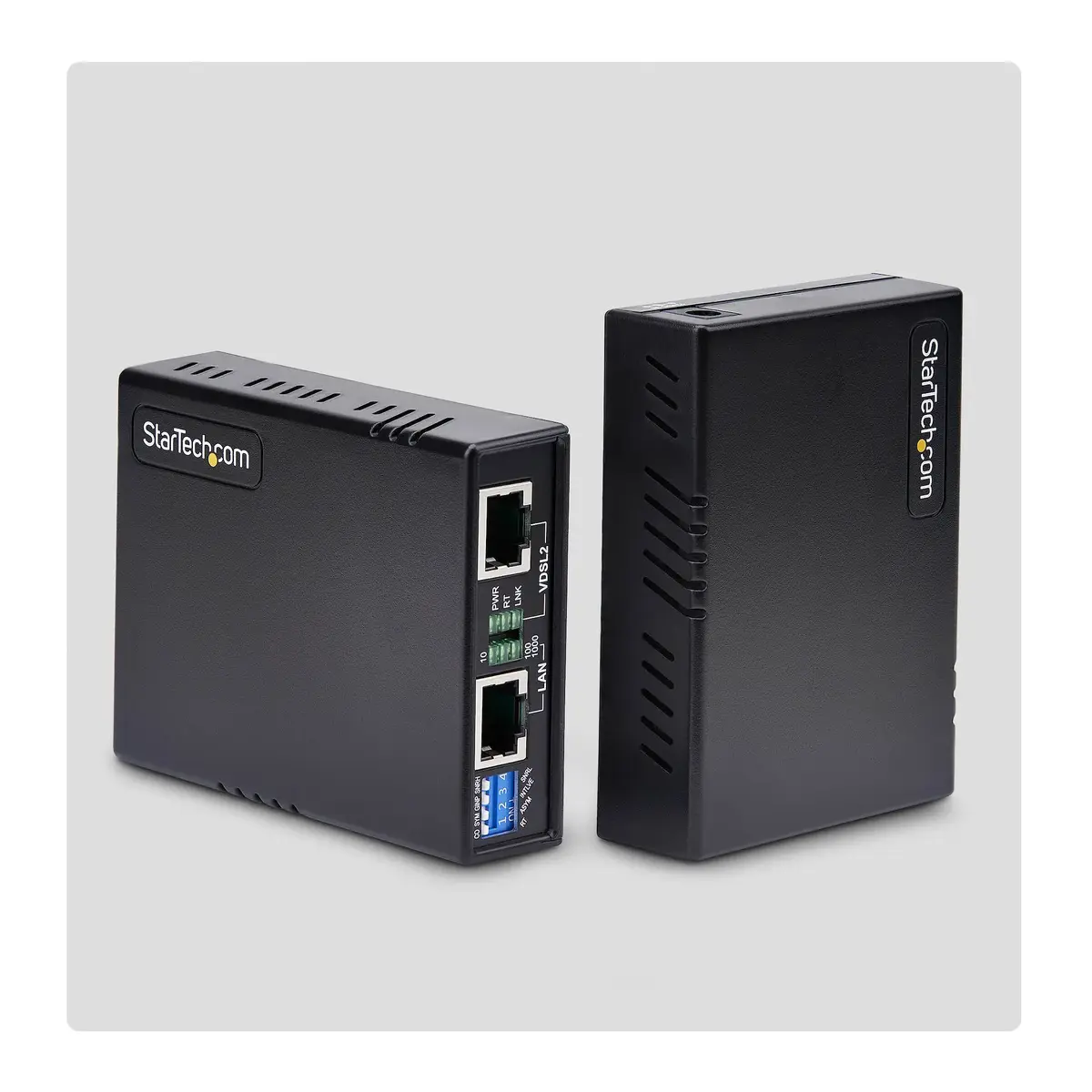

The StarTech VDSL2 Ethernet Extender Kit (VDSL-LAN-EXTENDER-EU) enables long-range LAN extension over a single-pair wire, phone line or Cat5e/Cat6 UTP up to 1 km (0.6 mi). The kit includes a network transmitter (master) and receiver (remote) that support aggregated throughput up to 300 Mbps at shorter distances and implement VDSL2 and related ITU-T standards for reliable DSL transport. The compact black units are powered by included AC adapters (100–240 V) and provide a simple way to extend Ethernet where fiber or additional switches are impractical.

Advantages

This VDSL2 extender provides extended reach over existing cabling — single-pair telephone wire, RJ11 or Cat5e/Cat6 — reducing the need for new infrastructure. It supports VDSL2 profiles (35b/30a/17a) and ITU-T features such as G.Vectoring and G.INP to improve stability and throughput. DIP switch configuration allows installers to select Master/Remote, symmetric/asymmetric modes, G.INP or interleave, and SNR high/low settings for fine-tuning. LEDs give immediate status feedback for link, speed, power and operating mode, simplifying troubleshooting and monitoring.

Suitable for

• Extending network connectivity to remote offices or branch locations over existing telephone or copper UTP wiring
• IP video surveillance and digital signage that require long-reach Ethernet links without fiber
• Connecting network devices across buildings or floors where running new Ethernet cabling is impractical

Key specifications

• Maximum range: up to 1 km (0.6 miles) over single-pair or UTP cabling
• Data rate: up to 300 Mbps aggregated at shorter distances
• Standards: VDSL2 profiles 35b/30a/17a; ITU-T G.993.5 (G.Vectoring); G.998.4 (G.INP)
• Ethernet interface: Gigabit Ethernet link on each unit

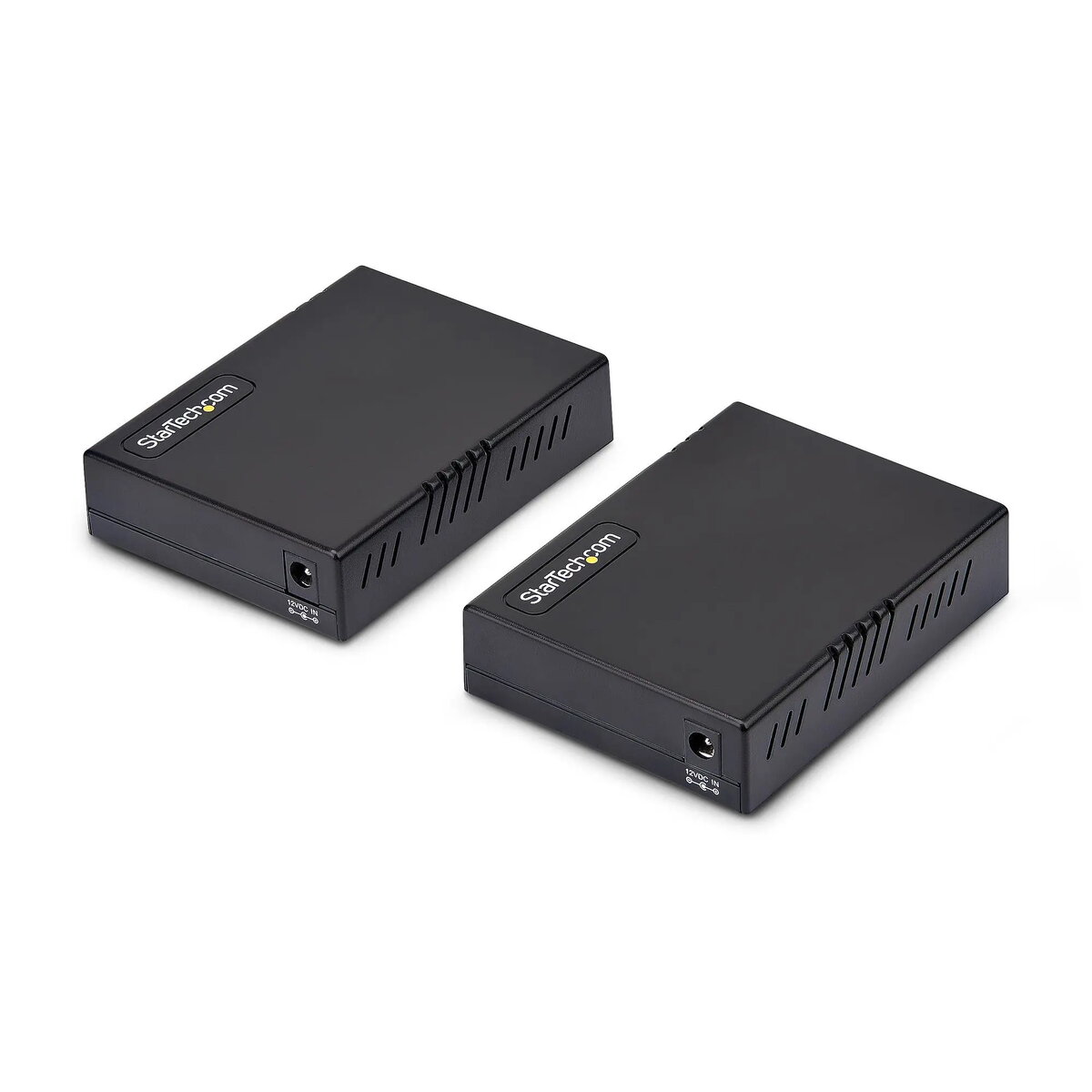

• Power: AC powered, 100–240 V input; typical power consumption 3.8 W

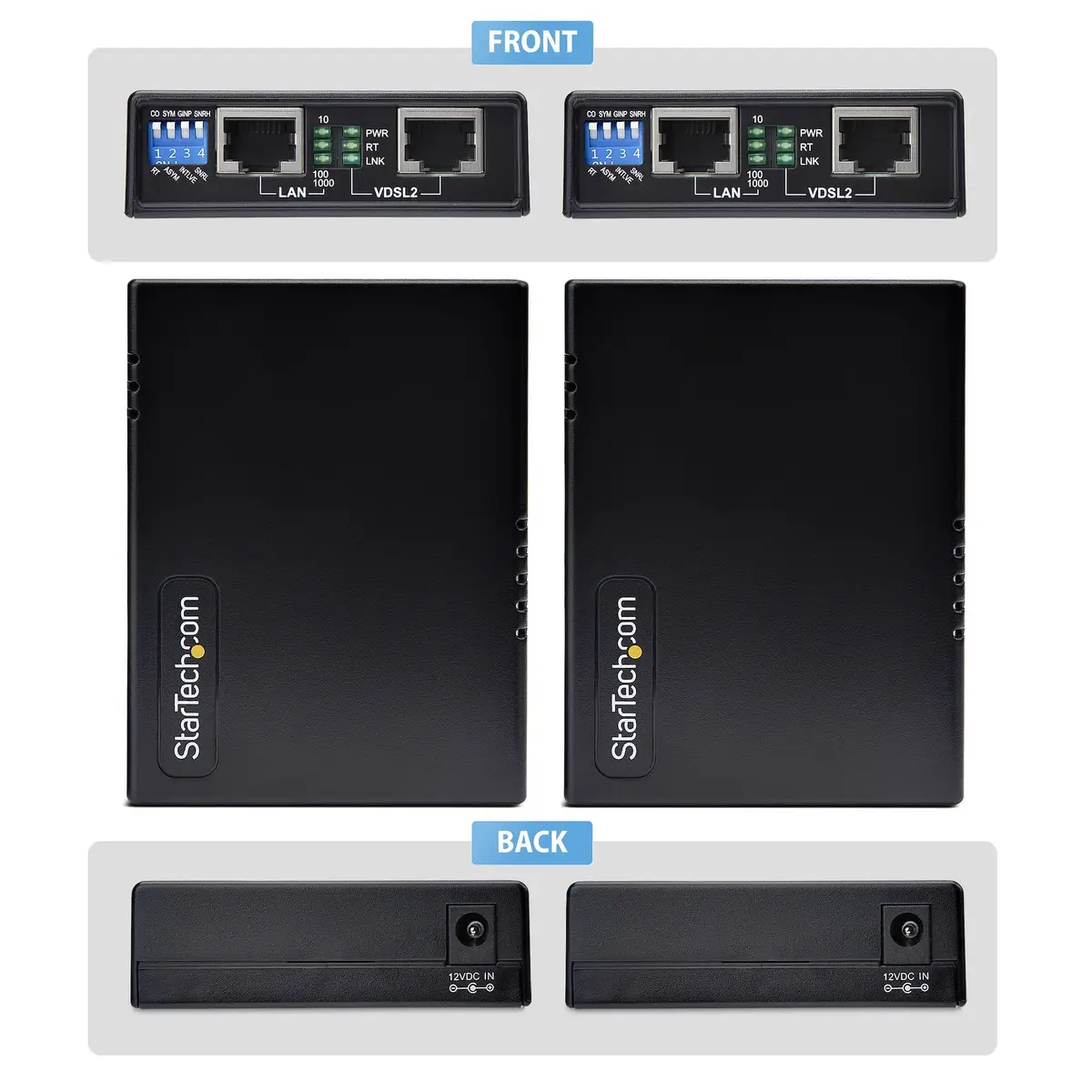

• Indicators: LEDs for LAN speed, link status, power and master/remote mode

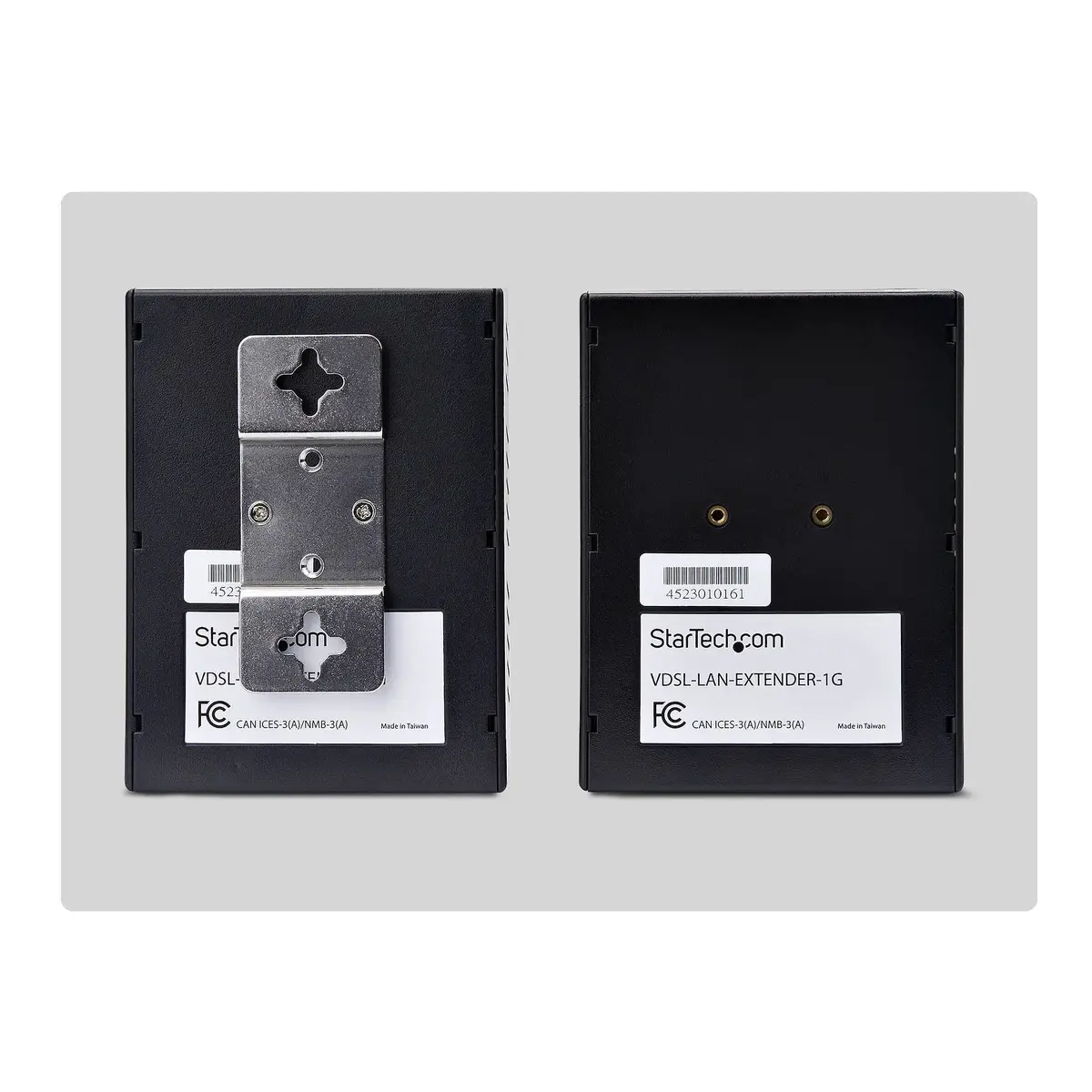

• Mounting: wall-mountable or shelf placement; includes mounting hardware

How to use

Mount the master and remote units where needed and connect the local network switch or router to the master unit’s Ethernet port and the remote device or switch to the remote unit’s Ethernet port. Use single-pair telephone wire, RJ11, Cat5e or Cat6 UTP between the units and power each device with the included AC adapters. Configure the DIP switches to select Master or Remote mode, choose symmetric or asymmetric operation, and set G.INP or interleave plus SNR level according to line conditions. Observe the LEDs to confirm link status and speed; adjust settings if required to optimize stability and throughput.

Usage recommendations

For best performance, use Cat5e or better UTP where available and run a direct pair between units with minimal splices. Test different DIP switch profiles to find the optimal balance of speed and stability for the cable length and noise environment. When deploying for video surveillance or VLAN segmented traffic, verify VLAN transparency and monitor link health periodically.
