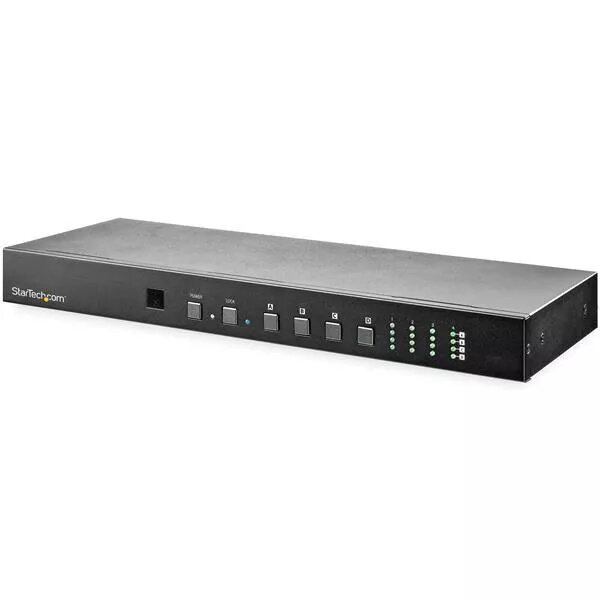

AV matrix switcher StarTech.com VS424HD4K60

Output current:

2700 mA

Housing colour: The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment.

Black

Audio channels:

7.1

HDMI input ports quantity:

4

HDMI output ports quantity:

4

Logistics data

Harmonized System (HS) code:

85299097

Technical details

Product type: The sub-category of the product.

AV matrix switcher

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Other features

Supported resolutions:

4096 x 2160 3840 x 2160 1920 x 1200

Packaging data

Package height: The distance from the top to the bottom of the packaging.

95 mm

Package width: The distance from one side of the packaging to the other.

292 mm

Package weight: Weight of the packaged product.

4000 g

Package depth: The distance from the front to the back of the packaging.

525 mm

Included power plug types:

NA, JP, EU, ANZ, UK

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2 kg

Height: The measurement of the product from head to foot or from base to top.

43 mm

Depth: The distance from the front to the back of something.

437 mm

Width: The measurement or extent of something from side to side.

160 mm

Display

Built-in display: A display which is part of the product, so you do not need to attach another display.

No

Operational conditions

Operating relative humidity (H-H):

20 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

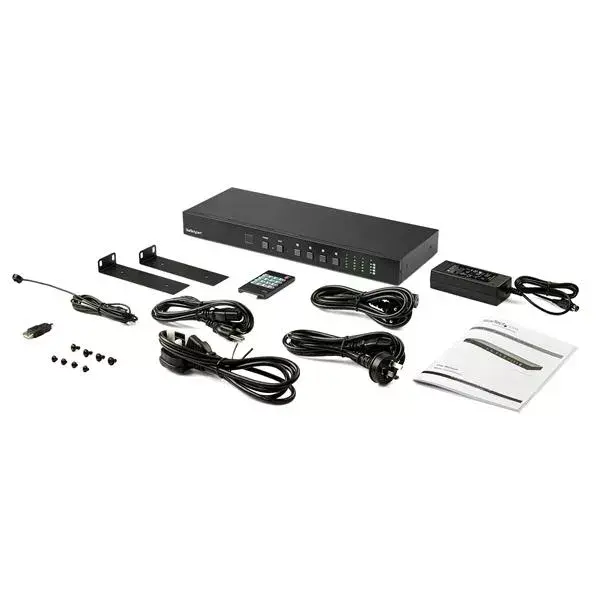

Packaging content

Manual:

Yes

Mounting brackets included:

Yes

IR receiver included:

Yes

Video

Bandwidth:

18 Gbit/s

Certificates

Certification:

TAA, CE, FCC, REACH

Ports & interfaces

USB connector type: The type of USB connector/port that this product has.

Mini-USB B

Remote (IR) input:

1

USB ports quantity:

1

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

HDMI version:

2.0

Power

Input current:

1.5

Output voltage:

24

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Features

Rack mounting: The type of mounting that can position devices in a shelving system (rack).

Yes

LED indicators:

Power, Activity

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

4096 x 2160

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Housing material: What the casing of the product is made of.

Metal
