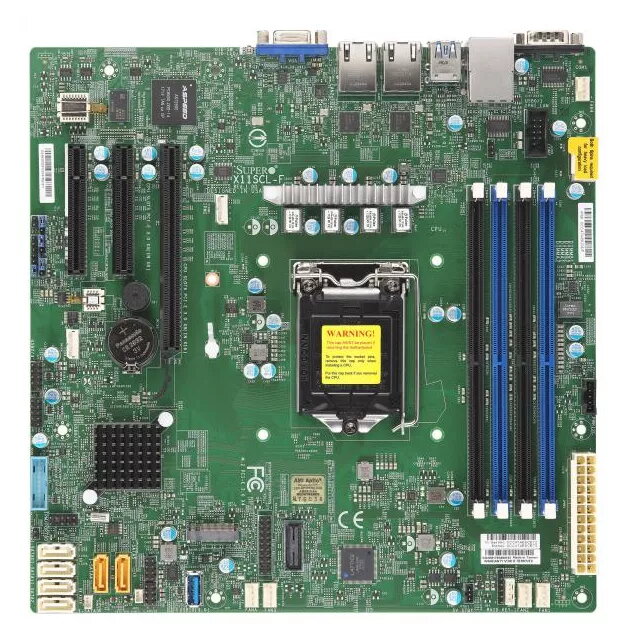

Motherboard Supermicro X11SCL-F, MBD-X11SCL-F-B

Name: Motherboard Supermicro X11SCL-F Intel C242 MBD-X11SCL-F-B
Brand: Supermicro
SKU: 1884357
Price: 261.49 EUR
Availability: OutOfStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Motherboard Supermicro X11SCL-F Intel C242 LGA 1151 (Socket H4) Micro ATX

Short description

The Supermicro X11SCL-F motherboard features the Intel C242 chipset and LGA 1151 socket, supporting Intel® Celeron®, Core™ i3, and Pentium® processors. It supports DDR4-SDRAM memory up to 128 GB at 1.2 V. With SATA III interfaces and RAID levels 0, 1, 5, and 10, it offers versatile storage options. The onboard Aspeed AST2500 graphics and Intel I210 Gigabit Ethernet controller ensure reliable performance for various applications.

Warranty: 1 Year

SKU: 1884357

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Supermicro X11SCL-F is a Micro ATX server motherboard built around the Intel C242 chipset and an LGA 1151 (Socket H4) socket. It supports Intel® Celeron®, Intel® Core™ i3 and Intel® Pentium® processors and up to 128 GB of DDR4-SDRAM memory at 1.2 V. The board includes an onboard Aspeed AST2500 graphics controller, Intel I210 Gigabit Ethernet, SATA III ports with RAID support (0, 1, 5, 10) and one PCI Express x16 (Gen3) slot, providing a compact, reliable foundation for small servers and workstation builds.

Advantages

Designed by Supermicro, the X11SCL-F benefits from the manufacturer’s long experience in server motherboard design, consistent component quality and production expertise. The Micro ATX form factor balances compact footprint with usable expansion, and the board supports modern CPU and memory standards to deliver stable performance for a wide range of server and embedded applications.

Suitable for

Compact file, print or domain controllers
Small business or branch office servers
Entry-level virtualization hosts and test labs
Embedded systems and industrial control applications

When it may not be suitable

The X11SCL-F is a Micro ATX board with a single PCIe x16 slot and limited expansion compared with larger ATX server boards. It may not meet requirements for high-density GPU compute, very large I/O expansions, or multi-CPU configurations. Systems requiring higher memory capacity than 128 GB or specialized enterprise features should consider higher-end server platforms.

Key specifications

Form factor: Micro ATX
Chipset: Intel C242
Processor socket: LGA 1151 (Socket H4) — supports Intel® Celeron®, Core™ i3, Pentium®
Memory: DDR4-SDRAM, up to 128 GB, 1.2 V
Expansion: 1 × PCI Express x16 (Gen3)
Networking: Intel I210 Gigabit Ethernet
Graphics: Onboard Aspeed AST2500 BMC/video controller
Storage: SATA III ports with RAID 0, 1, 5, 10 support

How to use

Install a compatible LGA 1151 processor and up to supported DDR4 DIMMs following standard anti-static precautions. Connect SATA storage devices to the SATA III ports and configure RAID levels through the motherboard’s RAID utility or BIOS/UEFI as required. Use the PCIe x16 slot for a discrete GPU or expansion card if needed, and configure network settings for the Intel I210 controller. Refer to the Supermicro user manual for BIOS configuration, jumper settings and recommended chassis/cooling requirements.

What to consider before purchase

Confirm processor compatibility with LGA 1151 (Socket H4) and supported CPU families
Check memory type and capacity limits (DDR4, up to 128 GB at 1.2 V)
Verify the number of SATA ports and required RAID levels for your storage setup
Assess expansion needs—one PCIe x16 slot may limit additional cards
Ensure chassis and cooling support for a Micro ATX board and chosen CPU

Usage recommendations

For reliable small-server performance, pair the X11SCL-F with a supported Intel Core or Pentium CPU, populate memory channels evenly with matched DDR4 DIMMs, and use enterprise-grade SATA drives or SSDs for RAID arrays. Maintain adequate airflow in the chassis and keep BIOS firmware updated to ensure compatibility and stability.

Specifications

Motherboard form factor:: Micro ATX
Motherboard chipset:: Intel C242
Component for:: Server
Processor socket:: LGA 1151 (Socket H4)
Maximum internal memory:: 128 GB
PCI Express x16 (Gen 3.x) slots:: 1
Supported memory types:: DDR4-SDRAM

All features

Features

Motherboard form factor:: Micro ATX
Motherboard chipset:: Intel C242
Component for:: Server
PC health monitoring:: FAN, LED, Temperature, Voltage

Processor

Processor manufacturer:: Intel
Compatible processor series:: Intel Pentium, Intel Core i3, Intel Celeron
Processor socket:: LGA 1151 (Socket H4)
Processor number of cores supported:: 6
Thermal Design Power (TDP):: 95 W

Memory

Maximum internal memory:: 128 GB
Supported memory types:: DDR4-SDRAM
Supported memory clock speeds:: 2666
Memory voltage:: 1.2
Supported RDIMM module capacity:: 32GB, 16GB, 8GB, 4GB
Unbuffered memory:: Yes

Expansion slots

PCI Express x8 (Gen 3.x) slots:: 0
PCI Express x8 (Gen 2.x) slots:: 0
PCI Express x16 (Gen 2.x) slots:: 0
PCI Express x16 (Gen 3.x) slots:: 1
Number of M.2 (M) slots:: 1

Graphics

On-board graphics card model:: Aspeed AST2500

Network

Ethernet LAN:: Yes
LAN controller:: Intel I210
Wi-Fi:: No
Ethernet interface type:: Gigabit Ethernet

Internal I/O

USB 2.0 connectors:: 2
Number of COM connectors:: 1
TPM connector:: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:: 2
Number of SATA III connectors:: 6

Rear panel I/O ports

PS/2 ports quantity:: 0
USB 2.0 ports quantity:: 4
Ethernet LAN (RJ-45) ports:: 2
VGA (D-Sub) ports quantity:: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2

Storage controllers

RAID levels:: 5, 10, 1
RAID support:: Yes
Supported storage drive interfaces:: SATA III

BIOS

BIOS memory size:: 256 Mbit
BIOS type:: UEFI
ACPI version:: 6.0
System Management BIOS (SMBIOS) version:: 2.7

Other features

Number of DIMM slots:: 4
Number of processors supported:: 1
UEFI version:: 2.7

Operational conditions

Operating relative humidity (H-H):: 8 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 50
Storage relative humidity (H-H):: 5 - 95

Logistics data

Harmonized System (HS) code:: 84733020
