header-product Motherboard Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX
519.49 €

Motherboard Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX

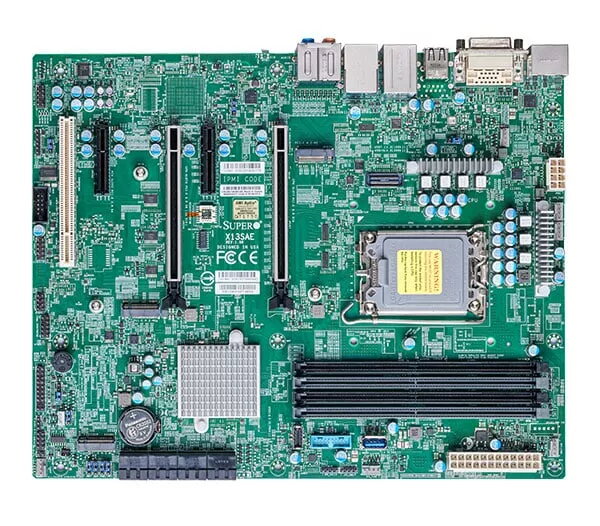

Motherboard Supermicro MBD-X13SAE, Code: MBD-X13SAE Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX

{{email}}
You keep track of price changes

Motherboard Supermicro MBD-X13SAE Intel W680 LGA 1700 ATX

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Supermicro MBD-X13SAE motherboard features an Intel W680 chipset and LGA 1700 socket, supporting Intel® Core™ i3, i5, i7, and i9 processors. It supports DDR5-SDRAM with a maximum memory capacity of 192 GB across DIMM slots. The board includes M.2, PCI Express 3.0, and PCI Express 5.0 interfaces for storage, and supports RAID levels 0, 1, 5, and 10. With HDMI 2.0b and 2.5 Gigabit Ethernet, it offers robust connectivity options for high-performance computing.
Available at price 519.49 €: 18 pcs.
Total available for order: 36 pcs.
Warranty: 2 Years
SKU: 5320170
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
29.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
29.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Price for companies: 429.33€ Price is valid only for legal clients
Available for private customers at price 566.49 €: 18 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Supermicro MBD-X13SAE is a high-performance ATX motherboard engineered for professional server environments and demanding workstations. Built on the Intel W680 chipset and featuring the LGA 1700 socket, this board provides reliable support for the latest Intel Core i3, i5, i7, and i9 processors. It is designed to deliver stability and efficiency, making it an ideal foundation for robust computing systems that require consistent uptime and high data throughput.

Advantages

This motherboard offers significant advantages for power users and system administrators, primarily through its support for high-speed DDR5-SDRAM memory, which allows for faster data processing and improved multitasking capabilities. With a maximum capacity of 192 GB across four DIMM slots, it handles memory-intensive applications with ease. The inclusion of PCI Express 5.0 ensures compatibility with the latest high-speed expansion cards, while the integrated RAID support provides essential data redundancy and protection for critical storage configurations. The 2.5 Gigabit Ethernet port facilitates rapid network connectivity, ensuring that data transfer bottlenecks are minimized in professional workflows.

Suitable for

  • Professional server deployments
  • High-performance workstation builds
  • Data-intensive computing tasks
  • RAID-based storage configurations
  • Network-attached storage systems

This motherboard may not be suitable for compact small-form-factor builds due to its standard ATX size. Additionally, it is optimized for server and professional workstation use, meaning it may lack certain consumer-oriented features or aesthetic elements found in gaming-focused motherboards.

Key specifications

  • Chipset: Intel W680
  • Socket: LGA 1700
  • Form Factor: ATX
  • Memory: DDR5-SDRAM, up to 192 GB
  • Expansion: PCI Express 5.0 and 3.0 slots
  • Storage: M.2 interface with RAID 0, 1, 5, 10 support
  • Networking: 2.5 Gigabit Ethernet
  • Video Output: HDMI 2.0b

To use the Supermicro MBD-X13SAE, install the motherboard into an ATX-compatible chassis and secure it with the appropriate standoffs. Insert a compatible Intel processor into the LGA 1700 socket, ensuring the locking mechanism is fully engaged. Install DDR5 memory modules into the designated slots, and connect your storage devices via the M.2 or SATA interfaces. Finally, connect the necessary power supply cables and peripheral devices to the rear I/O panel before initializing the system BIOS to configure your storage and memory settings.

What to consider before purchase

  • Ensure your computer case supports the ATX form factor.
  • Verify that your processor is compatible with the LGA 1700 socket.
  • Confirm that your power supply unit provides sufficient wattage for your components.
  • Check that your RAM modules are DDR5-SDRAM to ensure compatibility.
Ensure that the BIOS is updated to the latest version provided by the manufacturer to maintain optimal compatibility with newer processor generations and to benefit from the latest security patches and performance improvements.

Specifications

Motherboard form factor:
ATX
Motherboard chipset:
Intel W680
Component for:
Server
Processor socket:
LGA 1700
Number of memory slots:
4
Maximum internal memory:
192 GB
Supported memory types:
DDR5-SDRAM
All features

Features

Motherboard form factor:
ATX
Motherboard chipset:
Intel W680
Component for:
Server
Motherboard chipset family:
Intel

Processor

Processor manufacturer:
Intel
Compatible processor series:
Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Processor socket:
LGA 1700
Processor cores:
24

Memory

Number of memory slots:
4
Maximum internal memory:
192 GB
Supported memory types:
DDR5-SDRAM
Supported memory clock speeds:
3600, 4000, 4400
Memory voltage:
1.1
Unbuffered memory:
Yes
Memory slots type:
DIMM
Supported memory module capacities:
32GB, 16GB, 8GB
ECC сompatibility:
ECC & non-ECC

Network

Ethernet LAN:
Yes
LAN controller:
Intel I219-LM
Ethernet interface type:
2.5 Gigabit Ethernet

Internal I/O

TPM connector:
Yes
Serial port headers:
1

Rear panel I/O ports

USB 2.0 ports quantity:
4
Ethernet LAN (RJ-45) ports:
2
VGA (D-Sub) ports quantity:
0
DVI-D ports quantity:
1
HDMI ports quantity:
1
HDMI version:
2.0b
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0
USB 3.2 Gen 2x2 Type-C ports quantity:
2

Storage controllers

RAID levels:
1, 5, 10
RAID support:
Yes
Supported storage drive interfaces:
PCI Express 3.0, PCI Express 5.0, M.2

BIOS

BIOS memory size:
32 Mbit
BIOS type:
AMI
ACPI version:
6.0
System Management BIOS (SMBIOS) version:
3.0

Weight & dimensions

Width:
304.8 mm
Depth:
243.8 mm

Other features

Audio chip:
Realtek ALC888S

Operational conditions

Storage temperature (T-T):
-20 - 60
Operating temperature (T-T):
0 - 50
