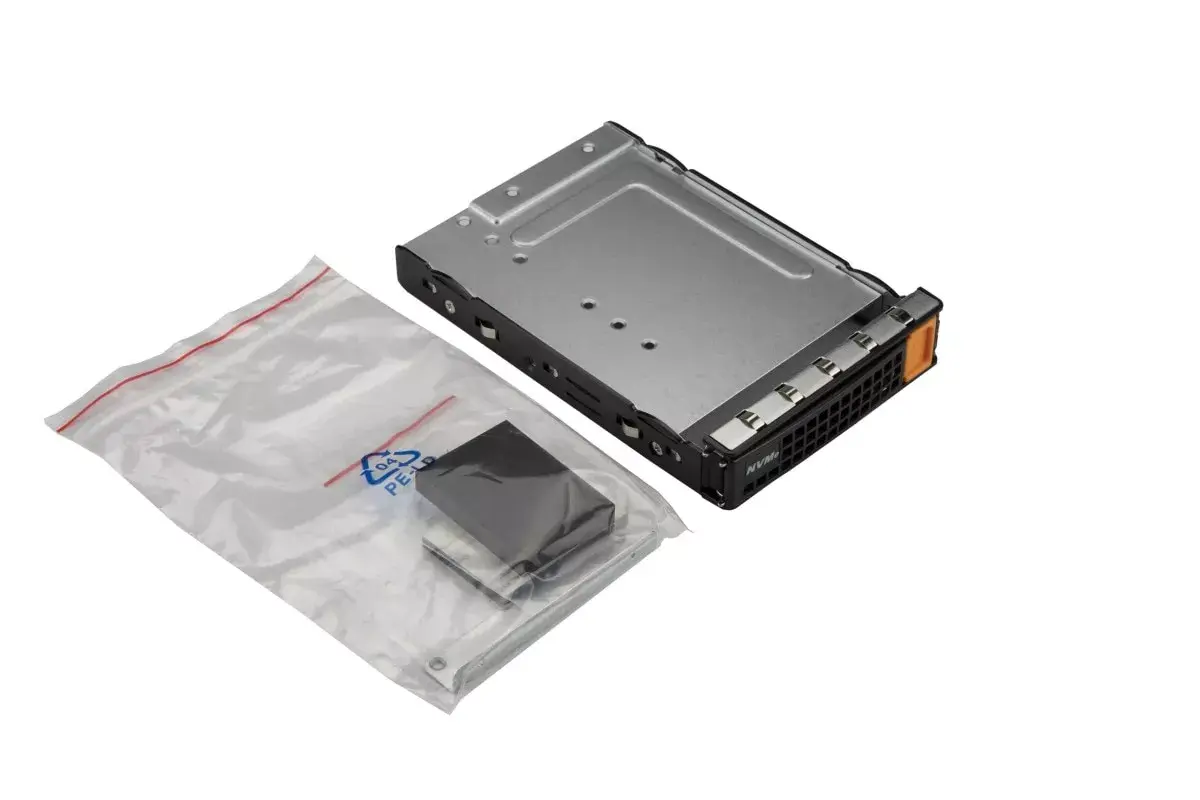

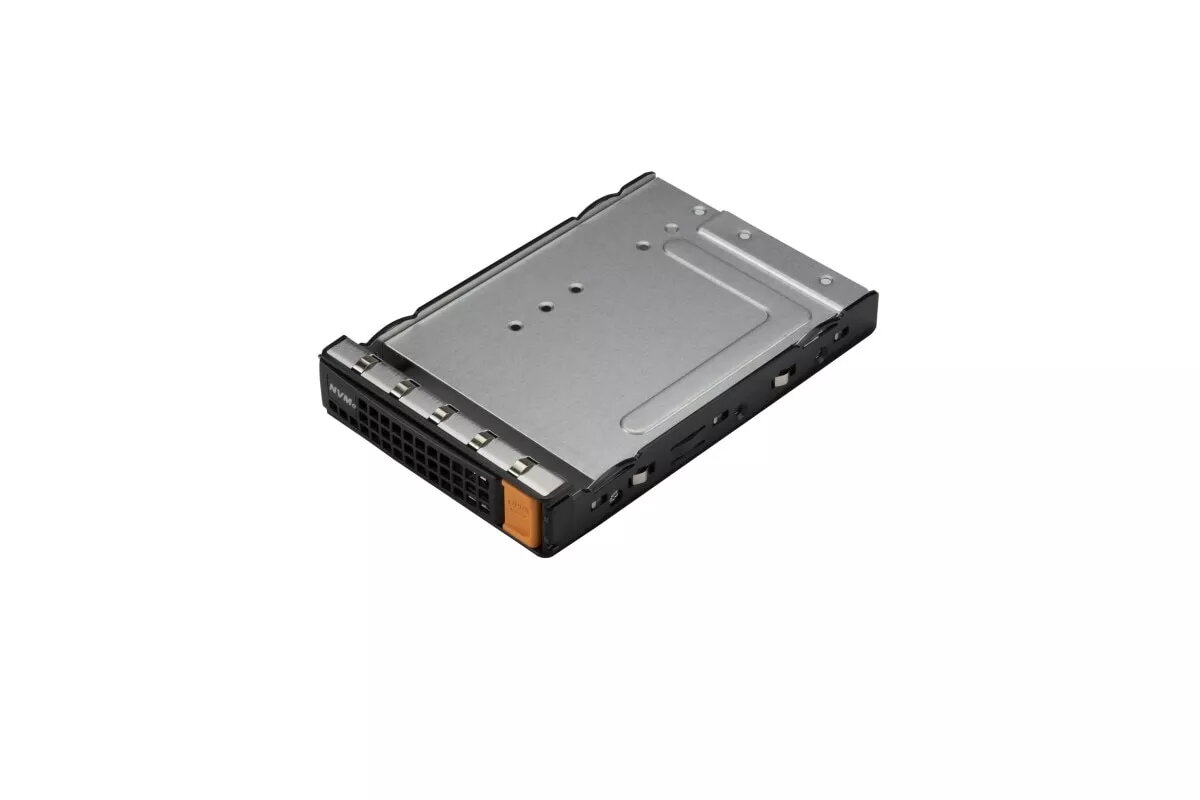

Storage drive tray Supermicro MCP-220-00150-0B

The Supermicro MCP-220-00150-0B is a black 3.5" to 2.5" storage drive tray optimized for NVMe drives. Designed for server and storage environments, the tray provides a secure mounting point and supports efficient airflow to help maintain drive temperatures. Each tray is validated for compatibility with various Supermicro systems and offers straightforward installation for adding or replacing NVMe storage.

Advantages

The tray is built for durability and consistent fit in compatible Supermicro bays, enabling reliable NVMe drive installation. Its design supports proper cooling and stable mounting, and validation by the manufacturer reduces the risk of compatibility issues when installing additional NVMe storage.

Suitable for

• Replacing a 3.5" drive bay with a 2.5" NVMe SSD
• Adding extra NVMe storage to Supermicro servers
• Rack-mounted server and storage array upgrades

Key specifications

• Brand: Supermicro
• Model / MPN: MCP-220-00150-0B
• Form factor: 3.5" bay to 2.5" NVMe drive tray
• Color: Black
• Compatibility: Validated for use in various Supermicro systems

How to use

Power down the server and remove the 3.5" drive bay bezel if applicable. Slide or mount the NVMe drive into the 2.5" tray according to the drive and tray guides, secure the drive with the provided screws if required, then insert the assembled tray into the 3.5" bay until it locks into place. Reconnect power and verify the drive is detected by the system firmware or operating system.

Usage recommendations

Use the tray with Supermicro systems listed as compatible by the vendor, ensure proper anti-static handling when installing NVMe drives, and confirm firmware or BIOS settings support NVMe boot or storage functions as needed.
