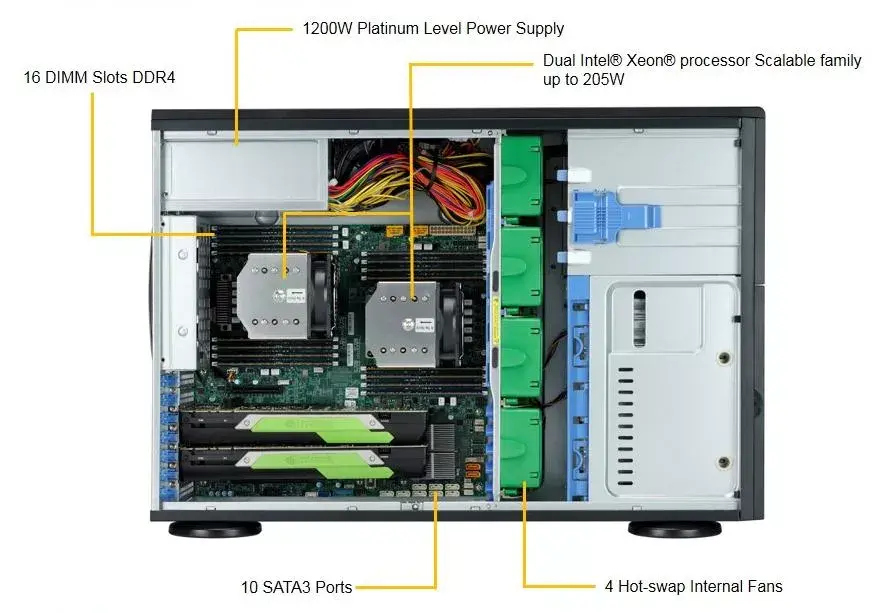

Computer Case Supermicro SuperWorkstation 7049A-T Rack 4U Black

Motherboard chipset: The chipset connects the microprocessor to the rest of the motherboard.

Intel® C621

Chassis type: The type of rigid framework onto which is the hosuing for device components.

Rack (4U)

BIOS memory size:

128 Mbit

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Hot-swap HDD bays: Hot-swap hard drives are drives that can be removed and replaced during operation. Hot-swap hard drives are placed into hot-swap hard drive bays inside computers.

Yes

RAID levels: RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.

1, 5, 10

ECC: ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

Yes

Compatible processor series: A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.

Intel Xeon

BIOS type: The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.

UEFI

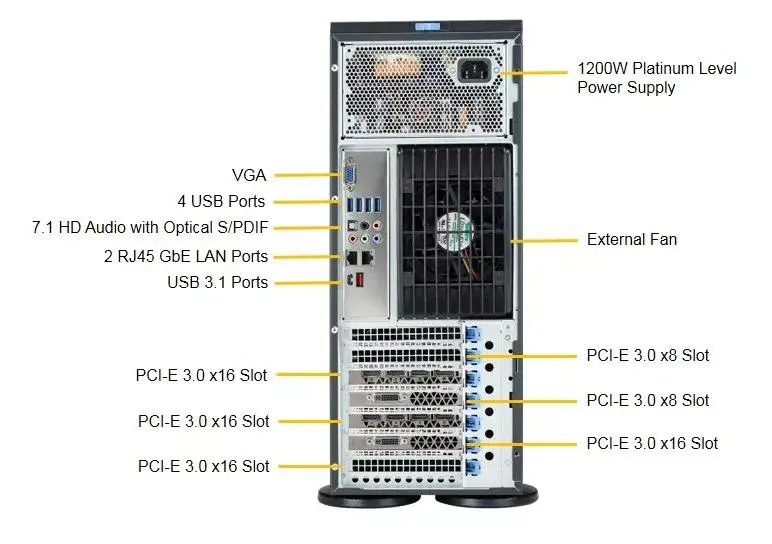

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

VGA (D-Sub) ports quantity: Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1

Processor socket: Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

LGA 3647 (Socket P)

Number of DIMM slots: The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.

16

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

10, 100, 1000

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

3 fan(s)

PCI Express x16 slots:

4

PCI Express x8 slots:

2

System bus rate: A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system.

10.4 GT/s

Supported memory types: Types of memory which can be used with the product.

DDR4-SDRAM

Ethernet interface type:

Fast Ethernet, Gigabit Ethernet

Built-in processor: Whether or not a processor is built into the device.

No

Supported RDIMM clock speeds:

2133, 2400, 2666

Maximum RDIMM memory:

512 GB

PCI Express slots version:

3.0

Number of SATA III connectors: Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

10

Number of processors supported: The quantity of processors which can be used by the product.

2

PC health monitoring:

CPU, FAN, Temperature

On-board graphics card model: "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Aspeed AST2500

Storage drive sizes supported: The sizes of storage drives that can be used with the product.

3.5

Supported storage drive interfaces:

Serial ATA III

Other features

Maximum internal memory: The maximum internal memory which is available in the product.

2000 GB

On/off switch: The button which is pressed to switch the device on or off.

Yes

Backplanes support:

Yes

Logistics data

Harmonized System (HS) code:

84714100

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

32.2 kg

Height: The measurement of the product from head to foot or from base to top.

452 mm

Depth: The distance from the front to the back of something.

648 mm

Width: The measurement or extent of something from side to side.

178 mm

Operational conditions

Operating relative humidity (H-H):

8 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

10 - 35

Storage relative humidity (H-H):

5 - 95

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

4

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

0

Power supply

Power supply: The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

1200 W

Design

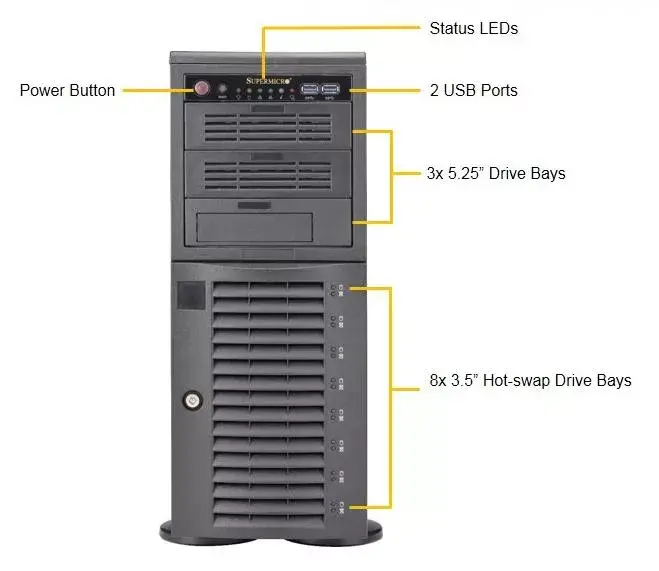

LED indicators:

HDD, Heating, Network, Power

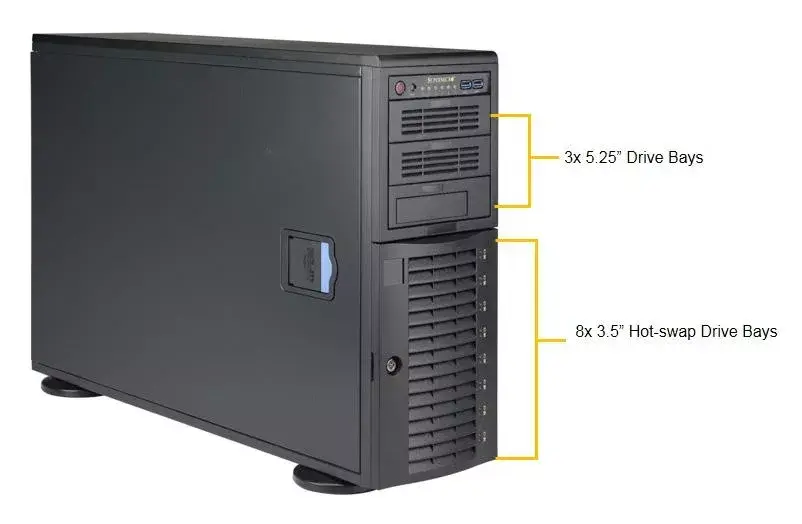

Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.

8

Product colour: The colour e.g. red, blue, green, black, white.

Black
