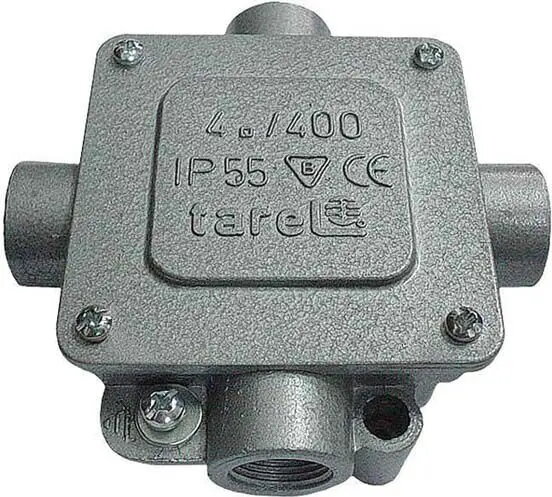

The Tarel metal junction box is a professional-grade electrical enclosure designed to provide secure and durable connections for electrical wiring in industrial and commercial settings. Constructed from high-quality metal, this junction box offers superior mechanical strength and protection against external environmental factors. With an IP55 ingress protection rating, the unit is effectively shielded against dust ingress and low-pressure water jets, making it a reliable choice for demanding installation environments where equipment safety is paramount.
Advantages
The primary advantage of this junction box is its robust metal construction, which ensures long-term durability and resistance to physical impact. The inclusion of four P16 cable glands allows for organized and secure cable entry, maintaining the integrity of the enclosure while preventing strain on the internal connections. The integrated terminal block supports five connections for 6mm cables, providing a versatile solution for various electrical distribution tasks. Its design facilitates efficient cable management, reducing the risk of short circuits and protecting connections from environmental exposure.
Suitable for
- Industrial electrical installations
- Commercial building wiring systems
- Outdoor environments requiring protection against water splashes
- Workshops and garages needing secure cable junctions
When it may not be suitable
This junction box is not intended for complete submersion in water or for use in environments with high-pressure water jets or extreme chemical exposure. It is also not suitable for hazardous areas requiring explosion-proof certification.
Key specifications
- Material: Metal
- Ingress protection: IP55
- Terminal capacity: 5 terminals for 6mm cables
- Cable entry: 4 x P16 cable glands
How to use
To install the junction box, mount the metal housing securely to a flat surface using the provided mounting points. Feed the electrical cables through the P16 cable glands, ensuring that the glands are tightened sufficiently to maintain the IP55 seal. Connect the wires to the internal terminal block according to the required electrical diagram. Once all connections are verified, secure the cover firmly to ensure the enclosure is properly sealed against dust and moisture.
What to consider before purchase
- Verify that the 6mm cable capacity meets your specific wiring requirements.
- Ensure the IP55 rating is sufficient for your intended installation environment.
- Check that the number of cable glands matches the number of incoming and outgoing cables.
Usage recommendations
Regularly inspect the cable glands and the enclosure cover to ensure they remain tight and free from damage, maintaining the IP55 protection level over time.
