Sound bar TCL Q75H 620W 5.1.2-channel with wireless active subwoofer, HDMI 2.1, Bluetooth 5.3, Wi‑Fi 5, 1040×110×58 mm

Optical disc player type: The type of optical disc player e.g. DVD reader, CD reader.

Not included

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

Digital audio coaxial out: The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector.

0

Digital audio optical out: The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector.

1

Composite video in: The socket (port) for the composite video input (white cable).

0

Auto power off: The device switches itself off automatically after a certain activity, or after a certain time of inactivity.

Yes

Detachable power cord:

Yes

USB direct playback: The device can play audio or video contact directly from a peripheral device (e.g. memory stick) which is plugged in via a USB connector.

Yes

HDMI version:

2.1

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

3D: The device can be used with 3D technology.

Yes

Receiver included: The product includes a receiver, which is a device for picking up an external signal.

Yes

Soundbar speaker RMS power:

30 W

Consumer Electronics Control (CEC):

T-link

Built-in display: A display which is part of the product, so you do not need to attach another display.

Yes

Wi-Fi ready:

Yes

Display type: Type of display (screen) e.g. LCD.

LED

Network streaming services supported: Network streaming services which show film and TV shows online on-demand e.g. Netflix can be used with the product.

Chromecast, Spotify

Wall mounting kit:

Yes

Subwoofer location:

Separate

Bluetooth codec:

A2DP, AVRCP, SBC, AAC

Woofer diameter (subwoofer):

8 "

Supported video streaming resolutions:

4096 x 2160

Subwoofer connectivity:

Wireless

Enhanced Audio Return Channel (eARC):

Yes

Spotify Connect:

Yes

Apple AirPlay 2 support:

Yes

Number of pallets per truck:

33 pc(s)

Quantity per truck:

330 pc(s)

Remote control battery technology:

Alkaline

Audio sample rate (24bit):

48 kHz

Soundbar mode control:

Yes

TV Sound Share:

Yes

Quick power on:

Yes

Other features

Batteries included:

Yes

FM radio: Frequency-modulated (FM) radio gives the clearest reception of any radio band. When used with a headset, it delivers stereo-like sound.

No

Night mode:

Yes

Sleep timer:

No

HDMI in: Port (socket) for HDMI input.

1

Number of HDMI outputs: Port (socket) for HDMI output.

1

Equalizer modes:

Game, Movie, Music, Sport, Standard, Voice

Virtual surround:

Yes

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Digital Living Network Alliance (DLNA) certified:

No

Digital audio optical in: The socket in the device for the digital audio input. The signal is inputted via an optical cable with an TOSLINK connector.

1

Digital audio coaxial in: The socket in the device for the digital audio input. The signal is broight into the device via a coaxial cable with an RCA connector.

0

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

No

Logistics data

Products per pallet: Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.

10 pc(s)

Pallet gross height:

800 mm

Pallet gross length:

1800 mm

Pallet gross width:

1200 mm

Technical details

Cord length: The distance from one end of the cord (cable) to the other.

1.5 m

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Yes

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

AAC, MP3

Number of products included: The number of products that are included in the package.

2 pc(s)

Video formats supported: The type of video formats that can be used by this device.

Not supported

Audio Return Channel (ARC):

Yes

Subwoofer included: The product includes a subwoofer, which is a loudspeaker for low frequencies (bass sounds).

Yes

Soundbar weight:

5600 g

Built-in Chromecast:

Yes

Warranty period:

2 year(s)

Packaging data

Package type: The type of product package e.g. box.

Carton

Package weight: Weight of the packaged product.

15150 g

Package height: The distance from the top to the bottom of the packaging.

292 mm

Package depth: The distance from the front to the back of the packaging.

512 mm

Package width: The distance from one side of the packaging to the other.

1138 mm

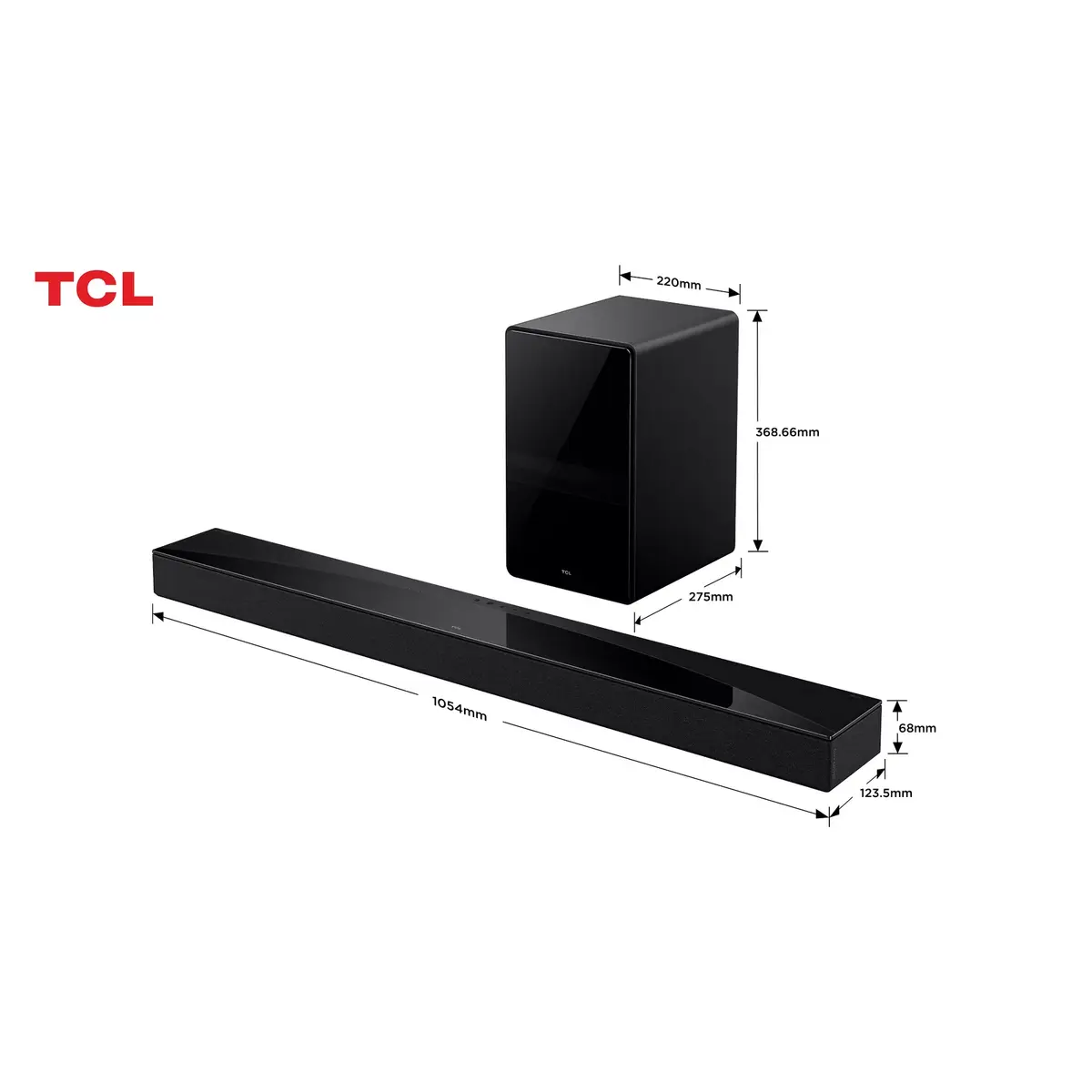

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

6.4 kg

Height: The measurement of the product from head to foot or from base to top.

58 mm

Depth: The distance from the front to the back of something.

110 mm

Width: The measurement or extent of something from side to side.

1040 mm

Packaging content

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Cables included:

AC, HDMI

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Warranty card:

Yes

Mounting brackets included:

Yes

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

98 W

Power consumption (standby): The amount of electricity that is consumed when the product is on standby.

1 W

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Subwoofer

Subwoofer height:

368.66 mm

Subwoofer depth:

275 mm

Subwoofer width:

220 mm

Subwoofer weight:

5600 g

Bass adjustment:

Yes

Subwoofer RMS power: This is a measure of the continuous power (RMS power) produced by a subwoofer.

100 W

Subwoofer type: Loudspeaker which is dedicated to the reproduction of low-pitched audio frequencies known as bass. Subwoofers are made up of one or more woofers mounted in a loudspeaker enclosure—often made of wood—capable of withstanding air pressure while resisting deformation. Subwoofer enclosures come in a variety of designs, including bass reflex (with a port or passive radiator in the enclosure), infinite baffle, horn-loaded, and bandpass designs.

Active subwoofer

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2

Compatible memory cards: Types of memory cards which can be used with this product.

Not supported

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

No

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

AUX in:

No

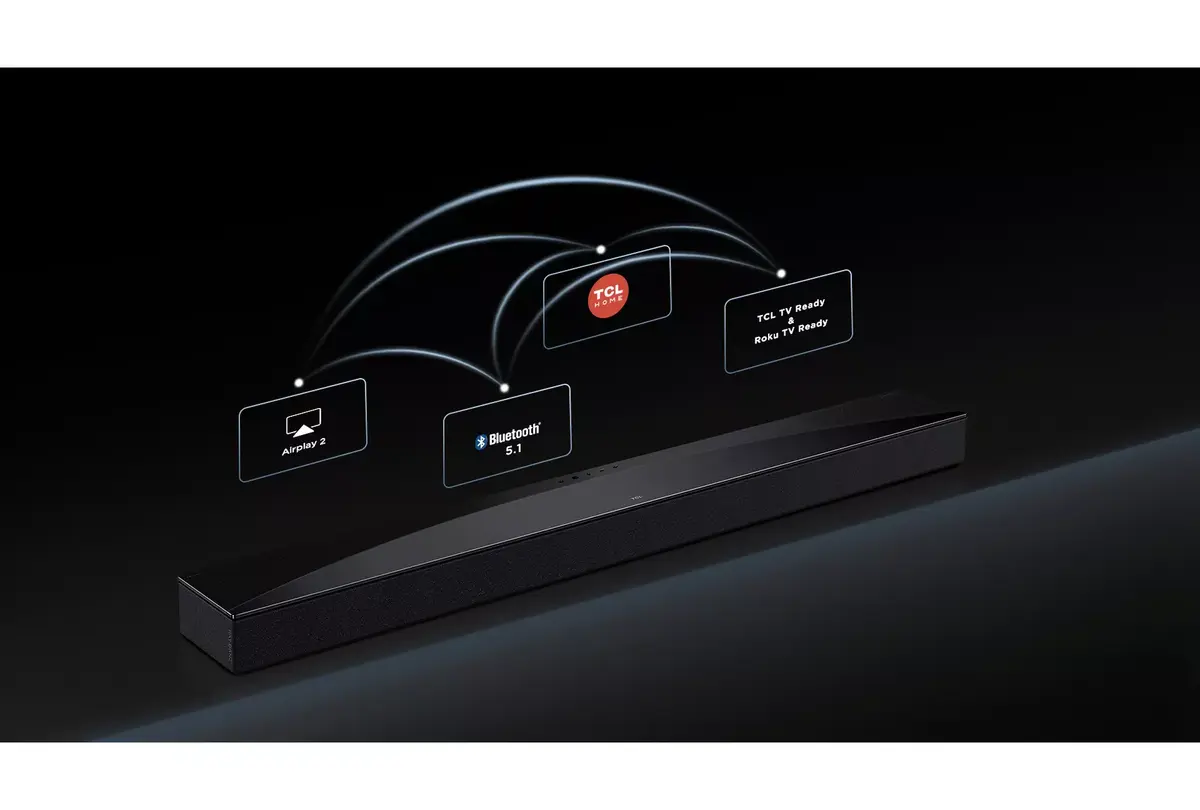

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Performance

High Dynamic Range (HDR) technology:

Dolby Vision

Smartphone/tablet remote support: The product can be used to remotely manage a smartphone.

Yes

On/off switch: The button which is pressed to switch the device on or off.

Yes

Supported radio bands: The bands which the radio can receive e.g. FM, MW, LW.

Not supported

Equalizer: Device that attempts to reverse the distortion incurred by a signal transmitted through a channel.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Titanium

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

620 W

Colour name:

Dark titanium

Number of speakers: The quantity of speakers included in/with the product.

11

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

5.1.2

Audio

Audio decoders: Device or software capable of decoding a digital stream of audio e.g. internet radio.

DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby MAT, Dolby Surround, Dolby TrueHD
