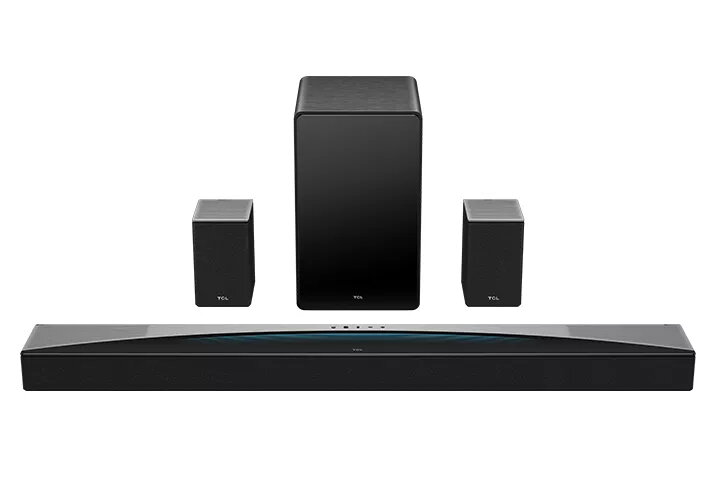

Sound Bar TCL Q Q85H 510W

Optical disc player type: The type of optical disc player e.g. DVD reader, CD reader.

Not included

Digital audio coaxial out: The socket in the device for the digital audio output. The signal is carried via a coaxial cable with an RCA connector.

0

Digital audio optical out: The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector.

1

Composite video in: The socket (port) for the composite video input (white cable).

0

Auto power off: The device switches itself off automatically after a certain activity, or after a certain time of inactivity.

Yes

Detachable power cord:

Yes

USB direct playback: The device can play audio or video contact directly from a peripheral device (e.g. memory stick) which is plugged in via a USB connector.

Yes

HDMI version:

2.1

3D: The device can be used with 3D technology.

Yes

Receiver included: The product includes a receiver, which is a device for picking up an external signal.

Yes

Soundbar speaker RMS power:

30 W

Consumer Electronics Control (CEC):

T-link

Built-in display: A display which is part of the product, so you do not need to attach another display.

Yes

Wall mounting kit:

Yes

Subwoofer location:

Separate

Analog audio input:

0

Bluetooth codec:

A2DP, AVRCP, SBC, AAC

Woofer diameter (subwoofer):

8 "

Supported video streaming resolutions:

4096 x 2160

Subwoofer connectivity:

Wireless

Enhanced Audio Return Channel (eARC):

Yes

Apple AirPlay 2 support:

Yes

Number of pallets per truck:

33 pc(s)

Quantity per truck:

330 pc(s)

Remote control battery technology:

Alkaline

Audio sample rate (24bit):

48 kHz

Other features

Batteries included:

Yes

FM radio: Frequency-modulated (FM) radio gives the clearest reception of any radio band. When used with a headset, it delivers stereo-like sound.

No

HDMI in: Port (socket) for HDMI input.

1

Number of HDMI outputs: Port (socket) for HDMI output.

1

Equalizer modes:

Bass, Game, Movie, Music, Night, Sport, Standard, Treble, Voice

Virtual surround:

Yes

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Digital Living Network Alliance (DLNA) certified:

Yes

Digital audio optical in: The socket in the device for the digital audio input. The signal is inputted via an optical cable with an TOSLINK connector.

1

Digital audio coaxial in: The socket in the device for the digital audio input. The signal is broight into the device via a coaxial cable with an RCA connector.

0

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

No

Logistics data

Products per master (outer) case:

1 pc(s)

Master (outer) case gross weight:

17700 g

Master (outer) case length:

512 mm

Master (outer) case height:

292 mm

Master (outer) case width:

1138 mm

Products per pallet: Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.

16 pc(s)

Pallet gross weight:

297940 g

Pallet gross height:

2465 mm

Pallet gross length:

800 mm

Pallet gross width:

1200 mm

Products per pallet layer:

8 pc(s)

Technical details

Cord length: The distance from one end of the cord (cable) to the other.

1.5 m

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

FLAC, MP3, WAV, WMA

Rear speaker weight:

595 g

Rear speaker width:

97 mm

Rear speaker depth:

161 mm

Rear speaker height:

120 mm

Video formats supported: The type of video formats that can be used by this device.

Not supported

Audio Return Channel (ARC):

Yes

Subwoofer included: The product includes a subwoofer, which is a loudspeaker for low frequencies (bass sounds).

Yes

Soundbar weight:

6400 g

Pallet net weight:

297940 g

Master (outer) case net weight:

17700 g

Pallet net length:

800 mm

Pallet net width:

1200 mm

Pallet net height:

2465 mm

Built-in Chromecast:

Yes

Warranty period:

2 year(s)

Packaging data

Package weight: Weight of the packaged product.

17700 g

Package height: The distance from the top to the bottom of the packaging.

292 mm

Package depth: The distance from the front to the back of the packaging.

512 mm

Package width: The distance from one side of the packaging to the other.

1138 mm

Battery

Battery weight: Indicates the weight of the battery.

15 g

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

58 mm

Depth: The distance from the front to the back of something.

110 mm

Width: The measurement or extent of something from side to side.

1040 mm

Packaging content

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Cables included:

AC, HDMI

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Warranty card:

Yes

Mounting brackets included:

Yes

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

138 W

Power consumption (standby): The amount of electricity that is consumed when the product is on standby.

2 W

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Subwoofer

Subwoofer height:

367 mm

Subwoofer depth:

275 mm

Subwoofer width:

220 mm

Subwoofer weight:

6800 g

Bass adjustment:

Yes

Subwoofer RMS power: This is a measure of the continuous power (RMS power) produced by a subwoofer.

180 W

Subwoofer type: Loudspeaker which is dedicated to the reproduction of low-pitched audio frequencies known as bass. Subwoofers are made up of one or more woofers mounted in a loudspeaker enclosure—often made of wood—capable of withstanding air pressure while resisting deformation. Subwoofer enclosures come in a variety of designs, including bass reflex (with a port or passive radiator in the enclosure), infinite baffle, horn-loaded, and bandpass designs.

Active subwoofer

Front speakers

Front speaker weight:

6400 g

Satellite speakers

Number of satellite speakers: The quantity of satellite speakers. These are speakers used in surround-sound systems that are intended to be placed around a center channel speaker, as a part of a technique to recreate "three-dimensional" immersive sound; they tend to be smaller than the center speaker, and often contain audio to the left, right, and behind of the center channel.

2

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2

Compatible memory cards: Types of memory cards which can be used with this product.

Not supported

Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.

No

Bluetooth version: The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Yes

AUX in:

No

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired & Wireless

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Performance

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Netherlands

High Dynamic Range (HDR) technology:

Dolby Vision

Smartphone/tablet remote support: The product can be used to remotely manage a smartphone.

Yes

Supported radio bands: The bands which the radio can receive e.g. FM, MW, LW.

Not supported

Equalizer: Device that attempts to reverse the distortion incurred by a signal transmitted through a channel.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Titanium

Peak Music Power Output (PMPO):

860 W

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

510 W

Colour name:

Dark titanium

Number of speakers: The quantity of speakers included in/with the product.

15

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1.4

Audio

Audio decoders: Device or software capable of decoding a digital stream of audio e.g. internet radio.

DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital Plus, Dolby MAT, Dolby Surround, Dolby TrueHD

Loudspeakers

Woofer diameter (imperial):

8 "
