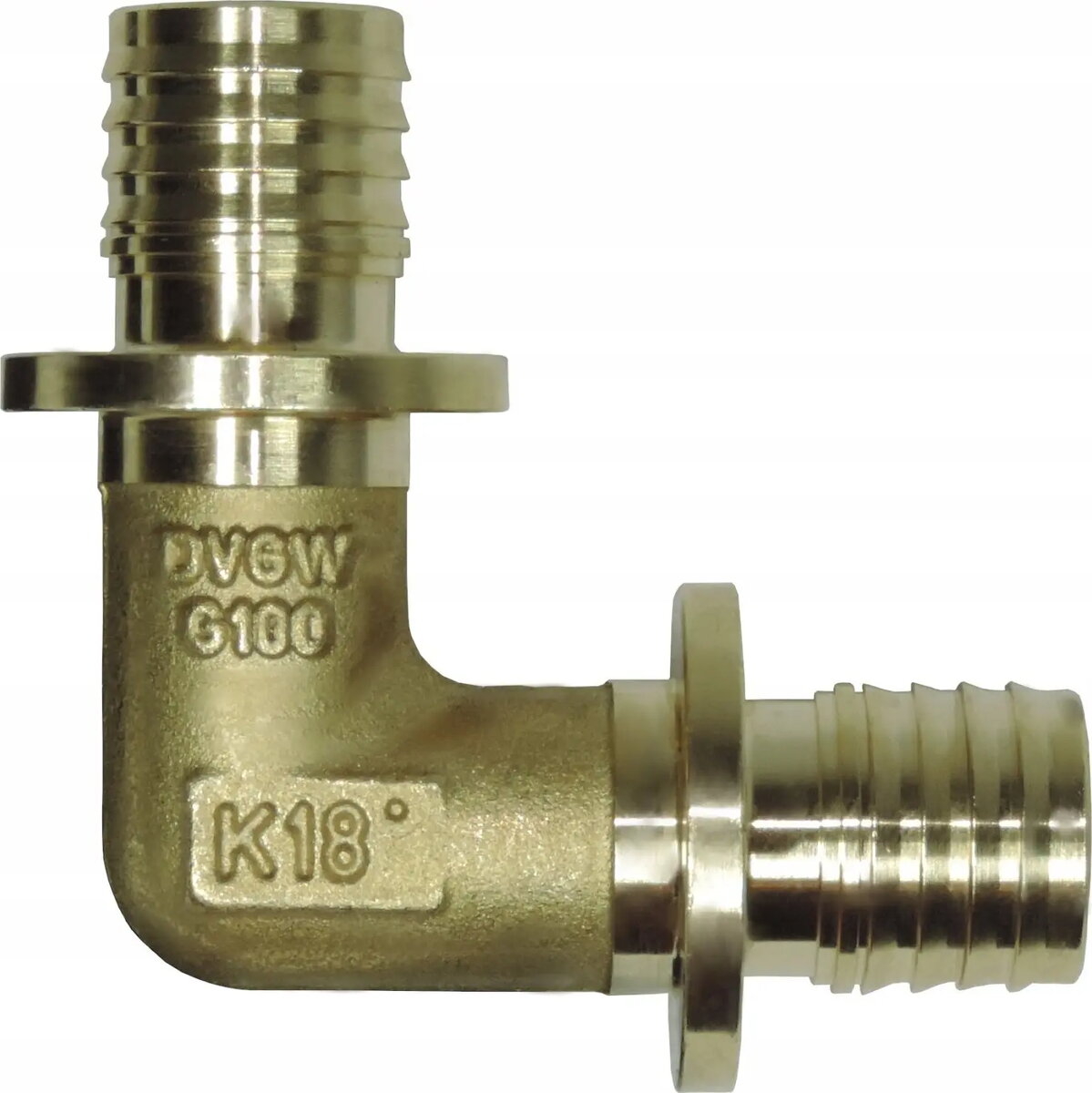

Angle elbow TECE 90° 20 mm brass (model 70 70 20)

TECE 90° angle elbow in brass with a 20 mm connection diameter is a compact plumbing fitting designed to change the direction of a pipe run by ninety degrees. Manufactured by TECE, this elbow suits installations where a durable metal connection is required for domestic water supply, heating circuits and repair or extension of existing 20 mm pipework. The product is intended for use with compatible 20 mm piping systems and provides a space-efficient right-angle turn while maintaining flow characteristics appropriate for typical residential and light-commercial plumbing.

Advantages

This brass angle elbow provides corrosion resistance and mechanical strength compared with some plastic alternatives, ensuring longevity in contact with potable water and heated fluids. Its 20 mm diameter matches common domestic pipe sizes, enabling straightforward integration into standard installations. The compact 90° design reduces the need for multiple fittings, simplifies routing in confined spaces and helps maintain a clean, professional-looking plumbing layout.

Suitable for

• Domestic potable water distribution with 20 mm piping
• Heating loops and radiator connections using 20 mm pipes
• Repair, maintenance or extension of existing 20 mm metal or compatible plastic pipework
• Areas with limited installation space requiring a compact right-angle fitting

Key specifications

• Material: brass
• Angle: 90 degrees
• Connection diameter: 20 mm
• Application: potable water and heating systems
• Design: compact elbow for right-angle directional change

How to use

Install the TECE 90° brass elbow by preparing the pipe ends according to the chosen joining method and system requirements (cut square, deburr, and clean). Slide or connect the 20 mm pipe into the elbow following the system's instructions for press, compression or soldered joints as applicable. Ensure proper alignment, full insertion depth and, where required, use appropriate sealing elements or soldering techniques. After installation, verify the connection for leaks and, if used in heating systems, perform any necessary system flush and pressure tests before commissioning.

Usage recommendations

Use this brass elbow with compatible 20 mm system components and follow manufacturer guidance for the chosen joining method. Avoid using incompatible sealants or aggressive chemicals that can damage brass. When installed in systems carrying potable water, comply with local regulations for materials in contact with drinking water and perform pressure testing after installation.
