Ceiling bracket TECHLY ICA-PM 100WH

Name: Ceiling bracket TECHLY ICA-PM 100WH 022397
Brand: TECHLY
SKU: 232688
Price: 37.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Ceiling bracket TECHLY ICA-PM 100WH for projectors, aluminium, white, max load 10 kg, height 218 mm, tilt 0–180°, swivel 180°

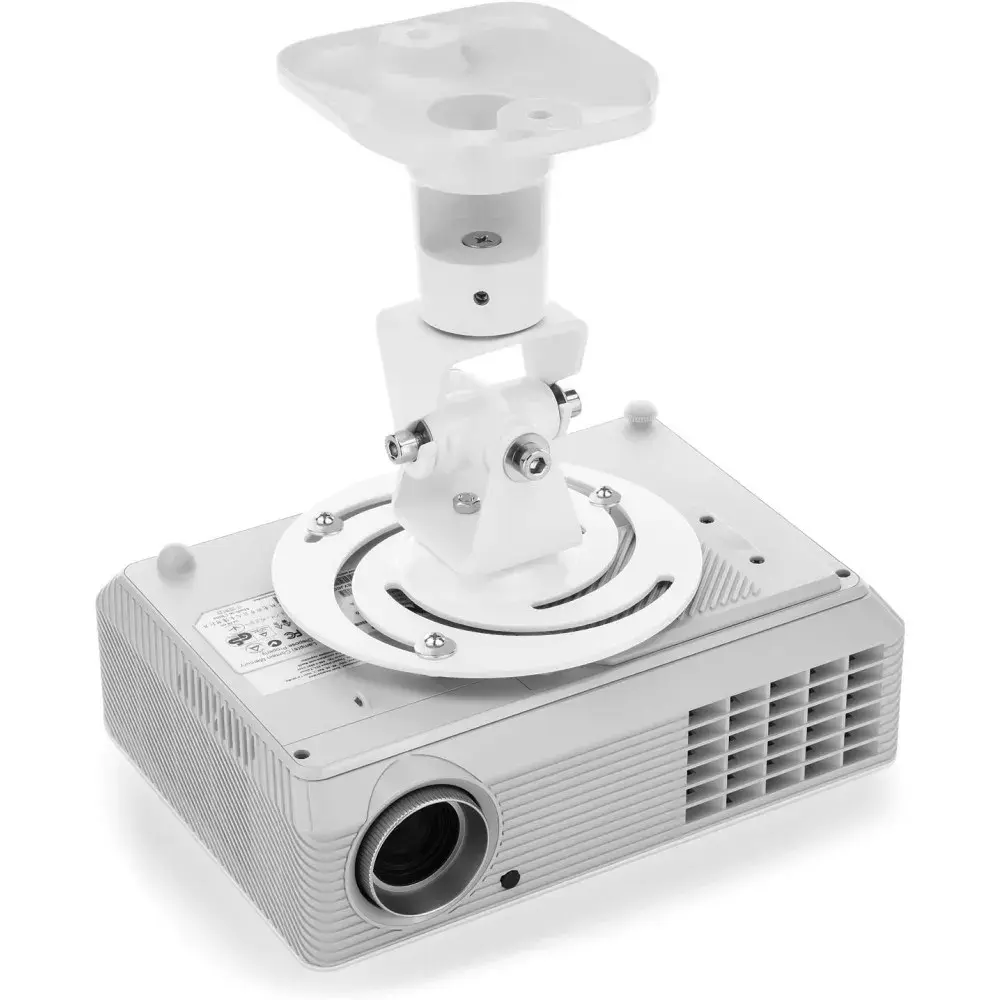

Ceiling bracket TECHLY ICA-PM 100WH Photo 1

Ceiling bracket TECHLY ICA-PM 100WH Photo 2

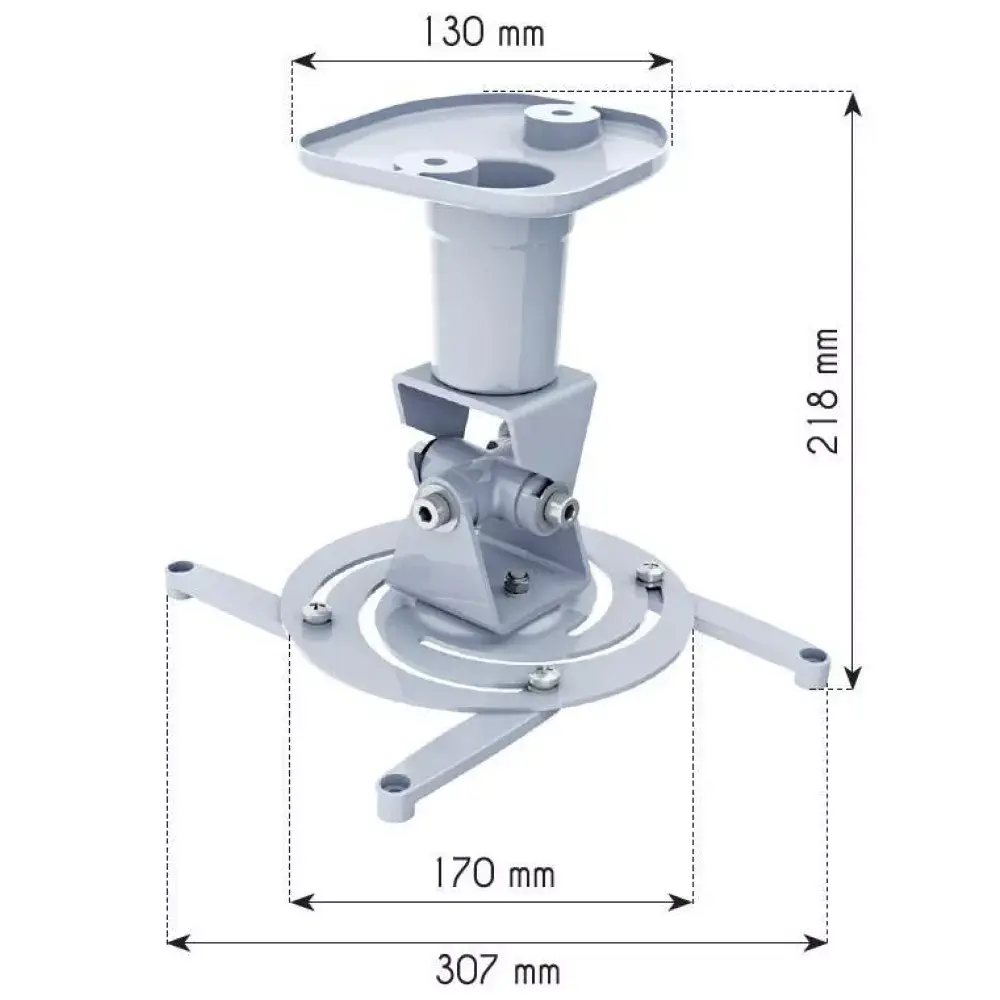

Ceiling bracket TECHLY ICA-PM 100WH Photo 3

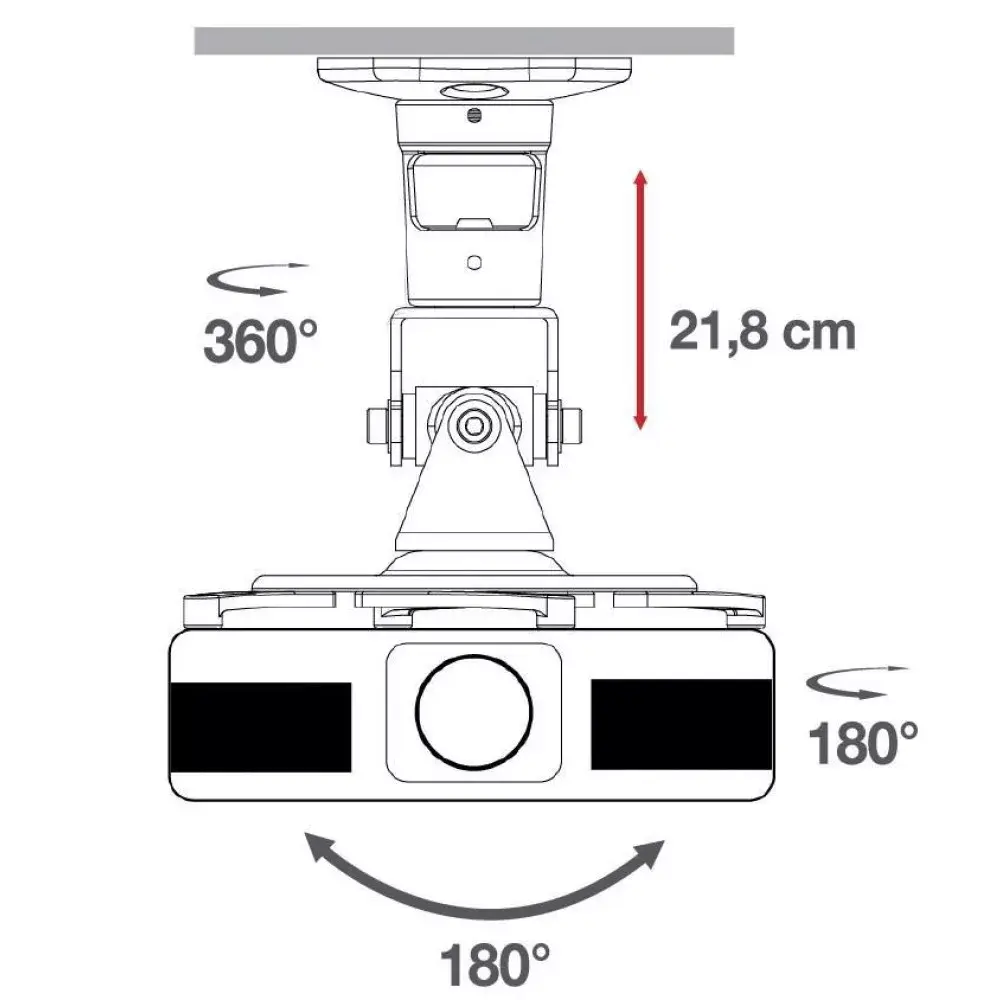

Ceiling bracket TECHLY ICA-PM 100WH Photo 4

Ceiling bracket TECHLY ICA-PM 100WH Photo 5

Ceiling bracket TECHLY ICA-PM 100WH Photo 6

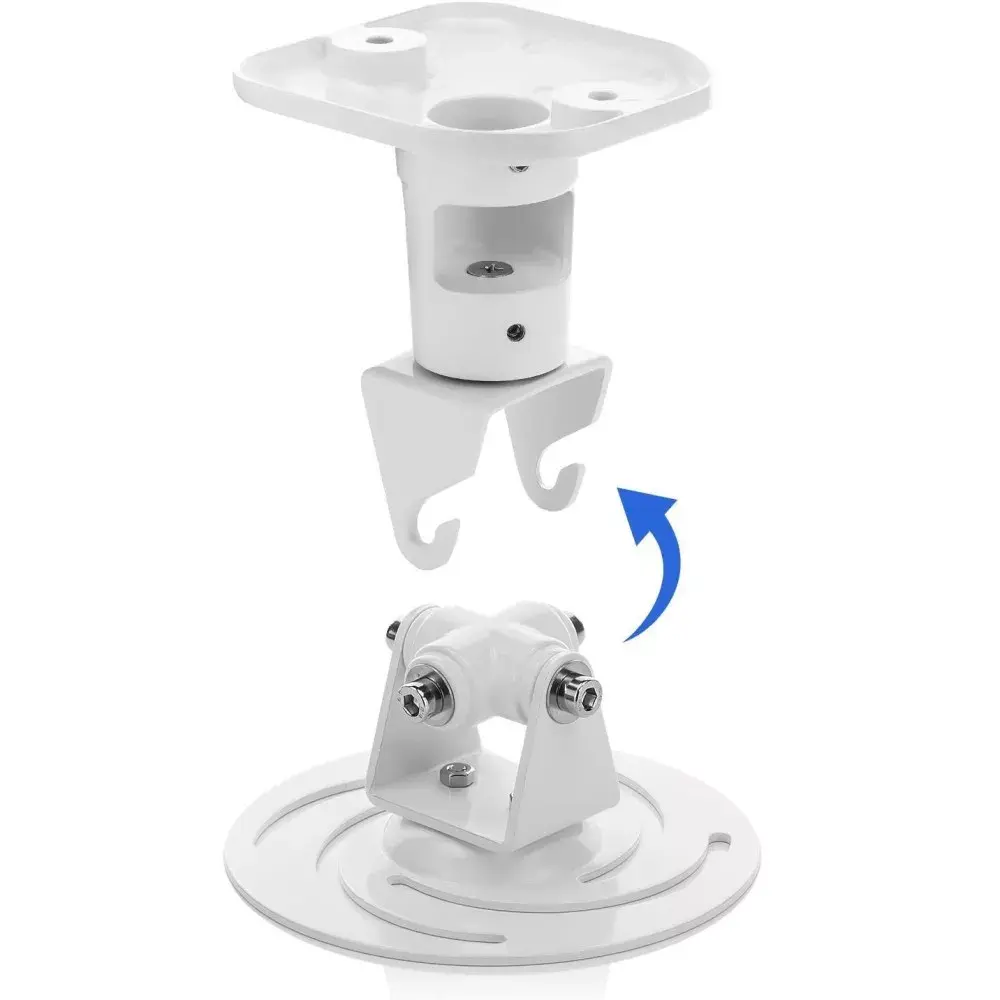

Ceiling bracket TECHLY ICA-PM 100WH Photo 7

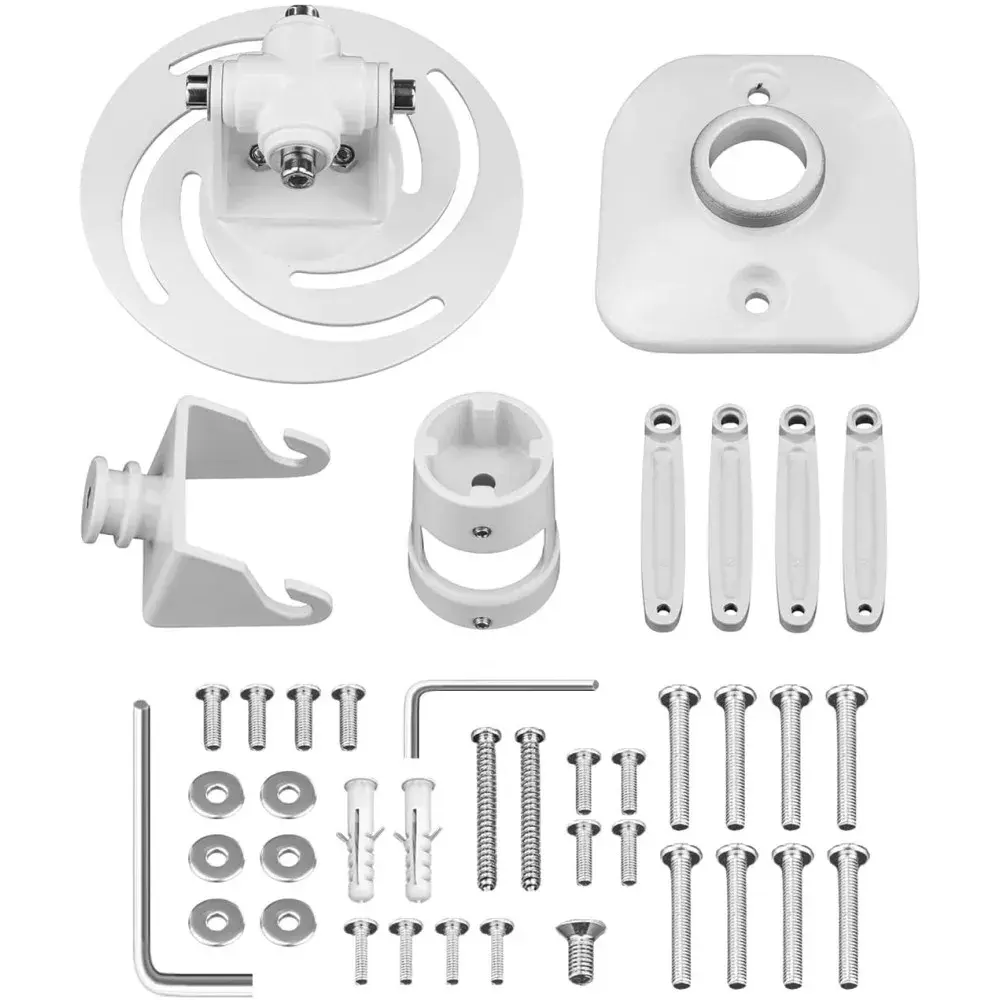

Ceiling bracket TECHLY ICA-PM 100WH Photo 8

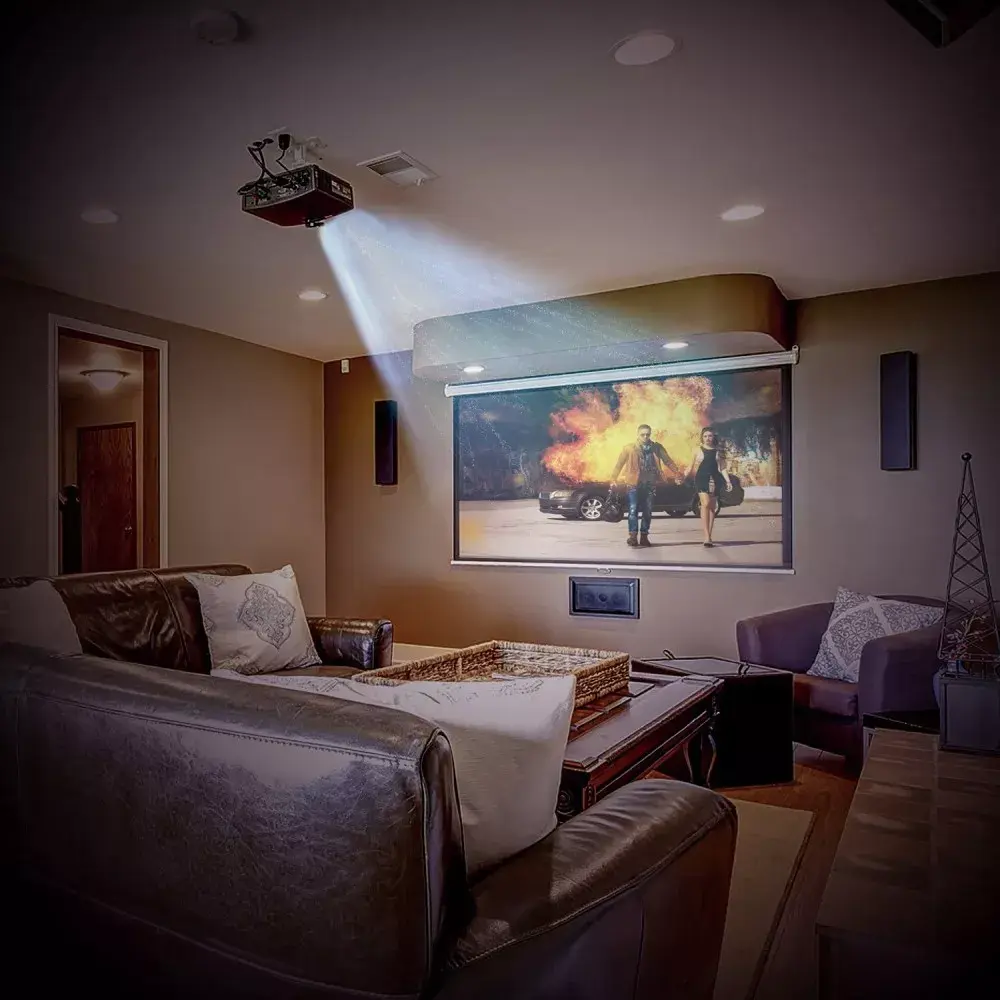

Ceiling bracket TECHLY ICA-PM 100WH Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Ceiling bracket TECHLY ICA-PM 100WH is a white aluminium mount designed for projectors with a maximum load capacity of 10 kg. It provides 360° rotation capability, 180° swivel and 0–180° tilt range, with adjustable depth 17–30.7 cm and fixed distance to ceiling 21.8 cm. Cable management is integrated. Base 13×13 cm, height 218 mm, screws included and 10-year warranty.

Available at price 37.99 €: 1 pcs.

Total available for order: 14 pcs.

Warranty: 3 Years

SKU: 232688

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Tuesday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

12.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.52 kg)

Parcel couriers

Unisend / DPD Paku skapis / Omniva / Latvijas Pasts pakomāts / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

12.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 2.49 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Techly ICA-PM 100WH ceiling bracket is a universal support for projectors up to 10 kg. It features four adjustable support arms that accommodate a wide range of mounting hole patterns and a central column that conceals installation cables. Made of aluminum with a white powder-coated finish, the bracket offers full multidirectional positioning and a compact profile suitable for classrooms, meeting rooms, hotels, bars, restaurants and other indoor spaces.

Advantages

Supports most projectors on the market with a maximum load of 10 kg. The bracket provides 180° horizontal inclination, 180° vertical tilt and 360° rotation for flexible projector alignment. Built-in cable management keeps cables hidden inside the central column. Aluminum construction with powder coating ensures a lightweight but durable mount and a neat white appearance that integrates with ceiling decor.

Suitable for

Classrooms and lecture halls
Meeting and conference rooms
Home cinema and living rooms
Hotel conference areas
Bars, restaurants and public display areas

Key specifications

Maximum supported weight: 10 kg
Material: Aluminum with powder-coated finish
Mounting type: Ceiling
Adjustable support arms: 4
Horizontal inclination: 180°
Vertical tilt: 180°
Rotation: 360°
Cable management: Central column
Finish/color: White
Height: 218 mm
Base width/depth: 130 mm
Mounting bracket width (max reach): 307 mm

How to use

Mount the ceiling base to a suitable ceiling structure using the supplied mounting screws and ensure the fastening can support the projector weight. Adjust the four support arms to match the projector’s mounting holes, secure the projector to the bracket, then route the cables through the central column for a concealed installation. Use the bracket’s tilt, inclination and rotation adjustments to align the projected image precisely before tightening all fasteners.

Usage recommendations

Confirm the projector’s weight and mounting-hole pattern before installation. For safety and optimal alignment, install the bracket on a solid ceiling structure; if in doubt, consult a qualified installer. Periodically check fasteners and cable routing for wear or loosening.

Specifications

Weight:: 1.567 kg
Mounting type:: Ceiling
Product colour:: White

All features

Weight & dimensions

Weight:: 1.567 kg
Height:: 218 mm
Depth (max):: 307 mm
Depth (min):: 170 mm
Base width:: 130 mm
Base length:: 130 mm

Logistics data

Harmonized System (HS) code:: 83024190

Performance

Tilt angle range:: 0 - 180
Angle of rotation:: 360 °
Maximum weight capacity:: 10 kg
Cable management:: Yes
Housing material:: Aluminium
Mounting type:: Ceiling
Maximum distance to ceiling:: 218 mm
Distance to the wall (max):: 218 mm
Distance to the wall (min):: 218 mm
Swivel angle:: 180 °

Packaging content

Manual:: Yes
Screws included:: Yes

Technical details

Warranty period:: 10 year(s)
Compliance certificates:: RoHS

Features

Product colour:: White
