TECHLY ICOOL-220-1225Z fan module

Name: Fan module TECHLY ICOOL-220-1225Z — ICOOL-220-1225Z
Brand: TECHLY
SKU: 11892774
Price: 17.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fan module TECHLY ICOOL-220-1225Z — 120×25 mm, 220 V, 0.1 A, aluminium/fibreglass/plastic, black

TECHLY ICOOL-220-1225Z fan module Photo 1

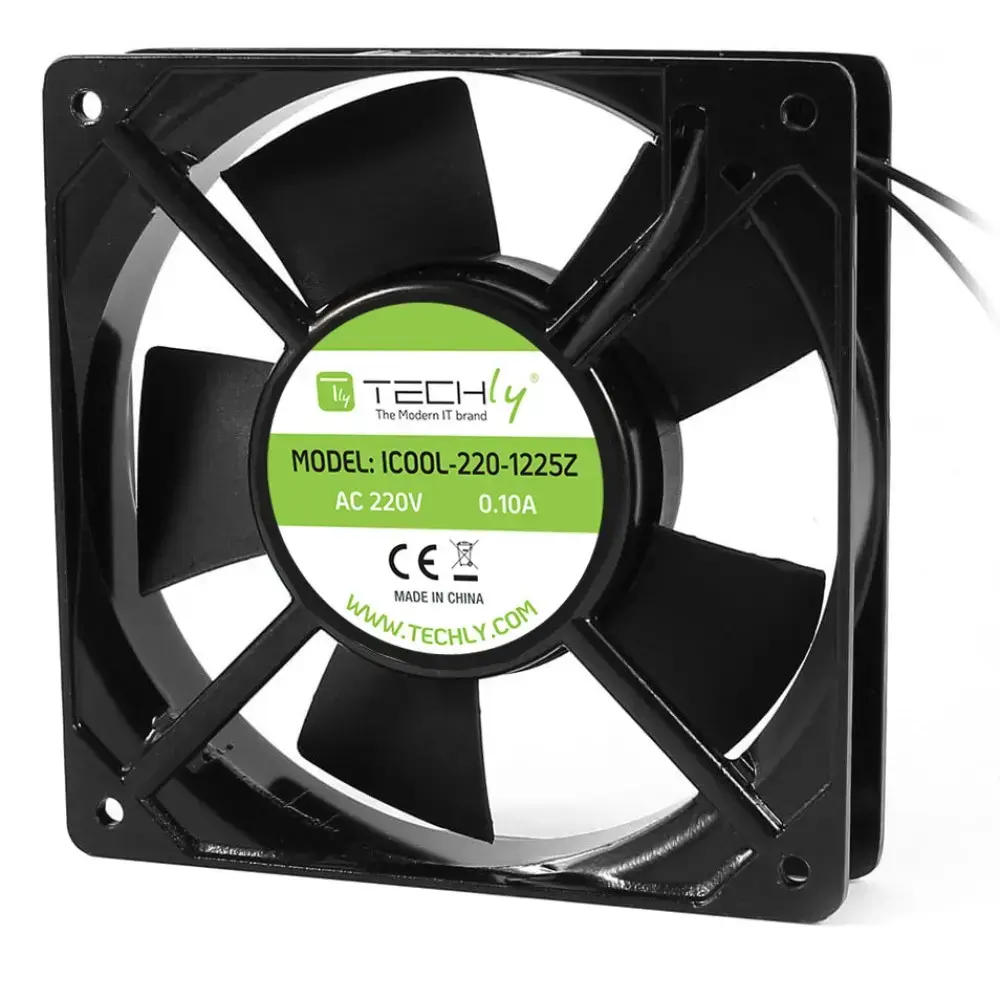

TECHLY ICOOL-220-1225Z fan module Photo 2

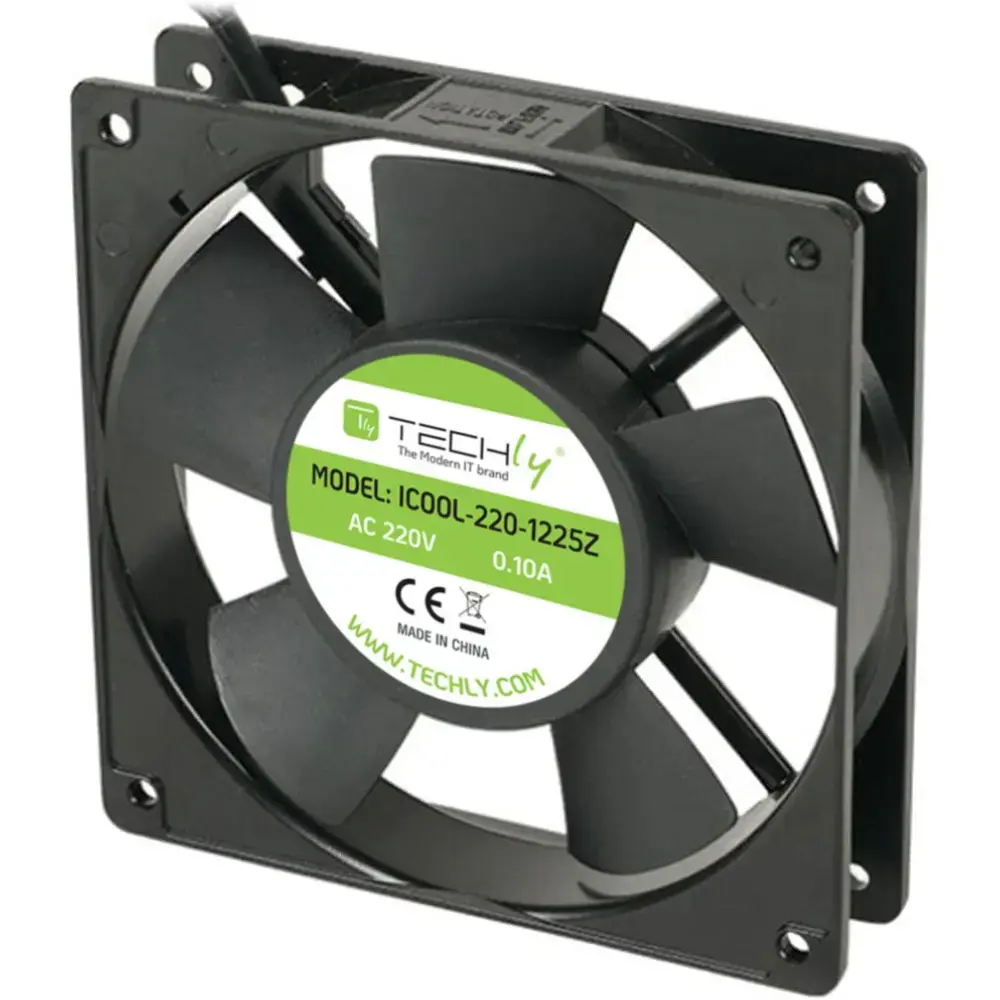

TECHLY ICOOL-220-1225Z fan module Photo 3

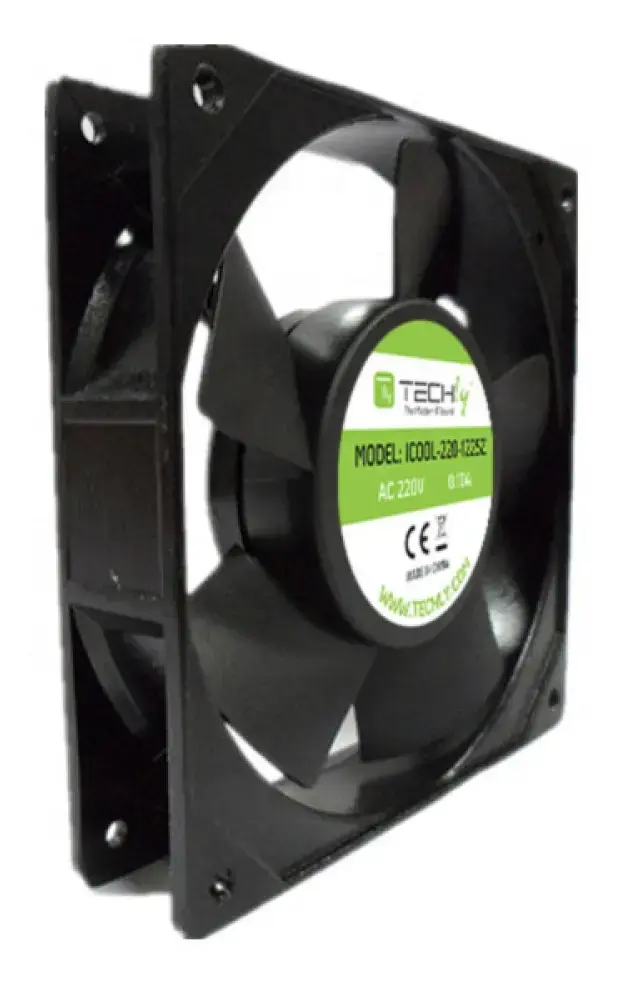

TECHLY ICOOL-220-1225Z fan module Photo 4

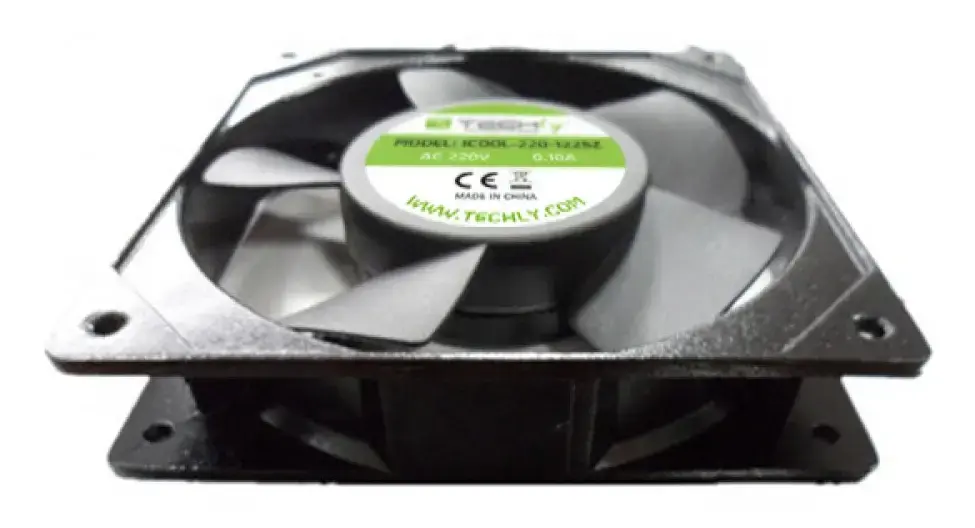

TECHLY ICOOL-220-1225Z fan module Photo 5

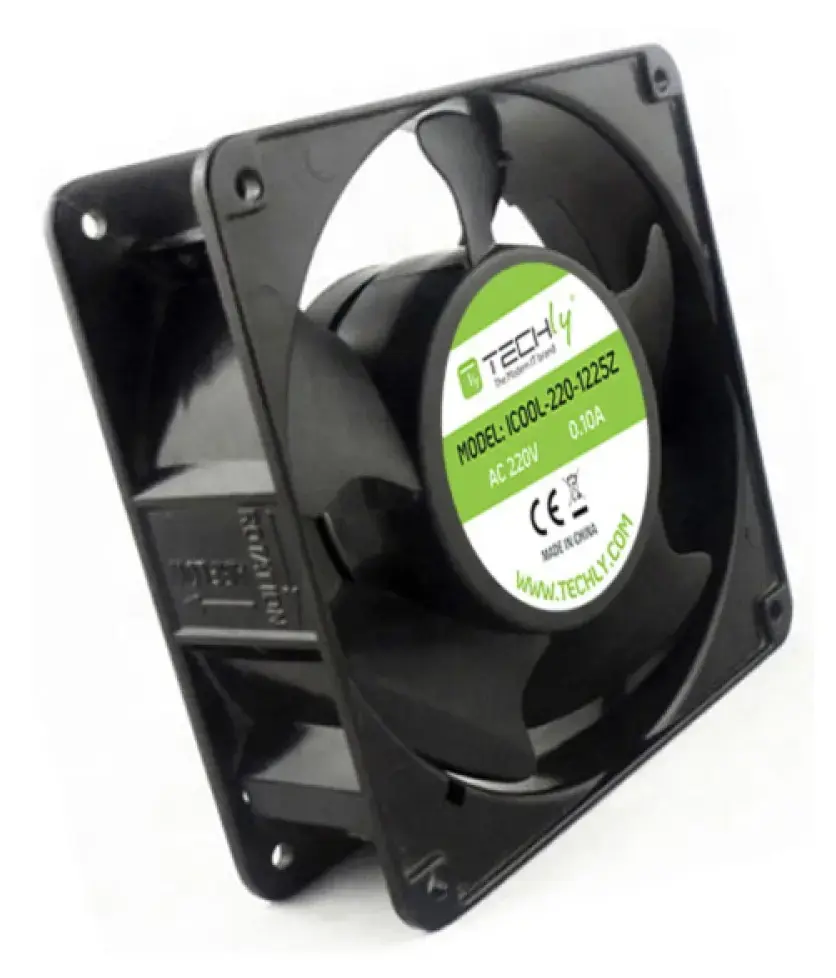

TECHLY ICOOL-220-1225Z fan module Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Techly ICOOL-220-1225Z fan module for PC cooling and electronic enclosures. Compact 120×25 mm axial fan assembly in black with aluminium, fibreglass and plastic construction. Operates at 220 V and 0.1 A, mass 0.284 kg. Designed to provide forced airflow for heat dissipation in cooling systems, chassis, and industrial equipment.

Available for order: 8 pcs.

Warranty: 2 Years

SKU: 11892774

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.28 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Techly ICOOL-220-1225Z is a compact 120×25 mm fan module designed for forced-air cooling of PC cases, electronic enclosures and industrial equipment. The assembly combines a die-cast aluminium housing with a fibreglass-reinforced plastic impeller and plastic components, offering a slim profile for installations where space is limited. It operates from 220 V AC at 0.10 A and provides targeted airflow to support heat dissipation in chassis, cooling systems and small appliances.

Advantages

The fan module delivers 54 CFM at a rated speed of 1900 RPM with a measured noise level of 32 dBA, balancing airflow and acoustic performance for moderate cooling needs. The die-cast aluminium housing contributes to structural rigidity and heat conduction, while the UL94V-0 rated fibreglass-reinforced plastic impeller improves durability and resistance to deformation. Its shaded pole motor provides simple, maintenance-free operation suitable for continuous use in many installations. The 120×25 mm slim form factor enables installation in constrained mounting locations.

Suitable for

PC case and graphics card auxiliary cooling
Ventilation of electronic enclosures and control cabinets
Cooling modules in industrial equipment and small appliances
Replacement or upgrade of 120×25 mm axial fans in existing systems

Key specifications

Size: 120 × 25 mm (frame dimensions 120 × 120 × 25 mm)
Airflow: 54 CFM
Fan speed: 1900 RPM
Noise level: 32 dBA
Static pressure: 2.78 mm H2O
Operating voltage: 220 V AC
Operating current: 0.10 A
Materials: die-cast aluminium housing, fibreglass-reinforced plastic impeller, plastic components
Colour: Black
Weight: 0.284 kg

How to use

Mount the ICOOL-220-1225Z fan module in the designated fan slot or enclosure opening using compatible screws or brackets that fit the 120 mm form factor. Ensure correct airflow direction when positioning the fan relative to heat-generating components. Connect the unit to a 220 V AC supply following local electrical regulations and observe proper grounding. Verify secure mechanical fixation and adequate clearance for air intake and exhaust before powering the device.

Usage recommendations

For reliable operation, keep intake and exhaust paths free of dust and obstructions; periodic cleaning extends service life. Use in environments within the fan’s rated conditions and avoid exposure to liquids or corrosive atmospheres. When integrating into sensitive electronics, consider vibration-damping mounts and ensure the fan’s acoustic profile suits the installation.

Specifications

Type:: Fan module
Weight:: 0.284 kg
Product colour:: Black

All features

Maximum operating temperature:: 70 °C
Minimum operating temperature:: -10 °C
UL 94 flammability standard:: V0

Performance

Type:: Fan module

Design

Product colour:: Black
Material:: Aluminium, Fibreglass, Plastic
Number of fans:: 1 fan(s)

Weight & dimensions

Weight:: 0.284 kg
Height:: 120 mm
Width:: 120 mm
Depth:: 25 mm

Power

Fan voltage:: 220 V
Fan current:: 0.1 A

Other features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 32 dB
Country of origin:: China
Fan performance:: 54 cfm

Logistics data

Products per master (outer) case:: 60 pc(s)
