Fan module TECHLY ICOOL-220-1238Z

Name: Fan module TECHLY ICOOL-220-1238Z — ICOOL-220-1238Z
Brand: TECHLY
SKU: 11892641
Price: 18.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Fan module TECHLY ICOOL-220-1238Z — 120×120×38 mm, 220 V, 0.12 A, aluminium/fibreglass/plastic, black

Fan module TECHLY ICOOL-220-1238Z Photo 1

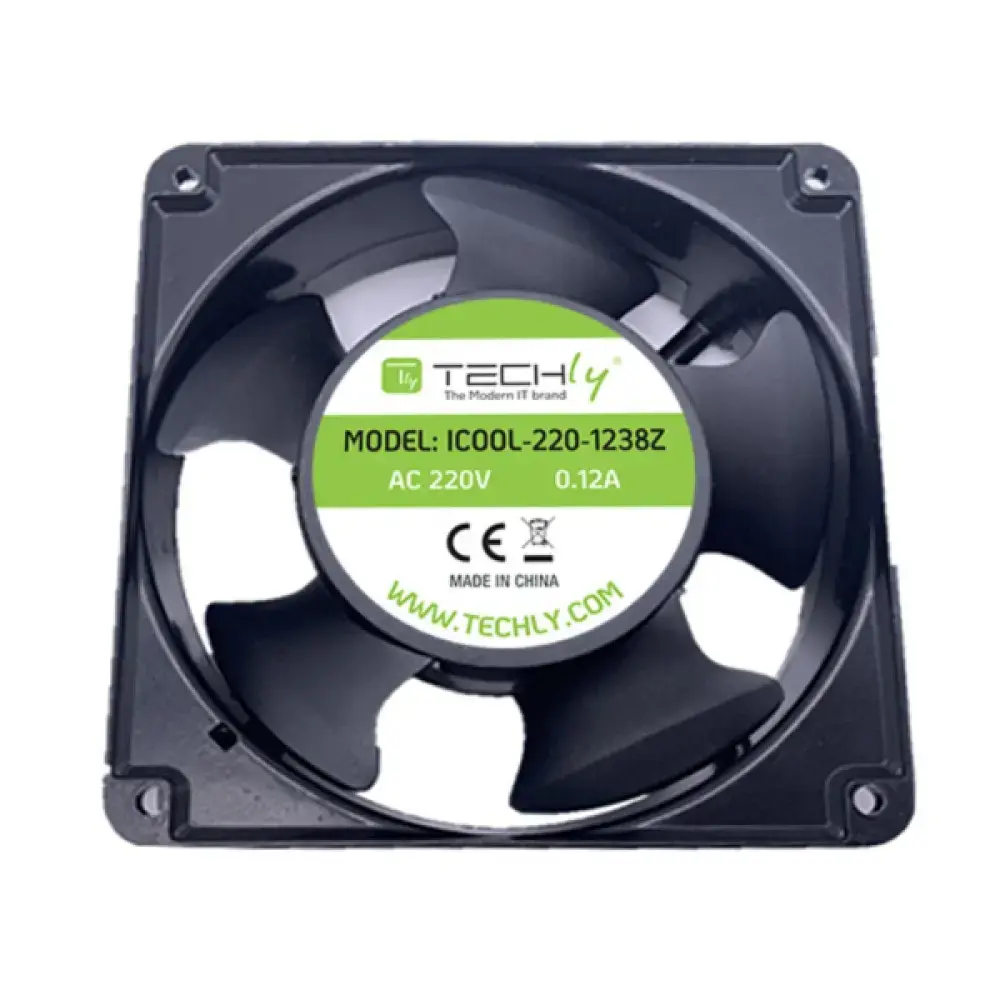

Fan module TECHLY ICOOL-220-1238Z Photo 2

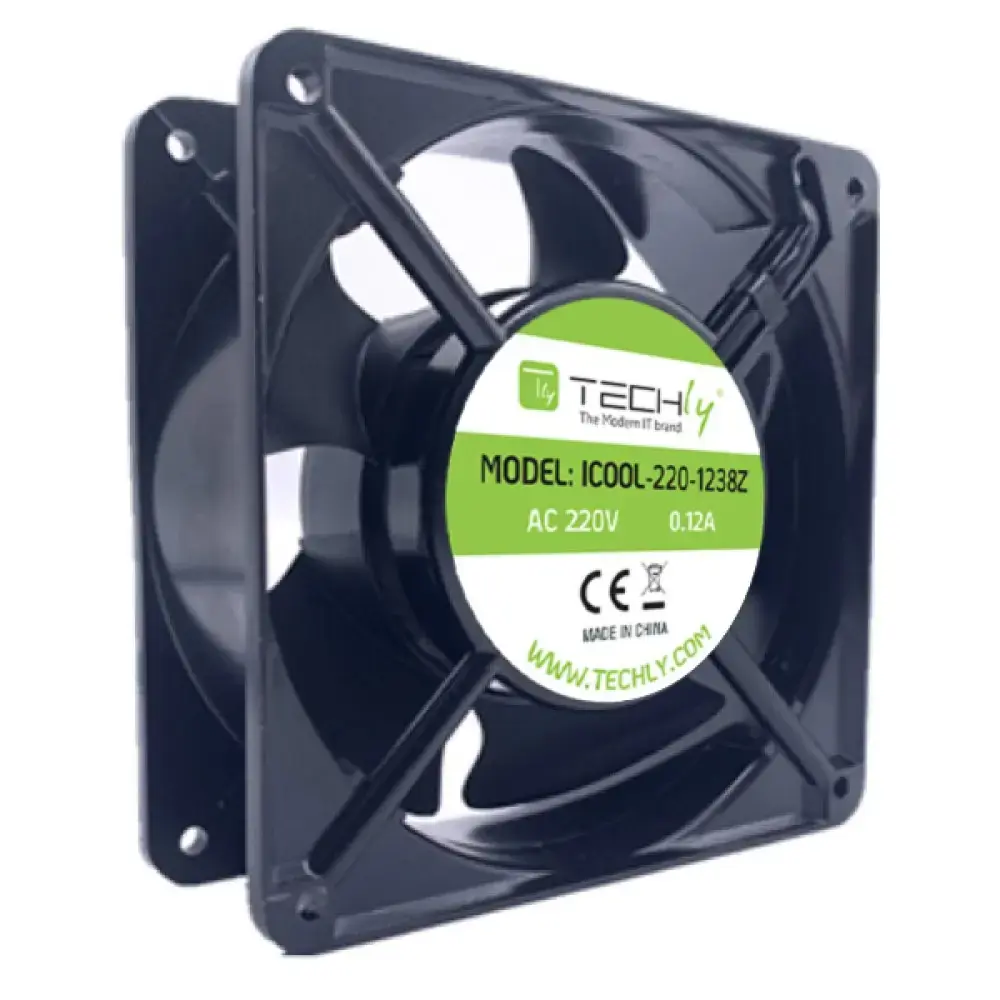

Fan module TECHLY ICOOL-220-1238Z Photo 3

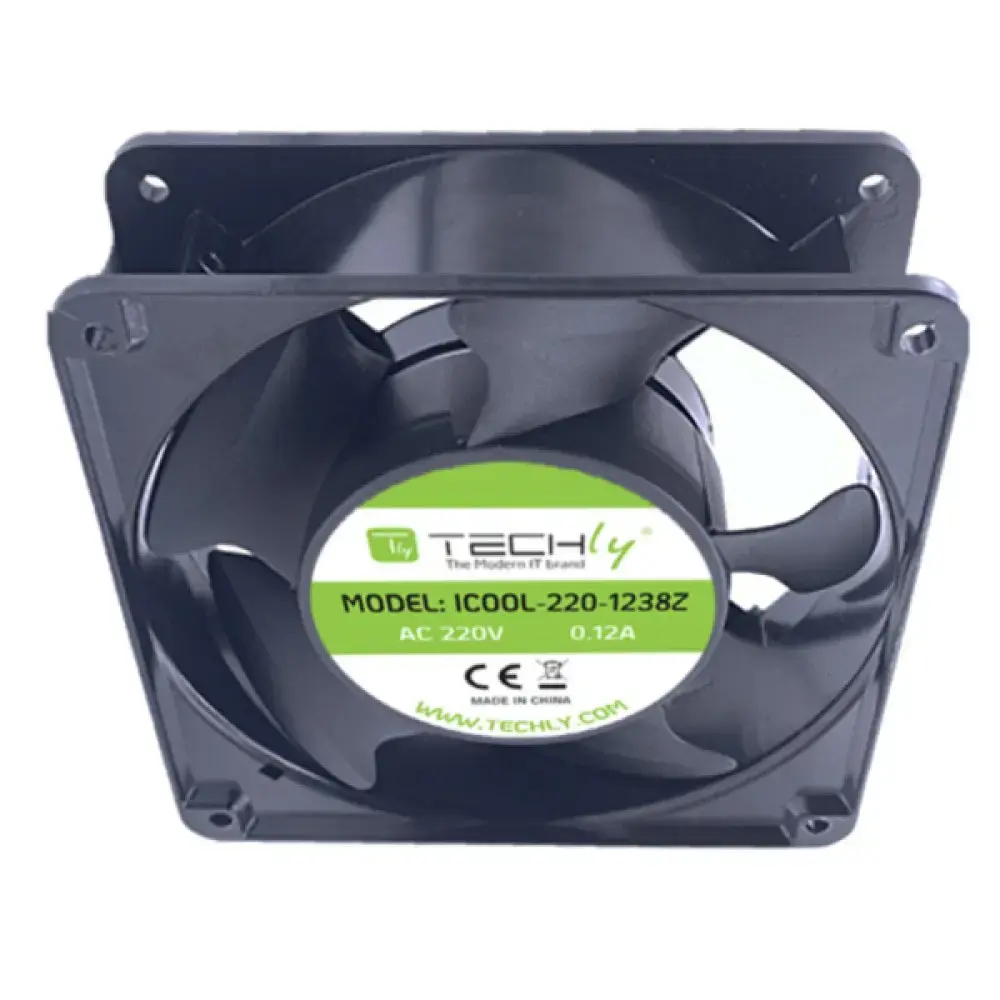

Fan module TECHLY ICOOL-220-1238Z Photo 4

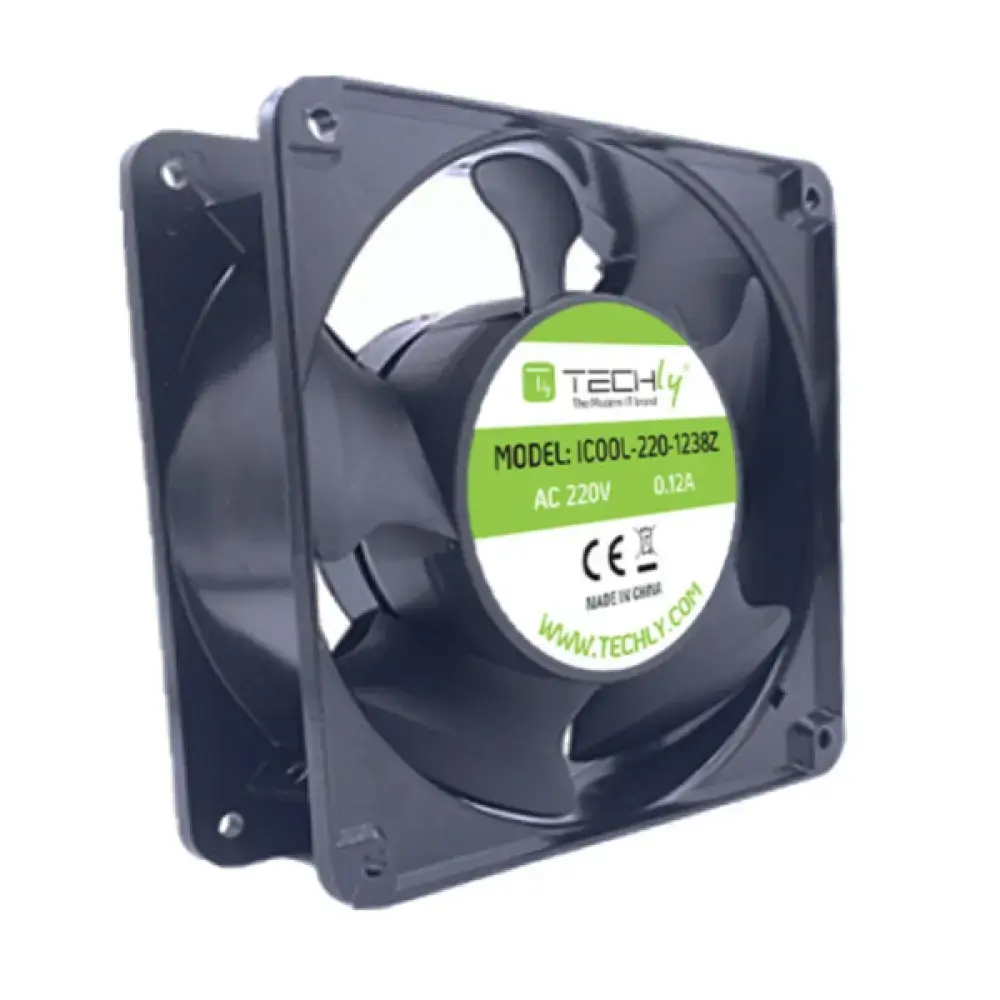

Fan module TECHLY ICOOL-220-1238Z Photo 5

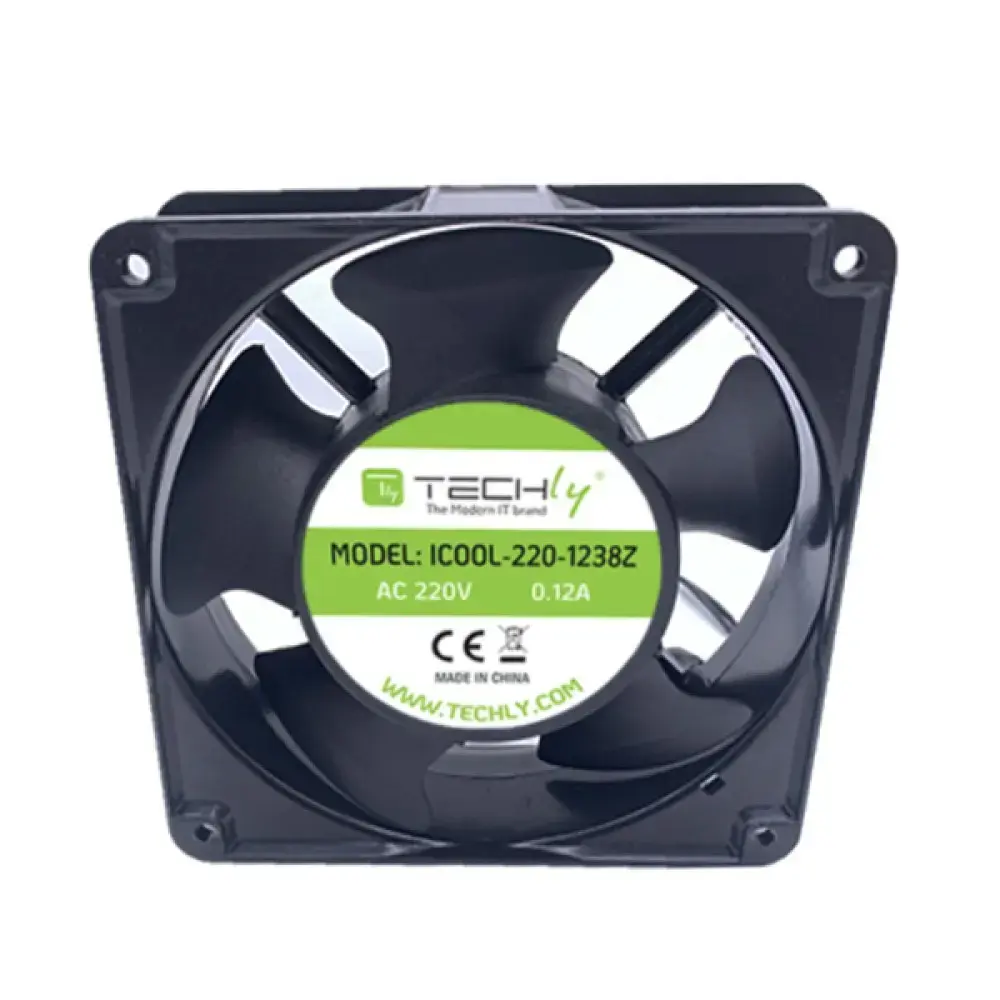

Fan module TECHLY ICOOL-220-1238Z Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

TECHLY ICOOL-220-1238Z is a fan module designed for computer cooling systems and related electronic enclosures. It measures 120×120×38 mm and is constructed from aluminium, fibreglass and plastic in black finish. The fan runs at 220 V with a current of 0.12 A and weighs 0.462 kg. Suitable for replacing or upgrading ventilation in PCs, cabinets and equipment requiring a 220 V fan.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 11892641

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.46 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

TECHLY ICOOL-220-1238Z is a 120×120×38 mm fan module intended for cooling computer systems and electronic enclosures that require a 220 V AC fan. Constructed with a die-cast aluminium housing and a fiberglass reinforced plastic impeller, the unit is finished in black and weighs 0.462 kg. The shaded pole motor delivers a rated speed of 2400 RPM, an airflow of 78 CFM and a static pressure of 2.1 mm H2O while drawing 0.12 A at 220 V.

Advantages

The combination of a die-cast aluminium frame and a fiberglass-reinforced plastic fan provides mechanical robustness and resistance to deformation in continuous operation. The shaded pole motor design offers simple, maintenance-free operation suitable for long-term ventilation tasks. With an airflow of 78 CFM at a noise level around 38 dBA and moderate static pressure, the module balances cooling performance and acoustic output for many enclosure and PC ventilation needs.

Suitable for

Replacement or upgrade of ventilation in desktop PCs and industrial cabinets
Cooling of electronic enclosures and server racks with 220 V AC supply
General-purpose extraction or supply air in small equipment housings

Key specifications

Overall dimensions: 120 × 120 × 38 mm
Operating voltage: 220 V AC
Operating current: 0.12 A
Fan speed: 2400 RPM
Airflow: 78 CFM
Static pressure: 2.1 mm H2O
Noise level: 38 dBA
Housing material: die-cast aluminium
Impeller material: fiberglass reinforced plastic (UL94V-0 rated)
Motor type: shaded pole
Colour: black
Weight: 0.462 kg

How to use

Mount the fan module securely to the enclosure or chassis ensuring correct orientation for intake or exhaust airflow. Connect the unit to a properly rated 220 V AC supply using appropriate mains wiring and protective devices; observe local electrical codes. Ensure the mounting surface provides adequate clearance for airflow and that the fan is not obstructed by cables or components. Verify rotational direction and stable operation on initial power-up, listening for unusual noise which may indicate improper mounting or mechanical contact.

Usage recommendations

For reliable long-term operation, install the fan in a clean environment or implement a pre-filter to limit dust ingress. Avoid using the unit in environments with excessive moisture or corrosive chemicals; if such conditions are present, select an appropriately rated fan. Periodically inspect mounting points and wiring and clean the impeller and housing to maintain airflow and noise characteristics.

Specifications

Type:: Fan module
Weight:: 0.462 kg
Product colour:: Black

All features

Maximum operating temperature:: 70 °C
Minimum operating temperature:: -10 °C
UL 94 flammability standard:: V0

Performance

Type:: Fan module

Design

Product colour:: Black
Material:: Aluminium, Fibreglass, Plastic
Number of fans:: 1 fan(s)

Weight & dimensions

Weight:: 0.462 kg
Height:: 120 mm
Width:: 120 mm
Depth:: 38 mm

Power

Fan voltage:: 220 V
Fan current:: 0.12 A

Other features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 38 dB
Country of origin:: China
Fan performance:: 78 cfm

Logistics data

Products per master (outer) case:: 40 pc(s)
