AV extender TECHLY IDATA EXT-600HC transmitter & receiver

Name: AV extender pair TECHLY IDATA IDATA-EXT-600HC
Brand: TECHLY
SKU: 11692048
Price: 229.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

AV extender pair TECHLY IDATA EXT-600HC, transmitter & receiver, up to 4096x2160 over Cat6/Cat6a/Cat7, black, 2 pcs

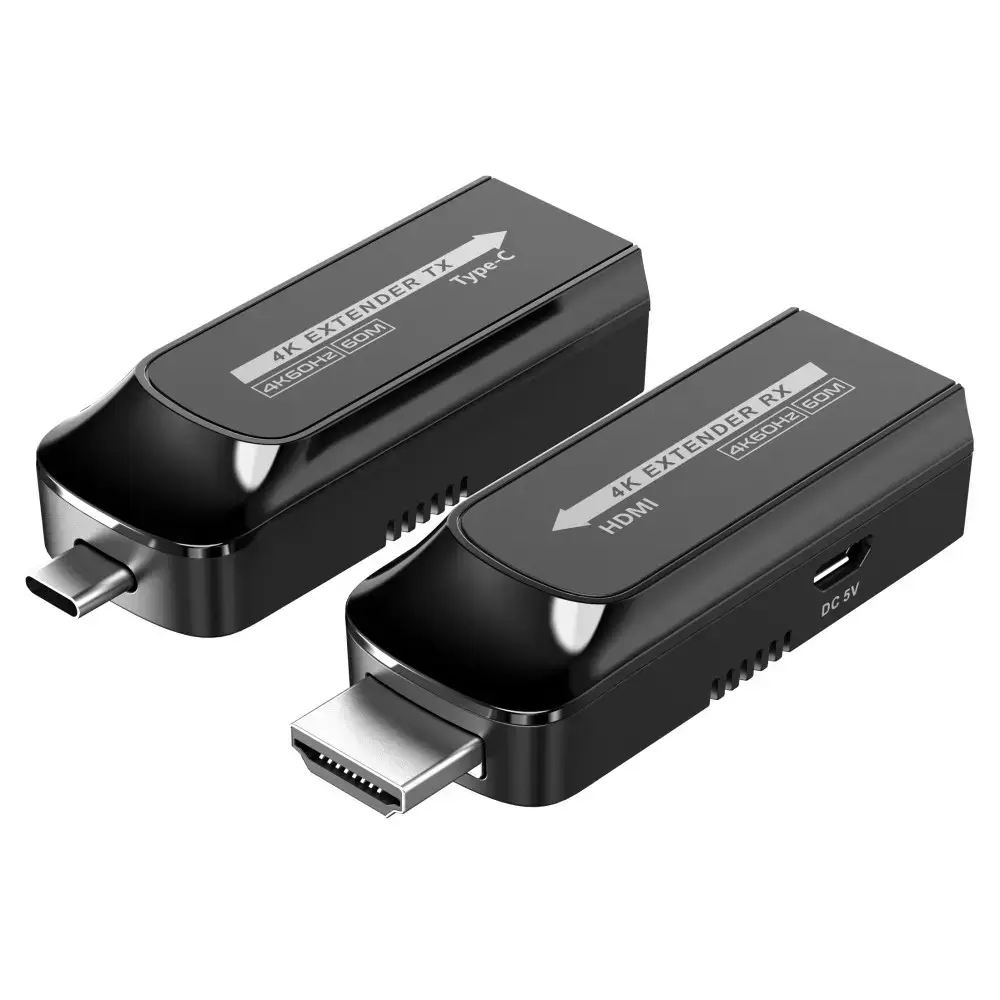

AV extender TECHLY IDATA EXT-600HC transmitter & receiver Photo 1

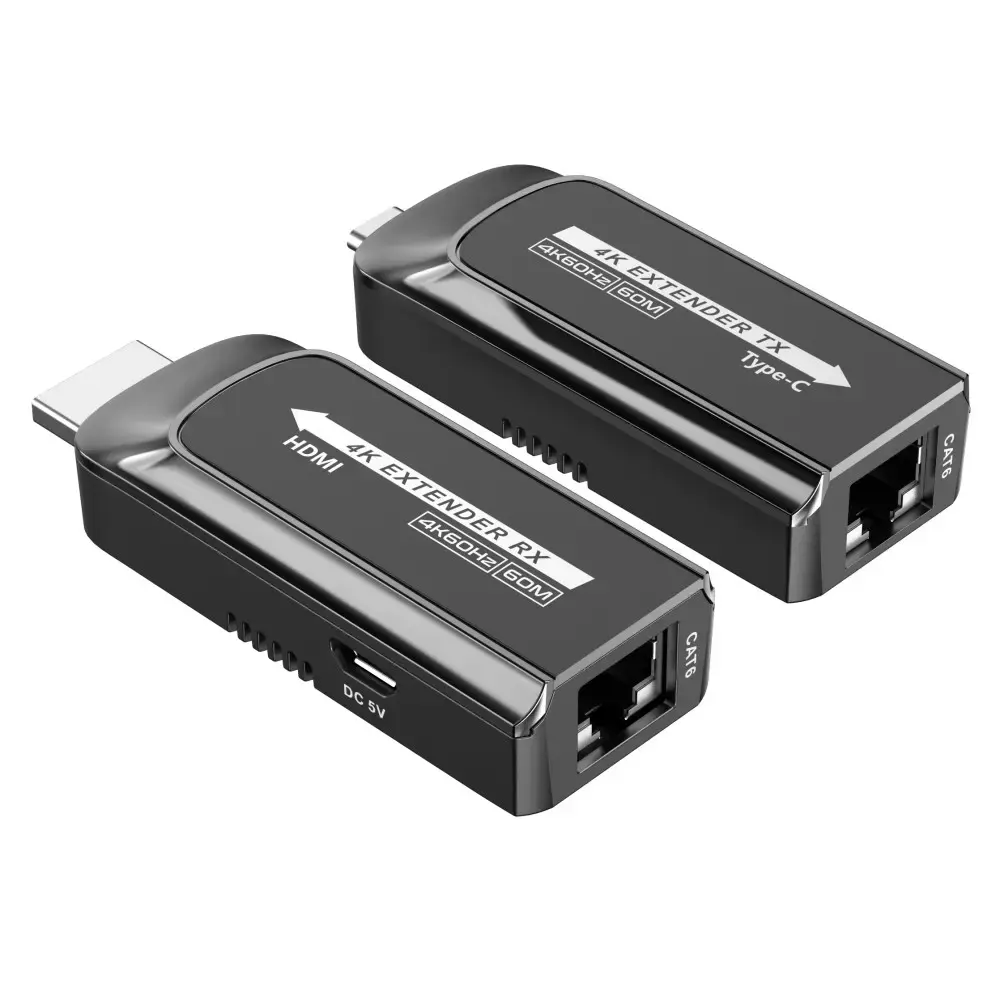

AV extender TECHLY IDATA EXT-600HC transmitter & receiver Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Techly IDATA EXT-600HC is a wired AV extender set consisting of a transmitter and a receiver. It supports maximum resolution up to 4096 × 2160 pixels and works over Cat6, Cat6a or Cat7 cables. Both units use 5 V DC power and include Micro-USB A / USB Type-C connectors for power. Compact, lightweight devices supplied as a 2-piece boxed set for extending video signals over structured cabling.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 11692048

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.12 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Techly IDATA EXT-600HC is a wired AV extender pair that includes a USB-C™ transmitter and an HDMI receiver designed to extend UHD video and audio over structured Cat6/Cat6a/Cat7 cabling. The kit supports resolutions up to 4096 × 2160 and provides zero-latency transmission for applications that require real-time video delivery. Both units are compact, lightweight and powered by 5 V DC using Micro-USB A / USB Type-C power connectors, supplied as a two-piece boxed set in black finish.

Advantages

The extender pair transmits uncompressed or minimally processed UHD signals up to 4096 × 2160 with low latency, and supports HDMI 2.0 bandwidth up to 18 Gbps. It is compatible with HDCP 2.2 and HDCP 1.4 and carries common audio formats such as PCM, DTS and Dolby while supporting HDR10 and HDMI 3D. Small ABS enclosures and standard Cat cabling make installation flexible and unobtrusive in professional and home environments.

Suitable for

Classrooms and lecture halls for streaming presentations and live demonstrations
Conference rooms and meeting spaces for video conferencing and screen sharing
Home entertainment systems and media rooms for UHD playback with external sources
Gaming setups requiring low-latency display extension over distance
Digital signage and displays in retail, hospitality or corporate spaces

Key specifications

Maximum supported resolution: 4096 × 2160 pixels
Supported refresh rates: up to 4K@60Hz (up to 60 m), 4K@120Hz (up to 25 m)
Transmission medium: Cat6 / Cat6a / Cat7 network cable
Maximum transmission distance: up to 60 metres (depending on resolution and cable quality)
HDMI compatibility: HDMI 2.0; HDCP 2.2 and HDCP 1.4 supported
Maximum link bandwidth: 18 Gbps
Audio formats supported: PCM, DTS, Dolby
HDR support: HDR10
Connector types: USB-C™ transmitter input, HDMI receiver output, Micro-USB A / USB Type-C power
Device material and colour: ABS housing, black
Power: 5 V DC for both transmitter and receiver
Unit dimensions (per unit): approx. 71.5 × 26.0 × 15.0 mm

How to use

Connect the USB-C™ transmitter to the video source (laptop, smartphone or other Type-C video output) and plug the HDMI receiver into the display device. Use a single Cat6/Cat6a/Cat7 cable to link the transmitter and receiver; ensure cable terminations are complete and the cable run does not exceed recommended distances for the chosen resolution. Provide 5 V DC power to both units via the Micro-USB A or USB Type-C power connectors. Verify display settings on the source device to match resolution and refresh rate supported by the display and the extender.

Usage recommendations

For stable 4K@60Hz transmission, use high-quality shielded Cat6a or Cat7 cable and keep cable runs under 60 metres. For 4K@120Hz, limit the cable length to 25 metres. When using long runs, avoid routing the cable near high-power electrical sources and ensure connectors are secure. Update source device video drivers and set the display output to a compatible resolution and refresh rate to prevent automatic downscaling.

Specifications

Product colour:: Black

All features

Connectivity technology:: Wired
Power source type:: DC
Electrostatic Discharge (ESD) protection:: Yes

Ports & interfaces

USB connector type:: USB Type-C, Micro-USB A
Number of HDMI outputs:: 1
RJ-45 input ports:: 1
RJ-45 output ports:: 1
USB ports quantity:: 2
HDMI version:: 2.0

Video

Bandwidth:: 18 Gbit/s

Technical details

Type:: AV transmitter & receiver
Material:: Acrylonitrile Butadiene Styrene (ABS)
Electrostatic Discharge (ESD) protection:: 8 kV
Maximum transfer distance:: 60 m

Power

Power consumption (receiver) (max):: 3 W
Power consumption (transmitter) (max):: 3 W
Power consumption (transmitter) (max):: 500 mA
Power consumption (receiver) (max):: 500 mA
Operating voltage (transmitter):: 5 V
Operating voltage (receiver):: 5 V

Weight & dimensions

Receiver dimensions (WxDxH):: 26 x 71.5 x 15
Receiver weight:: 17.5 g
Transmitter dimensions (WxDxH):: 26 x 71.5 x 15
Transmitter weight:: 17 g

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T):: -30 - 60
Operating temperature (T-T):: -20 - 55

Packaging data

Package type:: Box
Quantity per pack:: 2 pc(s)

Certificates

Certification:: EC, FCC , RoHS

Packaging content

Cables included:: USB
Manual:: Yes
Packaging content:: USB-C Transmitter HDMI receiver

Features

Plug and Play:: Yes
Maximum resolution:: 4096 x 2160
Product colour:: Black
Audio formats supported:: PCM, DTS
Supported graphics resolutions:: 4096 x 2160, 1280 x 720 (HD 720), 1280 x 960, 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
Supported video modes:: 1080p, 1080i, 720p
HDCP:: Yes
Maximum refresh rate:: 120 Hz
3D:: Yes
HDCP version:: 1.4/2.2
Transition Minimized Differential Signaling (TMDS) input:: 1.2 V
Display Data Channel (DDC) input:: 5 V
Extended display identification data (EDID):: Yes
High Dynamic Range (HDR) supported:: Yes
High Dynamic Range (HDR) technology:: High Dynamic Range 10 (HDR10)

Network

Cable types supported:: Cat7, Cat6a, Cat6
