TECHLY IDATA HDMI-MX44 AV matrix switcher 4×4

Name: AV matrix switcher TECHLY IDATA IDATA-HDMI-MX44
Brand: TECHLY
SKU: 11692049
Price: 308.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

AV matrix switcher TECHLY IDATA HDMI-MX44 — 4×4 HDMI, 18 Gbit/s, up to 4096×2160, metal housing, 5 V/1000 mA, buttons

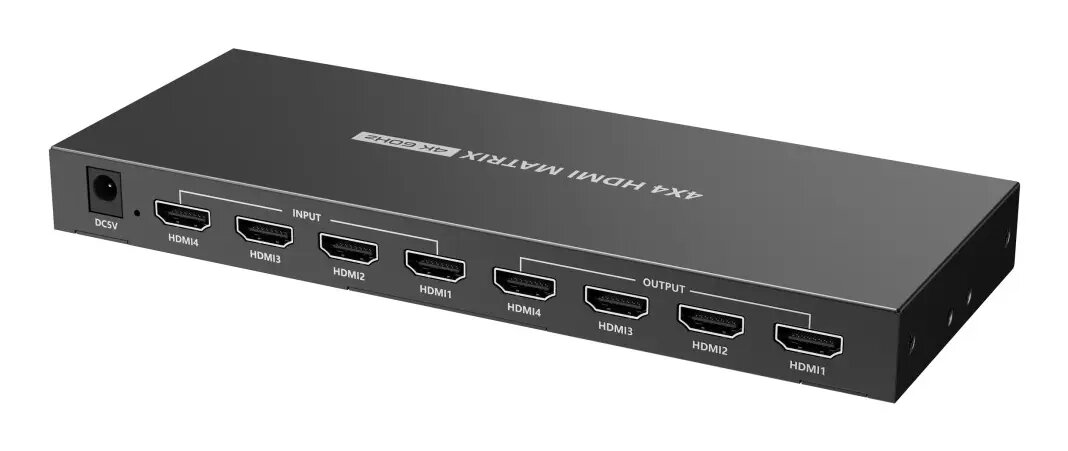

TECHLY IDATA HDMI-MX44 AV matrix switcher 4×4 Photo 1

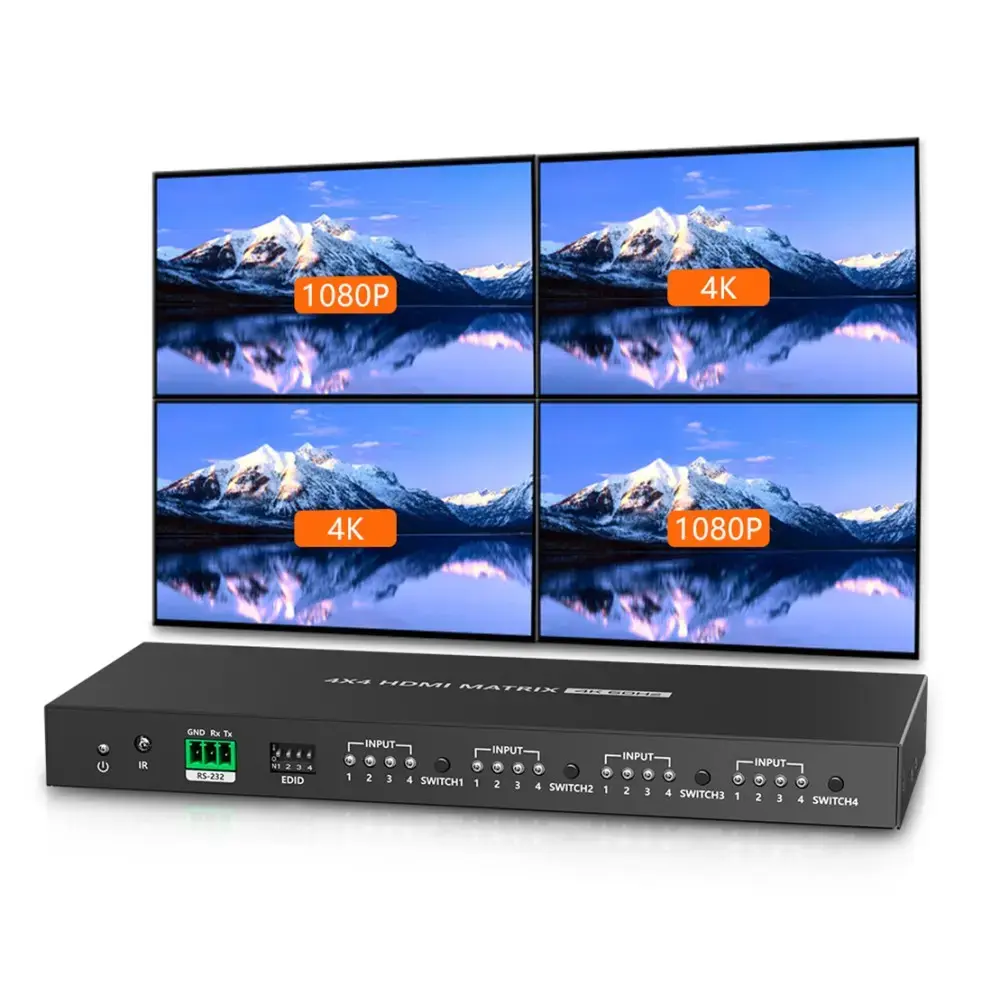

TECHLY IDATA HDMI-MX44 AV matrix switcher 4×4 Photo 2

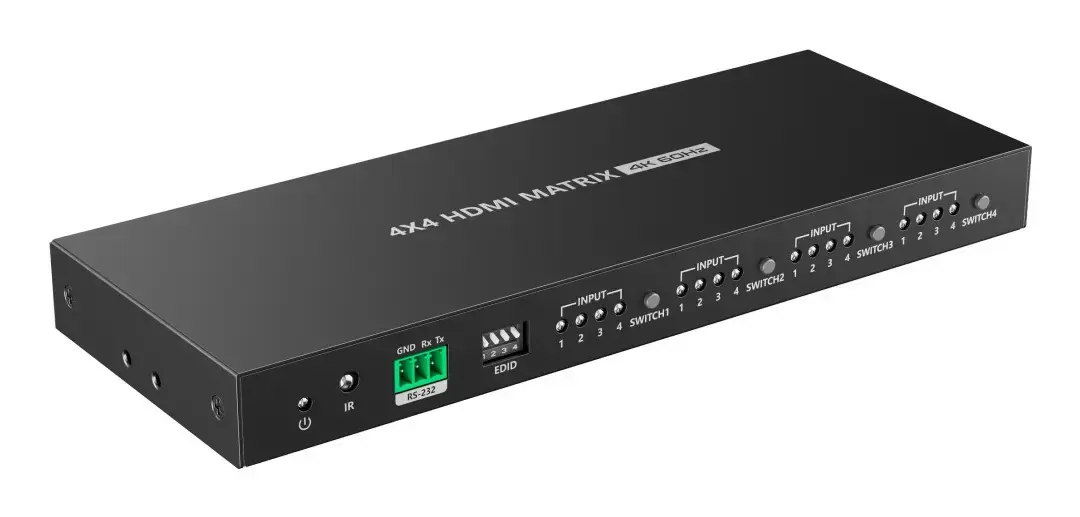

TECHLY IDATA HDMI-MX44 AV matrix switcher 4×4 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

TECHLY IDATA HDMI-MX44 is a 4×4 AV matrix switcher supporting data transfer rates up to 18 Gbit/s and resolutions up to 4096×2160. Housed in a black metal case, it is controlled via front-panel buttons and powered with 5 V/1000 mA (max consumption 4 W). Compact dimensions make it suitable for meeting rooms, classrooms, small AV installations and multi-source display setups.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 11692049

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.66 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

TECHLY IDATA HDMI-MX44 is a 4×4 HDMI AV matrix switcher designed to route up to four HDMI sources independently to four HDMI displays. The unit supports ultra-high-definition video up to 4096×2160 at 60 Hz with HDR and a total data throughput of 18 Gbit/s. Housed in a compact black metal enclosure, the switcher offers multiple control options including front-panel buttons, IR remote, and RS232, and two outputs provide automatic downscaling where needed. The device is powered by a 5 V/1000 mA supply and has a maximum power consumption of 4 W.

Advantages

The matrix provides flexible signal routing for multi-source, multi-display setups while maintaining high bandwidth and HDR support. Metal housing ensures durability and helps with heat dissipation in continuous operation. Multiple control methods (buttons, IR and RS232) allow integration into a variety of AV setups and control systems. Auto downscaling on two outputs improves compatibility with legacy displays that cannot accept the native UHD resolution.

Suitable for

Meeting rooms and corporate presentation environments
Classrooms and training facilities
Exhibition stands and broadcast small-scale setups
Security monitoring and control rooms
Multi-source display installations in retail or hospitality

Key specifications

Configuration: 4 inputs × 4 outputs HDMI matrix switching
Maximum supported resolution: up to 4096×2160 at 60 Hz (UHD HDR)
Data transfer rate: up to 18 Gbit/s; bandwidth 600 MHz
Audio formats supported: LPCM 7.1, DTS-HD, DTS, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
Control interfaces: front-panel buttons, IR remote control, RS232
Auto Down Scaling: available on two HDMI outputs
Power: 5 V / 1000 mA supply, maximum consumption 4 W
Construction: compact black metal housing
Dimensions: 210.0 × 80.0 × 21.0 mm; Weight: 0.687 kg
HDCP compliant

How to use

Connect HDMI source devices to the four HDMI input ports and connect target displays to the four HDMI outputs. Apply the 5 V power adapter and use the front-panel buttons, IR remote or RS232 commands to assign input channels to desired outputs. If a display cannot accept the native UHD resolution, use outputs with Auto Down Scaling enabled to provide a compatible output resolution. Ensure cables are rated for high-speed HDMI to support 18 Gbit/s throughput and HDR signaling.

Usage recommendations

For reliable performance, install the matrix in a ventilated location and use high-quality HDMI cables certified for 18 Gbit/s. When integrating into AV control systems, verify RS232 command compatibility and test Auto Down Scaling behavior with legacy displays before final deployment.

Specifications

Weight:: 0.687 kg

All features

Output current:: 1000 mA
Built-in display:: No
Housing colour:: Black
Maximum resolution (HDMI):: 4096 x 2160
HDMI input ports quantity:: 4
HDMI output ports quantity:: 4

Ports & interfaces

DC-in jack:: Yes
RS-232 ports:: 1
HDMI version:: 2.0

Technical details

Control type:: Buttons
Product type:: AV matrix switcher

Power

Output voltage:: 5
Power consumption (max):: 4 W

Weight & dimensions

Weight:: 0.687 kg
Height:: 21 mm
Width:: 210 mm
Depth:: 80 mm

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T):: -30 - 70
Operating temperature (T-T):: -20 - 60

Packaging data

Package type:: Box

Certificates

Certification:: EC, RoHS

Packaging content

AC adapter included:: Yes
Manual:: Yes

Features

LED indicators:: Y
Data transfer rate:: 18 Gbit/s
Maximum resolution:: 4096 x 2160
Remote control included:: Yes
Housing material:: Metal
HDCP:: Yes
HDCP version:: 1.4/2.2
Extended display identification data (EDID):: Yes
High Dynamic Range (HDR) supported:: Yes

Other features

Supported resolutions:: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/60Hz, 4096×2160@ 24/25/30/60Hz
