TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver

Name: AV extender transmitter & receiver TLY_368505
Brand: TECHLY
SKU: 11754752
Price: 628.49 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

AV extender transmitter & receiver TECHLY IDATA EX-HL81TYP — up to 3840×2160, Cat6/Cat6a/Cat7, DC 12V, transmitter 272×96.5×23mm, receiver 75×80×18mm

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 1

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 2

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 3

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 4

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 5

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 6

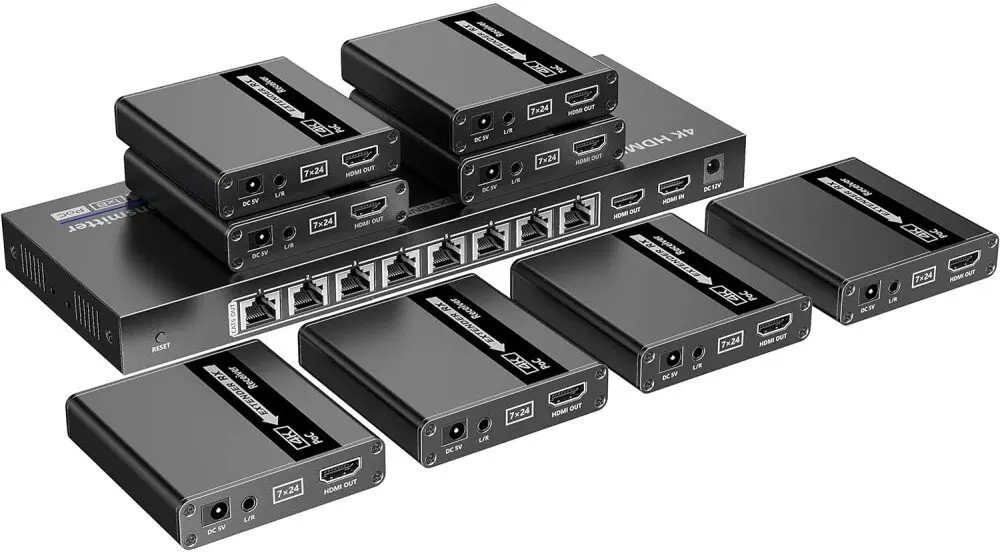

TECHLY IDATA EX-HL81TYP AV extender transmitter & receiver Photo 7

Short description

Techly IDATA EX-HL81TYP is a wired AV extender set consisting of a transmitter and a receiver designed to deliver video up to 3840×2160 pixels over Ethernet cabling. It supports Cat6, Cat6a and Cat7 cables, uses 12 V DC power for both units and is suitable for extending HDMI/AV signals to remote displays in meeting rooms, digital signage or home AV installations. Compact receiver and larger transmitter dimensions allow flexible mounting and installation.

Warranty: 2 Years

SKU: 11754752

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Techly IDATA EX-HL81TYP is a wired AV extender set that includes a transmitter and a receiver designed to extend HDMI audio and video signals over structured Ethernet cabling. The system supports video resolutions up to 3840×2160 (4K) and uses Cat6, Cat6a or Cat7 cable for transmission. Both units are powered from a 12 V DC source and the compact receiver and larger transmitter dimensions allow flexible mounting in meeting rooms, digital signage installations, training facilities or home AV setups.

Advantages

The extender replaces long or multiple HDMI cables with a single, cost-effective copper network cable while preserving video clarity and PCM audio transmission. It supports HDCP and provides protection against electrostatic discharge, lightning and overvoltage, helping to improve reliability in commercial and institutional environments. The design provides a local transmitter unit and remote receiver unit that together enable distances suitable for common AV deployments, with practical dimensions for installation behind displays or on racks.

Suitable for

Meeting rooms and conference halls
Digital signage and retail displays
Training rooms, classrooms and lecture theatres
Healthcare and corporate AV distribution
Small surveillance or DVR-to-display setups

Key specifications

Maximum supported video resolution: up to 3840×2160 pixels (4K)
Supported cable types: Cat6, Cat6a, Cat7
Transmission distance examples: up to 70 m for 1080p@60Hz; up to 40 m for 4K@30Hz (distance depends on cable quality)
Audio support: PCM audio passthrough
Protection features: ESD, lightning and overvoltage protection
Power supply: DC 12 V for transmitter and receiver
Physical dimensions (approx.): Transmitter 272 × 96.5 × 23 mm; Receiver 75 × 80 × 18 mm
Color: black

How to use

Connect an HDMI source (PC, Blu‑ray player, DVR or other HDMI output) to the transmitter HDMI input, connect the transmitter and receiver using a Cat6/6a/7 cable, then connect the receiver HDMI output to the display. Provide 12 V DC power to both units via their DC-in jacks. Ensure cable terminations and routing avoid sources of strong electromagnetic interference and use appropriate cable lengths within the specified distance guidelines to maintain signal integrity.

Usage recommendations

For best results, use high-quality Cat6a or Cat7 cable for 4K signals and keep cable runs within the recommended distances. Verify display and source settings match supported resolutions and enable HDCP-compatible modes when required. When installing in commercial environments, secure the units on racks or behind displays and plan power access for both transmitter and receiver.

Specifications

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 3840 x 2160
Type: Characteristics of the device.: AV transmitter & receiver

All features

Packaging content

Mounting kit:: Yes
Manual:: Yes

Packaging data

Package type: The type of product package e.g. box.: Box
Quantity per pack:: 9 pc(s)

Weight & dimensions

Transmitter weight:: 615 g
Transmitter dimensions (WxDxH):: 272 x 96.5 x 23
Receiver weight:: 160 g
Receiver dimensions (WxDxH):: 75 x 80 x 18

Operational conditions

Operating relative humidity (H-H):: 0 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -30 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -20 - 60

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 12 W
Operating voltage (receiver):: 12 V
Operating voltage (transmitter):: 12 V
Operating voltage: Defines the range of operating voltages available: 12 V
Power source type: What the power source is.: DC

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.: Yes
Remote (IR) input:: 8
Remote (IR) output:: 8
3.5 mm (1/8-inch) in:: Yes
3.5 mm (1/8-inch) out:: Yes
HDMI version:: 1.4
HDMI in: Port (socket) for HDMI input.: 2
Number of HDMI outputs: Port (socket) for HDMI output.: 8
RJ-45 output ports:: 8
RJ-45 input ports:: 8
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired

Features

Certification:: EC, RoHS
Product colour: The colour e.g. red, blue, green, black, white.: Black
Material: The material from which a thing is or can be made e.g. wood, plastic.: Metal
LED indicators:: Y
Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.: PCM, LPCM
Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.: 1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1366 x 768, 1280 x 960, 1280 x 720 (HD 720), 1024 x 768 (XGA), 800 x 600 (SVGA), 1440 x 900 (WXGA+)
Supported video modes: The video modes that can be displayed by the device.: 480p, 1080p, 1080i, 720p, 480i, 576p, 576i
HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.: Yes
3D: The device can be used with 3D technology.: No
HDCP version:: 1.4
Bidirectional: Bidirectional script support is the capability of a computer system to correctly display bi-directional text. The term is often shortened to BiDi or bidi. Bi-directional text is text containing text in both text directionalities, both right-to-left (RTL) and left-to-right (LTR). It generally involves text containing different types of alphabets.: Yes
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 70 m
Cable types supported:: Cat6, Cat6a, Cat7
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 3840 x 2160
Type: Characteristics of the device.: AV transmitter & receiver
