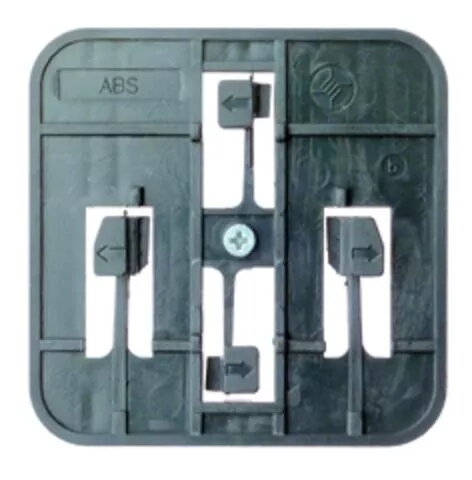

Wall Plate/Switch Cover Telegärtner H02000A0054

The Telegärtner H02000A0054 wall plate/switch cover is designed to support fibre-to-the-desk (FTTD) network installations by providing a compact outlet that secures adaptors, enables cable strain relief and keeps controlled fibre bend radii. The plate accommodates simplex/duplex, breakout and mini-breakout fibre cables and provides space for cable and fibre reserves, splice storage and reserve loops when pigtails and splices are used. Its cover size of 50 x 50 mm and automatic height adjustment allow combination with most standard switching programmes and mounting boxes.

Advantages

This Telegärtner wall plate offers a robust, repeatable connection point that protects adaptors and plugs while maintaining a minimum fibre bending radius of 25 mm. It can be mounted in cable ducts, flush or surface mounting boxes and supports strain relief for various cable types. Sufficient internal space is available for cable reserves and controlled routing, ensuring reliable fibre performance at the subscriber’s desk.

Suitable for

• FTTD (Fibre To The Desk) network outlets
• Simplex and duplex fibre terminations
• Breakout and mini-breakout cable installations
• Installations requiring splice storage and pigtail management
• Flush and surface mounting in standard 50×50 mm switch programmes

Key specifications

• Manufacturer: Telegärtner
• Model / MPN: H02000A0054
• EAN: 4018359241575
• Cover dimensions: 50 × 50 mm
• Minimum fibre bend radius: 25 mm
• Compatible cable types: simplex/duplex, breakout, mini-breakout
• Mounting: cable ducts, flush or surface mounting boxes

How to use

Install the wall plate in a compatible 50 × 50 mm mounting box or switch programme frame and secure it at the required height using the plate’s automatic height adjustment. Route the incoming fibre cable into the outlet, provide strain relief and arrange reserve loops or splices inside the available space. Fit adaptors and connect subscriber plugs; ensure the minimum bending radius of 25 mm is maintained for all fibre runs and that adaptors are fixed and protected by the cover.

Usage recommendations

When using splices with pigtails or Breakout/Mini-Breakout cables, leave sufficient reserve loop and use the built-in strain relief to protect terminations. Verify that adaptors are securely fixed in the outlet and that the fibre bend radius never falls below 25 mm to preserve transmission performance.
