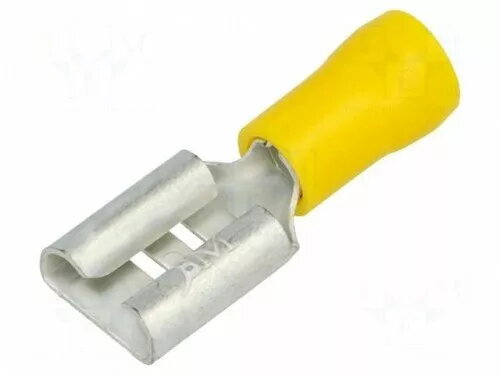

Terminal Flat EB 9.8mm 1.1mm Mother 4–6 mm²

Flat female terminal Terminal Flat EB with a 9.8 mm blade width and 1.1 mm blade thickness, designed for conductors with cross-sections from 4 to 6 mm². This terminal provides a low-profile connection point intended for secure electrical contacts in wiring assemblies, control panels and industrial equipment. It is compatible with matching male tabs and offers straightforward crimp or insertion mounting to establish steady electrical continuity.

Advantages

The terminal combines a standardized blade size with a robust female contact body to ensure consistent mating and good contact resistance over prolonged use. Its dimensions support reliable mechanical retention while the 1.1 mm blade thickness provides sufficient surface area for current transfer. The design permits quick crimping or insertion into housings and simplifies maintenance and replacement in electrical installations.

Suitable for

• Wiring harnesses and cable assemblies in industrial equipment
• Control panels and terminal blocks
• Power distribution and signal connections requiring 4–6 mm² conductors
• Retrofit and repair work where matching male tabs are used

Key specifications

• Blade width: 9.8 mm
• Blade thickness: 1.1 mm
• Suitable conductor cross-section: 4–6 mm²
• Contact type: flat female terminal (tab receptacle)
• Mounting method: crimp or insertion
• Typical application: electrical connections in panels and assemblies

How to use

Select an appropriately sized male tab to match the 9.8 mm blade and ensure the mating surfaces are clean. Strip the conductor to the recommended length for the chosen terminal, insert the conductor into the barrel, and perform a proper crimp using a tool rated for 4–6 mm² conductors. Alternatively, for terminals designed for insertion mounting, insert into the corresponding housing until retention is confirmed. After assembly, verify mechanical retention and continuity with a multimeter before energizing the circuit.

Usage recommendations

Use crimping tools specified for the conductor cross-section to achieve reliable mechanical and electrical connections. Avoid using undersized or oversized male tabs, and ensure insulation and strain relief are applied where appropriate to prevent stress on the terminal and conductor.
