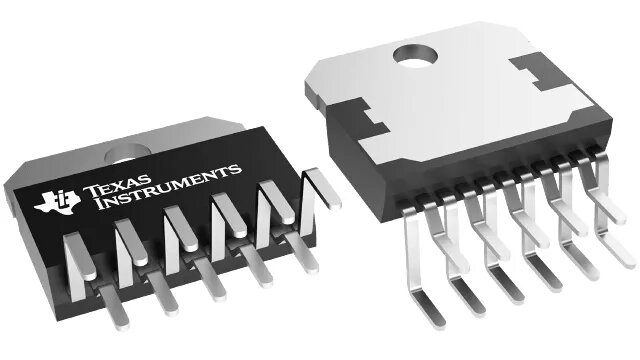

Audio amplifier Texas Instruments OPA541AP 125 W

Name: Audio amplifier Texas Instruments OPA541AP, OPA541AP
Brand: texas instruments
SKU: 1773906
Price: 43.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Audio amplifier Texas Instruments OPA541AP, 125 W, single-channel, 20.3×4.62×17.6 mm

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Texas Instruments OPA541AP is a single-channel audio amplifier rated at 125 W. The device is supplied in a compact package with dimensions 20.3 × 4.62 × 17.6 mm. Designed for high-power audio applications, it provides a dedicated output stage for driving speakers in pro audio, amplifiers, and audio equipment where a single high-power channel is required.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 1773906

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Texas Instruments OPA541AP is a single-channel power operational amplifier rated for high-power audio applications with a maximum output power of 125 W. The device is supplied in a compact power plastic package with nominal dimensions 20.3 × 4.62 × 17.6 mm and is designed to drive speakers and loads that require continuous high current. The amplifier supports supply rails up to ±40 V and can deliver continuous output currents up to 5 A. Internal protection and a user-programmable current-limit function allow reliable operation in demanding audio and industrial environments.

Advantages

The OPA541AP integrates a single current-limit resistor topology which sets both positive and negative current limits, simplifying design and eliminating the need for separate limit resistors in hybrid amplifier replacements. The device combines bipolar and FET process technology for robust output stage performance and stable operation under heavy loads. The power plastic package features a copper-lead frame to improve heat transfer for better thermal management, while an alternate industry-standard TO-3 hermetic package option provides isolated mounting to a heatsink when required.

Suitable for

Professional audio power stages and single-channel amplifiers
Speaker drivers and active monitor modules
Power conditioning stages in audio equipment and instrumentation
Replacement of hybrid power amplifiers requiring a single current-limit setting

Key specifications

Output power rating: 125 W (single-channel applications)
Supply voltage range: up to ±40 V
Continuous output current: up to 5 A
Package dimensions: 20.3 × 4.62 × 17.6 mm (power plastic package)
Internal user-programmable current-limit via single external resistor
Process technology: proprietary bipolar and FET fabrication
Thermal features: copper-lead frame for improved heat transfer; TO-3 option allows isolated heatsink mounting

How to use

Install the OPA541AP following standard amplifier PCB layout guidelines to ensure adequate thermal dissipation and to minimize parasitic inductance and resistance in output paths. Configure the supply rails up to ±40 V as required by your application, observing absolute maximum ratings. Set the desired current limit by selecting a single external resistor connected to the current-limit pin, which programs both positive and negative current limits simultaneously. Provide appropriate decoupling capacitors close to the supply pins and follow datasheet recommendations for input compensation and stability with reactive speaker loads.

Usage recommendations

Use a heatsink or ensure sufficient copper area on the PCB for thermal dissipation when operating near the device's current and power limits. Verify the programmed current-limit resistor value on a prototype under expected load conditions to prevent false triggering or insufficient protection. For installations requiring direct heatsink mounting, consider the TO-3 hermetic package option to avoid additional insulating hardware.

All features

Number of pins:: 11
Bandwidth:: 1.6 MHz

Technical details

Type:: Audio amplifier
Power:: 125 W
Package type:: TO-220

Other features

Channels quantity:: 1 channels
Package depth:: 532.13 mm
Package height:: 13.34 mm
Package width:: 36.32 mm

Logistics data

Quantity per pack:: 25 pc(s)

Weight & dimensions

Height:: 17.63 mm
Width:: 20.27 mm
Depth:: 4.62 mm

Operational conditions

Storage temperature (T-T):: -65 - 150
Operating temperature (T-T):: -25 - 85
