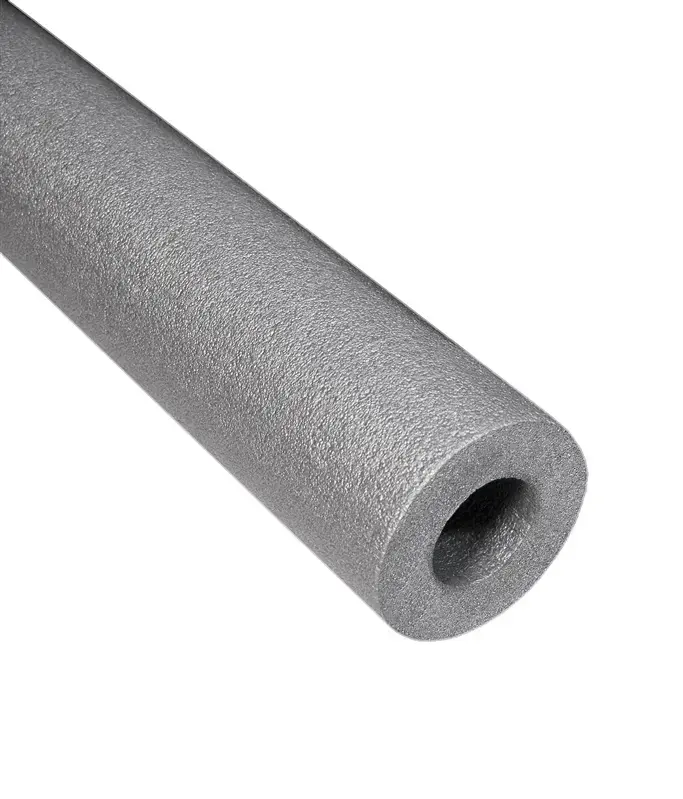

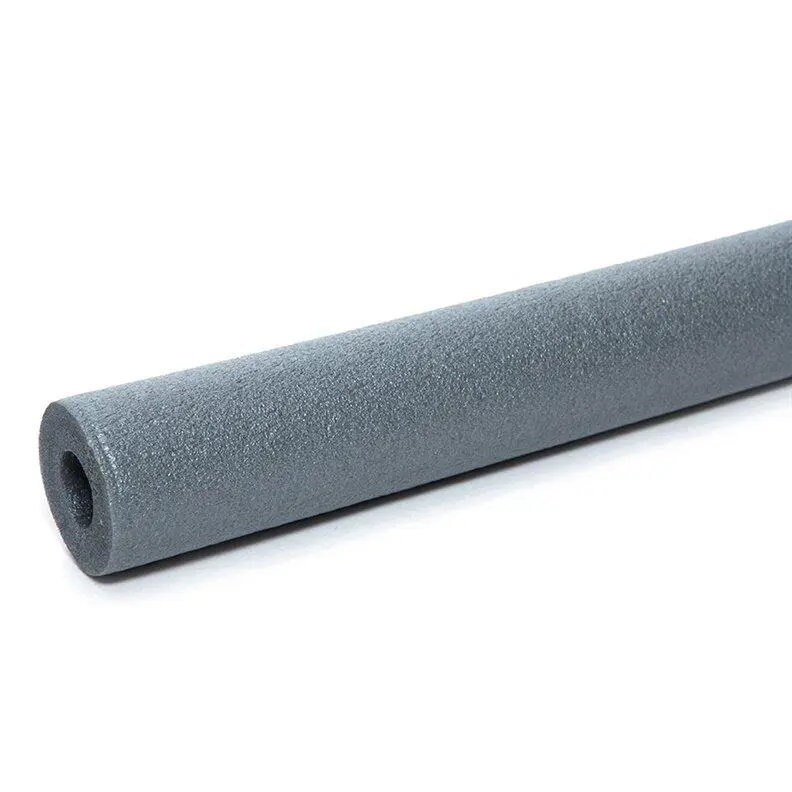

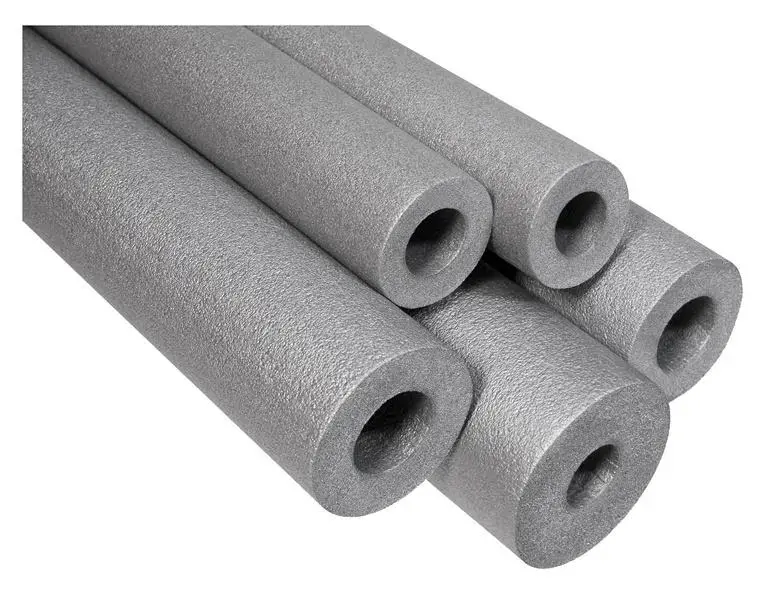

THERMAFLEX FRZ Conduit 63/13 Insulation Sleeve

The THERMAFLEX FRZ 63/13 insulation sleeve is a professional-grade solution designed for the thermal protection of piping systems. Manufactured from high-quality polyethylene foam, this flexible conduit provides an effective barrier against heat loss and condensation, contributing to the overall energy efficiency of plumbing and heating installations. With an inner diameter of 63 mm and a wall thickness of 13 mm, it offers a precise fit for standard pipe sizes, ensuring reliable performance in both residential and commercial environments.

Advantages

The primary benefit of this insulation sleeve lies in its excellent thermal insulation properties, characterized by a low thermal conductivity coefficient of 0.035 W/(m·K). The material is highly flexible, allowing for easy installation around bends and corners without compromising its structural integrity. Its robust density of 40 kg/m³ ensures long-term durability and resistance to mechanical wear. Furthermore, the wide operating temperature range from -80°C to +95°C makes it a versatile choice for various climate conditions and system requirements.

Suitable for

• Thermal insulation of heating pipes
• Prevention of condensation on cold water supply lines
• Energy efficiency improvements in residential plumbing
• Protection of piping in commercial HVAC systems

When it may not be suitable

This product is not designed for outdoor applications where it will be directly exposed to intense UV radiation or harsh weather conditions without additional protective covering. It is also not intended for use in high-temperature industrial steam lines that exceed the maximum operating temperature of +95°C.

Key specifications

• Material: Polyethylene foam
• Inner diameter: 63 mm
• Wall thickness: 13 mm
• Length: 2 m
• Thermal conductivity: 0.035 W/(m·K)
• Density: 40 kg/m³
• Operating temperature range: -80°C to +95°C

How to use

To install the THERMAFLEX FRZ 63/13, measure the length of the pipe section to be insulated and cut the sleeve to the required size using a sharp knife. If the sleeve is not pre-slit, carefully cut along the longitudinal seam. Wrap the insulation around the pipe, ensuring a snug fit. For optimal thermal performance, seal all joints and seams with appropriate adhesive tape to prevent air gaps and moisture ingress.

What to consider before purchase

• Verify the outer diameter of your pipes to ensure compatibility with the 63 mm inner diameter.
• Calculate the total length required for your project, keeping in mind that each sleeve is 2 meters long.
• Ensure the operating temperature of your system remains within the specified -80°C to +95°C range.

Usage recommendations

For the best results, ensure that the pipe surface is clean and dry before applying the insulation. When installing in multi-section runs, stagger the joints to maintain continuous thermal protection and prevent thermal bridging.
