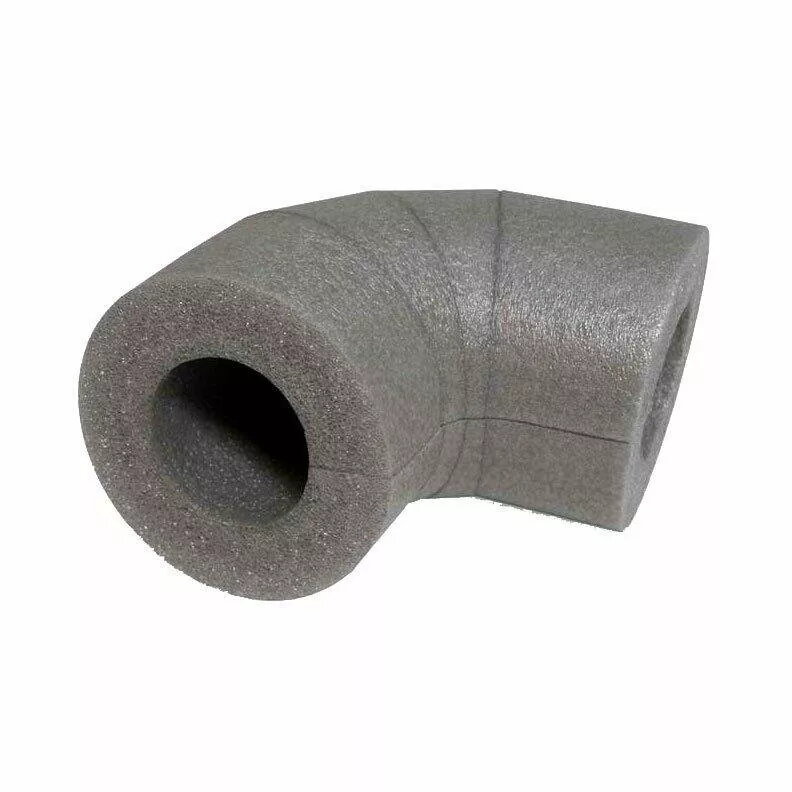

THERMAFLEX Insulation Elbow 18/9 for Pipe Systems

The THERMAFLEX Insulation Elbow 18/9 is a specialized component engineered for the thermal protection of pipe bends within heating and plumbing networks. This pre-formed insulation solution is designed to fit seamlessly over 18 mm diameter pipes with a 9 mm wall thickness, providing a consistent thermal barrier that minimizes energy waste and prevents the formation of condensation on pipe surfaces.

Advantages

This insulation elbow offers superior thermal performance by maintaining a uniform thickness around pipe bends, which are often the most vulnerable points for heat loss. Its flexible foam construction allows for quick and secure installation, significantly reducing labor time compared to manual wrapping methods. The material is highly durable and resistant to environmental factors, ensuring long-term protection and maintaining its insulating properties throughout the lifespan of the piping system.

Suitable for

• Heating system pipe bends
• Plumbing and hot water distribution lines
• Residential and commercial HVAC installations
• Preventing condensation on cold water pipes

When it may not be suitable

This product is specifically sized for 18 mm diameter pipes and will not provide a proper fit for pipes of different dimensions. It is not intended for use in high-temperature industrial applications exceeding the material's thermal resistance limits or in environments exposed to direct sunlight or harsh chemicals without additional protective shielding.

Key specifications

• Pipe diameter compatibility: 18 mm
• Insulation wall thickness: 9 mm
• Material: Flexible closed-cell foam
• Application: Pre-formed elbow for pipe bends

How to use

To install the THERMAFLEX Insulation Elbow, ensure the pipe surface is clean, dry, and free of debris. Position the pre-formed elbow over the pipe bend, ensuring a snug fit against the adjacent straight pipe insulation sections. Secure the seams using appropriate adhesive or tape recommended for foam insulation to ensure a continuous, airtight seal that prevents thermal bridging.

What to consider before purchase

• Verify the outer diameter of your pipe matches the 18 mm specification
• Ensure the 9 mm wall thickness meets your project's thermal insulation requirements
• Check for compatibility with existing pipe insulation materials

Usage recommendations

For optimal energy efficiency, ensure all joints between the elbow and straight pipe sections are tightly sealed with compatible adhesive to prevent air gaps and moisture ingress.
