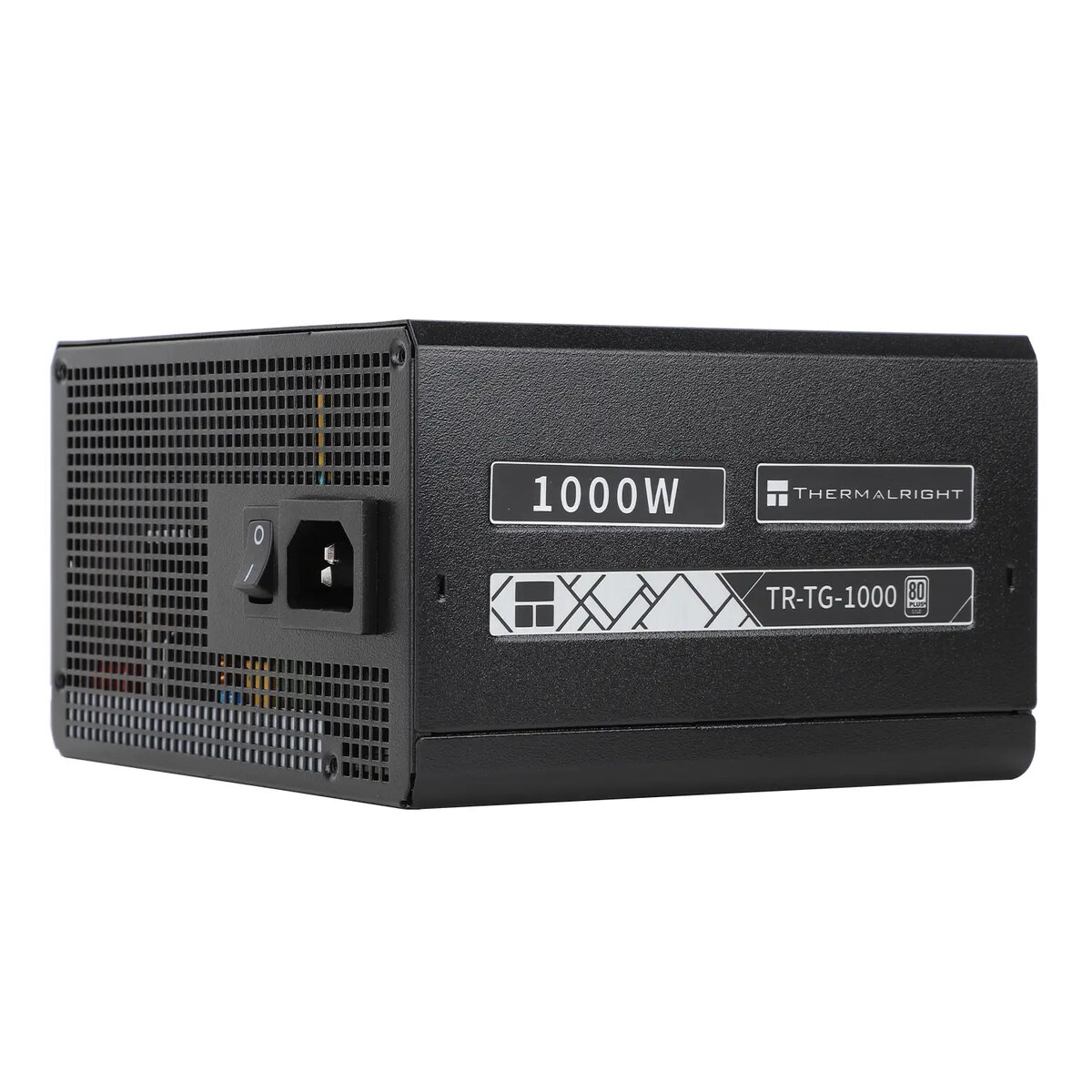

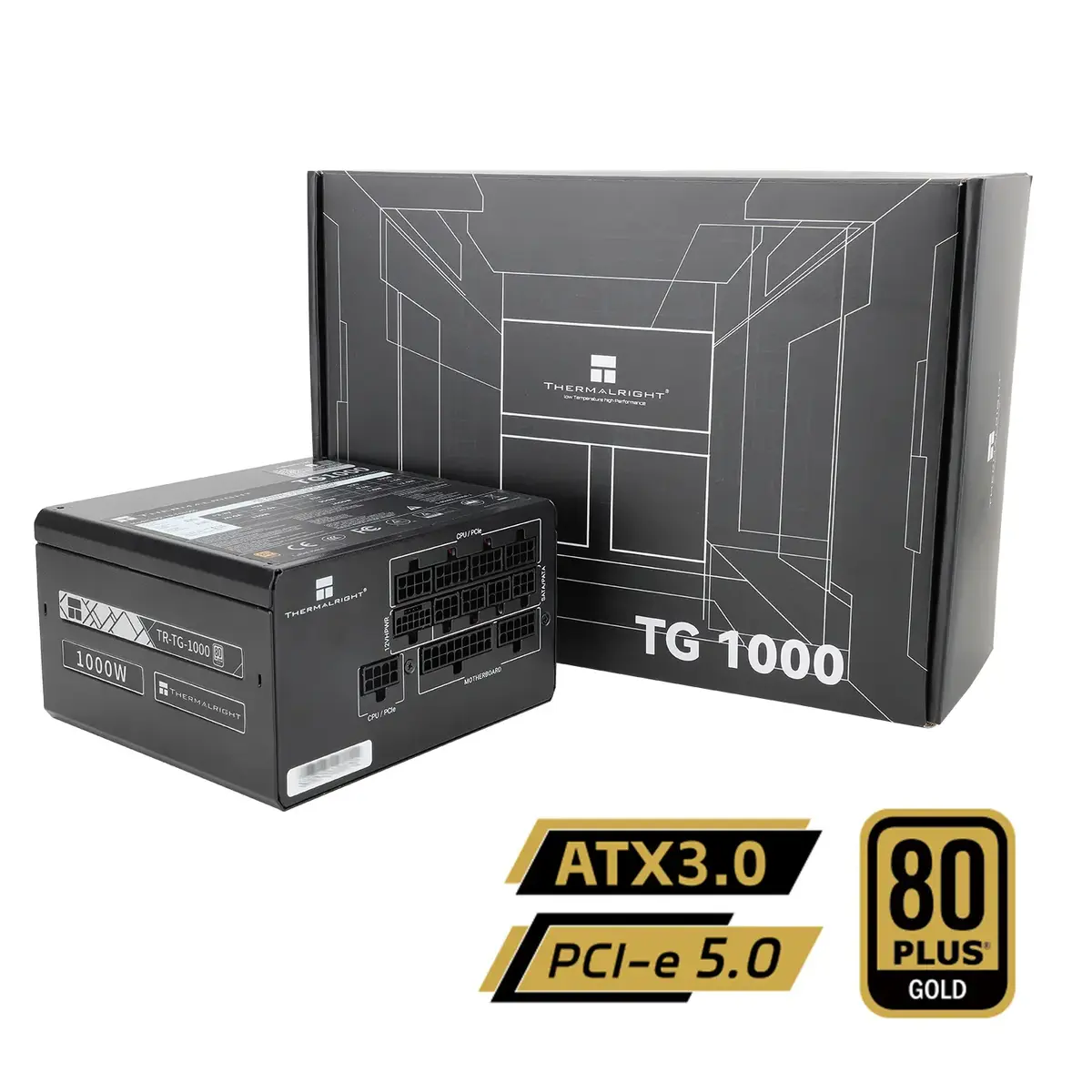

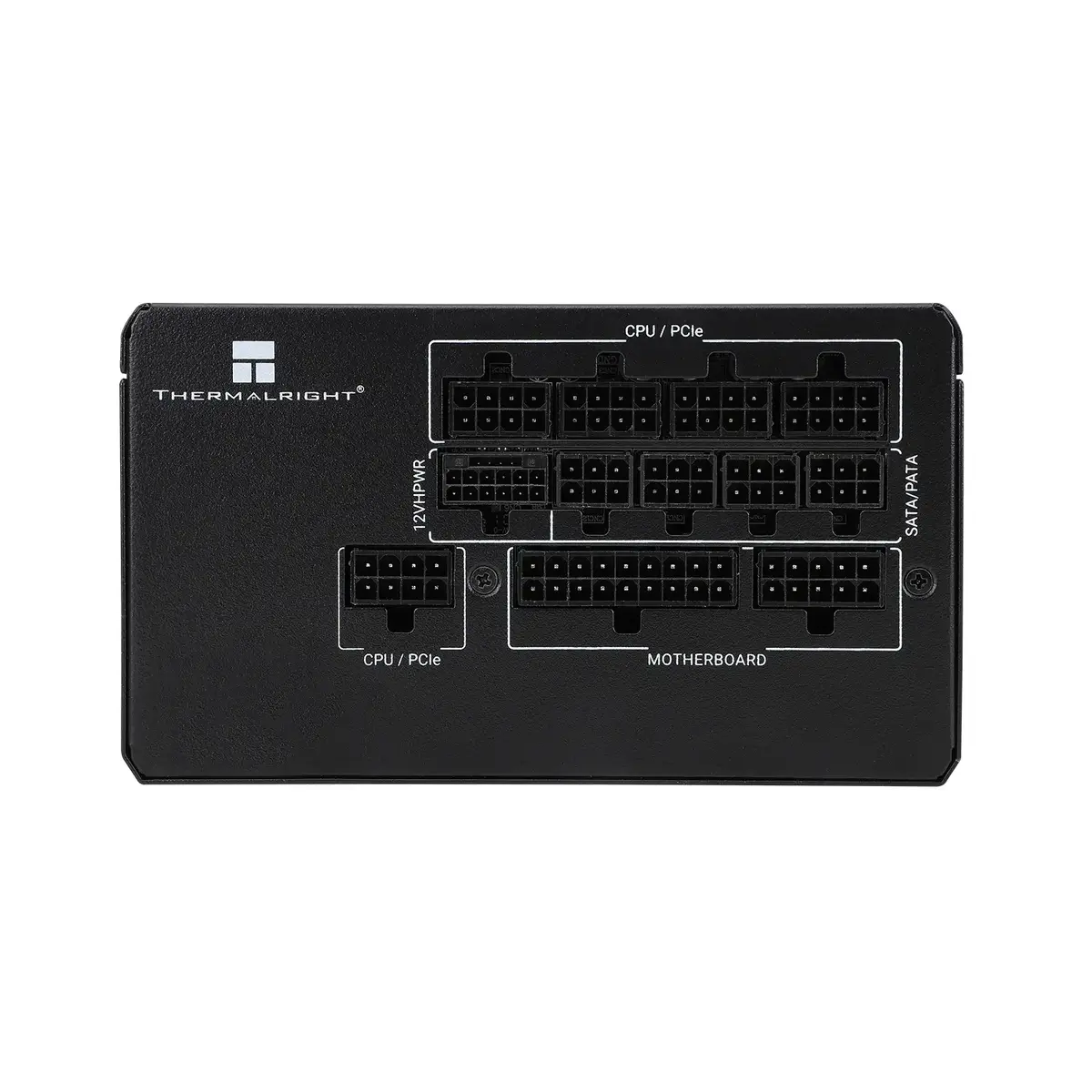

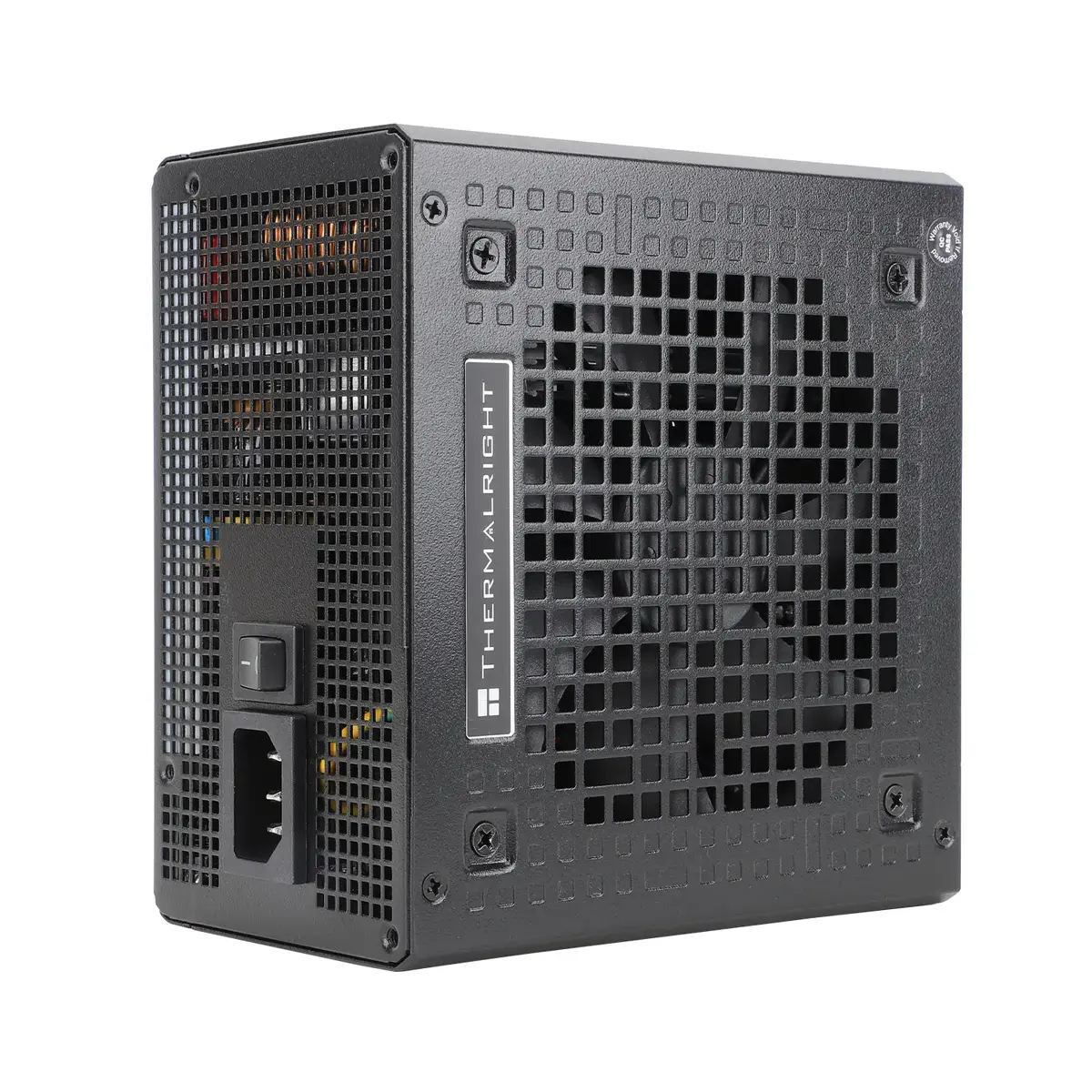

Power Supply Unit Thermalright TG-1000 1000W 20+4 pin ATX Black

Mean time between failures (MTBF):

100000 h

Purpose:

PC

PCI Express connector:

Yes

Number of fans:

1 fan(s)

On/off switch:

Yes

Cooling type:

Active

Motherboard power connector:

20+4 pin ATX

Number of SATA power connectors:

2

CPU power connector (4+4 pin):

Yes

Power protection features:

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Fan diameter:

120 mm

PCI Express power connectors (6+2 pin):

2

ATX version:

3.0

80 PLUS certification:

80 PLUS Gold

Combined power (+3.3V):

130 W

Combined power (+12V):

996 W

Combined power (+5V):

130 W

Combined power (-12V):

3.6 W

Combined power (+5Vsb):

12.5 W

Max output current (+3.3V):

20 A

Max output current (+12V):

83 A

Max output current (+5V):

20 A

Max output current (-12V):

0.3 A

Max output current (+5Vsb):

2.5 A

AC input frequency:

47 - 63

AC input voltage:

100 - 240

Cabling type:

Fully-Modular

Number of PATA power connectors:

1

Total power:

1000 W

Motherboard power cable length:

600 mm

SATA power cable length:

600, 450, 750, 900

CPU power cable length:

600 mm

PCI Express power cable length:

800 mm

Power supply unit (PSU) form factor:

ATX

Operational conditions

Operating temperature (T-T):

0 - 40

Power

Input current:

13 - 6.5

Technical details

Warranty period:

5 year(s)

Weight & dimensions

Height:

86 mm

Width:

140 mm

Depth:

150 mm

Ergonomics

Product colour:

Black

Built-in display:

No

Packaging content

Cables included:

SATA, PCIe, PATA, CPU
