header-product Triax TMS 5×8 C satellite multiswitch 5 inputs 8 outputs 950-2200 MHz
144.49 €

Triax TMS 5×8 C satellite multiswitch 5 inputs 8 outputs 950-2200 MHz

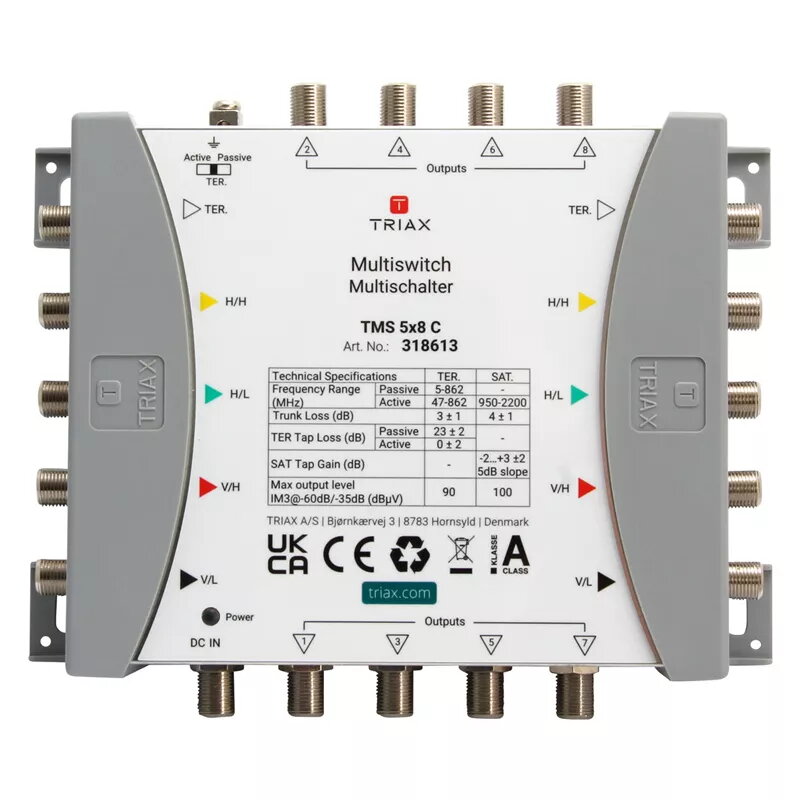

Triax TMS 5×8 C satellite multiswitch Photo 1

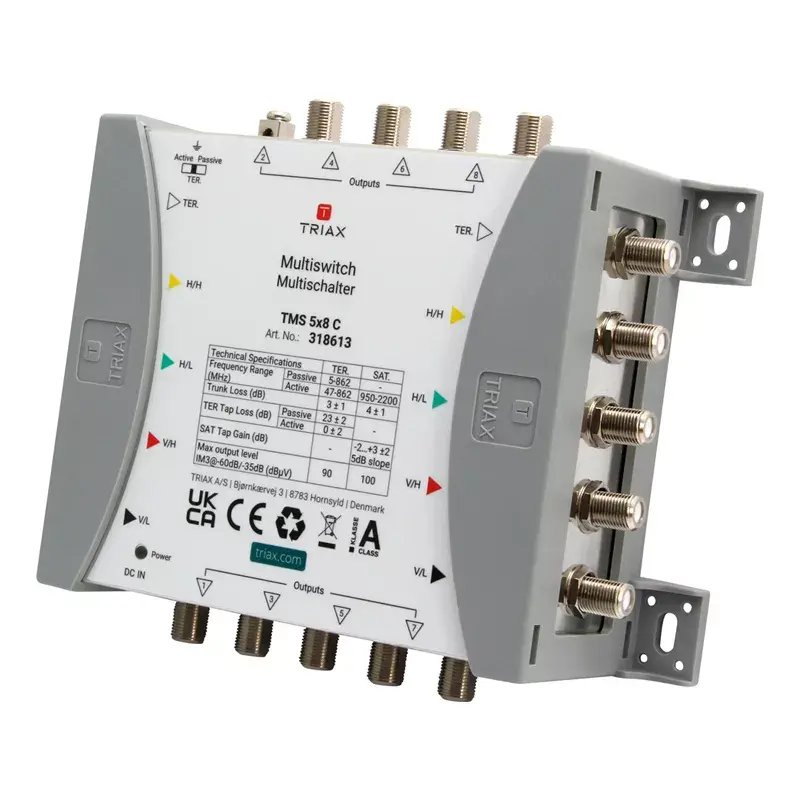

Triax TMS 5×8 C satellite multiswitch Photo 2
Triax TMS 5×8 C satellite multiswitch Photo 1
Triax TMS 5×8 C satellite multiswitch Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Triax TMS 5×8 C satellite multiswitch 5 inputs 8 outputs 950-2200 MHz

{{email}}
You keep track of price changes

Triax TMS 5×8 C satellite multiswitch 5 inputs 8 outputs 950-2200 MHz

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Triax TMS 5×8 C is a satellite multiswitch with 5 inputs and 8 outputs, supporting a frequency range of 950 - 2200 MHz. It operates on an input voltage of 15 - 20 V with a power consumption of 200 mA. The device measures 140 mm in width, 65 mm in depth, and 175 mm in height, making it compact for installation.
Available for order: 2 pcs.
Warranty: 2 Years
SKU: 4781523
Manufacturer: Triax
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
28.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
31.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
31.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Triax TMS 5×8 C is a cascade multiswitch for one satellite position with 5 inputs and 8 subscriber outputs, designed to distribute satellite and terrestrial signals in small to large installations. It supports 950–2200 MHz, operates on 15–20 V with a typical current consumption of 200 mA, and has a compact footprint (140 × 65 × 175 mm) for installations in confined spaces. The device is EICS certified and comes with a 6-year warranty.

Advantages

The multiswitch provides low insertion loss and high isolation while maintaining low power consumption. It includes ESD protection and complies with RED requirements. The unit is compatible with Quad and Quattro LNBs, and supports active or passive terrestrial switching. Installer-friendly features include equidistant F-connectors, colour-coded input labels and an LED power indicator. The TMS 5×8 C is certified under the European IRS Certification Scheme, ensuring compatibility with major satellite and TV platforms.

Suitable for

  • Small to large multi-dwelling or multi-tenant satellite TV installations
  • Hotel, office or communal television distribution systems
  • Installations requiring Quad or Quattro LNB support
  • Systems where compact equipment is needed for limited space

Key specifications

  • Model: TMS 5×8 C (Triax)
  • Inputs: 5 (satellite/terrestrial)
  • Outputs: 8 subscriber outputs
  • Frequency range: 950–2200 MHz
  • Supply voltage: 15–20 V
  • Power consumption: 200 mA
  • Dimensions (W×D×H): 140 × 65 × 175 mm
  • Weight: 0.485 kg
  • Certifications: EICS (European IRS Certification Scheme), RED compliant
  • Warranty: 6 years

How to use

Mount the multiswitch in a suitable location with access to LNB and terrestrial antenna cabling. Connect the LNB/trunk feeds to the five inputs and run coaxial cables from the subscriber outputs to the individual receivers. Power the unit using the recommended TMS PSU external power supply, either directly or via the SAT trunk lines. Verify connections using the LED power indicator and check signal distribution on connected receivers.

Usage recommendations

For reliable operation, use the Triax TMS PSU recommended by the manufacturer and adhere to coaxial cable quality and grounding best practices. Ensure compatibility with the installed LNB type (Quad or Quattro) and follow local regulations for antenna and distribution installations.

Specifications

Weight:
0.485 kg
All features
Input voltage:
15 - 20
Digital Satellite Equipment Control (DiSEqC):
1.0, 2.0
Number of inputs:
5 inputs
Number of outputs:
8 outputs
Current consumption:
50 mA
Input frequency range (terrestrial):
5 - 862
Input frequency range (satellite):
950 - 2200

Technical details

Certification:
RED

Weight & dimensions

Weight:
0.485 kg
Height:
175 mm
Width:
140 mm
Depth:
65 mm

Power

Power consumption:
200 mA

Operational conditions

Operating temperature (T-T):
-20 - 55
