header-product Field plug RJ45 25G Triton METZ CONNECT 25G RJ45 field plug pro, red, male, 13.8×49.8×16.5 mm, pack of 10
24.99 €

Field plug RJ45 25G Triton METZ CONNECT 25G RJ45 field plug pro, red, male, 13.8×49.8×16.5 mm, pack of 10

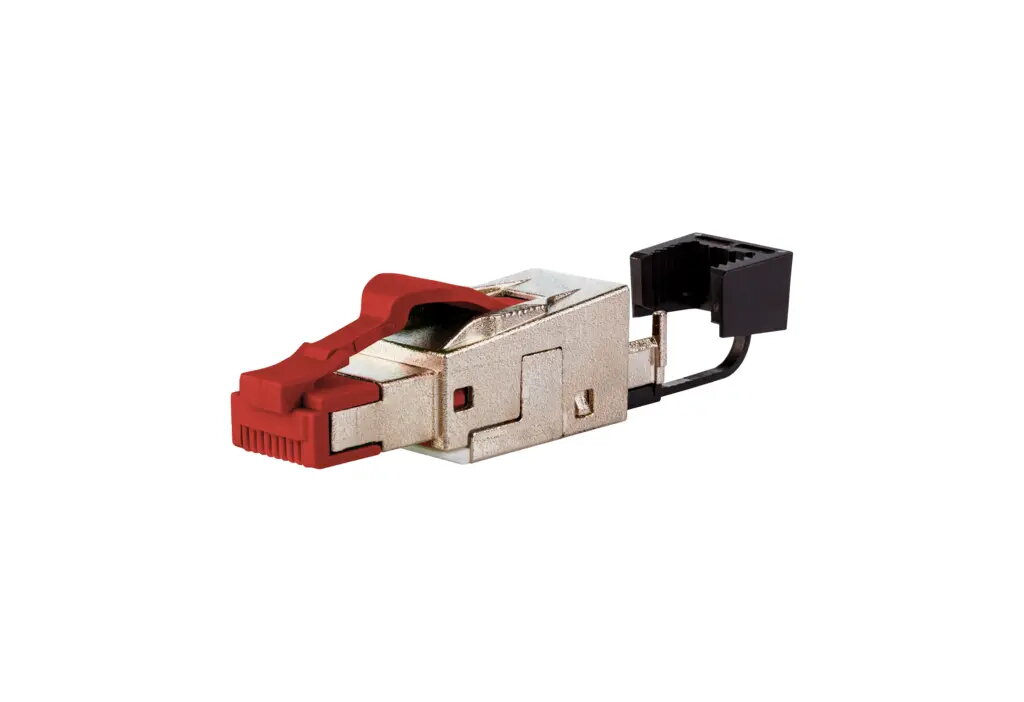

Field plug RJ45 25G Triton METZ CONNECT 25G Photo 1

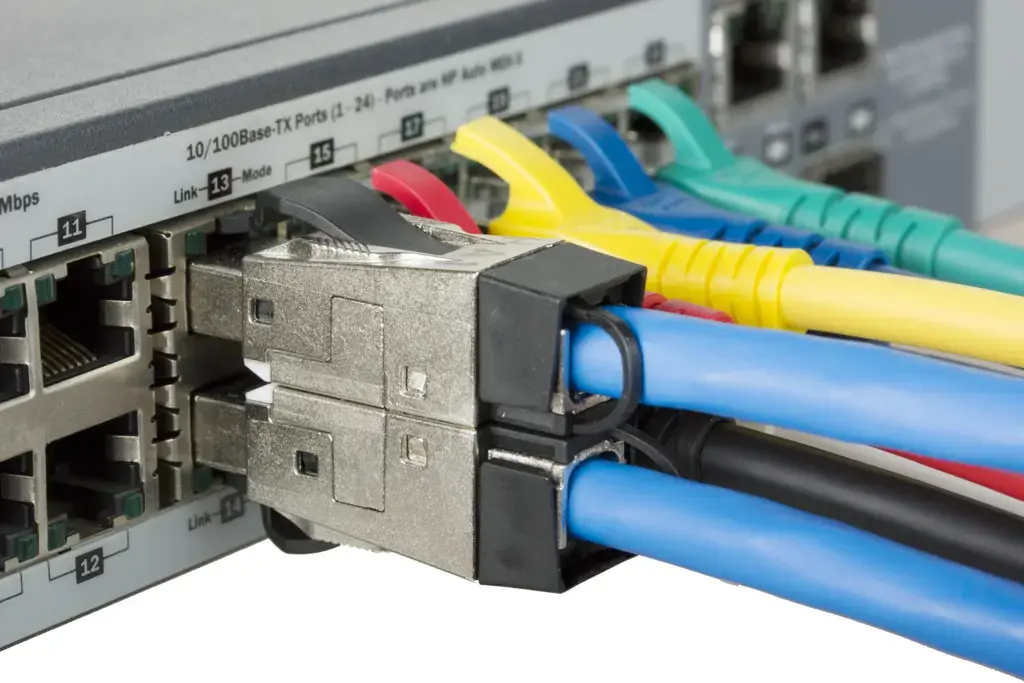

Field plug RJ45 25G Triton METZ CONNECT 25G Photo 2

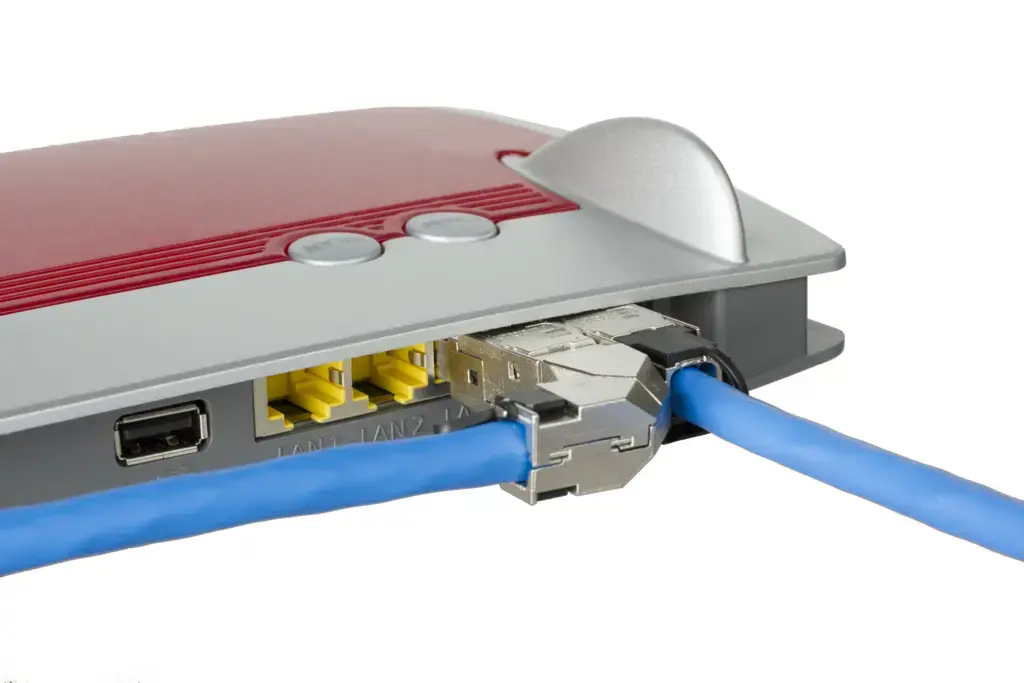

Field plug RJ45 25G Triton METZ CONNECT 25G Photo 3
Field plug RJ45 25G Triton METZ CONNECT 25G Photo 1
Field plug RJ45 25G Triton METZ CONNECT 25G Photo 2
Field plug RJ45 25G Triton METZ CONNECT 25G Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Field plug RJ45 25G Triton METZ CONNECT 25G RJ45 field plug pro, red, male, 13.8×49.8×16.5 mm, pack of 10

{{email}}
You keep track of price changes

Field plug RJ45 25G Triton METZ CONNECT 25G RJ45 field plug pro, red, male, 13.8×49.8×16.5 mm, pack of 10

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Triton METZ CONNECT 25G RJ45 field plug pro is a red, halogen-free RJ45 male field connector designed for 25G Ethernet applications. Dimensions: 13.8 × 49.8 × 16.5 mm. Supplied in packs of 10. Certified to REACH and RoHS, suitable for on-site cable terminations and installations requiring compact, compliance-tested RJ45 field plugs.
Available for order: 154 pcs.
Warranty: 2 Years
SKU: 12257500
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Triton METZ CONNECT 25G RJ45 field plug pro is a compact, red, halogen-free RJ45 male connector designed for on-site termination of Ethernet cables up to 25 Gbit/s. With dimensions of 13.8 × 49.8 × 16.5 mm and supplied in packs of 10, the connector supports transmission characteristics up to 1250 MHz and is suitable for high-speed 25GBASE-T and PoE applications.

Advantages

The field plug offers fully shielded performance with multi-port capability and a straight (180°) cable entry, while its zinc die-cast housing made of only two parts provides industrial-grade mechanical stability. Assembly is straightforward and can be performed without special tools; the design includes a latching clip strain relief on the stuffer cap with a protected, reconnectable locking hook. The connector supports a wide range of conductor types and diameters and complies with relevant transmission standards.

Suitable for

  • 25GBASE-T 25 GBit Ethernet installations
  • High-frequency cabling requiring up to 1250 MHz performance
  • On-site field termination and repairs
  • Remote Powering solutions (PoE, PoE+, UPoE, 4PPoE)
  • HDBaseT signal transmission

When it may not be suitable

This field plug is intended for cable jackets with diameters between 5.5 and 10.5 mm and for use in IP20 environments; it is not suitable for outdoor or wet locations without additional protection. It also requires compatible cable conductor sizes—stranded wire AWG 27/7 to 22/7 or solid wire AWG 26/1 to 22/1—so cables outside these ranges will not be supported.

Key specifications

  • Data rate: up to 25 Gbit/s
  • Frequency range: up to 1250 MHz (ISO/IEC 11801 Ed.3:2017)
  • Shielding: fully shielded
  • Cable entry: straight (180°)
  • Conductor compatibility: stranded AWG 27/7 to 22/7 (0.43–0.76 mm), solid AWG 26/1 to 22/1 (0.4–0.64 mm)
  • Cable jacket diameter: 5.5–10.5 mm
  • Housing material: zinc die-cast with plastic parts
  • Protection rating: IP20
  • Colour: red
  • Connector type: RJ45 male, straight
  • Pack quantity: 10 pieces

How to use

Prepare the cable by stripping the jacket to expose conductors within the specified diameter range, arrange the conductor pairs according to the required wiring scheme, and insert the wires into the stuffer cap. The connector is assembled on-site without special tools: place the stuffer cap into the zinc housing, latch the strain relief clip over the cap to secure the cable, and engage the protected locking hook. Verify continuity and signal performance after termination.

What to consider before purchase

  • Confirm cable jacket diameter is within 5.5–10.5 mm.
  • Check conductor type and diameter compatibility (stranded or solid within specified AWG ranges).
  • Ensure IP20 protection and indoor use match the installation environment.
  • Verify that 25GBASE-T or other required protocols (PoE, HDBaseT) are supported by the system.
  • Pack contains 10 connectors—confirm required quantity.

Usage recommendations

Use standard termination checks (continuity and cable certification tests) after assembly and ensure cable layout and grounding practices maintain shield continuity for optimal 25 Gbit/s performance.
All features
Storage temperature (T-T):
-40 - 85
Material:
Zinc, Plastic
Operating temperature (T-T):
-40 - 85
Height:
16.5 mm
Connector(s):
RJ45
Width:
13.8 mm
Depth:
49.8 mm
Product colour:
Red
Country of origin:
Germany
Package type:
Box
Cable diameter:
10.5 mm
Voltage:
50
Connector contacts plating:
Nickel/Gold
Insulation resistance:
500 MΩ
Current:
1 A
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP20
Quantity per pack:
10 pc(s)
Connector gender:
Male
Dielectric strength:
1000 V
Shell plating:
Nickel
Lifetime (cycles):
750
Insertion force:
20 N
Withdrawal force:
20 N
Contact resistance:
20 mΩ
Connector form factor:
Straight
Cable protector:
Yes
Doesn't contain:
Halogen
Compliance certificates:
RoHS, REACH
