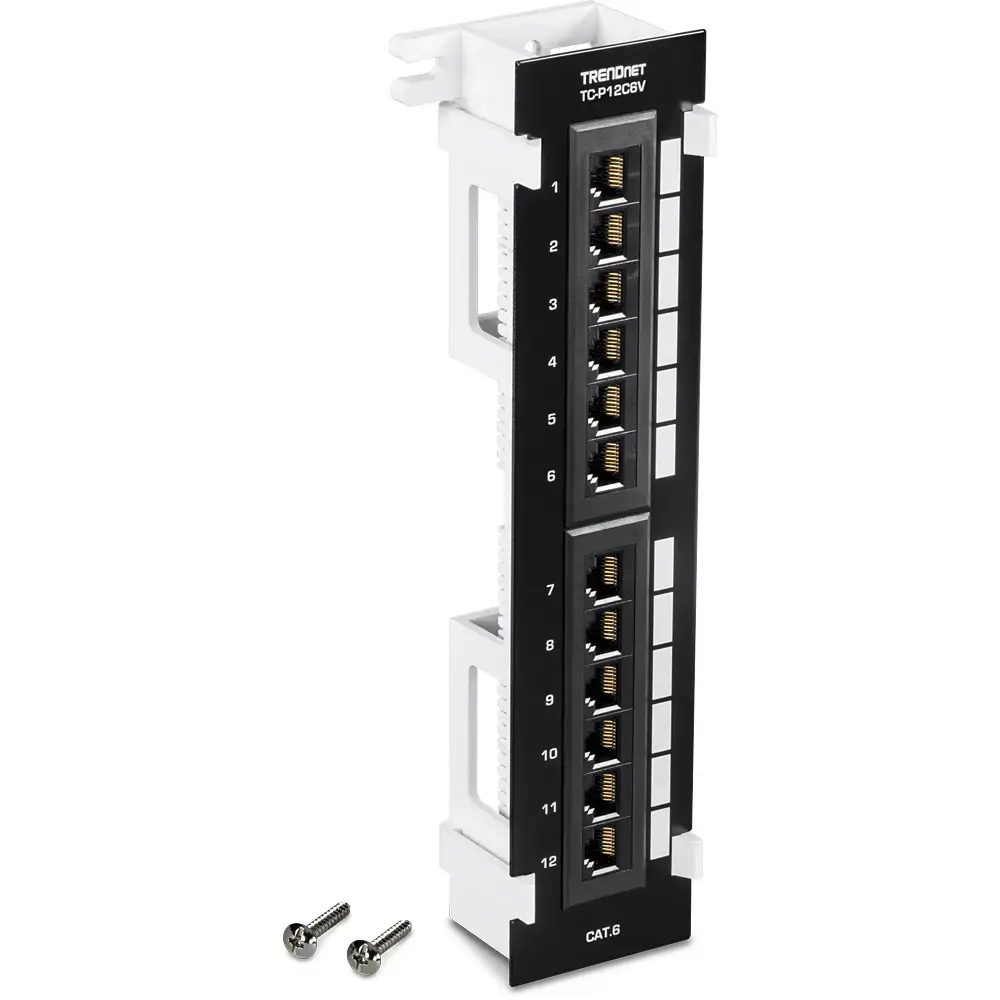

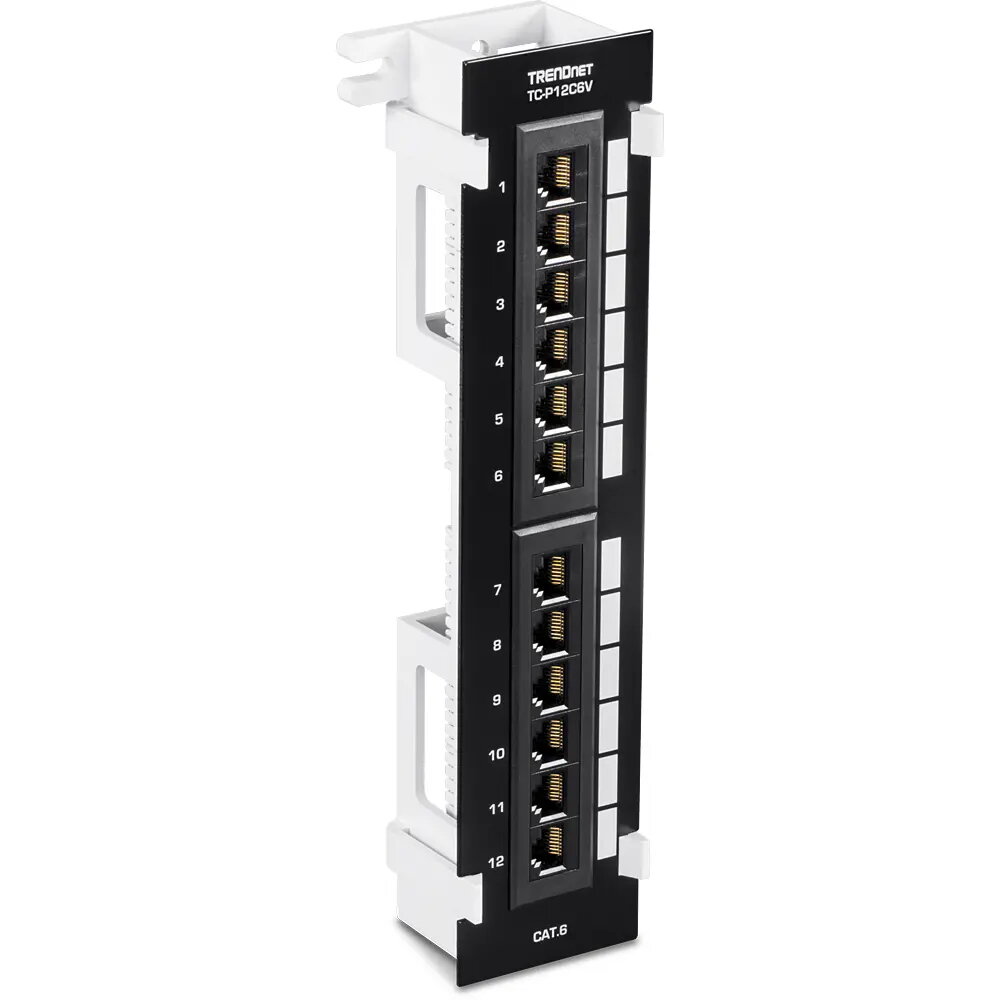

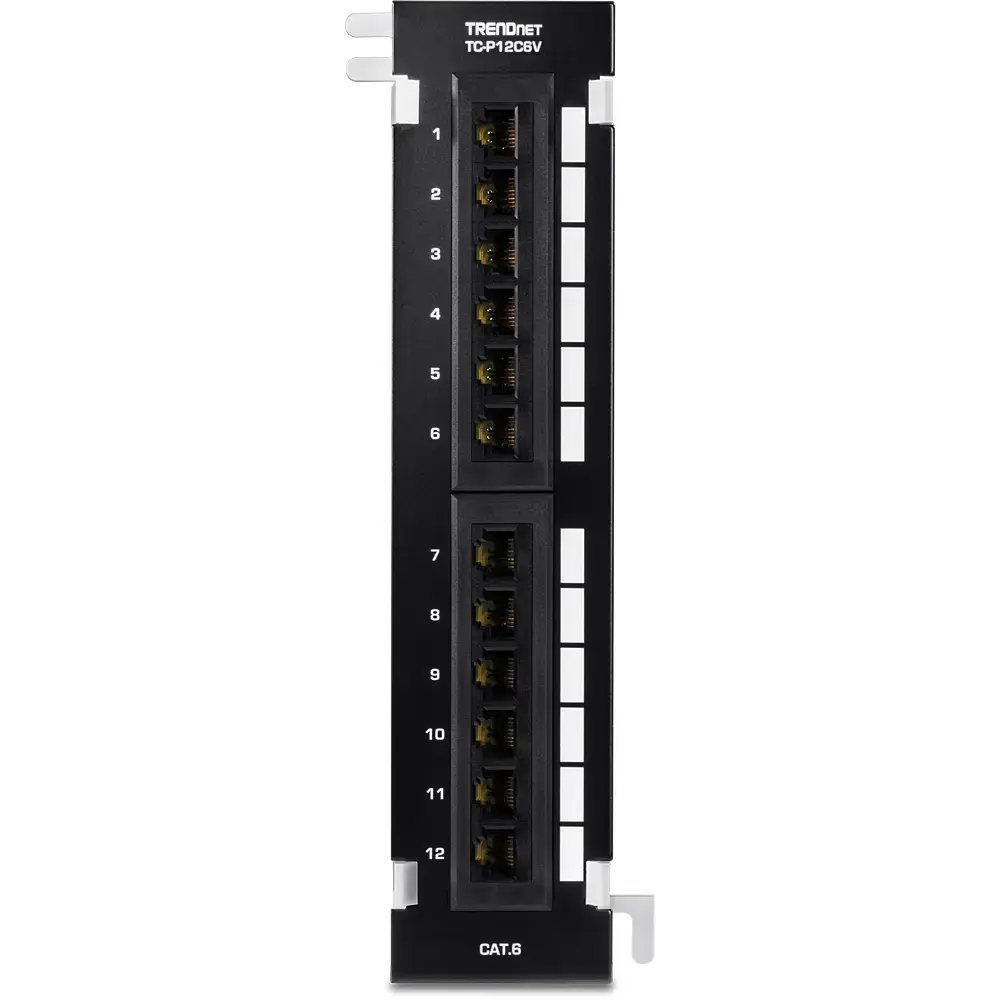

Patch panel Triton Trendnet TC-P12C6V, 12‑port RJ-45 Cat6, SPCC, black, 57×253×49 mm

Triton Trendnet TC-P12C6V is a compact 12‑port Cat6 patch panel with RJ-45 ports designed for structured network installations in small office, home and SMB environments. Constructed from SPCC steel with a black finish and measuring 57×253×49 mm, the unit supports 22–26 AWG UTP wiring and provides a 10‑inch, high-density footprint suitable for wall or rack mounting. The panel delivers Cat6 performance up to 250 MHz and supports multi‑gigabit Ethernet speeds for typical LAN and edge deployments, while integrated cable pass‑through holders and a writable label area above each port simplify identification and cable management.

Advantages

The patch panel combines a durable SPCC steel housing with a compact form factor that allows flexible vertical or horizontal wall mounting using the included 89D bracket. It provides 12 Gigabit‑capable RJ‑45 ports with Cat6 performance, color‑coded terminations for T568A/B wiring, and 110 IDC style terminals for reliable punch‑down connections. Removable cable pass‑through holders and included cable ties reduce clutter and make installation and maintenance more efficient. The snap‑in bracket design gives quick access to terminations for troubleshooting or reconfiguration.

Suitable for

• Small office and home network closets where space is limited
• SMB edge or patching points for voice and data
• Wall‑mounted network installs requiring a compact Cat6 patching solution
• Patching and cable consolidation in wiring closets and telecommunications rooms

Key specifications

• Ports: 12 x RJ‑45 (Cat6)
• Performance: up to 250 MHz; supports 10/100/1000/2.5G/5GBASE‑T at 100 m and 10GBASE‑T at 55 m

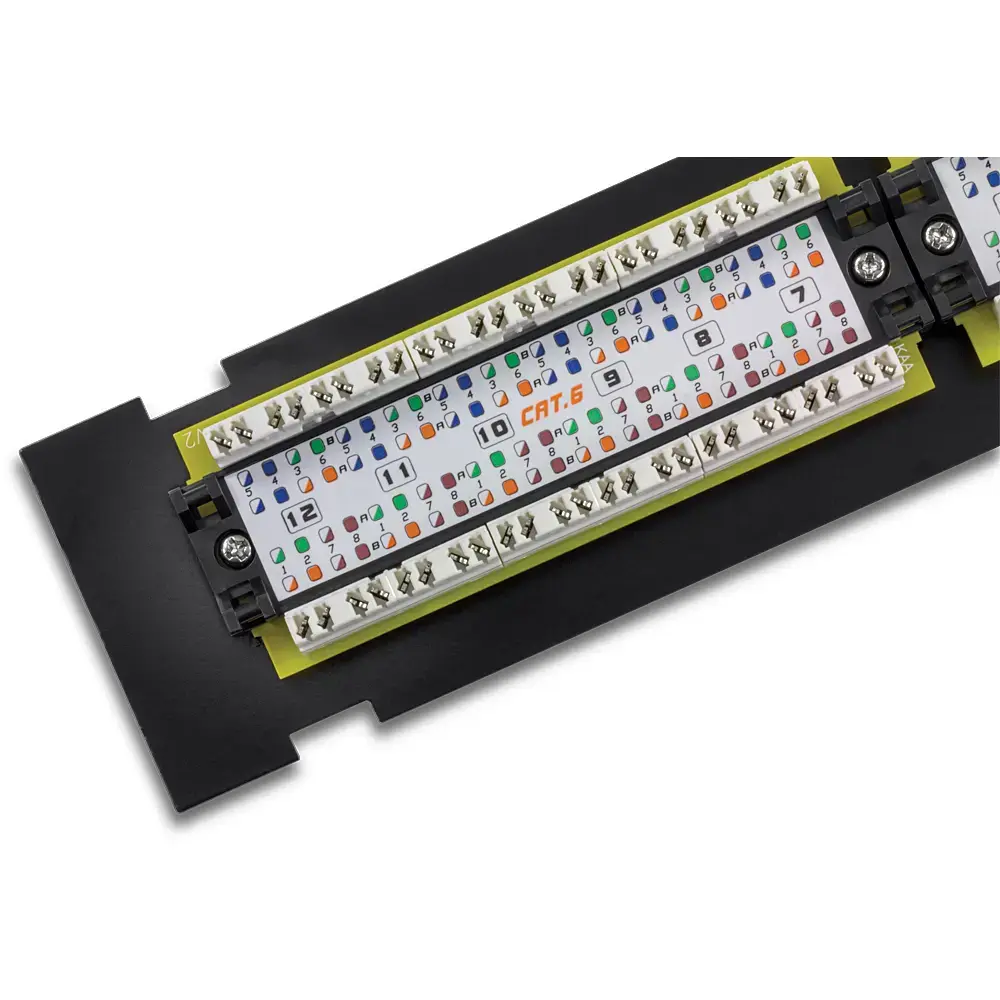

• Termination: 110 IDC type terminals, color‑coded for T568A/B
• Wire gauge compatibility: 22–26 AWG
• Material and finish: SPCC steel, black

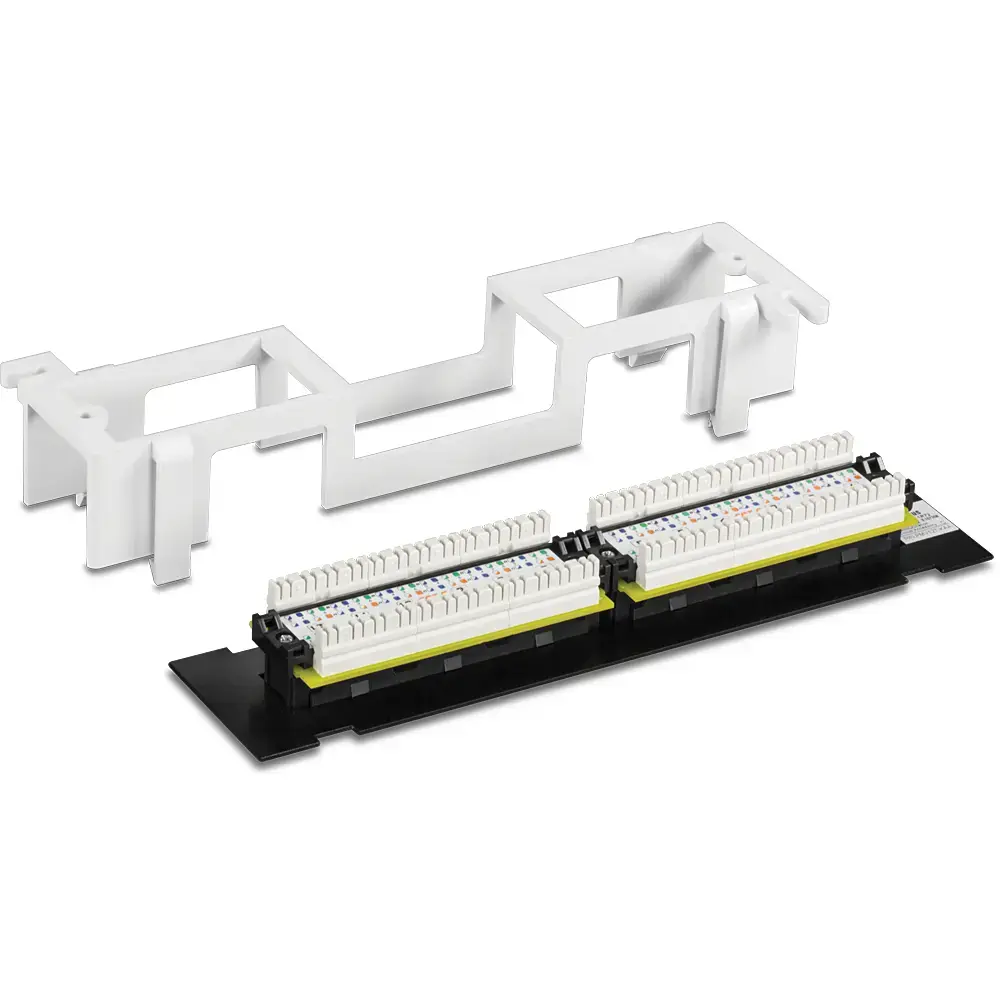

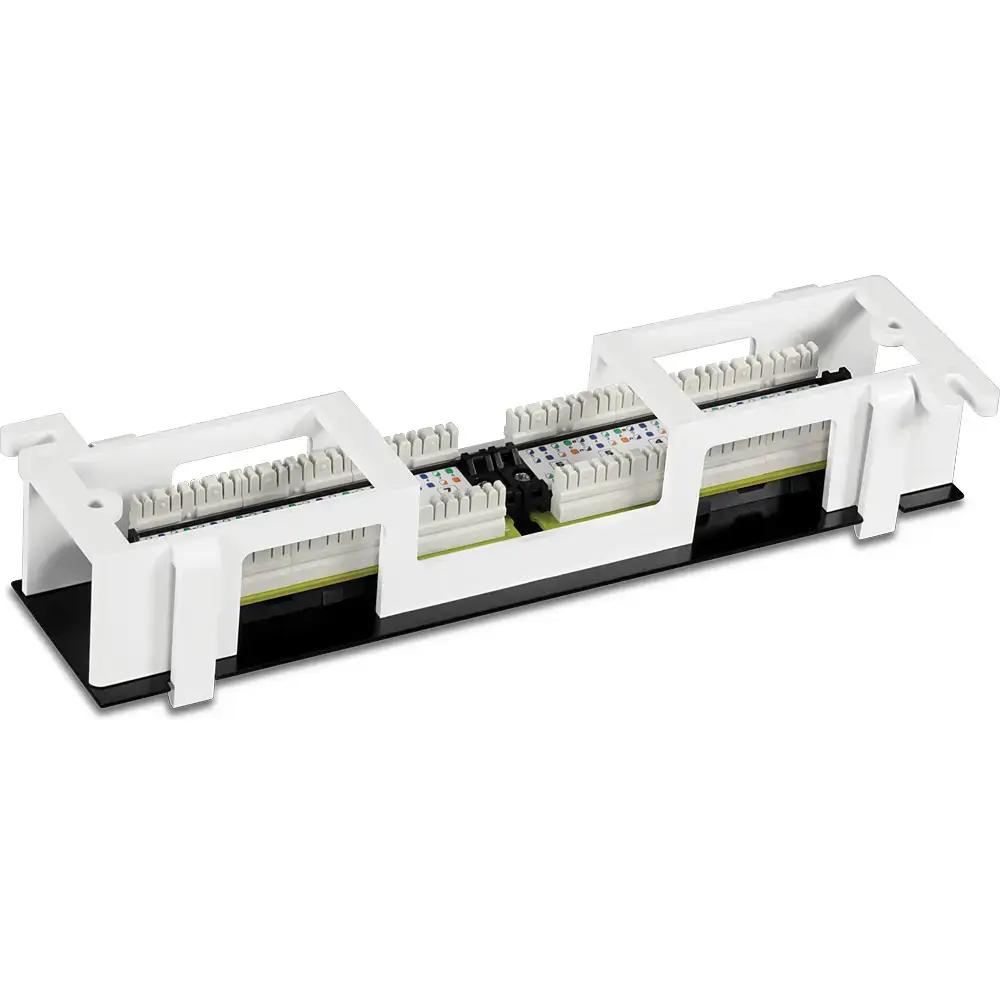

• Mounting: includes 89D wall mount bracket for vertical or horizontal installation; snap‑in design
• Cable management: removable pass‑through holders and cable ties; writable label area above ports
• Dimensions: 57 × 253 × 49 mm (compact 10‑inch footprint)

How to use

Mount the TC-P12C6V to a wall or vertical surface using the included 89D bracket in either horizontal or vertical orientation. Terminate each network cable on the 110 IDC terminal blocks following the color‑coded T568A or T568B scheme, using a compatible 110 or Krone punch‑down tool. Route cables through the removable pass‑through holders and secure bundles with the included cable ties. Label each port using the writable area above the respective RJ‑45 jack to maintain clear identification. After termination, test each connection with appropriate network testers to verify continuity and performance.

Usage recommendations

Use a 110 or Krone punch‑down tool for consistent terminations and follow ANSI/TIA wiring standards. Keep cable runs within recommended lengths for the supported Ethernet speeds, and secure cables to the pass‑through holders to minimize strain on terminations. For 10GBASE‑T applications, verify link distance does not exceed the supported 55 m for full 10 Gbps performance.
