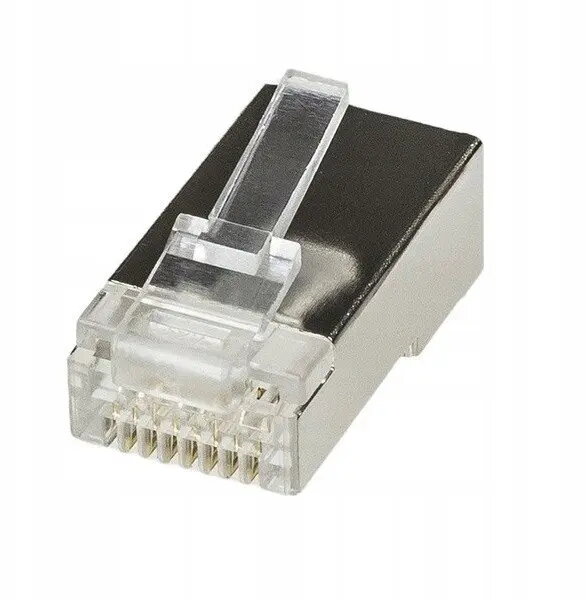

Modular plug RJ-45 Triton WM8p8c kat.6A for round shielded stranded cable

Triton WM8p8c modular plug is a shielded RJ-45 connector designed for use with round, stranded (flexible) Category 6A Ethernet cable. It enables a screened connection for high-speed data transmission and supports the electrical and mechanical requirements of Cat6A installations. The plug is intended for terminating patch cords or creating custom network leads where a shielding layer and flexible conductor accommodation are required.

Advantages

The shielded construction of the RJ-45 plug reduces electromagnetic interference and maintains signal integrity in environments with potential noise sources. Its design accepts round stranded conductors, ensuring reliable contact with flexible cables used in patch leads and bespoke assemblies. The plug is compatible with Category 6A performance, allowing support for 10 Gbps Ethernet over appropriate cabling, and provides a compact, field-terminable solution for screened connections.

Suitable for

• Terminating shielded round stranded Cat6A patch cords
• Creating custom screened network leads for office and data center use
• Installations where reduced electromagnetic interference is required
• Field assembly of flexible Ethernet cables for equipment interconnects

Key specifications

• Connector type: Modular RJ-45, 8P8C
• Category performance: Cat6A compliant
• Cable compatibility: Round, stranded (flexible) shielded twisted pair cable
• Shielding: Integrated screen for reduced EMI/RFI
• Contact count: 8 contacts for four pairs
• Application: Patch cords and custom network lead termination

How to use

Prepare the shielded round stranded cable by stripping the outer jacket and folding back the drain wire or foil shield according to the plug manufacturer's recommendations. Arrange the individual conductors in the required wiring order (T568A or T568B) and insert them fully into the plug until the conductors reach the contact points. Ensure the shield or drain wire makes proper contact with the plug's metal housing before completing the crimping or termination operation with the appropriate tool. Verify continuity and pair integrity with a network tester after termination.

Usage recommendations

Use the plug with cables that match its round, stranded shielded specification and follow proper cable preparation and termination procedures. Employ a compatible crimping or termination tool and test each assembled lead to confirm continuity, pair alignment, and shielding connection prior to deployment.
