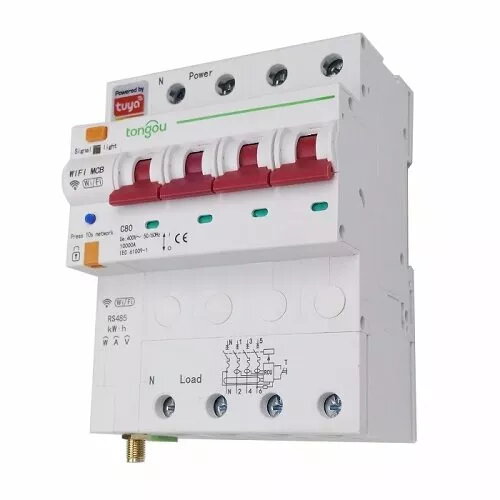

Circuit Breaker TUYA HS082260 4-pole 63A with Wi‑Fi and RS485

Circuit Breaker TUYA HS082260 is a 4-pole smart switch rated 63A with built-in energy metering and Wi‑Fi (2.4 GHz) connectivity. Designed for DIN-rail mounting in electrical distribution panels, it protects multi‑phase household circuits from overloads and short circuits while providing remote monitoring and control via the TuyaSmart or SmartLife apps. The unit includes RS485 interface, two Wi‑Fi antennas and a physical handle with mechanical lock for safe operation.

Advantages

The TUYA HS082260 combines protection and metering in a single device, allowing real-time monitoring of energy consumption, voltage, current and power factor. It supports setting energy price and protection thresholds (power/current/voltage) so connected loads can be automatically switched off when limits are exceeded. Remote control and scheduling are available through TuyaSmart/SmartLife apps, with voice control compatibility for Amazon Alexa and Google Assistant. The device features easy DIN-rail installation, Wi‑Fi signal LED, network detection button, RS485 communication and robust protection against overload, short circuit, overvoltage and leakage.

Suitable for

• Protection and remote control of multi‑phase household circuits
• Monitoring energy consumption of appliances such as water heaters, HVAC, ovens and pumps
• Integration into smart home systems using TuyaSmart/SmartLife or RS485 networks
• DIN-rail electrical distribution panels in residential and small commercial installations

Key specifications

• Model: HS082260
• Poles: 4-pole
• Rated current: max. 63 A
• Voltage: AC 400 V
• Frequency: 50/60 Hz
• Wi‑Fi: 2.4 GHz (includes 2 antennas)
• Interfaces: Wi‑Fi, RS485
• App support: TuyaSmart / SmartLife (Android, iOS)
• Compatibility: Amazon Alexa, Google Assistant
• Installation: DIN-rail 35 x 7.5 mm
• Dimensions: 89 x 115 x 74 mm
• Operating temperature: -25 °C to +70 °C
• Mechanical service life: >100,000 operations
• Weight: 690 g
• Protections: overload, short circuit, overvoltage, leakage
• Warranty: 24 months

How to use

Install the TUYA HS082260 on a standard 35 x 7.5 mm DIN rail inside the distribution board. Connect the four poles to the corresponding phases and the neutral/ground according to local electrical codes. Attach the supplied Wi‑Fi antennas, power the device and use the network detection button to connect the breaker to your 2.4 GHz Wi‑Fi network via the TuyaSmart or SmartLife app. Configure RS485 if required for local integration. Set energy price, thresholds and schedules in the app to enable metering, automatic cutoff and remote control. Use the mechanical handle and locking feature for safe manual operation during maintenance.

Usage recommendations

For safe and reliable operation, installation and wiring should be performed by a qualified electrician in accordance with local regulations. Use the app to configure thresholds and schedules before connecting sensitive loads. Ensure the distribution panel provides proper ventilation and the Wi‑Fi signal is sufficient for stable remote communication.
