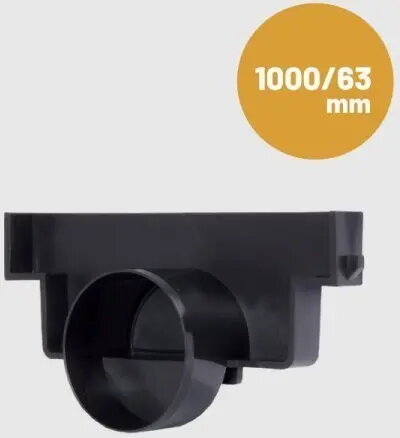

UN SYSTEM 1000×63 Right End Cap for Drain - UN MX 01709

The UN SYSTEM 1000×63 Right End Cap for Drain is a purpose-built closure element designed to fit the UN drainage profile with a 1000×63 cross section. Intended to terminate the right end of a drainage run, this end cap provides a sealed and stable finish for runoff channels used in construction and renovation projects. The component is manufactured to integrate with the UN SYSTEM 1000×63 series and offers a neat, secure termination that prevents unwanted ingress or leakage at the profile end.

Advantages

This right end cap ensures a tight and reliable seal at the end of a drainage profile, reducing the risk of leaks and debris entry. Its compatible dimensions match the UN SYSTEM 1000×63 profile, enabling straightforward installation without the need for custom trimming. The component contributes to a durable finish for drainage runs and supports standard maintenance and cleaning procedures for runoff channels.

Suitable for

• Closing the right end of a 1000×63 drainage profile in new construction
• Finishing drainage runs during renovation of outdoor paved areas
• Forming a sealed termination for runoff channels in commercial and residential projects
• Use in assemblies where a right-side end cap is required for system continuity

Key specifications

• Designed for a drainage profile with nominal dimensions 1000×63
• Function: right-side termination / end cap for runoff channel
• Material compatibility: manufactured to match the UN SYSTEM 1000×63 components (material as supplied by manufacturer)
• Purpose: provides sealed closure to prevent water egress and debris ingress at the profile end

How to use

Position the right end cap at the open end of the UN SYSTEM 1000×63 profile, ensuring the mating surfaces are clean and free of debris. Align the cap so it sits flush with the profile edge and press or fix into place according to the UN SYSTEM installation practice—this may involve a snap-fit, adhesive, or mechanical fixing as appropriate for the on-site assembly. Verify the cap is seated evenly along the profile width and check for a continuous seal along the joint to prevent leakage.

Usage recommendations

For best results, inspect the profile end and the cap for damage before installation, clean contact surfaces, and follow the manufacturer’s guidance for fixing methods and compatible sealing materials. Regular inspection after installation will help maintain a watertight termination and prolong the service life of the drainage assembly.
