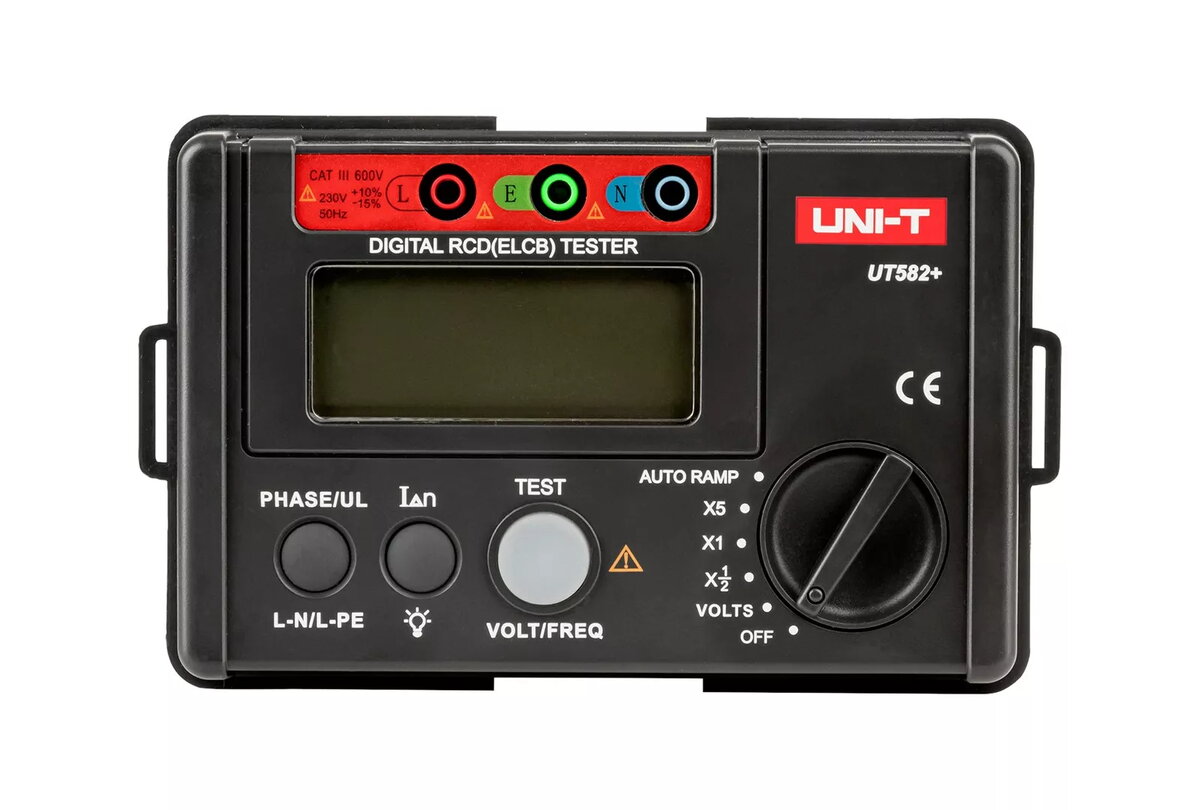

Residual Current Device (RCD) Tester Unit Uni-T UT582+ — Portable Digital RCD/RCCB Test Instrument

The Residual Current Device (RCD) Tester Unit Uni-T UT582+ is a portable digital instrument for verifying the operation of residual current devices (RCD/RCCB) in electrical installations. The handheld tester supplies controlled trip currents and measures trip times to confirm that protective devices operate within specified thresholds. It is intended for use during commissioning, periodic inspection, troubleshooting of nuisance tripping and validation of earth-fault protection performance in domestic and commercial environments.

Advantages

The Unit Uni-T UT582+ combines portability with straightforward measurement functions, providing accurate trip-current injection and trip-time measurement in a compact housing. Its digital display and simple controls permit clear reading of test results and reduce the chance of operator error. The tester supports a range of test currents and offers repeatable output to aid consistent verification of RCD sensitivity and response time.

Suitable for

• Commissioning of new electrical installations in homes and small commercial premises
• Periodic inspection and testing to verify RCD/RCCB performance
• Troubleshooting and locating causes of nuisance or unwanted trips
• Verification of earth-fault protection in distribution boards and socket circuits

Key specifications

• Function: Injection of controlled residual fault currents and measurement of trip time
• Display: Digital readout for current and time measurements
• Supply: Battery-powered for portable field use
• Outputs: Multiple selectable test current levels to check different sensitivity classes
• Operation: Handheld form factor with ergonomic controls suitable for single-person testing
• Safety: Designed for use on low-voltage AC installations with appropriate test leads and procedures

How to use

Connect the tester to the circuit under test following the manufacturer’s test-lead connection scheme and ensure the circuit is isolated or the live parts are protected according to local safety rules. Select the required test current value and initiate the test; the instrument will inject the selected residual current and stop when the protective device under test trips. Read the trip current and trip time from the digital display and record results for comparison with applicable standards or installation requirements. Repeat tests as needed at different current levels to confirm correct operation across rated sensitivities.

Usage recommendations

Always follow local electrical regulations and safe work practices when performing RCD tests. Use appropriate personal protective equipment, verify the correct wiring of the circuit before testing, and avoid applying test currents to circuits with sensitive electronic equipment connected unless equipment is isolated. Keep batteries charged and inspect test leads for damage before use to ensure accurate and safe measurements.
