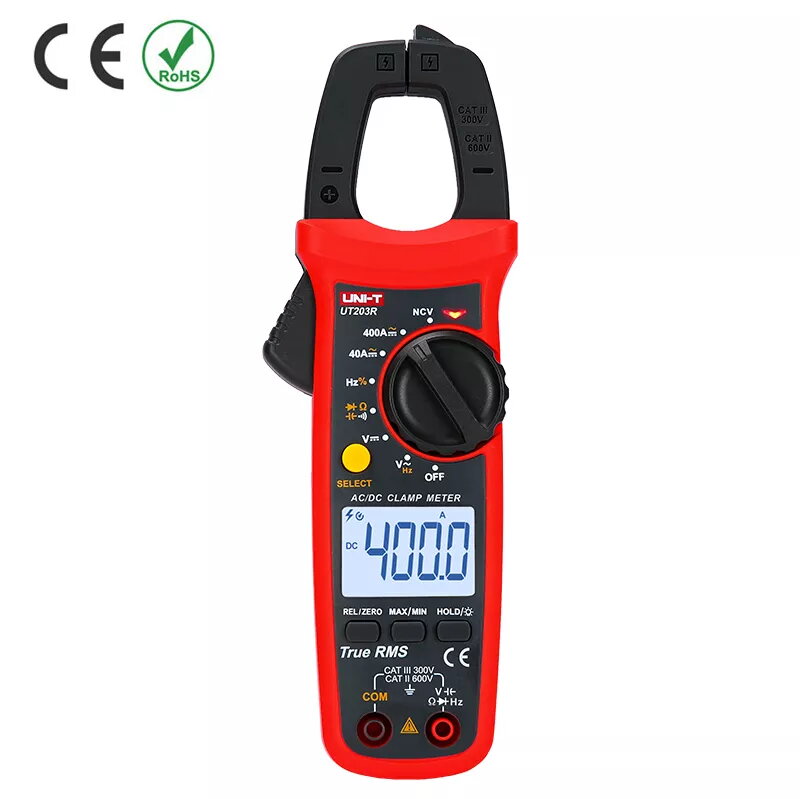

Clamp Meter Unit UT203R — AC/DC Current, Voltage, Resistance, Frequency Measurement, CAT II/CAT III

The Unit UT203R is a versatile digital clamp meter engineered for precise measurement of AC/DC current, voltage, resistance, and frequency. This professional-grade tool integrates a reliable jaw-style current sensor with essential multimeter functions, making it an indispensable asset for electrical troubleshooting, circuit testing, and routine maintenance. Designed with portability in mind, the device features a compact housing that allows for easy handling during on-site diagnostics, while its robust construction ensures safety and accuracy in various electrical environments.

Advantages

The primary benefit of the UT203R is its ability to perform non-contact current measurements, which significantly enhances safety by reducing the need to disconnect circuits. Its dual-range capability for AC and DC current provides flexibility for diverse industrial and residential applications. The inclusion of CAT II and CAT III safety ratings offers peace of mind when working on higher-voltage installations. Furthermore, the ergonomic design and clear digital display facilitate efficient data reading, even in challenging lighting conditions, ensuring that technicians can perform their tasks with greater speed and precision.

Suitable for

• Troubleshooting electrical installations in residential and commercial buildings
• Measuring current in automotive electrical systems
• Routine maintenance of HVAC equipment and industrial machinery
• Testing circuit continuity and verifying voltage levels
• Frequency monitoring in electronic control systems

This device may not be suitable for high-precision laboratory measurements where extreme accuracy beyond standard industrial tolerances is required. It is also not designed for measuring extremely high currents that exceed the specified jaw capacity or for use in environments with explosive gases or high-moisture conditions that fall outside its IP rating.

Key specifications

• AC/DC Current measurement capability
• Voltage measurement for AC and DC circuits
• Resistance and frequency measurement functions
• Safety ratings: CAT II 600V and CAT III 300V
• Jaw-style current sensor for non-contact testing
• Compact and portable design

To use the clamp meter, first select the appropriate measurement mode using the rotary dial. For current measurements, open the clamp jaws and enclose a single conductor, ensuring the jaws are fully closed for an accurate reading. For voltage or resistance measurements, connect the provided test leads to the input terminals and touch the probes to the target points. Always ensure the device is set to the correct range before making contact with live circuits to prevent damage to the meter.

What to consider before purchase

• Ensure the maximum current capacity meets your specific project requirements
• Verify that the safety rating matches the voltage levels of your intended work environment
• Check if the jaw size is compatible with the diameter of the cables you intend to measure
• Consider the need for additional accessories like carrying cases or replacement leads

For optimal performance and safety, always inspect the test leads for damage before use and ensure the meter is calibrated periodically. Avoid measuring current on multiple conductors simultaneously, as this will lead to inaccurate readings.
