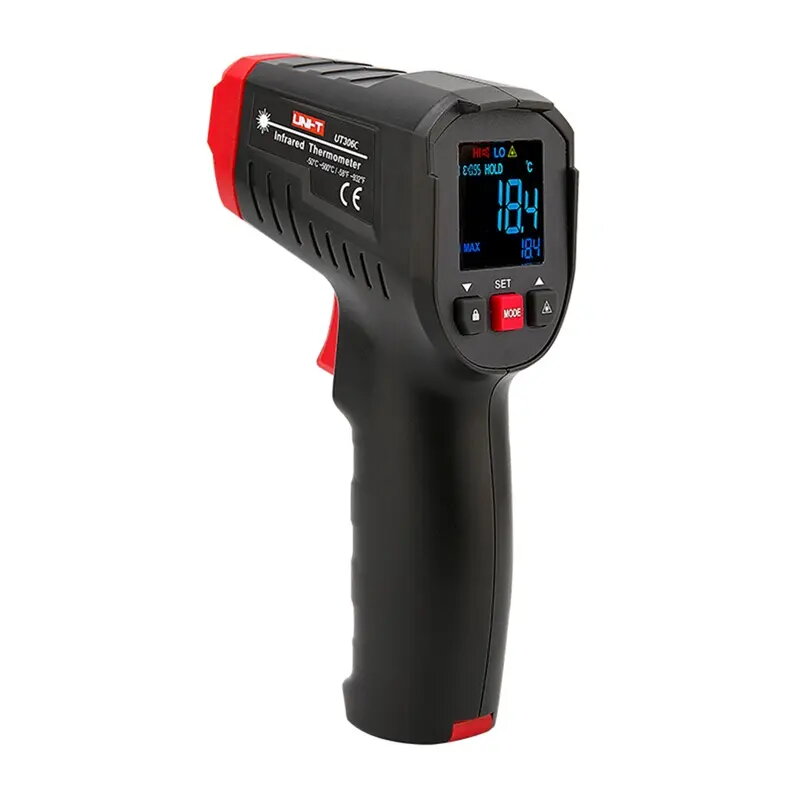

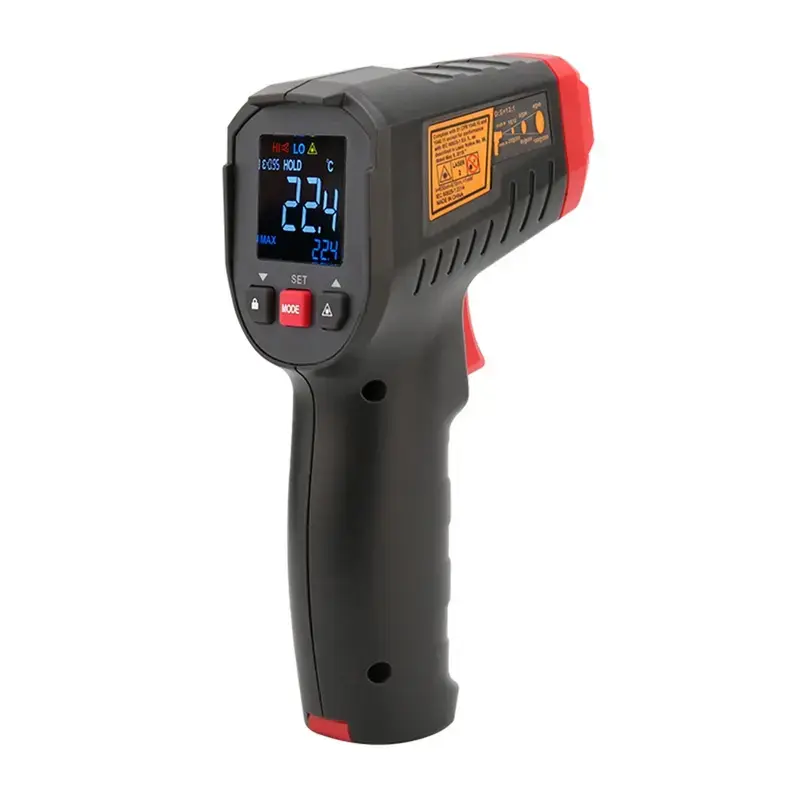

Infrared thermometer Unit UT306C — non-contact temperature meter, range -40 to 300°C

UNI-T UT306C infrared thermometer is a handheld non-contact device for measuring surface temperature from a distance. It covers a wide temperature range from -50°C to 500°C, offers selectable °C/°F units, an EBTN‑LCD display and functions for MAX, MIN, AVG and DIF values. The thermometer includes an adjustable emissivity setting (0.10–1.00), an integrated laser pointer (class 2) to target the measurement area, and automatic power-off with a low battery indicator. The UT306C meets CE and UKCA standards and is designed for use in industrial and commercial environments.

Advantages

The UT306C provides fast, safe temperature readings without physical contact, which is useful for hard‑to‑reach or hazardous areas. Its 12:1 distance-to-spot ratio and rapid ≤250 ms response time enable efficient measurements. The instrument supports data hold, audible high/low alarms, and multiple measurement modes (MAX/MIN/AVG/DIF) for analysis. Durable housing, drop resistance from 1 m, compact dimensions and low weight make the device convenient to carry and operate.

Key specifications

• Manufacturer: UNI-T
• Model: UT306C
• Certifications: CE, UKCA
• Temperature range: -50°C to 500°C
• Accuracy: ±2°C or ±2%
• Resolution: 0.1°C
• Distance-to-spot ratio (D:S): 12:1
• Response time: ≤250 ms
• Emissivity: adjustable 0.10–1.00
• Laser: circular pointer, class 2, <1 mW, wavelength 630–670 nm
• Spectral range: 8 µm–14 µm
• Display: EBTN‑LCD
• Units: °C / °F
• Functions: MAX / MIN / AVG / DIF, data hold, auto power off
• Audible alarm: high/low temperature alarm built-in
• Power supply: 2 × 1.5 V AAA batteries
• Drop resistance: 1 m
• Dimensions: 146 × 78 × 45 mm
• Weight: 161.5 g
• Color: red, gray

How to use

Point the thermometer at the surface to be measured, keeping the device aligned so the laser targeting circle covers the intended spot. Maintain an appropriate distance according to the 12:1 D:S ratio to ensure the measurement area matches the target. Select °C or °F as needed and enable or disable the laser pointer. Press the trigger to measure; the reading appears on the EBTN‑LCD within the device’s ≤250 ms response time. Use emissivity adjustment for different surface types, and employ MAX/MIN/AVG/DIF functions or data hold for analysis. Replace the two AAA batteries when the low battery indicator appears and store the device in a dry place when not in use.

Рекомендации

Для точных результатов учитывайте дистанцию до объекта в соответствии с коэффициентом 12:1 и устанавливайте эмиссивность в соответствии с типом поверхности. Избегайте измерений через прозрачные материалы (стекло, пластик) и при наличии сильного воздушного потока. Для длительной работы используйте качественные щелочные батареи и периодически проверяйте целостность корпуса после падений.
