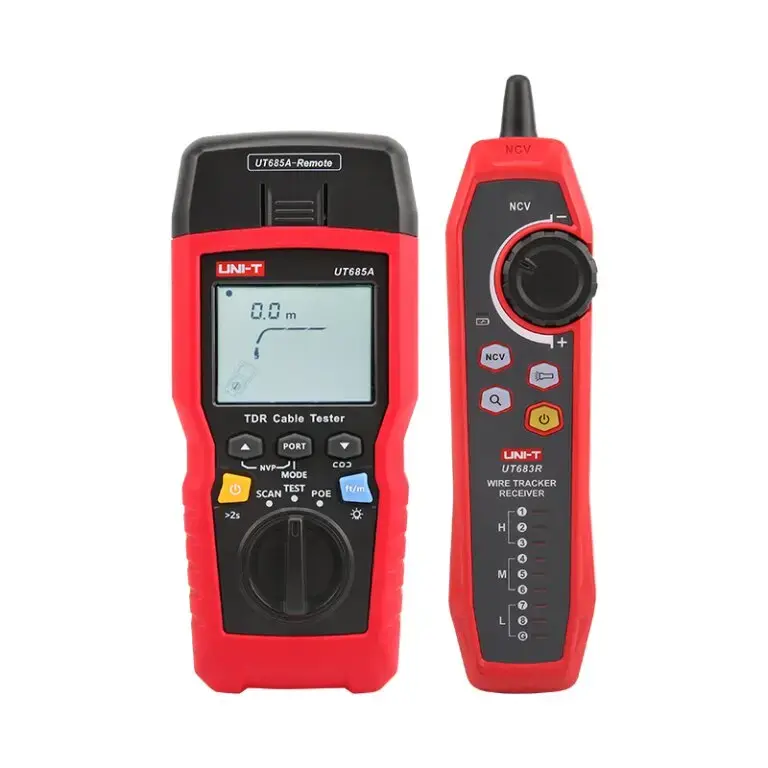

Unit UT685A KIT Cable Tester for RJ45, RJ11, Ethernet ports with 300m range and PoE support for 802.3AF, 802.3AT, and 802.3BT standards

The Unit UT685A KIT Cable Tester is a professional-grade diagnostic tool designed for verifying network and telephone installations. Engineered to meet the demands of modern cabling infrastructure, this device provides reliable testing capabilities for RJ45 and RJ11 interfaces, ensuring proper connectivity and performance. With an operational distance of up to 300 meters and integrated Ethernet port testing, it serves as an essential instrument for technicians working on complex setups. Furthermore, it features comprehensive Power over Ethernet detection, supporting 802.3AF, 802.3AT, and 802.3BT standards to accurately evaluate power delivery across network lines.

Advantages

The Unit UT685A KIT offers exceptional versatility for network installation and maintenance professionals through its multi-functional testing capabilities. Its extended range of up to 300 meters allows technicians to test long cable runs without moving equipment or guessing connection integrity. The inclusion of support for standard PoE protocols up to 802.3BT ensures that modern power-supplying equipment can be thoroughly checked for compliance and operational readiness. Additionally, the dedicated Ethernet port testing functionality streamlines the identification of wiring faults, saving valuable time during troubleshooting procedures.

Suitable for

• Testing RJ45 network cables and RJ11 telephone lines
• Verifying cable installations up to 300 meters in length
• Diagnosing Ethernet port connectivity issues
• Detecting and evaluating PoE standards including 802.3AF, 802.3AT, and 802.3BT
• Professional network technician troubleshooting and maintenance tasks

When it may not be suitable

This cable tester may not be suitable for individuals working exclusively with fiber optic cabling infrastructure, as it is specifically designed for copper-based RJ45 and RJ11 interfaces. Additionally, casual users or hobbyists with very infrequent cabling needs might find the advanced professional features and PoE detection capabilities beyond their typical requirements.

Key specifications

• Supported interfaces: RJ45, RJ11, Ethernet ports
• Maximum operating range: 300 meters
• Supported PoE standards: 802.3AF, 802.3AT, 802.3BT
• Application: Network and telephone cable testing and troubleshooting

How to use

To begin testing, connect the appropriate end of the cable to the corresponding RJ45 or RJ11 port on the tester or remote identifier. Power on the device and select the desired testing mode depending on whether you are verifying basic continuity, cable length, or PoE status. Review the display screen for real-time results regarding wire mapping, distance, and power supply standards. Ensure the cable is disconnected from live high-voltage power sources before initiating diagnostic tests to prevent damage to the equipment.

What to consider before purchase

• Verify that your primary testing requirements involve copper RJ45 and RJ11 cabling rather than fiber optics
• Check if your networking environment utilizes PoE standards such as 802.3AF, 802.3AT, or 802.3BT that require detection
• Confirm that the maximum 300-meter operational range meets the scale of your installations

Usage recommendations

Always inspect the unit and test leads for any signs of physical damage before starting operations. Store the cable tester in a dry, temperature-controlled environment when not in use to protect the internal electronic components and ensure long-term measurement accuracy.
