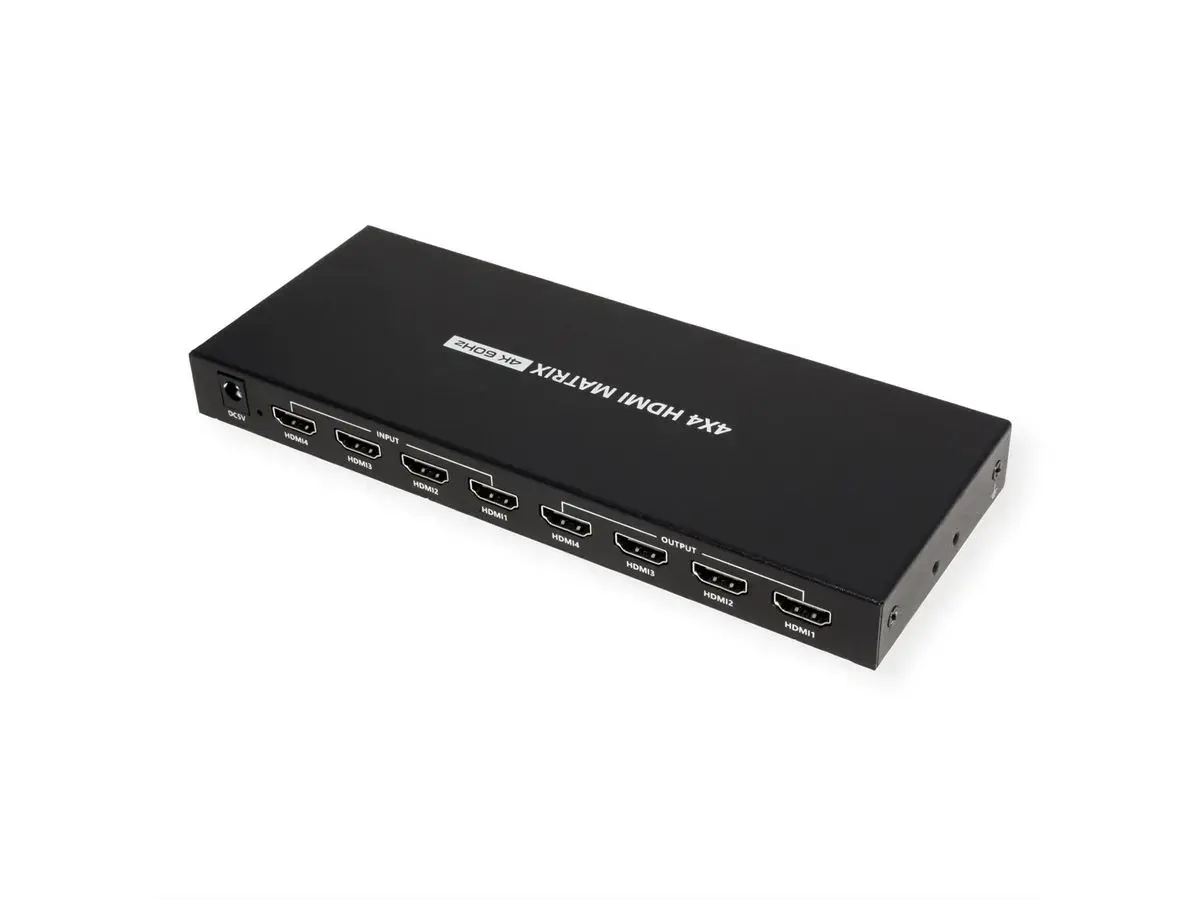

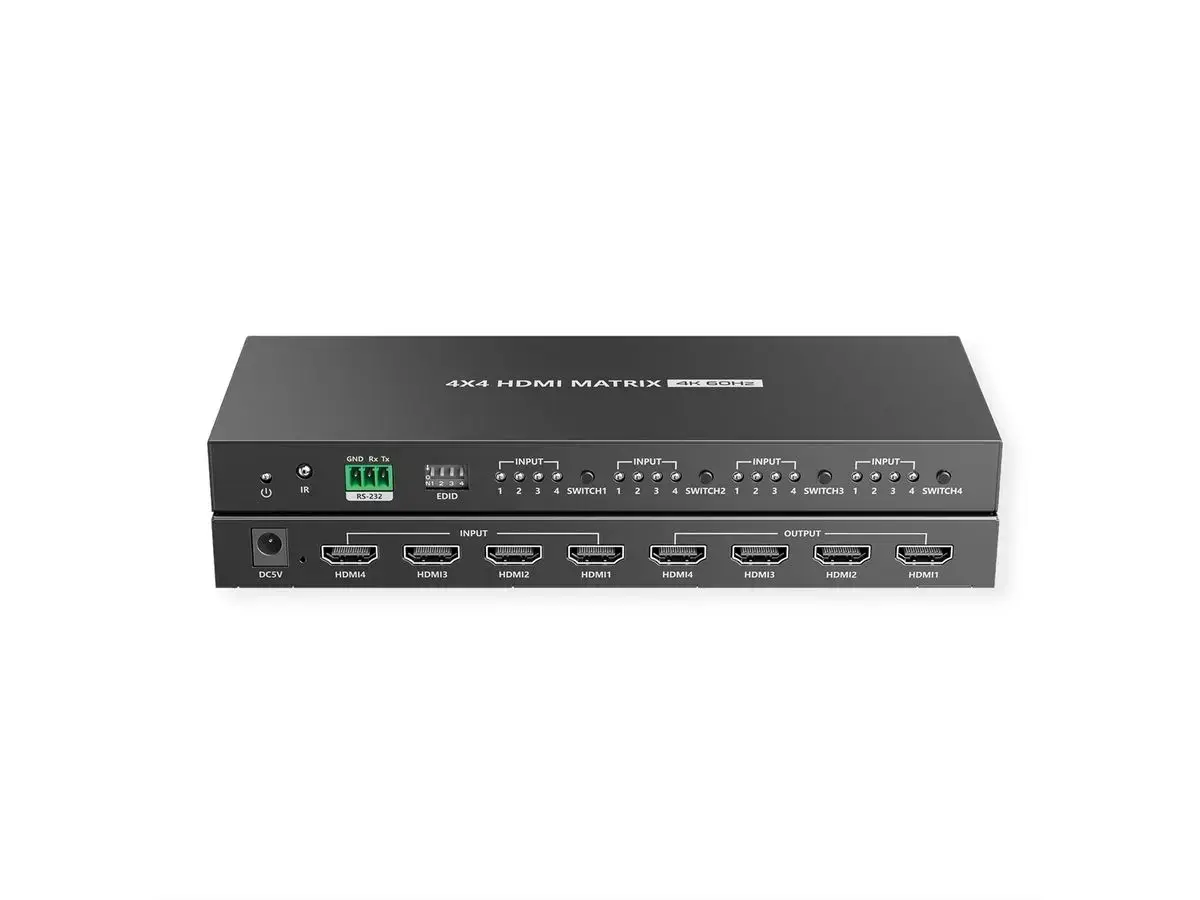

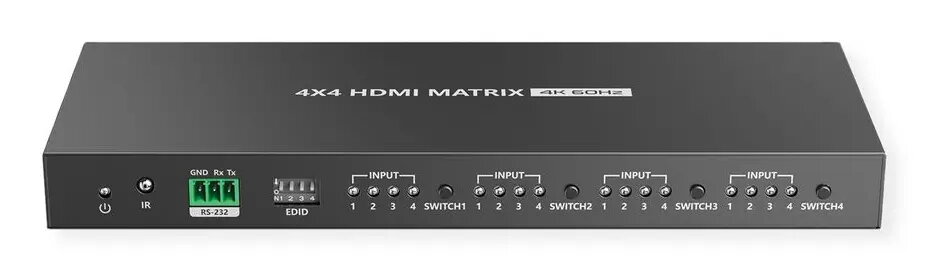

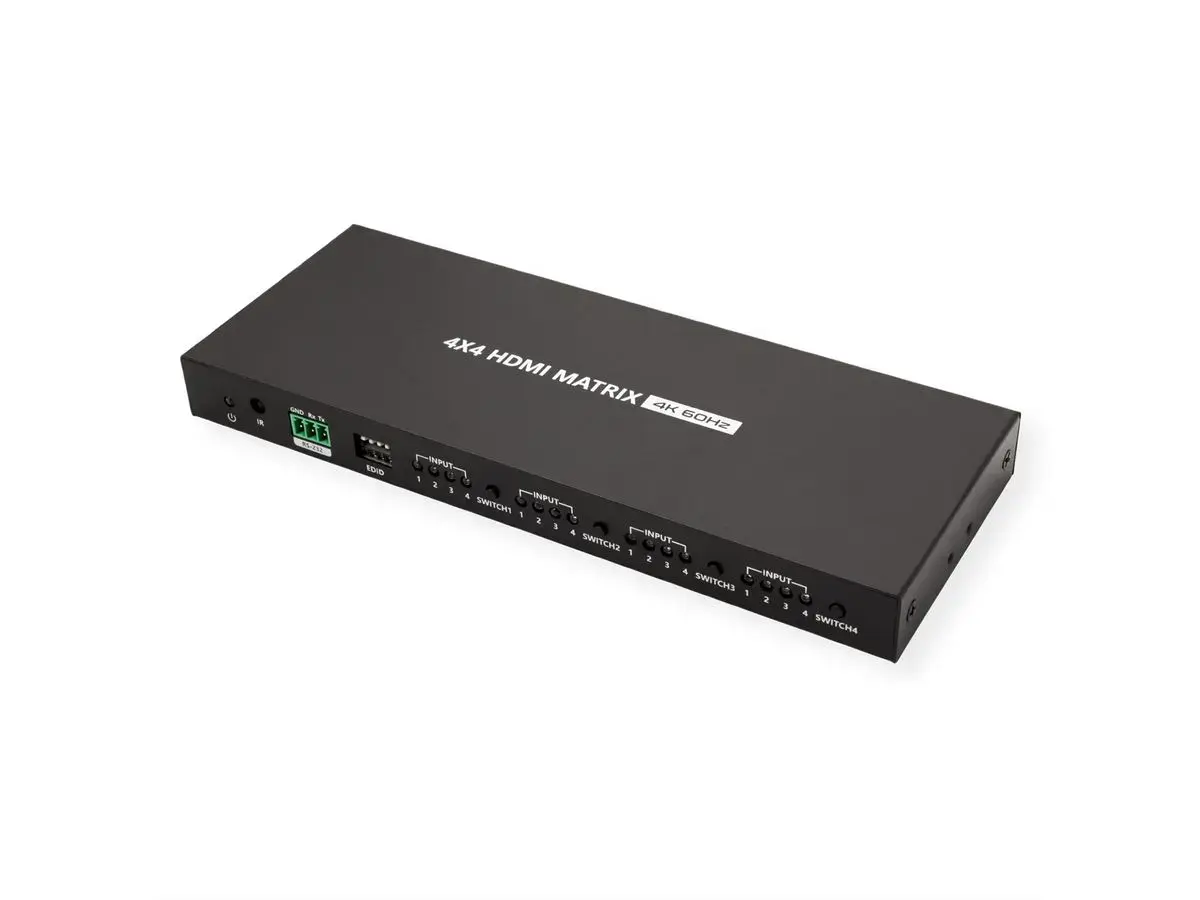

AV matrix switcher VALUE 14.99.3593 18 Gbit/s 4096 x 2160 Black

Housing colour: The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment.

Black

HDMI input ports quantity:

4

HDMI output ports quantity:

4

Technical details

Product type: The sub-category of the product.

AV matrix switcher

Packaging data

Package height: The distance from the top to the bottom of the packaging.

90 mm

Package width: The distance from one side of the packaging to the other.

180 mm

Package weight: Weight of the packaged product.

700 g

Package depth: The distance from the front to the back of the packaging.

180 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.375 kg

Height: The measurement of the product from head to foot or from base to top.

21 mm

Depth: The distance from the front to the back of something.

80 mm

Width: The measurement or extent of something from side to side.

210 mm

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-30 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60

Packaging content

Manual:

Yes

Ports & interfaces

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

1

Power

Input current:

1

AC input voltage: The voltage of the AC electricity that is inputted into the product.

5

Features

Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

4096 x 2160

Audio decoders: Device or software capable of decoding a digital stream of audio e.g. internet radio.

DTS-HD, Dolby Atmos, Dolby TrueHD

Audio formats supported: The audio formats which this device or software can read/use e.g. MP3, MP4.

LPCM

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

18 Gbit/s

Extended display identification data (EDID):

Yes

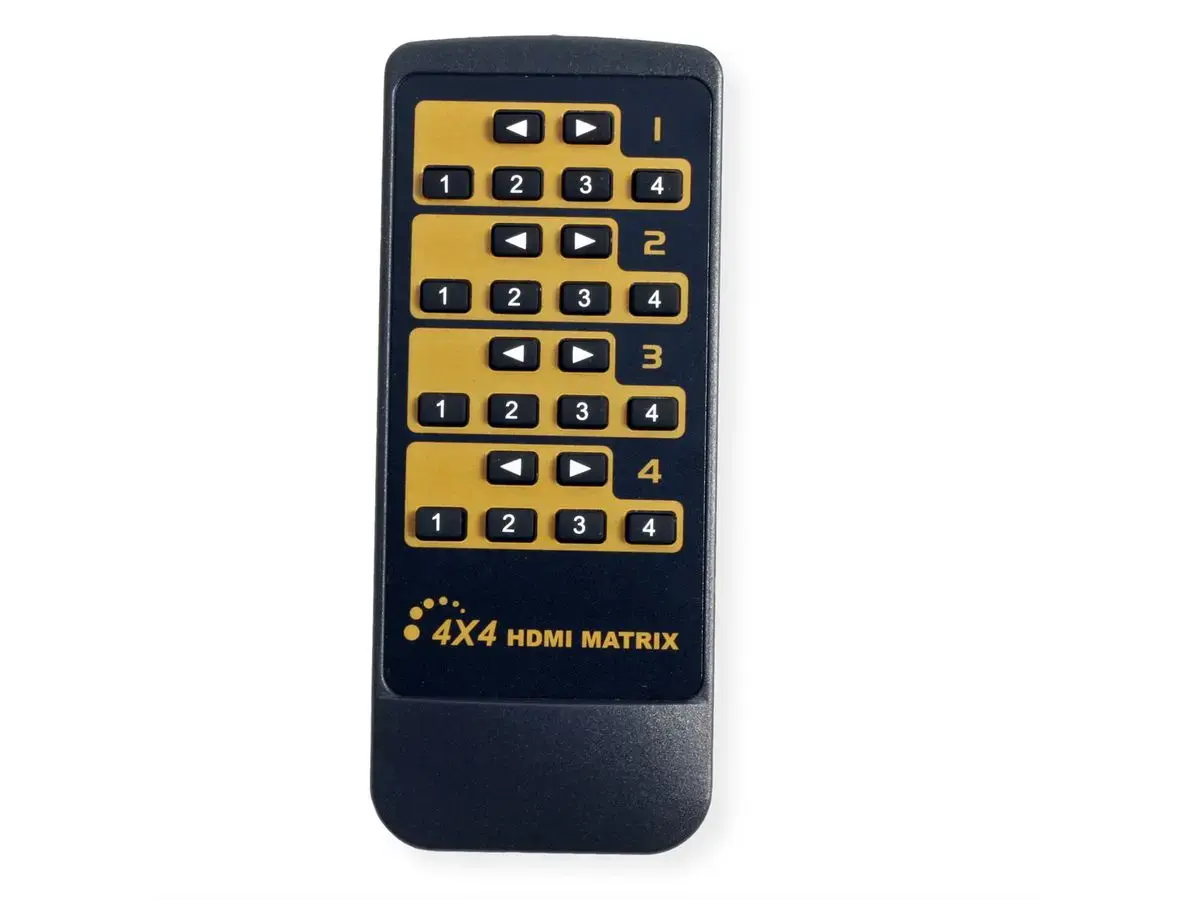

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

HDCP version:

1.4/2.2
