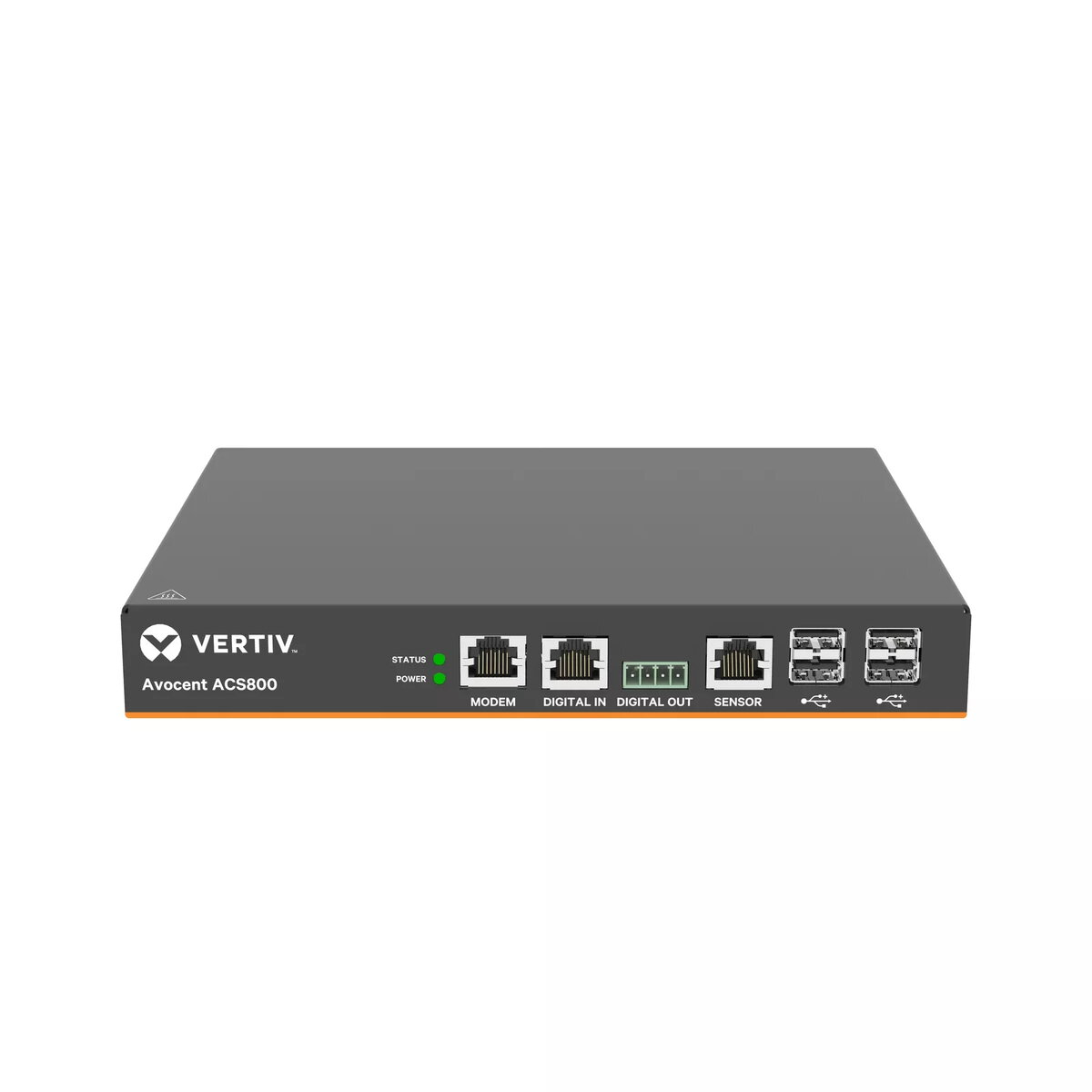

Serial Console Vertiv Avocent 4-Port ACS800

Name: Serial Console Vertiv Avocent 4-Port ACS804MEAC-404
Brand: Vertiv
SKU: 4291905
Price: 1069.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Vertiv Avocent 4-Port ACS800 Serial Console provides secure remote management with support for CLI, HTTP/HTTPS, and SNMP protocols. It features multiple authentication methods including LOCAL, RADIUS, LDAP, TACACS+, and OTP. Security is enhanced with algorithms like 3DES and AES up to 256-bit. The console operates on embedded Linux and has a compact design (212.6 x 181.9 x 29.5 mm, 1.09 kg) for easy integration.

Available at price 1,069.99 €: 8 pcs.

Total available for order: 16 pcs.

Warranty: 2 Years

SKU: 4291905

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

27.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.09.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.09 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

01.09.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 37.24 euros per month

Available for private customers at price 1,293.49 €: 8 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Vertiv Avocent 4-Port ACS800 serial console delivers secure out-of-band and remote management for network and IT equipment. Designed for compact deployment at the edge, this console supports CLI, HTTP/HTTPS and SNMP protocols and offers multi-method authentication including local accounts, RADIUS, LDAP, TACACS+ and one-time-passwords. Security is strengthened by cryptographic support including 3DES and AES up to 256-bit. The device runs an embedded Linux operating system and integrates serial access (RS232/RS485/RS422), USB connectivity, Gigabit Ethernet and environmental sensor monitoring in a small chassis suitable for racks, cabinets or distributed sites.

Advantages

The ACS800 combines enterprise-class remote management functionality with a compact, low-weight form factor for easier installation in constrained spaces. It supports multiple serial interfaces and USB ports for broad device compatibility, integrated environmental sensor support for monitoring temperature, humidity and other conditions, and event logging with timestamps for troubleshooting and compliance. Strong authentication options, secure communication protocols and hardware-assisted features enable reliable out-of-band access for network administrators and regional IT teams.

Подходит для

Удалённое управление серверами, сетевым оборудованием и инфраструктурой в филиалах и дата‑центрах
Мониторинг окружающей среды и событий в стойках и распределённых помещениях
Организаций с требованиями к безопасному доступу: финансы, розница, образование и муниципальные структуры
Сценариев резервного доступа и аварийного управления при недоступности основного канала связи

Key specifications

Protocol support: CLI, HTTP/HTTPS, SNMP for remote management and monitoring
Authentication: local accounts, RADIUS, LDAP, TACACS+, OTP
Encryption: 3DES and AES up to 256‑bit for secure communication
Serial interfaces: RS232, RS485, RS422 for console connections
Network: Gigabit Ethernet port for LAN and remote access
USB: multiple USB ports for attaching devices and peripherals
Environmental monitoring: sensor port supporting temperature, humidity, differential pressure, leak and door sensors with daisy‑chain capability
Operating system: embedded Linux tailored for console management
Dimensions and weight: compact chassis suitable for rack or cabinet placement

How to use

Install the console in a rack or mount it in a location with network connectivity. Connect serial console cables to target devices using the appropriate RS232/RS485/RS422 ports and attach USB peripherals as required. Connect the Ethernet interface to your management network and configure network settings via the web interface or CLI. Register authentication sources (local, RADIUS, LDAP, TACACS+) and configure encryption and access policies. Attach environmental sensors to the sensor port and configure thresholds and alerting for event notifications and logging.

Usage recommendations

Place the console on a secure management VLAN or out-of-band network segment, enable strong authentication and encryption, and regularly export event logs for compliance. Use environmental sensors to detect conditions that could affect equipment availability and integrate with centralized management tools for consolidated monitoring.

All features

Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.: 667 MHz
Internal modem: Device inside a computer, cash register etc. that enables it to communicate over a network.: Yes
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).: 212.6 x 181.9 x 29.5
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 1.089 kg
Certification:: FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea)
Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 7 W
Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.: SSH-2, SSH, SNMPv3, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Management protocols:: CLI, HTTP/HTTPS, SNMP
Flash memory:: 16000 MB
Number of power supply units:: 1
Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: IPv6
Safety: List of regulatory safety standards for all countries in which this product has been certified.: UL (USA), cUL (CANADA), EN-60950 (EU), CB, Customs Union (CU)
Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -20 - 90
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70
Serial ports quantity: The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.: 4
Storage relative humidity (H-H):: 5 - 95
Authentication method:: LOCAL, RADIUS, LDAP, TACACS+ and ONE TIME PASSWORD(OTP)
Product colour: The colour e.g. red, blue, green, black, white.: Black
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 4
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 2
Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.: Embedded Linux
Card reader integrated: A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.: No
Web-based management: Using a website/web application to manage something.: Yes
Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).: 2
IP address filtering:: Yes
Event logging:: Yes
RAM capacity:: 1024 MB
Console port:: RJ-45
Copper ethernet cabling technology:: 1000BASE-T, 100BASE-T, 10BASE-T
Power source type: What the power source is.: DC, AC
Cable types supported:: Cat6a, Cat6+, Cat6, Cat5e, Cat5, Cat6e, Cat7, Fiber
AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240
DC input voltage:: 12
Power consumption (max): The maximum amount of power used by the device.: 28 W
Processor architecture:: ARM Cortex A9
RAM type: The type of RAM (random access memory) inside the device e.g. DDR3.: DDR3L
Temperature sensor:: Yes
eMMC capacity:: 16 GB
Zero Touch Provisioning (ZTP):: Yes
One-time password (OTP):: Yes
RSA SecurID:: Yes
IP forwarding support:: Yes
