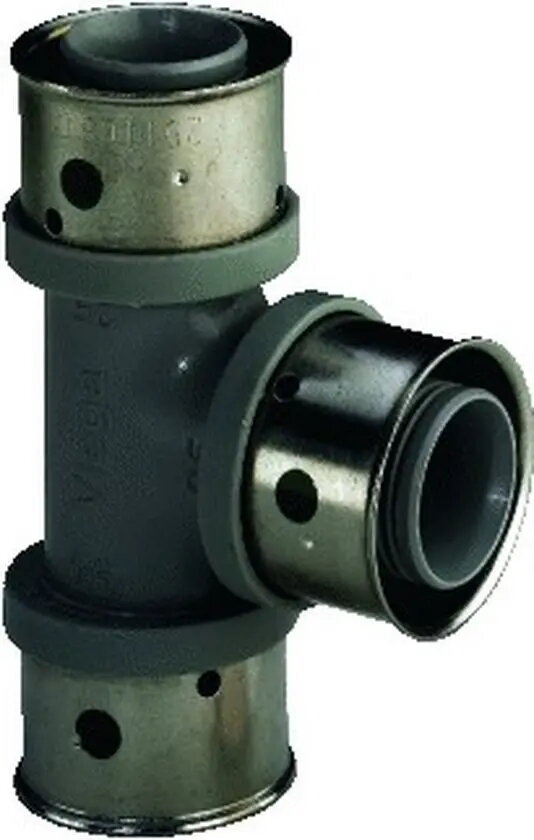

Pipe Tee Connector VIEGA 16 x 20 x 16 mm plastic, gray

The VIEGA Pipe Tee Connector 16 x 20 x 16 mm is a gray plastic fitting designed to create a T-junction in compatible plastic piping systems. It joins three pipe runs of the stated diameters to enable flow diversion, create a branch line or connect a return circuit. The fitting is intended for use in plumbing and heating installations where plastic pipe materials and the respective connection methods are compatible.

Advantages

This plastic tee connector offers a compact, lightweight design suitable for constrained installation spaces and repairs. Its uniform geometry supports reliable flow distribution between the main line and branch, while the plastic construction provides corrosion resistance and electrical insulation compared with metal fittings. The fitting is manufactured to match typical dimensional standards for the specified diameters, simplifying integration into existing plastic-pipe systems.

Suitable for

• Water distribution networks using compatible plastic pipes
• Heating circuit branches and auxiliary loops
• Repair, extension or modification of existing plastic piping
• Domestic and light-commercial plumbing installations

Key specifications

• Material: plastic
• Color: gray
• Connection form: tee for three pipe runs
• Pipe diameters: 16 mm (two ends) and 20 mm (branch)
• Application: plumbing and heating systems with compatible plastic pipes

How to use

Select compatible plastic pipes with the correct external diameters and prepare pipe ends according to the pipe and fitting manufacturer’s instructions. Ensure ends are cut square, deburred and cleaned. Insert or join pipes into the connector using the appropriate joining method for the pipe system in use (for example push-fit, adhesive, solvent welding or mechanical connection) and verify that connections are fully seated. After assembly, pressure-test the circuit in accordance with local codes and project requirements before placing the system into regular service.

Usage recommendations

When installing the VIEGA 16 x 20 x 16 mm tee, follow the installation instructions for the specific plastic piping system and use compatible tools and joining materials. Avoid excessive mechanical stress at the joint and observe temperature and pressure limits of the overall piping system. Perform leak and pressure tests after installation and before commissioning.
