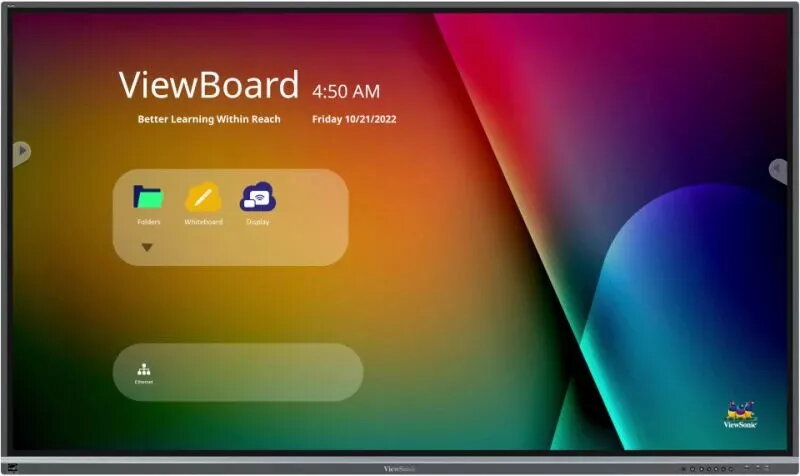

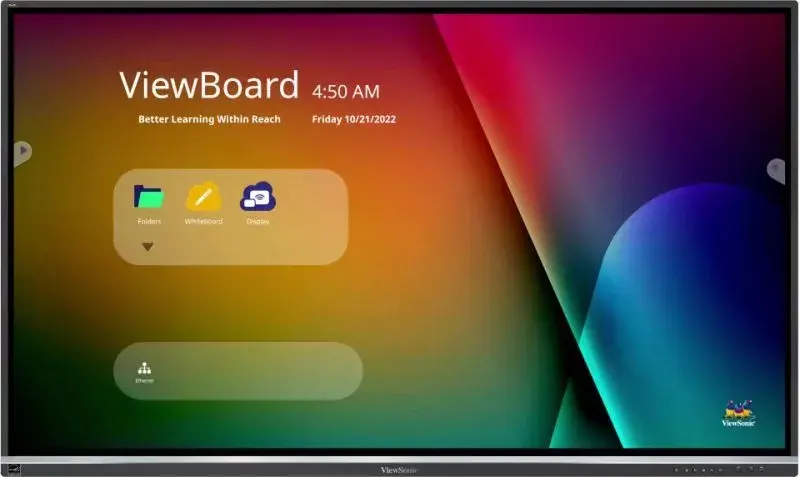

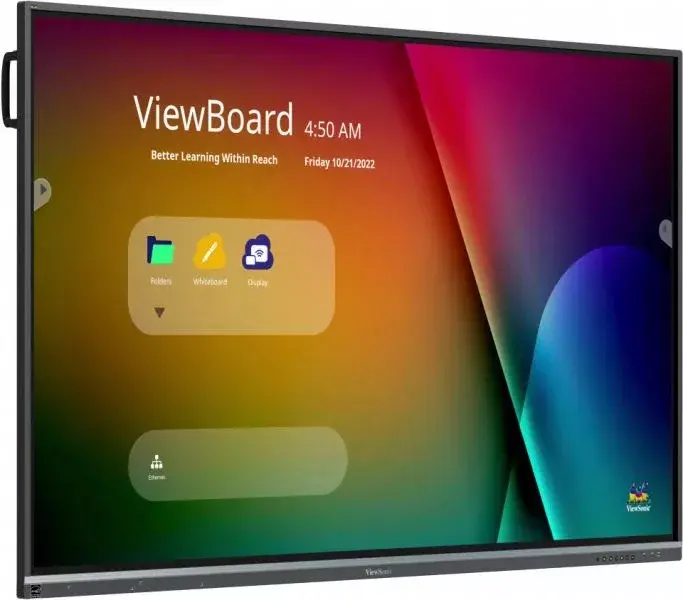

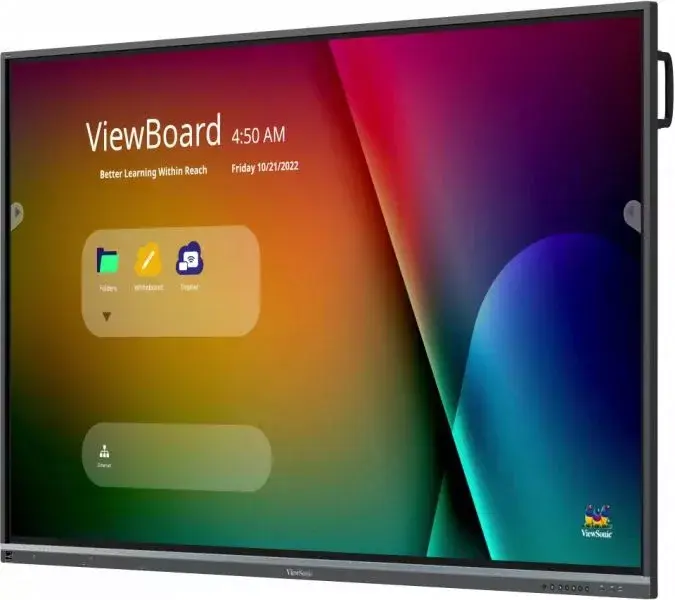

Interactive Whiteboard Viewsonic IFP7550-5F 75" Touchscreen Display 3840 x 2160

Maximum internal memory: The maximum internal memory which is available in the product.

64 GB

Speaker power:

20 W

Working area: The area that can be worked on.

1650.2 x 928.3

RGB ports quantity:

1

RAM capacity:

8 GB

Built-in projector: The device has an internal projector, to show images.

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity:

4

Touch resolution:

32768 x 32768

USB 3.2 Gen 1 (3.1 Gen 1) Type-A Touch ports quantity:

2

Other features

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

HDMI

USB connector type: The type of USB connector/port that this product has.

USB Type-A, USB Type-B

Subwoofer RMS power: This is a measure of the continuous power (RMS power) produced by a subwoofer.

15 W

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

3

Built-in subwoofer: The product has built-in subwoofer, which is a loudspeaker component designed to reproduce very low bass frequencies.

Yes

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

Headphone connectivity: How headphones connect to a device e.g. wirelessly or via a cable and connector.

3.5 mm

Technical details

OPS slot:

1

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

China

Quantity per pack:

1 pc(s)

Thin Client

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

4

Network

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

100, 10

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Certificates

Certification:

cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Packaging content

Cables included:

USB, AC, HDMI

Mounting kit:

Yes

Batteries included:

Yes

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Stylus included:

Yes

Packaging data

Package weight: Weight of the packaged product.

71900 g

Package height: The distance from the top to the bottom of the packaging.

1140 mm

Package depth: The distance from the front to the back of the packaging.

280 mm

Package width: The distance from one side of the packaging to the other.

1930 mm

Mounting brackets included:

Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

53.9 kg

Height: The measurement of the product from head to foot or from base to top.

1020 mm

Depth: The distance from the front to the back of something.

90 mm

Width: The measurement or extent of something from side to side.

1710 mm

Power

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Power consumption (off):

0.5 W

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

135 W

Ergonomics

VESA mounting:

Yes

Ports & interfaces

RS-232 ports: The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

HDCP version:

2.2

HDMI version:

2.0

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

3

Design

Panel mounting interface: The product can be used wih VESA mounting interfaces.

800 x 400

Product colour: The colour e.g. red, blue, green, black, white.

Black

Computer system

Operating system version: The version of the operating system used e.g. 4.1, 4.2 for Android.

11

Operating system installed: Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Android

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

1.5 GHz

Processor architecture:

ARM Cortex-A73

Built-in processor: Whether or not a processor is built into the device.

Yes

Display

Display number of colours:

1.07 billion colours

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

178 °

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

178 °

Contrast ratio (dynamic): A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.

5000:1

Contrast ratio (typical): The difference in light intensity between the brightest white and the darkest black.

1200:1

Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

8 ms

Native aspect ratio: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:9

Number of simultaneous touchpoints:

20

Touchscreen: A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Yes

Display brightness: Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

400 cd/m²

Touch technology: Technology of touch sensetive screen e.g. dual-touch.

Multi-touch

Touchscreen type: There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.

Infrared

Panel type:

LCD

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD

LED backlighting type: Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.

Direct-LED

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

75 "

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

3840 x 2160

Performance

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

30000 h

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

Audio

Number of built-in speakers:

2

Built-in speaker(s): The device contains speaker(s) to produce sound.

Yes
