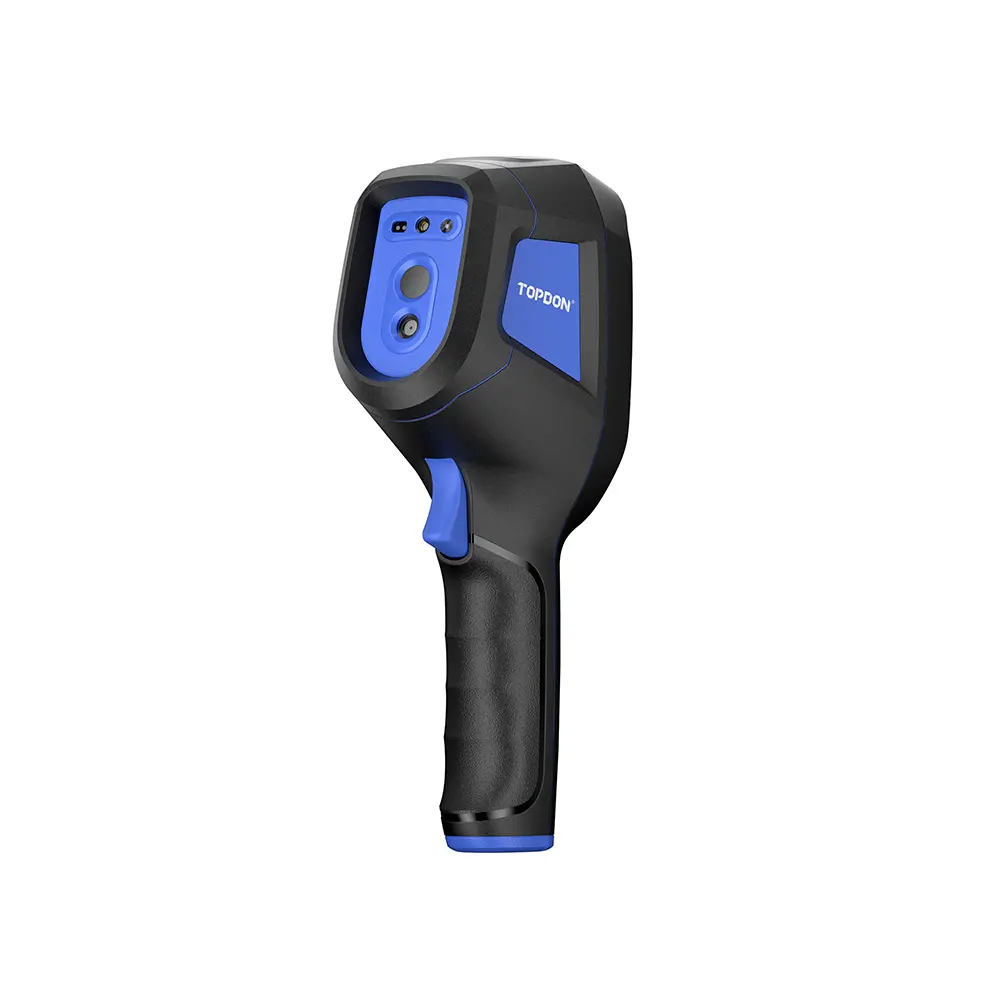

Thermal Camera Viking TOPDON TC005 Compact design High Resolution

Viking TOPDON TC005 Compact design High Resolution is a pocket-size thermal camera engineered for quick temperature inspection and thermal imaging. The device combines a compact form factor with high-resolution thermal detection to provide clear visualization of heat patterns. It is designed to assist technicians and inspectors in locating hotspots, thermal leaks, and insulation defects during building diagnostics, electrical and mechanical maintenance, and HVAC inspections.

Advantages

The compact design of the Viking TOPDON TC005 makes it easy to carry and deploy for fast spot checks and walkthrough surveys. High-resolution thermal sensing enhances the clarity of temperature gradients and small hot spots, while the portable housing enables use in confined spaces and at multiple inspection points. The unit's straightforward thermal imaging output simplifies interpretation and helps reduce the time required for troubleshooting.

Suitable for

• Building envelope and insulation inspection
• Electrical panel and wiring thermal checks
• Mechanical system and bearing temperature monitoring
• HVAC diagnostics and leak detection
• Preventive maintenance and facility surveys

Key specifications

• Compact, handheld form factor for portability
• High-resolution thermal imaging sensor for detailed temperature mapping
• Wide temperature detection range suitable for common inspection tasks
• Fast response for real-time thermal visualization
• Clear thermal contrast to identify hotspots and cold bridges

How to use

Power on the Viking TOPDON TC005 and allow the sensor to stabilize before beginning inspections. Aim the camera at the target area from a suitable distance to capture the full scene or specific components. Adjust the framing to include potential heat sources and background reference points for accurate interpretation. Capture thermal images or view live thermal output to identify temperature anomalies; compare hot and cold zones to surrounding materials to locate leaks, hotspots or insulation gaps. Use multiple viewing angles and revisit areas after corrective actions to confirm results.

Usage recommendations

For reliable inspection results, perform thermal imaging in stable ambient conditions and let the device acclimate when moving between significantly different temperatures. When inspecting electrical panels, follow safety procedures: maintain safe distance, de-energize equipment when required, and use appropriate personal protective equipment. For building diagnostics, combine thermal images with visual inspection and, if available, humidity measurements to better assess moisture-related issues.
